Product Description
With a robust 20-ton capacity and a powerful 118 kW engine, the Sany SY205C excavator offers exceptional performance and reliability. Featuring a backhoe bucket with a capacity of 0.9 to 1.1 cubic meters, this machine is designed for efficient digging and material handling. The full cab height of 3075 mm and minimum ground clearance of 440 mm ensure both operator comfort and stability on various terrains.
- Ground specific pressure of 47.3 Kpa enhances stability and reduces ground damage
- Maximum digging depth of 6600 mm and maximum excavation height of 9600 mm for versatile applications
- Travel speed up to 5.4 km/h and climbing ability of 70% / 35° for maneuverability in challenging environments
- Excellent cabin visibility and ergonomic controls for enhanced operator focus and productivity
| Specifications | Value |
|---|---|
| No. | 1022942 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |

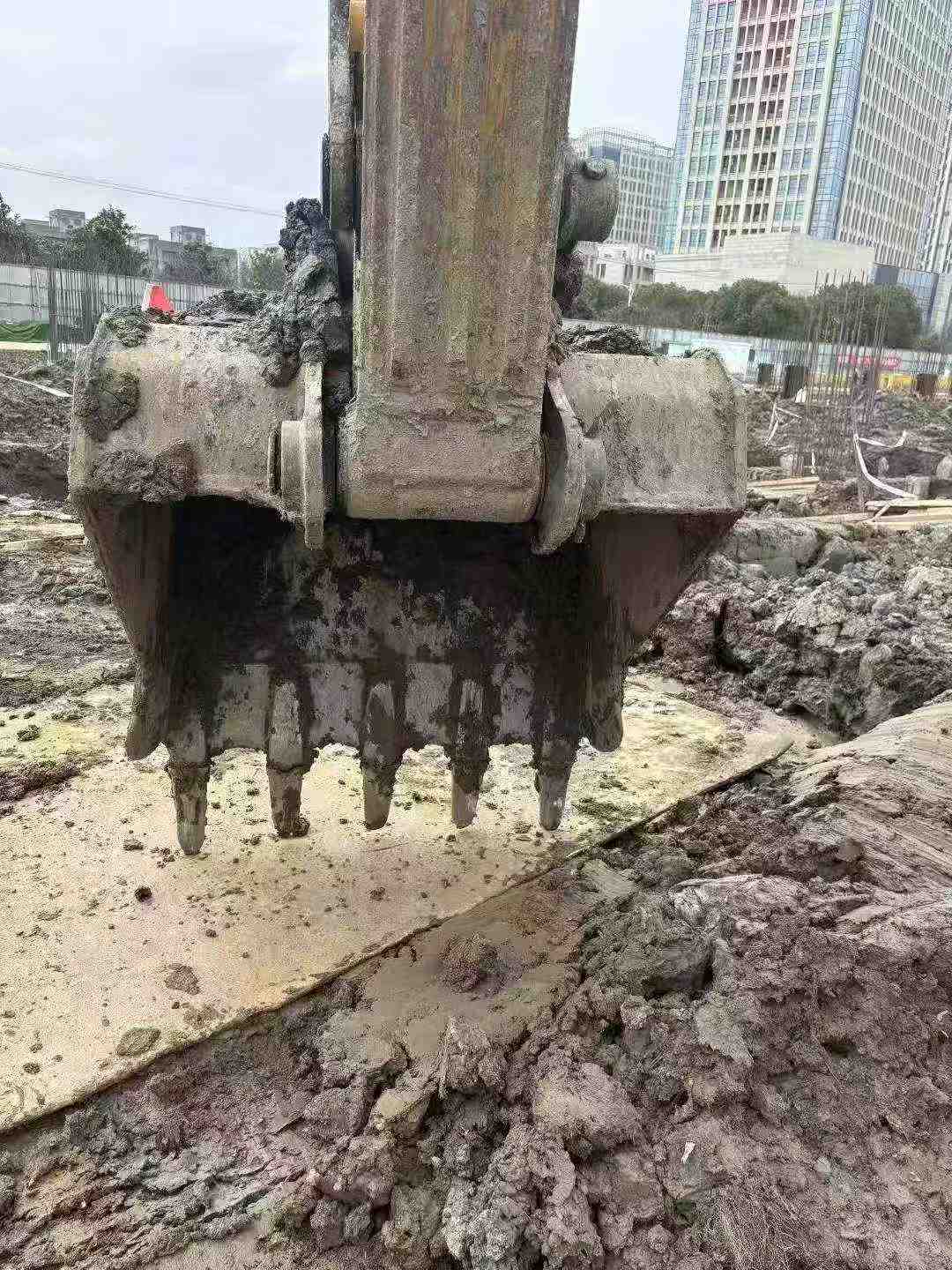

| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
