Product Description

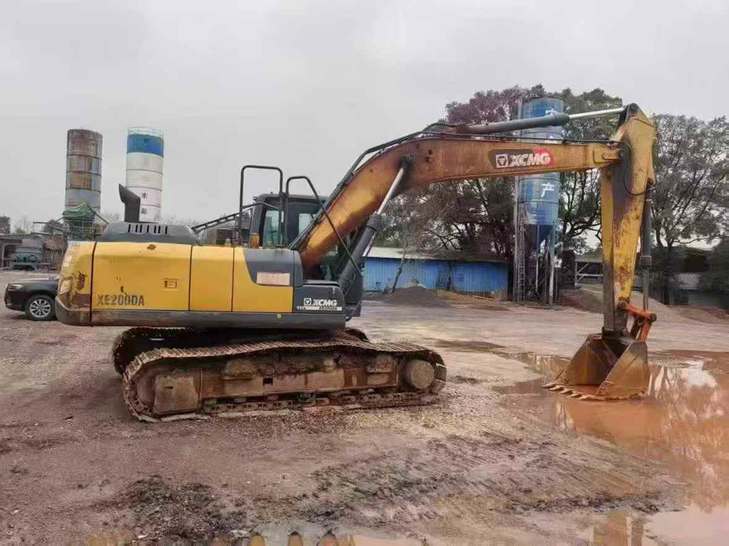

Featuring a robust 20-ton working weight and a powerful QSB7 engine, this 2020 XCMG XE200DA excavator is designed for immediate site readiness. With a bucket capacity of 0.93 m³ and a maximum digging depth of 6460 mm, it excels in excavation tasks. The machine's 149 kN bucket digging force and 121 kN rod digging force ensure efficient and effective performance in both digging and grading.
- Powerful QSB7 engine with 135 kW at 2050 rpm
- Maximum torque of 740 N.m at 1250 rpm
- Boom length: 5680 mm, Rod length: 2710 mm
- Travel speed: 5.3/2.9 km/h
- Fuel Tank: 400 L, Hydraulic Tank: 220 L
- Located in 湖南, ready for immediate use
| Specifications | Value |
|---|---|
| No. | 1020338 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2710 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 46.9 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 121 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/2.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2900 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Maximum digging radius (mm) | 9790 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9680 |
| Maximum unloading height (mm) | 6815 |
| Maximum vertical digging depth (mm) | 5590 |
