Product Description

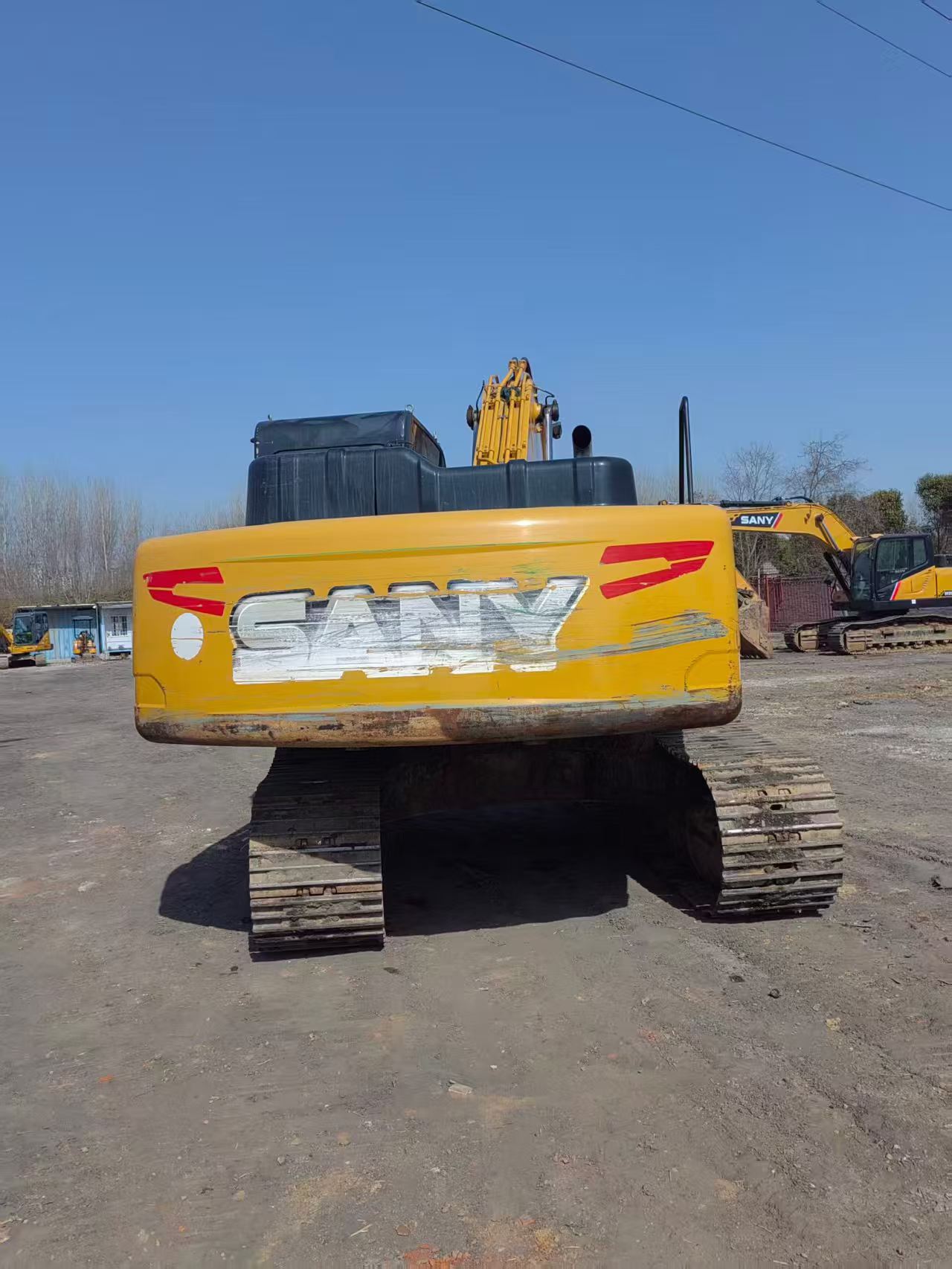

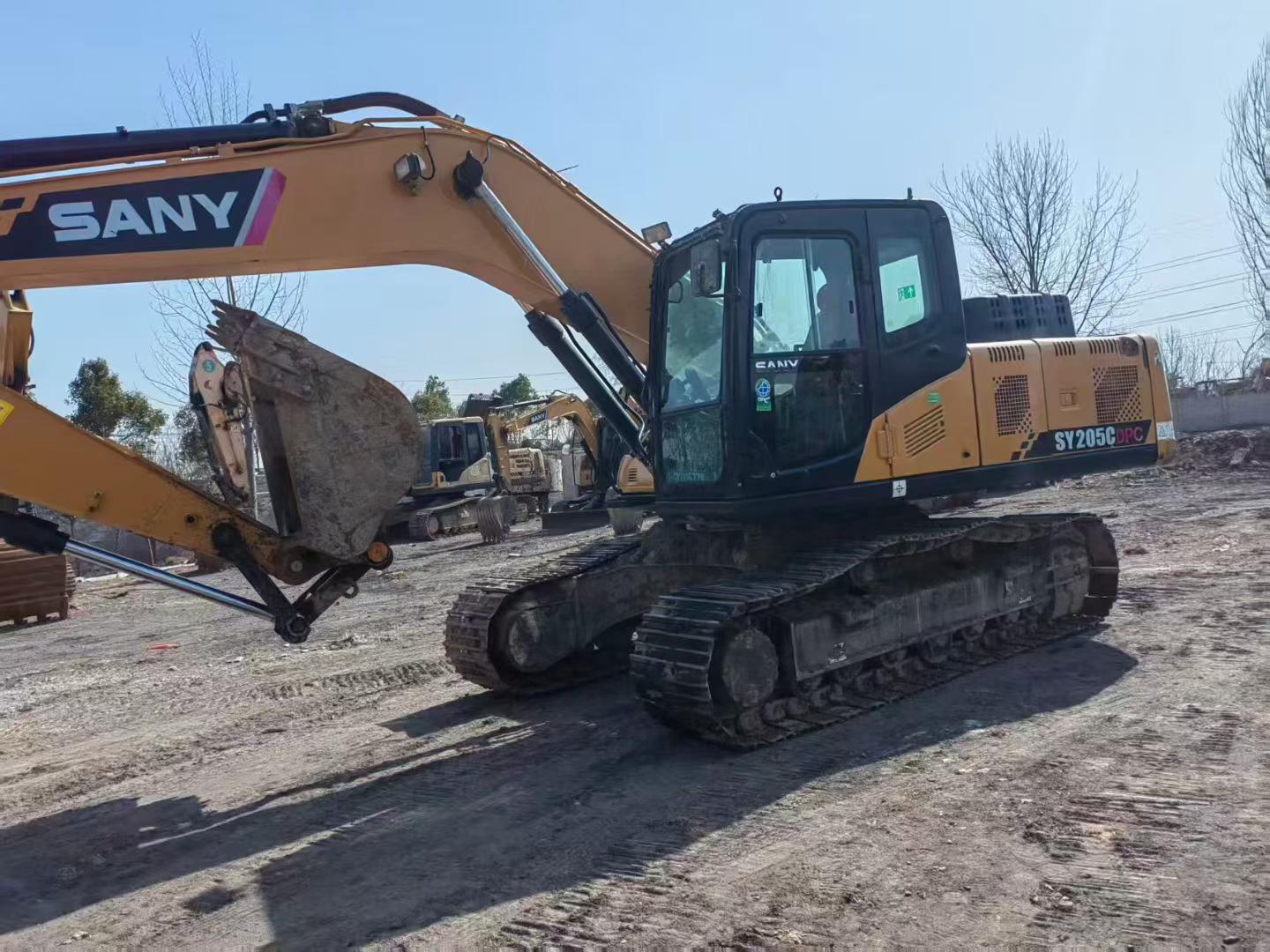

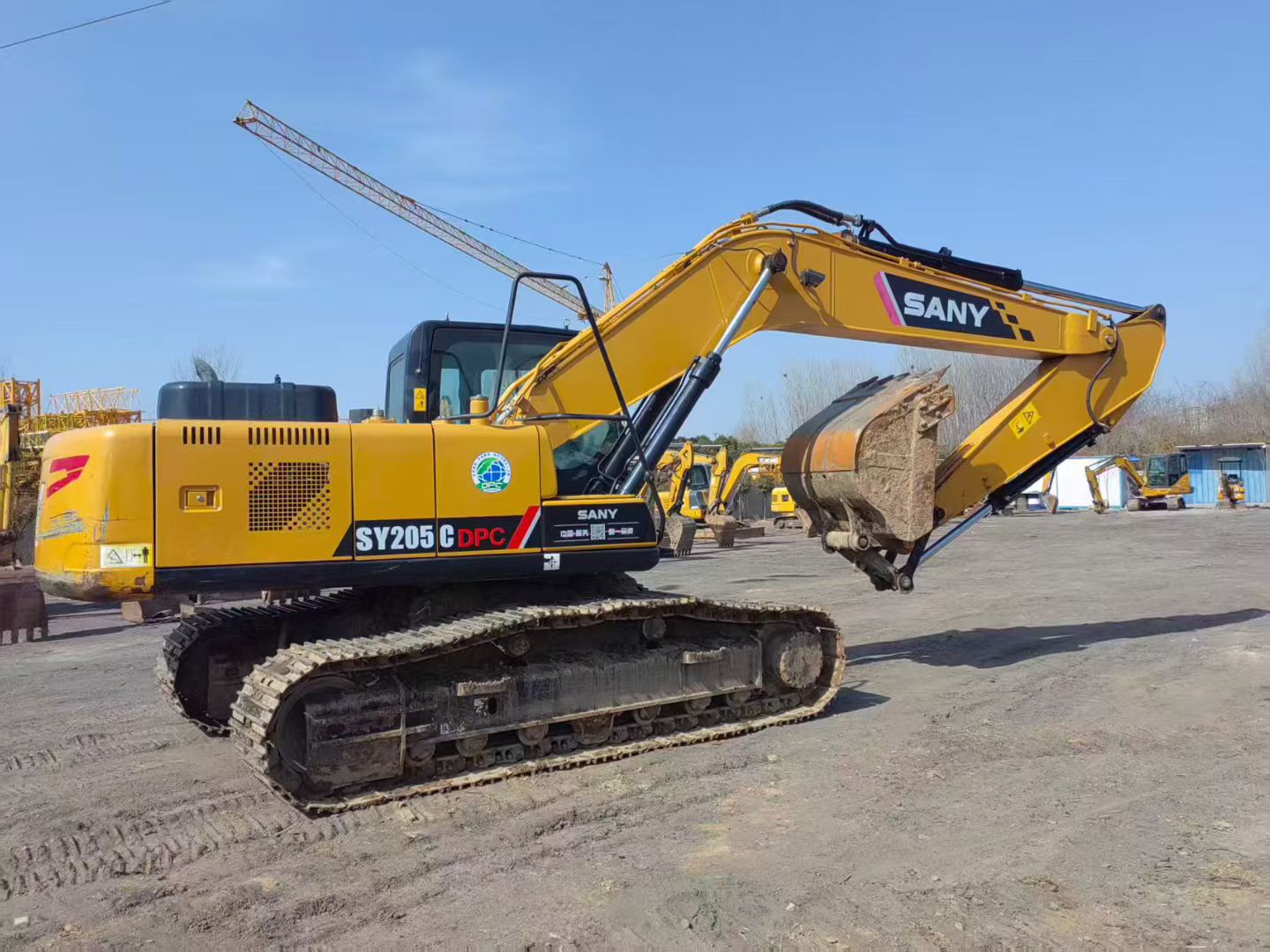

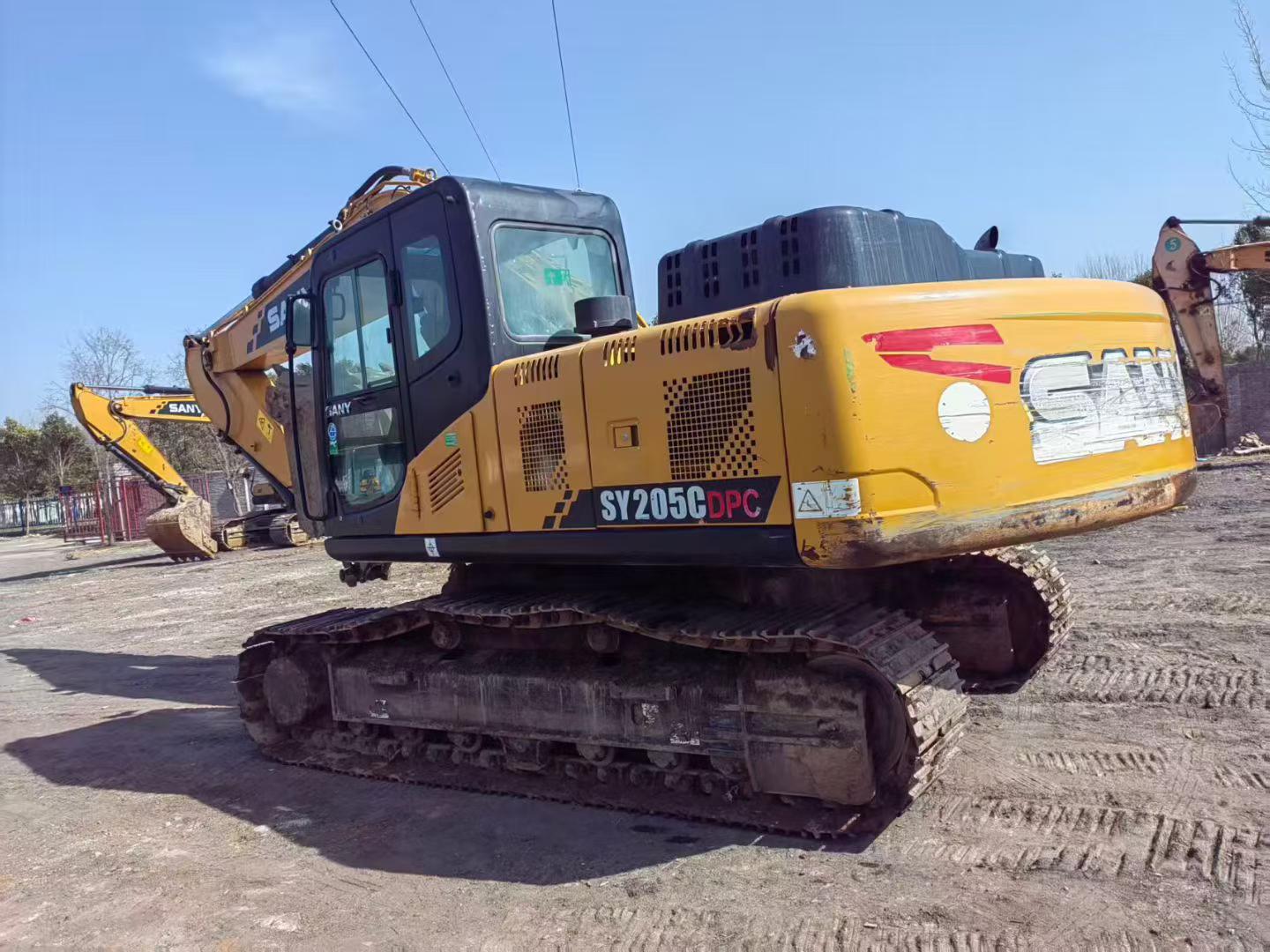

Featuring a robust 20-ton working weight, the Sany SY205C excavator from 2021 is designed for operators who demand reliability and performance. With a bucket capacity ranging from 0.9 to 1.1 m³, this machine is ideal for a variety of construction and excavation tasks.
- Equipped with a backhoe bucket, it delivers a powerful digging force of 138 kN, ensuring efficient and effective earthmoving.

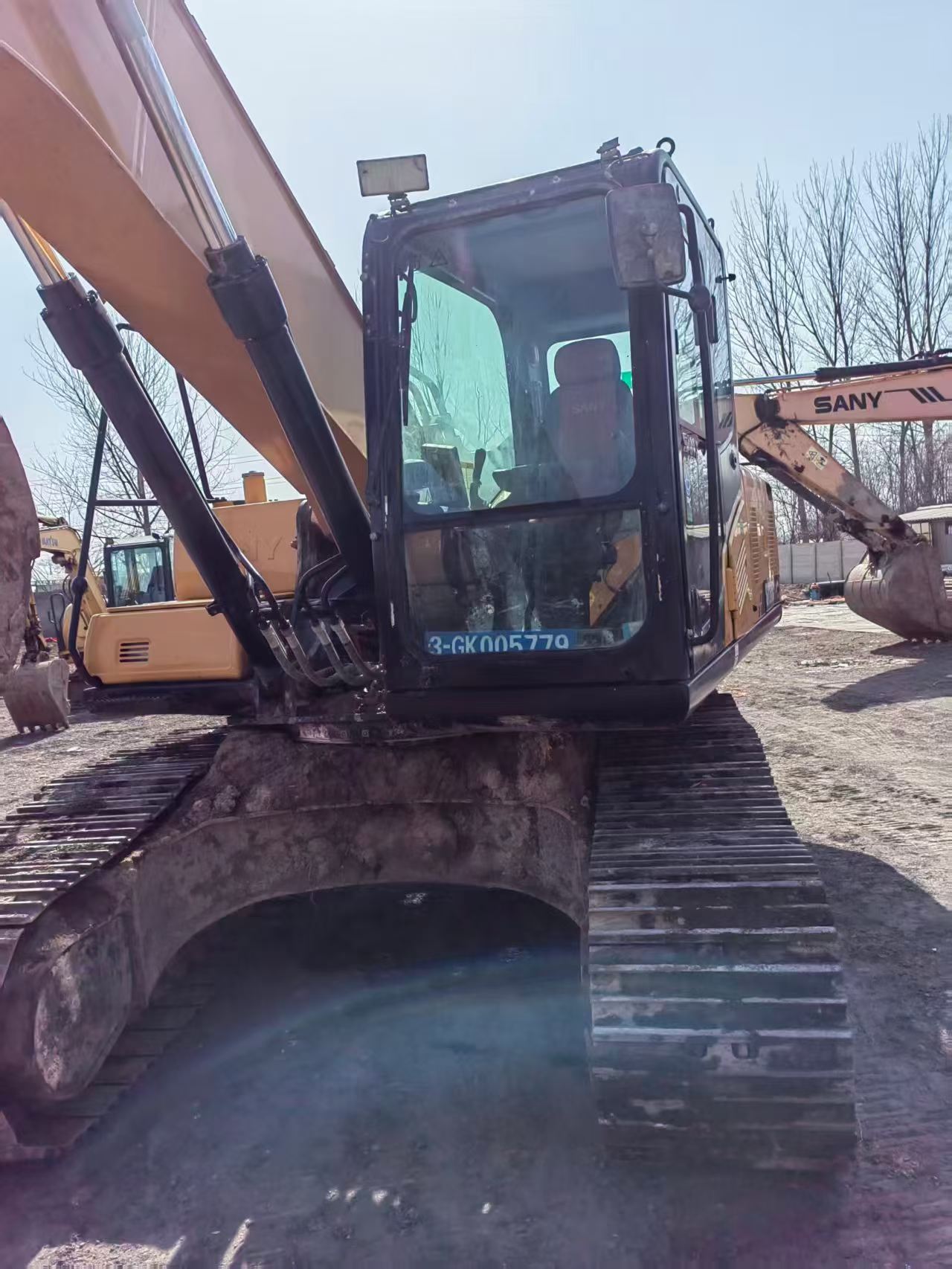

- The full cab height of 3075 mm provides ample visibility, enhancing operator comfort and safety during operation.
- Traveling at speeds up to 5.4 km/h, the SY205C offers both speed and stability, making it versatile for different job sites.
- With a climbing ability of 70% or 35°, this excavator can handle challenging terrains with ease.
- Manufactured in China, the SY205C is built to last, meeting the high standards expected in the industry.
| Specifications | Value |
|---|---|
| No. | 1022886 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
