Product Description

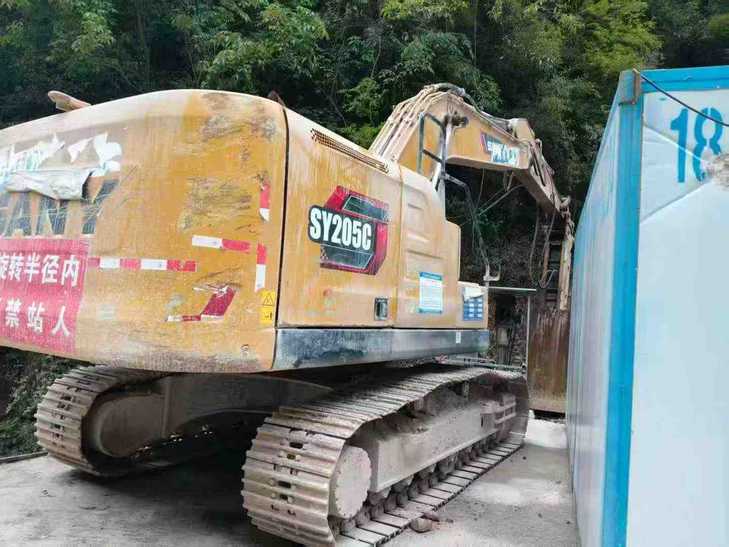

Acquire proven excavation power without the premium price tag. This 2023 Sany SY205C delivers 20-ton performance with just minimal operational hours, representing exceptional value for contractors seeking reliable productivity. Powered by a robust 118kW engine generating 138kN bucket digging force and 109kN arm force, this machine handles demanding applications with authority. The 0.9-1.1m³ bucket capacity and 10,280mm maximum digging radius provide versatility across site conditions, while the 6,600mm digging depth tackles substantial earthmoving tasks efficiently.
- Working weight: 21,500kg with 47.3kPa ground pressure for stability
- Maximum digging height: 9,600mm; unloading height: 6,730mm
- Travel speeds: 5.4/3.3 km/h for responsive site mobility
- 70% (35°) climbing ability conquers challenging terrain
- Compact 2,900mm rear turning radius optimizes confined spaces
- Currently located in Fujian Putian, ready for immediate deployment
Purchasing pre-owned from 2023 means accessing current-generation technology at substantially reduced capital outlay compared to new equipment. Smart buyers recognize the financial advantage of near-new machinery delivering
| Specifications | Value |
|---|---|
| No. | 1021660 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
