Product Description

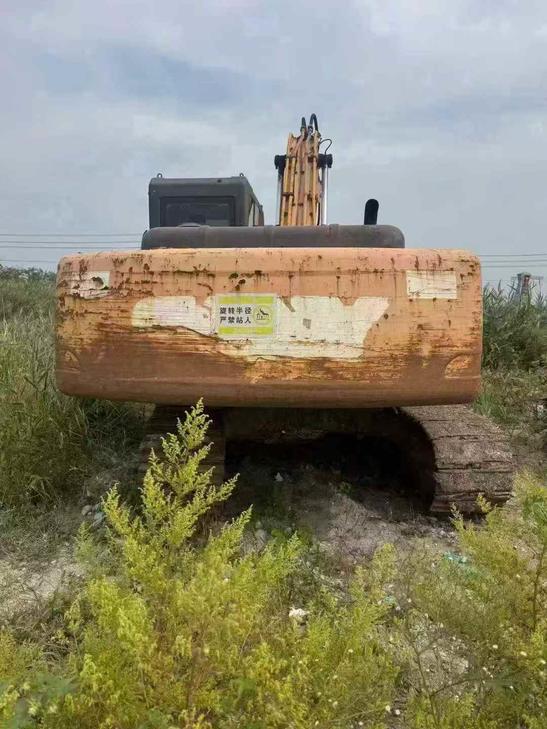

This 2013 Sany SY205C-8 hydraulic excavator offers proven reliability for contractors seeking dependable mid-size equipment. With approximately 80,000+ operating hours recorded, this machine demonstrates the durability Sany's 20-ton class excavators are known for in demanding applications.
Currently located in Jiangsu, China, this unit represents an economical entry point for earthmoving operations, site development, or utility work. The SY205C-8 features Sany's robust undercarriage design and hydraulic system engineered for Asian market conditions.
- Operating weight class: approximately 20 tonnes
- Suitable for excavation, trenching, and material handling
- High-hour unit priced for immediate deployment
- Available for inspection in Jiangsu province
Ideal for buyers seeking cost-effective capacity expansion or replacement equipment. Inspection recommended prior to purchase. Contact us for detailed condition reports and export documentation assistance.
| Specifications | Value |
|---|---|
| No. | 1169061 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20300 |
| Bucket capacity (m³) | 0.83 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 6D34TL-20 |
| Rated power (kw/rpm) | 114/2050 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 44.8 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 138 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 210 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9397 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2956 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4064 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging radius (mm) | 9885 |
| Maximum digging depth (mm) | 6630 |
| Maximum excavation height (mm) | 9305 |
| Maximum unloading height (mm) | 6475 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
