Product Description

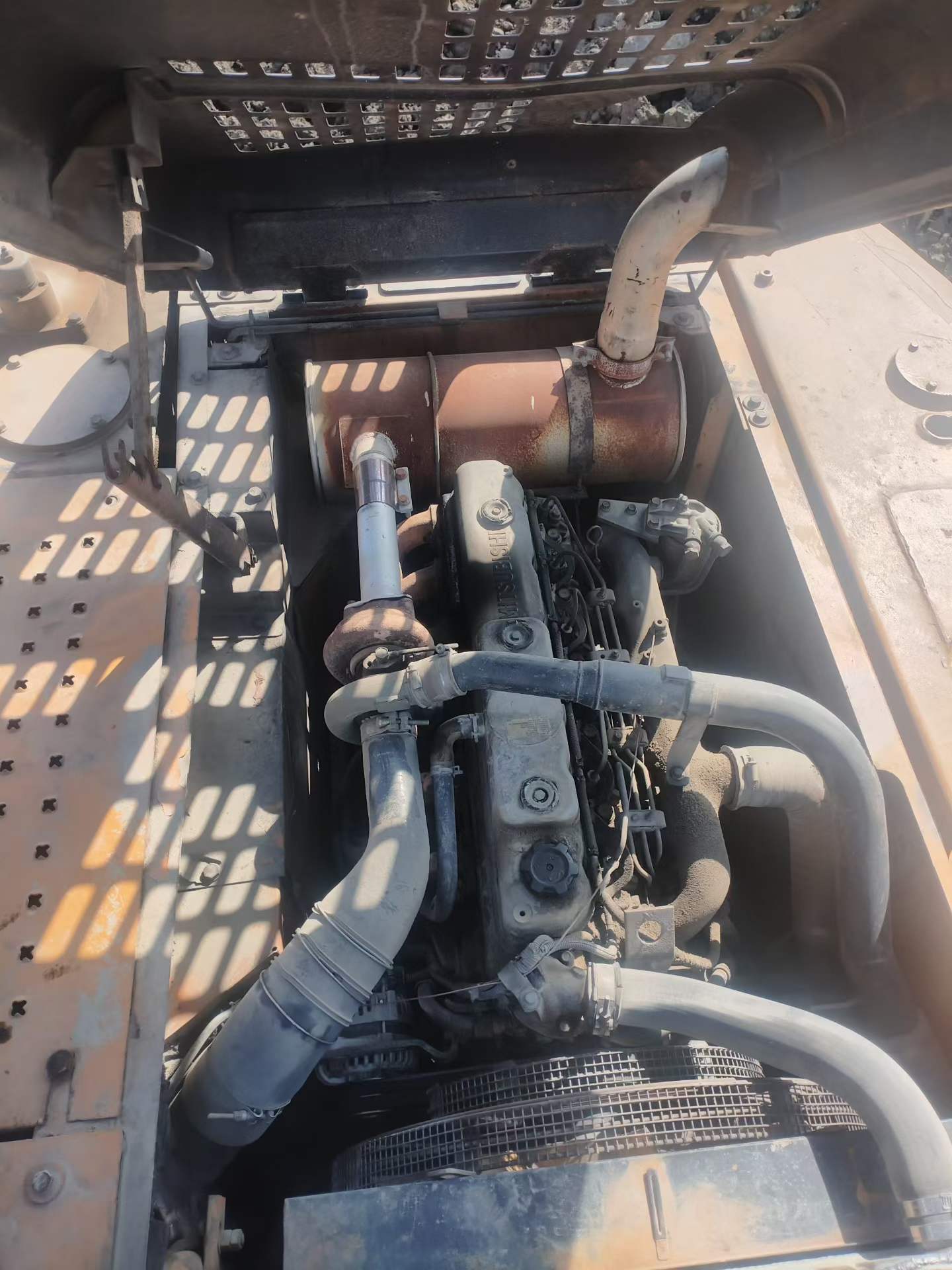

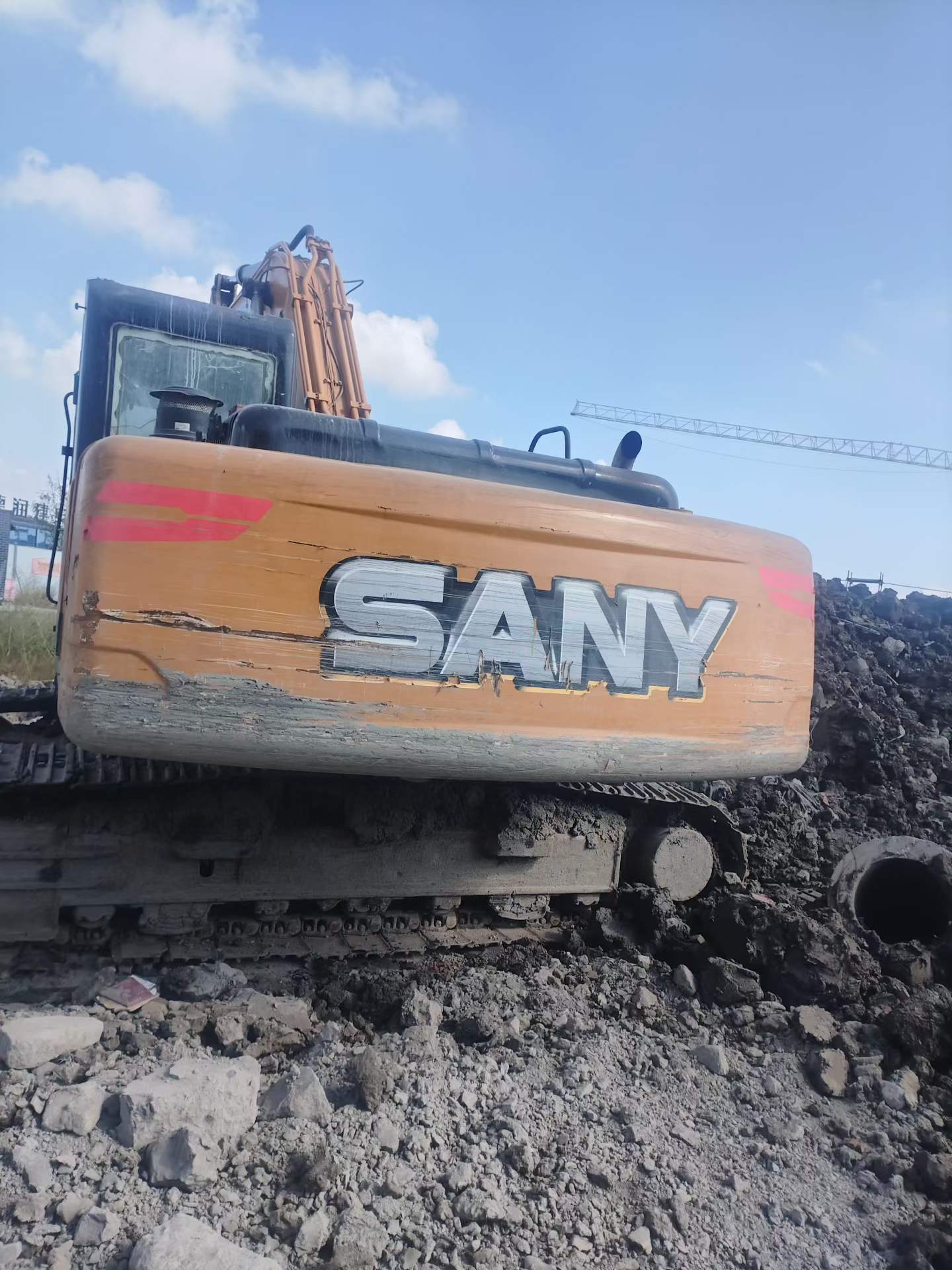

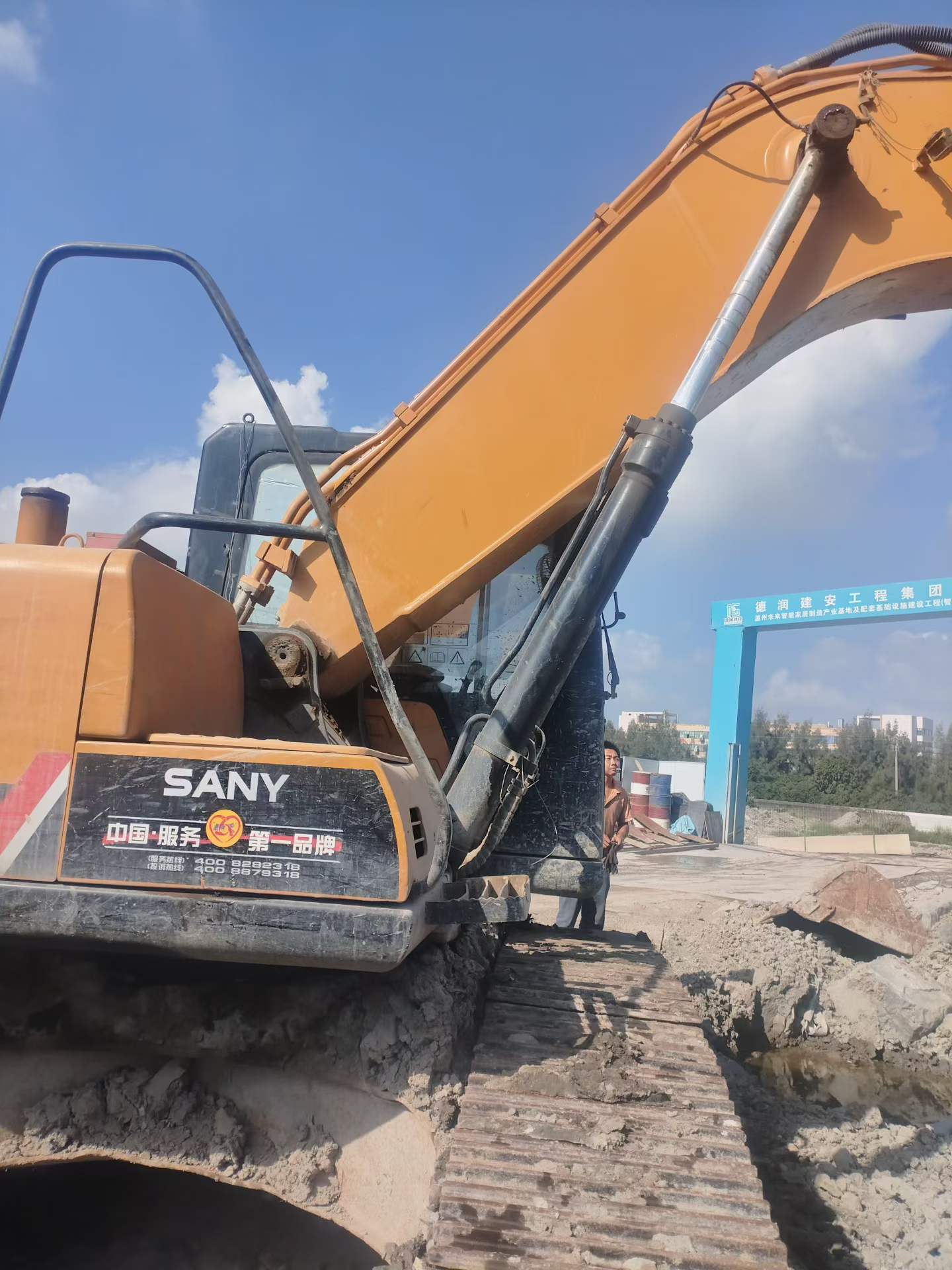

With a robust 21-ton working weight and powered by a Mitsubishi 4M50 engine, this 2016 Sany SY215C excavator offers reliable performance for demanding construction tasks. Equipped with a backhoe bucket, it delivers a digging force of 138 kN, ensuring efficient excavation. The water-cooled 4-cylinder engine, rated at 118 kW, provides a maximum torque of 580 N.m, enhancing its capability in tough conditions.
- Excellent visibility from the full cab height of 3075 mm, allowing operators to monitor the work area effectively
- Stable operation with a ground specific pressure of 47.4 Kpa, reducing the risk of sinking or tipping
- Smooth handling and control, thanks to a minimum turning radius of the front working device at 3730 mm and a back end turning radius of 2900 mm
- Travel speed of up to 5.4 km/h, enabling quick repositioning on the job site
- Enhanced operator comfort and safety with a spacious and well-ventilated cabin
| Specifications | Value |
|---|---|
| No. | 1021323 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21900 |
| Bucket capacity (m³) | 1.1 (0.8~1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Mitsubishi 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 580/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 390 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 22 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
