HOME>>Sany>>Sany SY215C

2017 Sany SY215C

1/5

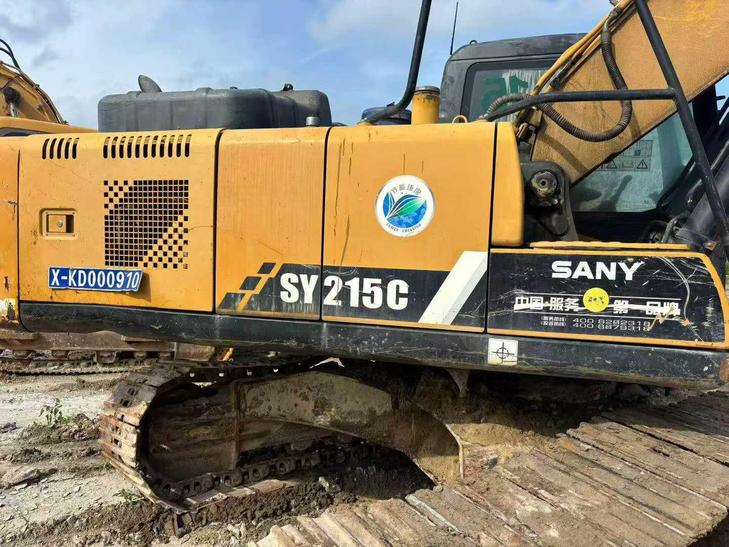

Buy Sany SY215C Used Excavator / 1
Buy Sany SY215C Used Excavator / 2
Buy Sany SY215C Used Excavator / 3
Buy Sany SY215C Used Excavator / 4
Buy Sany SY215C Used Excavator / 5

Product Description

Built for demanding earthmoving operations, this 2017 Sany SY215C crawler excavator represents a proven investment in one of China's most globally recognized heavy equipment brands. Sany's extensive worldwide dealer network ensures consistent parts availability, minimizing downtime and protecting your operational continuity — a critical advantage in the used equipment market. Strong resale value and widespread service support make this 21-ton machine a financially sound choice for contractors and fleet operators alike.

Powered by a Mitsubishi 4M50 water-cooled diesel engine producing 118 kW at 2,000 RPM with 580 N·m peak torque, this excavator delivers reliable, controlled performance across a broad range of applications. Key specifications include:

  • Bucket capacity: 1.1 m³ (0.8–1.2 m³ range) with 138 kN bucket digging force
  • Maximum digging depth: 6,600 mm; maximum digging radius: 10,280 mm
  • Climbing ability: 70% (35°) with ground pressure of 47.4 kPa
  • 600 mm track plates and 390 L fuel tank for extended field endurance
  • Travel speed: 5.4 / 3.3 km/h (high/low range)
  • Currently located in Zhejiang, China — available for global export
SpecificationsValue
No.1089445
Tonnage (tons)21
Working weight (kg)21900
Bucket capacity (m³)1.1 (0.8~1.2)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeMitsubishi 4M50
Rated power (kw/rpm)118/2000
Cooling modewater-cooling
Maximum torque (N.m)580/1600
Number of cylinders (PCS)4
Displacement (L)4.9
Ground specific pressure (Kpa)47.4
Rotation speed (rpm)11
Climbing ability (%)70% (35°)
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Fuel Tank (L)390
Hydraulic Tank (L)239
Engine Oil changes (L)22
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3445
Maximum height at minimum turning radius (mm)7680
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)6730
see more

Overview

No.1089445

Brand Name:

Sany

Model Number:

SY215C

Year:

2017

Location:

Zhejiang China
