2017 Sany SY215C

1/6
Buy Sany SY215C Used Excavator / 1
Buy Sany SY215C Used Excavator / 2
Buy Sany SY215C Used Excavator / 3
Buy Sany SY215C Used Excavator / 4
Buy Sany SY215C Used Excavator / 5
Buy Sany SY215C Used Excavator / 6

Product Description

This 2017 Sany SY215C hydraulic excavator offers reliable performance for mid-range excavation and earthmoving applications. Currently located in Sichuan, China, this seven-year-old machine represents a cost-effective option for contractors seeking proven Sany engineering at competitive pricing.

The SY215C is designed for versatility in construction, mining, and material handling operations. Key features include:

  • 21-ton operating weight class suitable for general construction work
  • Hydraulic system engineered for responsive digging and lifting performance
  • Operator cabin with standard ergonomic controls
  • Track undercarriage designed for varied terrain conditions
  • Sany's established service and parts network throughout Asia

This unit has completed approximately six years of field operation. Prospective buyers should arrange inspection and verification of machine hours, maintenance records, and current working condition prior to purchase.

SpecificationsValue
No.1161973
Tonnage (tons)21
Working weight (kg)21900
Bucket capacity (m³)1.1 (0.8~1.2)
powerTraditional power
manufacturerMade in China
bucketbackhoe

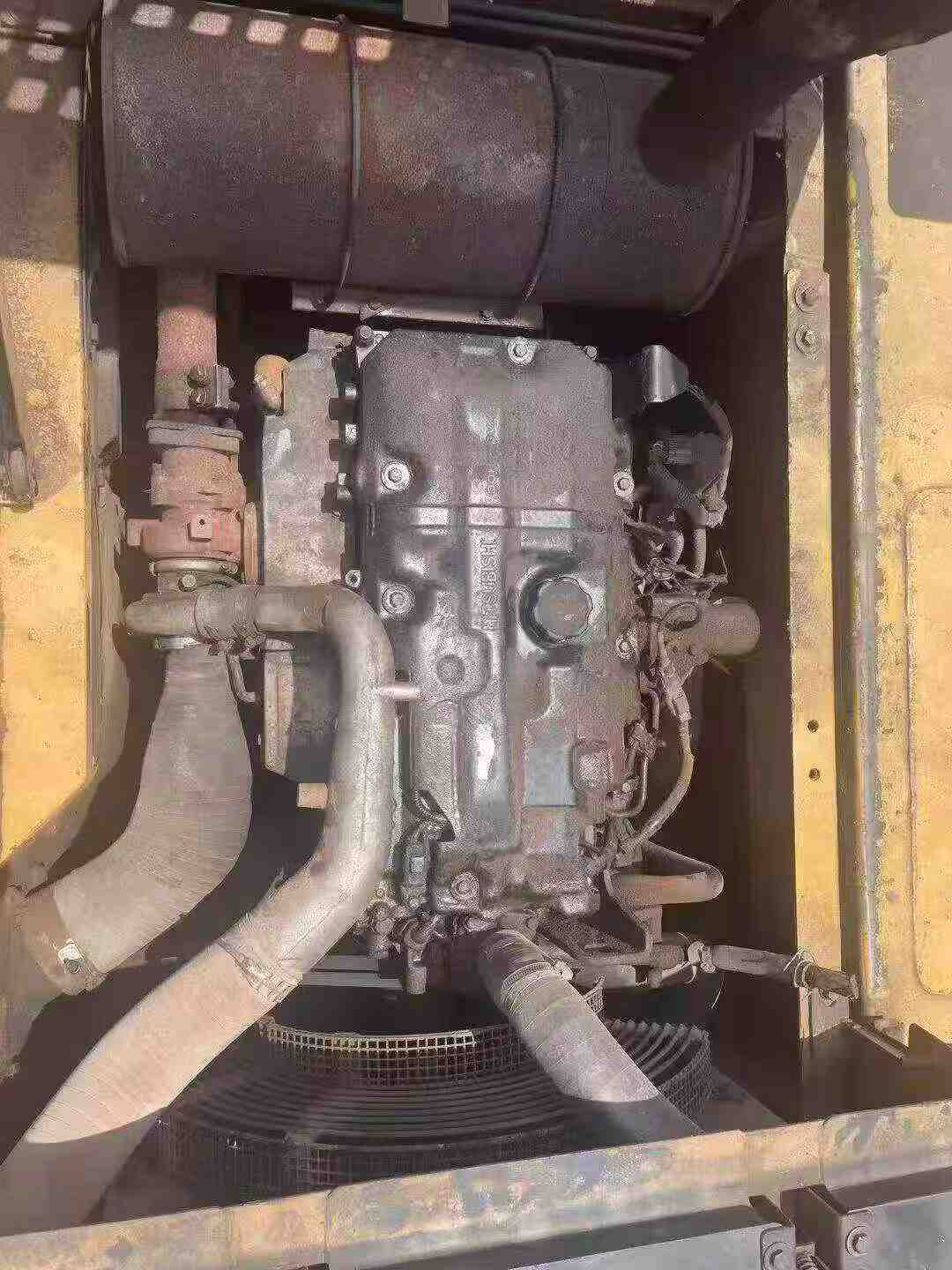

Engine typeMitsubishi 4M50
Rated power (kw/rpm)118/2000
Cooling modewater-cooling
Maximum torque (N.m)580/1600
Number of cylinders (PCS)4
Displacement (L)4.9
Ground specific pressure (Kpa)47.4
Rotation speed (rpm)11
Climbing ability (%)70% (35°)
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Fuel Tank (L)390
Hydraulic Tank (L)239
Engine Oil changes (L)22
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3445
Maximum height at minimum turning radius (mm)7680
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)6730
see more

Overview

No.1161973

Brand Name:

Sany

Model Number:

SY215C

Year:

2017

Location:

Sichuan China

Pub Date:
