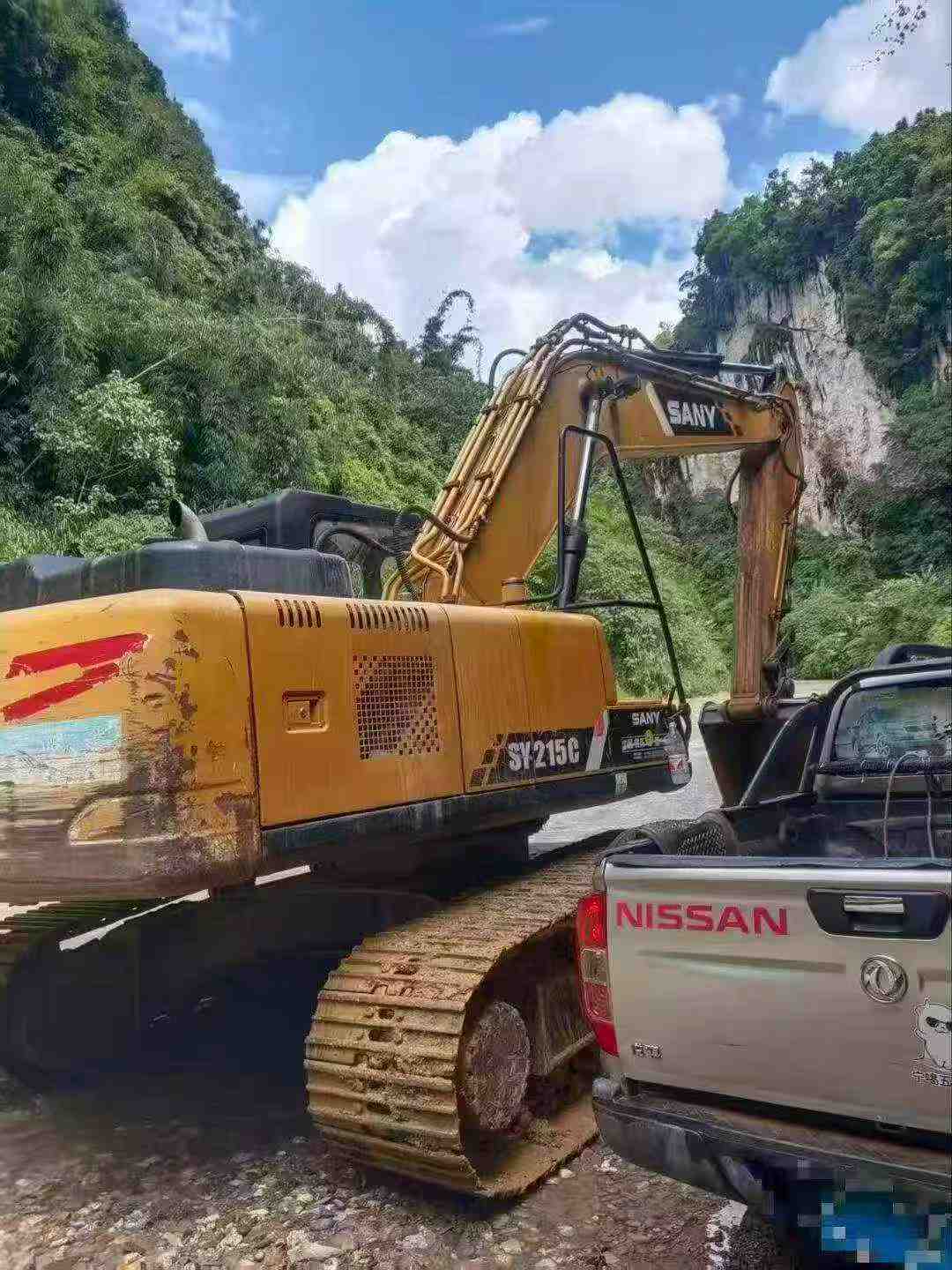

2019 Sany SY215C

1/6
Buy Sany SY215C Used Excavator / 1

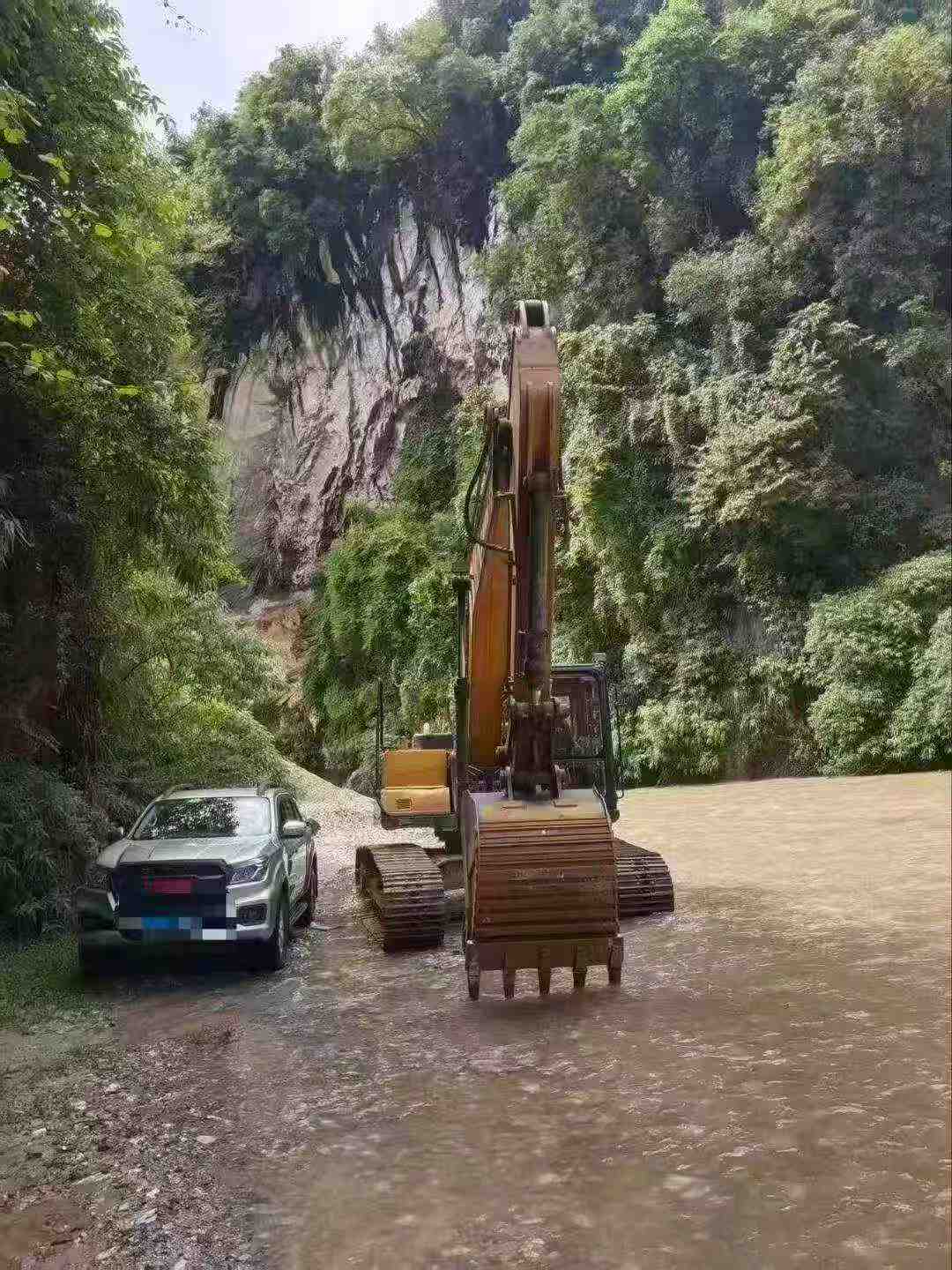

Buy Sany SY215C Used Excavator / 2

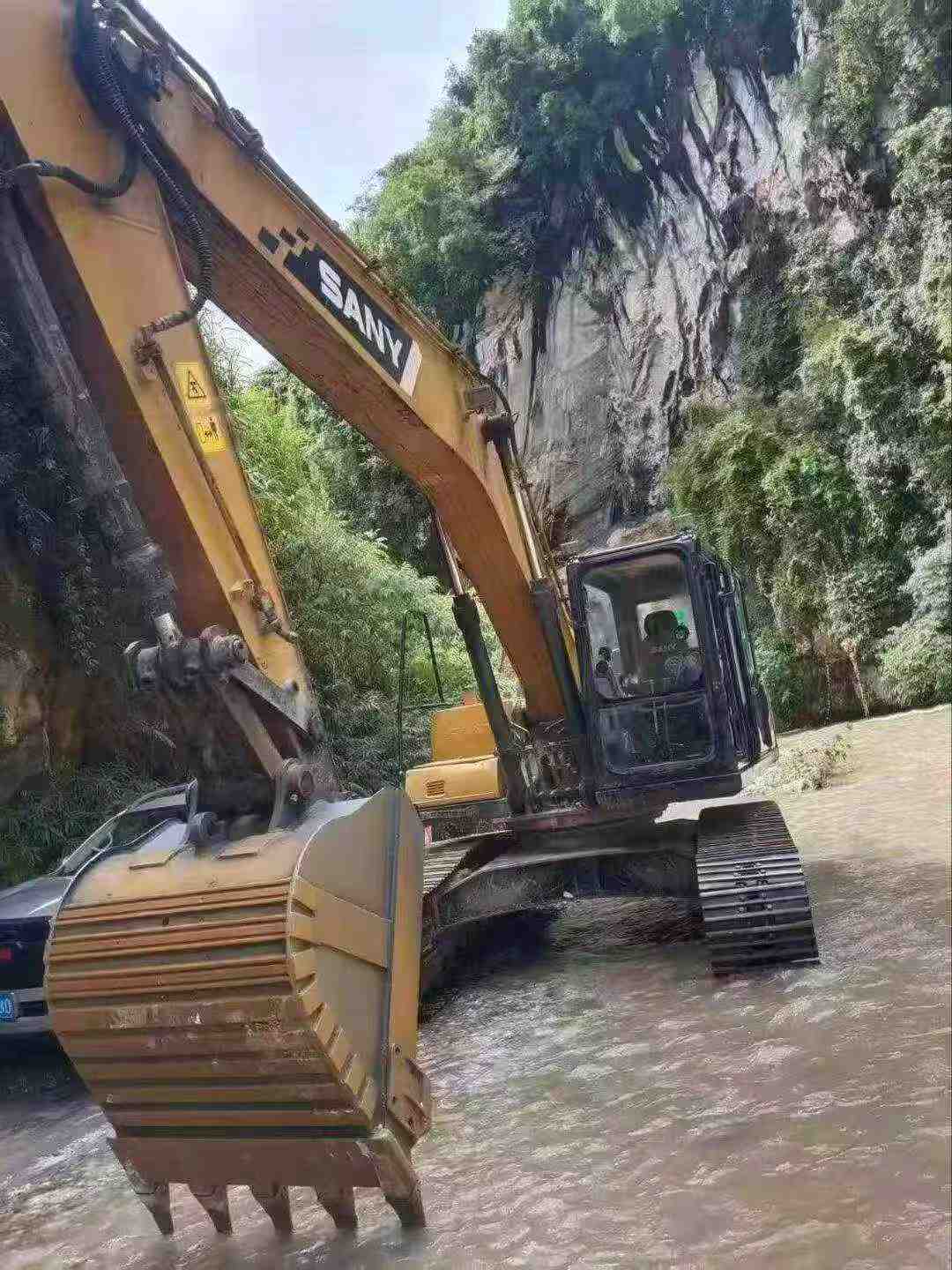

Buy Sany SY215C Used Excavator / 3

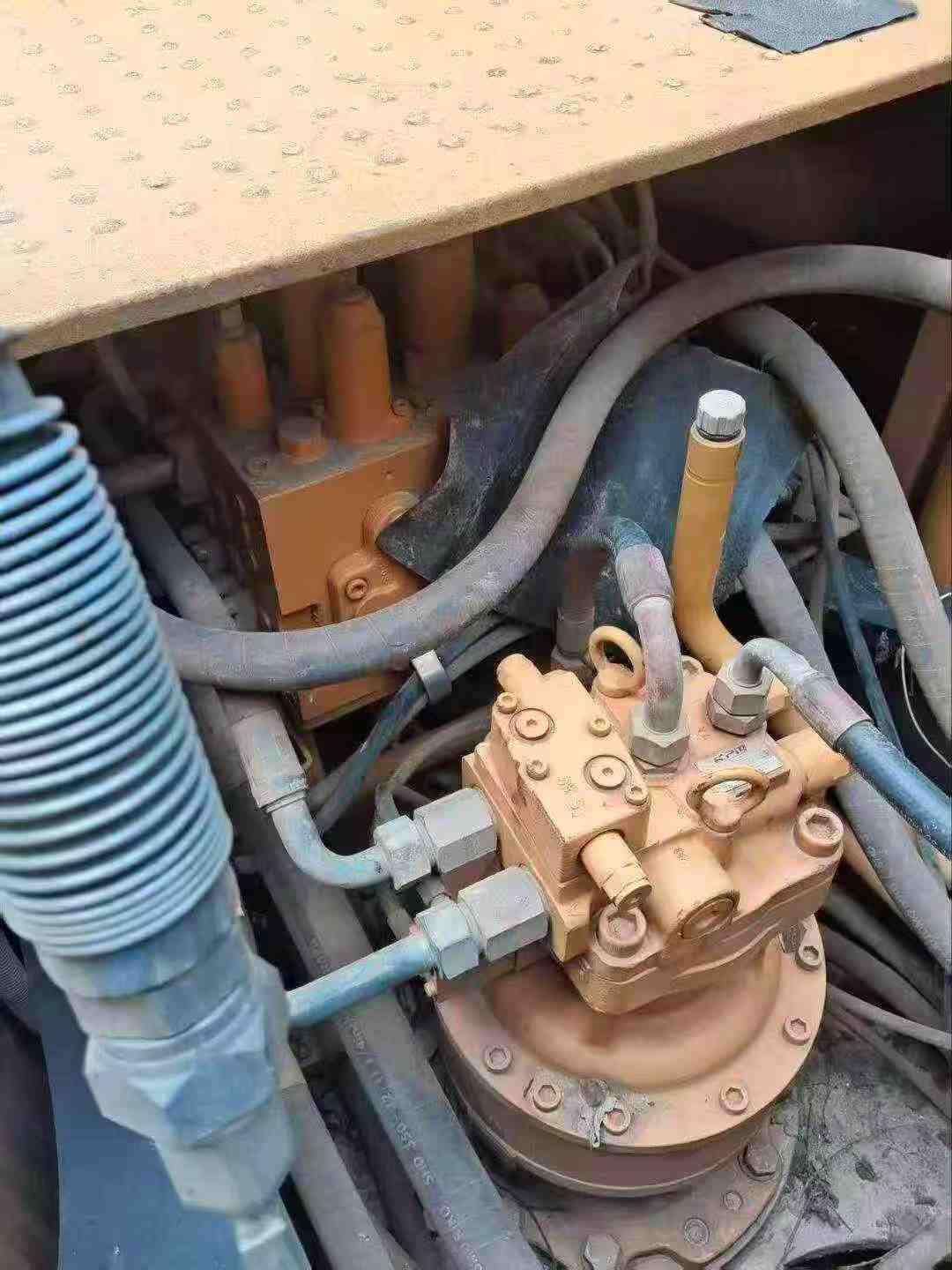

Buy Sany SY215C Used Excavator / 4

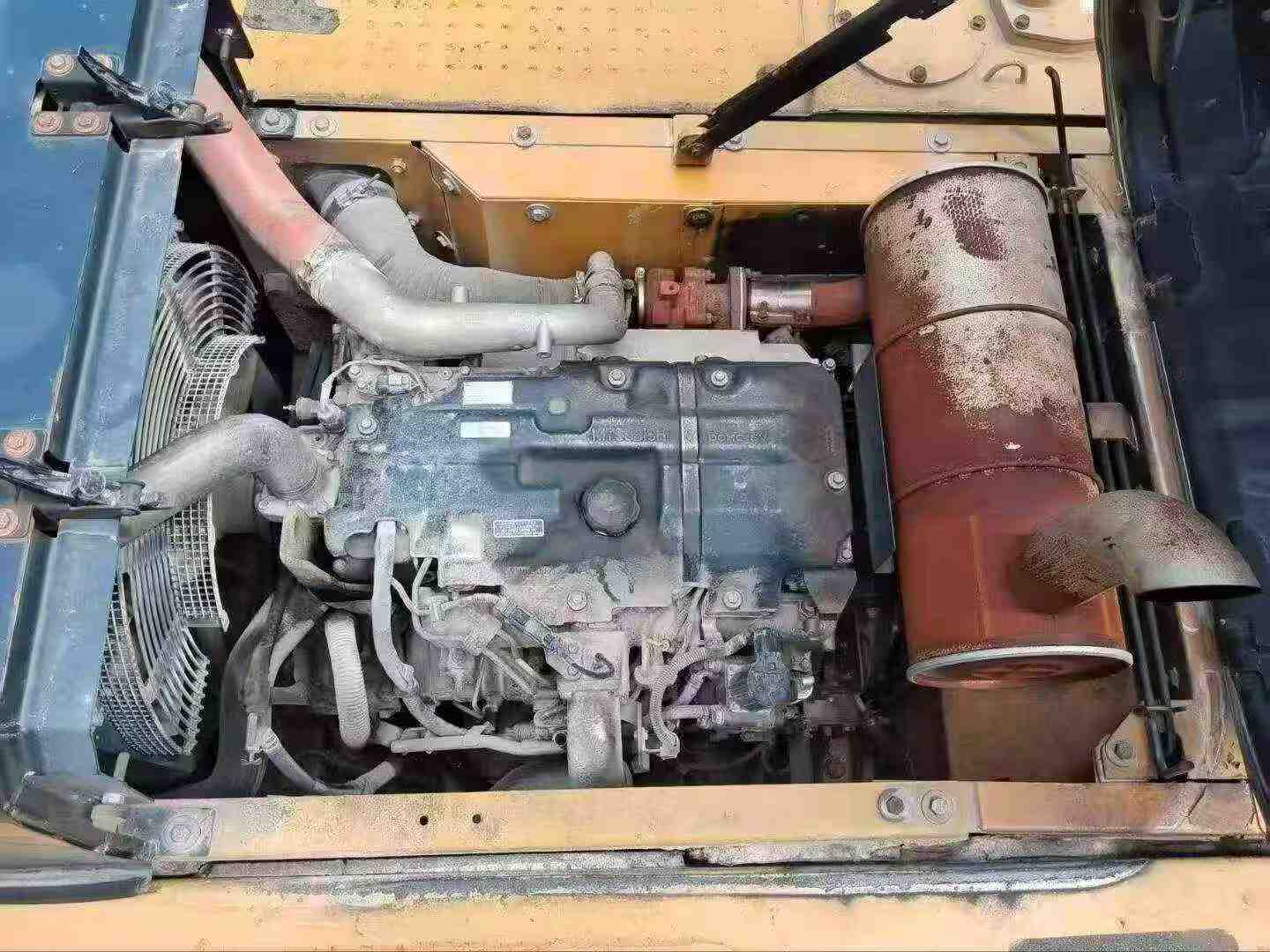

Buy Sany SY215C Used Excavator / 5

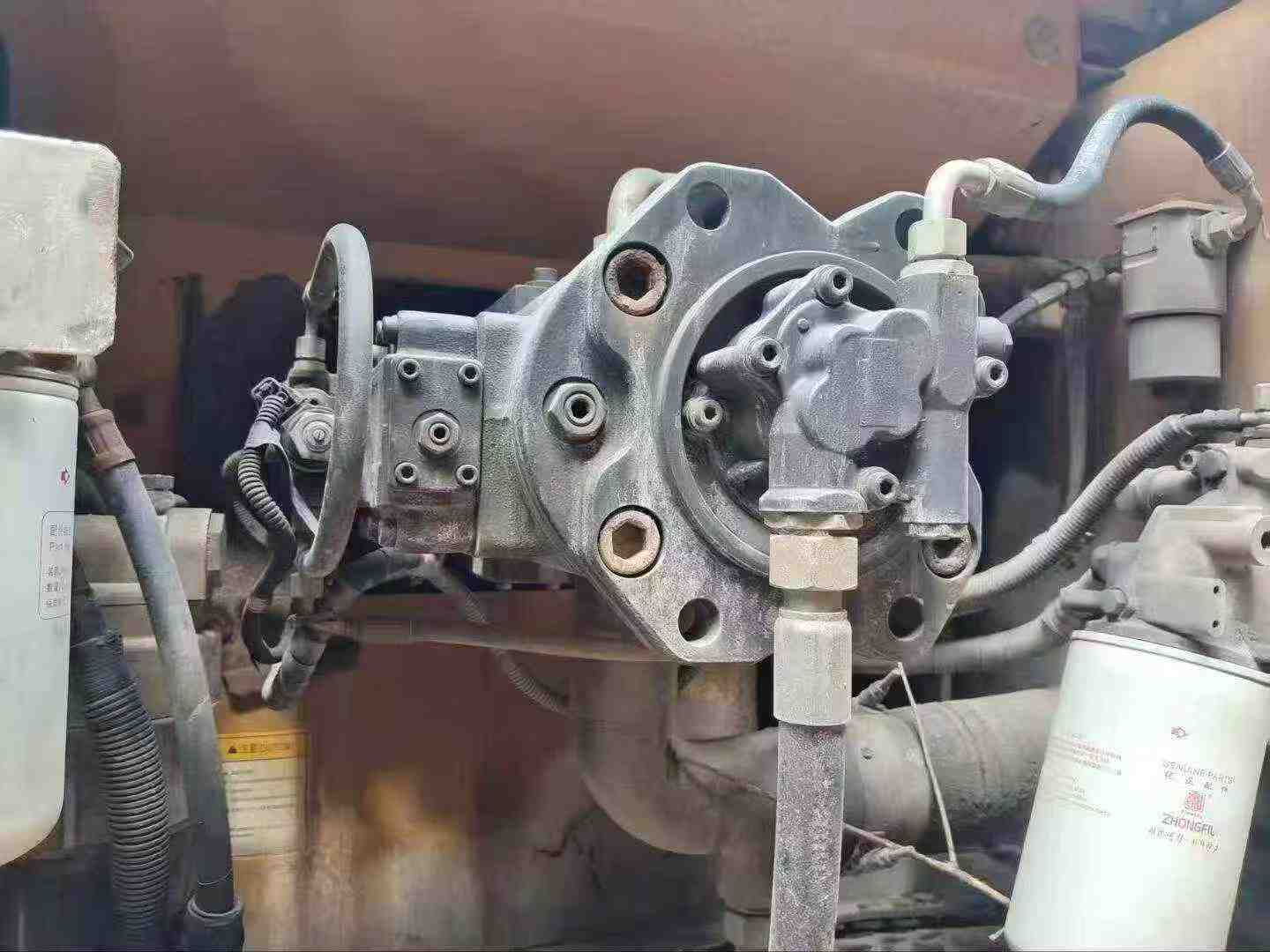

Buy Sany SY215C Used Excavator / 6

Product Description

This 2019 Sany SY215C excavator offers reliable performance for contractors and operators seeking proven productivity. Located in Sichuan, China, this mid-size crawler excavator features a high-specification configuration from the factory, ensuring enhanced capabilities for demanding job sites.

The SY215C represents Sany's robust engineering in the 21-ton class, delivering consistent digging force and fuel efficiency for earthmoving, trenching, and material handling applications. With approximately five years of service, this machine provides a cost-effective solution for expanding fleets or replacing aging equipment.

  • Year: 2019
  • Model: Sany SY215C
  • Configuration: High-specification variant
  • Location: Sichuan Province, China
  • Category: Medium hydraulic excavator

Suitable for construction, mining support, and infrastructure projects. Inspection reports available upon request.

SpecificationsValue
No.1161658
Tonnage (tons)21
Working weight (kg)21900
Bucket capacity (m³)1.1 (0.8~1.2)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeMitsubishi 4M50
Rated power (kw/rpm)118/2000
Cooling modewater-cooling
Maximum torque (N.m)580/1600
Number of cylinders (PCS)4
Displacement (L)4.9
Ground specific pressure (Kpa)47.4
Rotation speed (rpm)11
Climbing ability (%)70% (35°)
Bucket digging force (kN)138
Rod digging force (kN)103
Travel speed (km/h)5.4/3.3
Fuel Tank (L)390
Hydraulic Tank (L)239
Engine Oil changes (L)22
Total transport length (mm)9680
Total transport width (mm)2980
Total transport height (mm)3440
Full cab height (mm)3075
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)3730
Back end turning radius (mm)2900
Onboard width (mm)2875
Total track length (mm)4250
Track gauge (mm)2380
Track plate width (mm)600
Track ground length (mm)3445
Maximum height at minimum turning radius (mm)7680
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)47
Maximum digging radius (mm)10280
Maximum digging depth (mm)6600
Maximum excavation height (mm)9600
Maximum unloading height (mm)6730
see more

Overview

No.1161658

Brand Name:

Sany

Model Number:

SY215C

Year:

2019

Location:

Sichuan China

Pub Date:
