Product Description

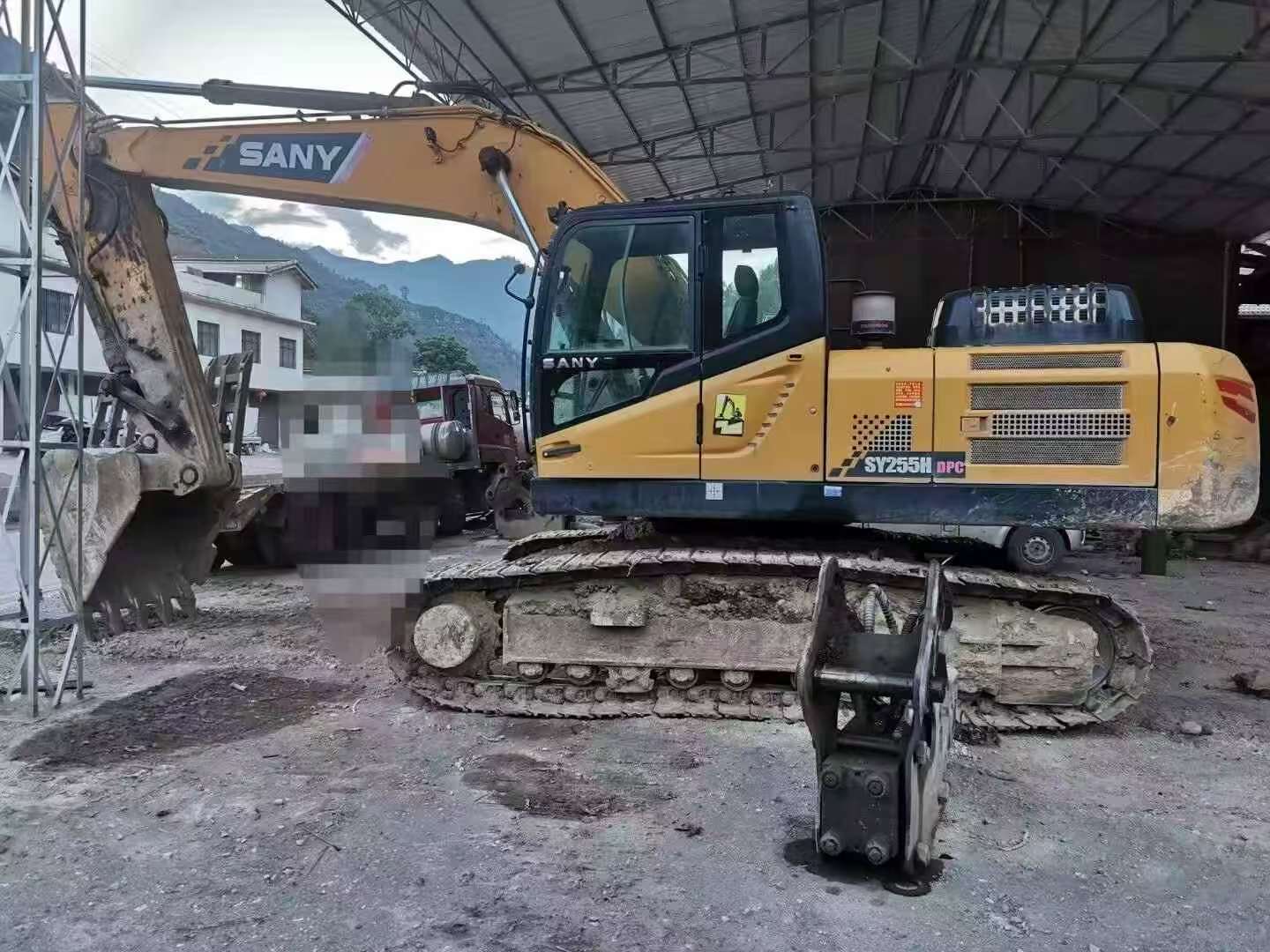

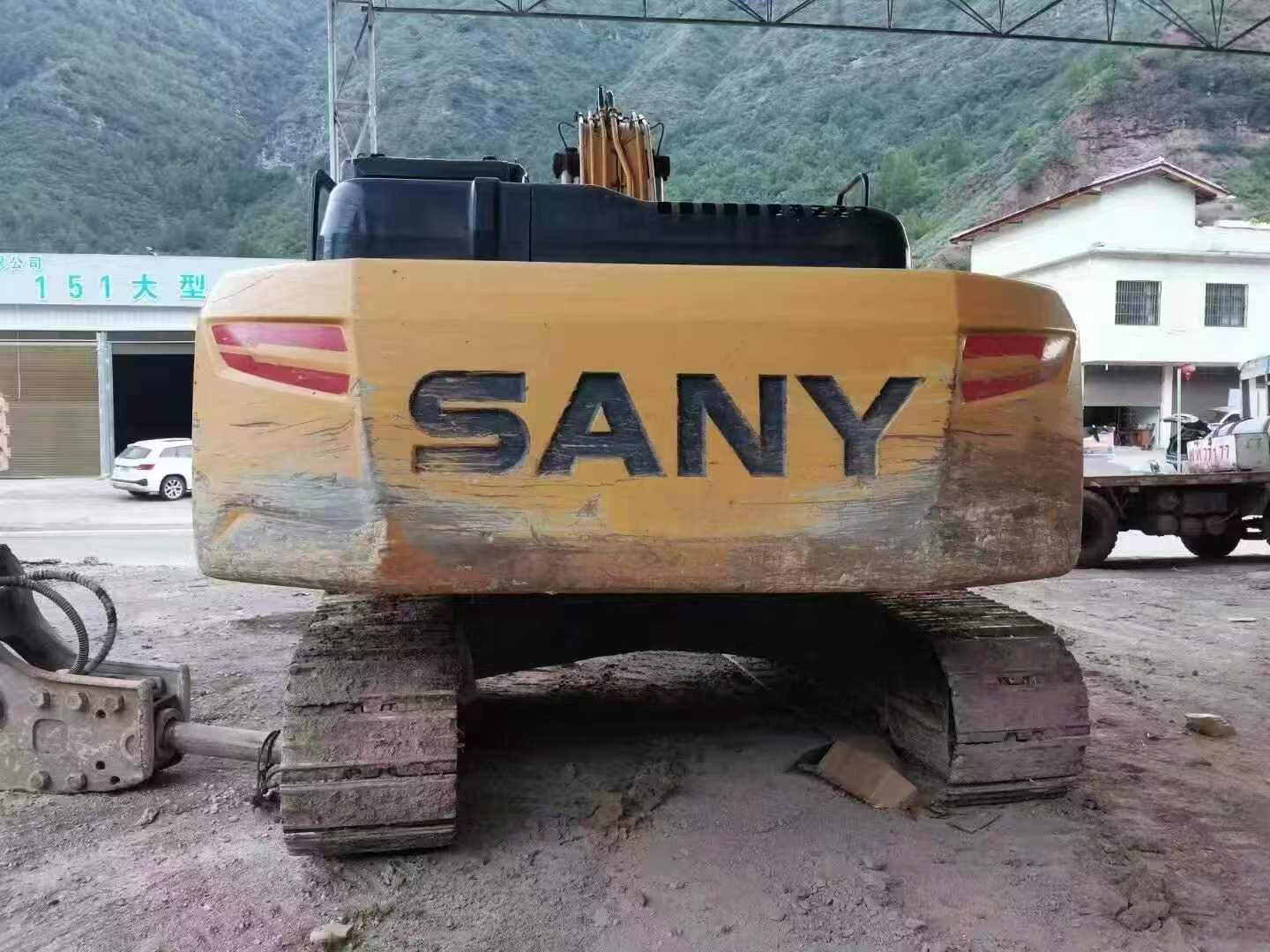

This 2021 Sany SY225C excavator offers reliable performance for demanding construction and earthmoving applications. With just a few years of operation, this machine combines Sany's proven engineering with the efficiency of a relatively recent model year. Currently located in Guizhou, China, it presents an opportunity for buyers seeking dependable mid-sized excavation equipment.
- Year: 2021
- Brand: Sany
- Model: SY225C
- Operating weight class: Approximately 22 tons
- Location: Guizhou Province, China
- Condition: Used
The SY225C is designed for versatility across infrastructure projects, site preparation, and material handling tasks. This unit is available for immediate inspection and purchase. Contact us for detailed specifications, current hour meter readings, and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1105341 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22300 |
| Bucket capacity (m³) | 1.1~1.2(1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

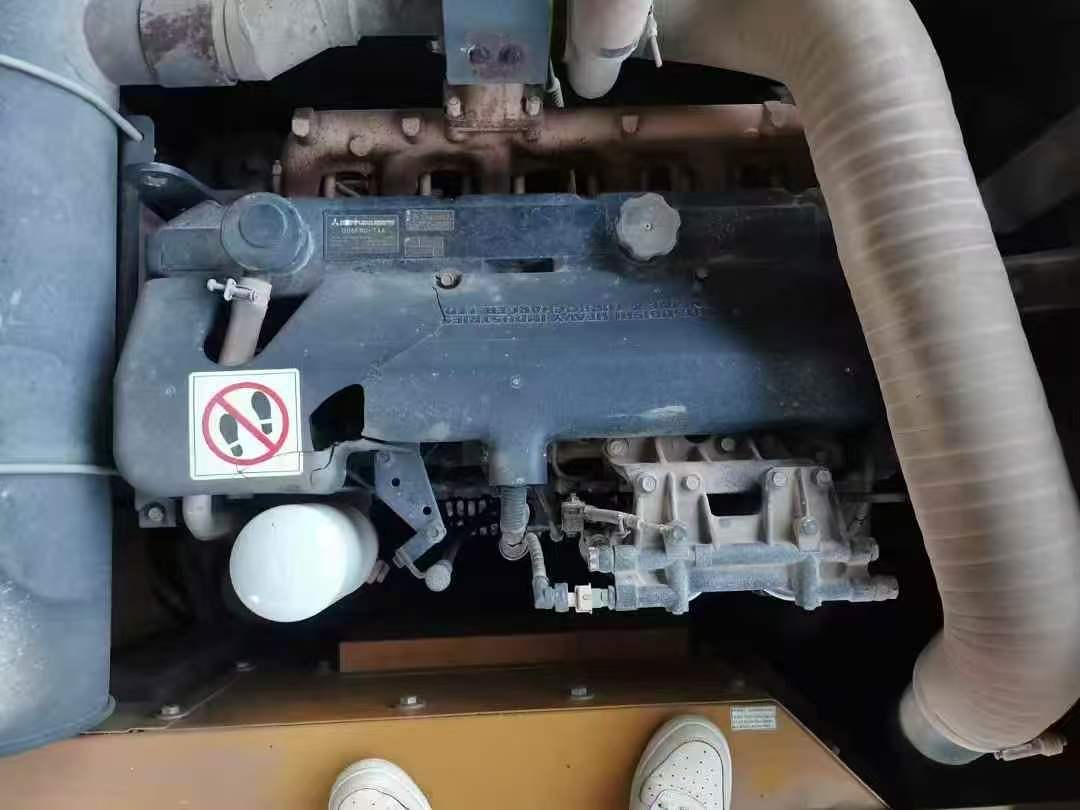

| Engine type | 4M50 |
| Rated power (kw/rpm) | 118/2000 |
| Maximum torque (N.m) | 580/1600 |
| Displacement (L) | 4.9 |
| Ground specific pressure (Kpa) | 47.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 5.4/3.3 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 239 |
| Engine Oil changes (L) | 2 |
| Coolant (L) | 30.9 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Counterweight ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
