Product Description

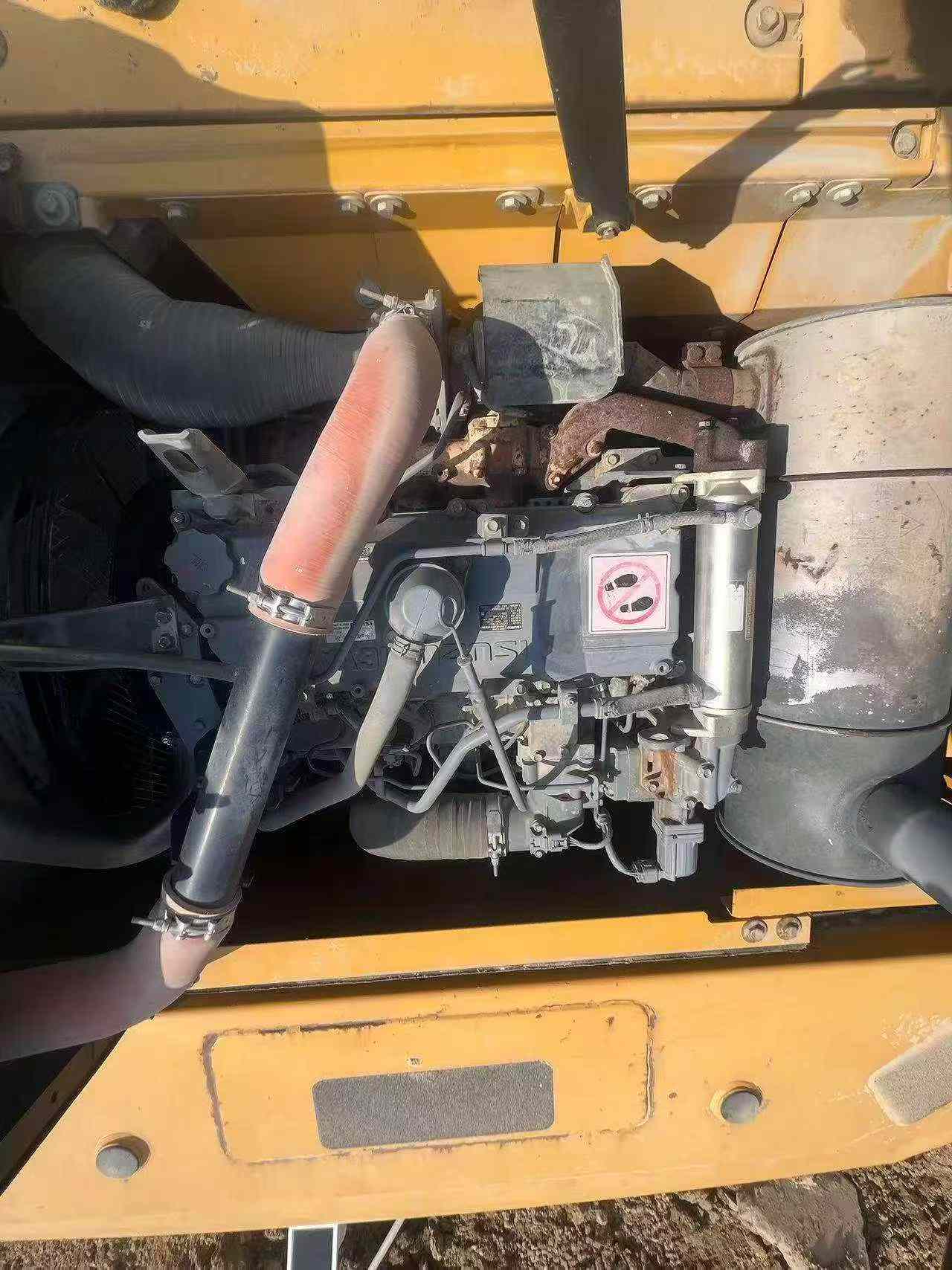

Built for operators who demand precision and control, the Sany SY225H delivers a refined working experience in the 22-ton class. Sourced from Zhejiang, China and manufactured in 2019, this backhoe excavator combines a 133 kW Tier-compliant engine with a bucket digging force of 140 kN — giving operators confident bite through compacted soil and rock alike.
From the cab, visibility and ergonomics are engineered around the operator. Wide sightlines to the work area, responsive hydraulics, and a stable 600 mm track plate width reduce fatigue on long shifts. A 70% gradeability rating means this machine handles uneven terrain without hesitation.
- Working Weight: 22,800 kg
- Bucket Capacity: 1.2 m³
- Rated Power: 133 kW @ 2,000 rpm
- Bucket Digging Force: 140 kN
- Arm Digging Force: 107 kN
- Travel Speed: 5.6 / 3.3 km/h (high/low)
- Fuel Tank: 370 L
- Ground Pressure: 51 kPa
- Location: Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1077836 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22800 |
| Bucket capacity (m³) | 1.1-1.2(1.2) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 133/2000 |
| Maximum torque (N.m) | 657/1500 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 51 |
| Rotation speed (rpm) | 10.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 107 |
| Travel speed (km/h) | 5.6/3.3 |
| Turning torque (kN/m) | 657/1500 |
| Fuel Tank (L) | 370 |
| Hydraulic Tank (L) | 270 |
| Engine Oil changes (L) | 21.5 |
| Coolant (L) | 33 |
| Track plate width (mm) | 600 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
