Product Description

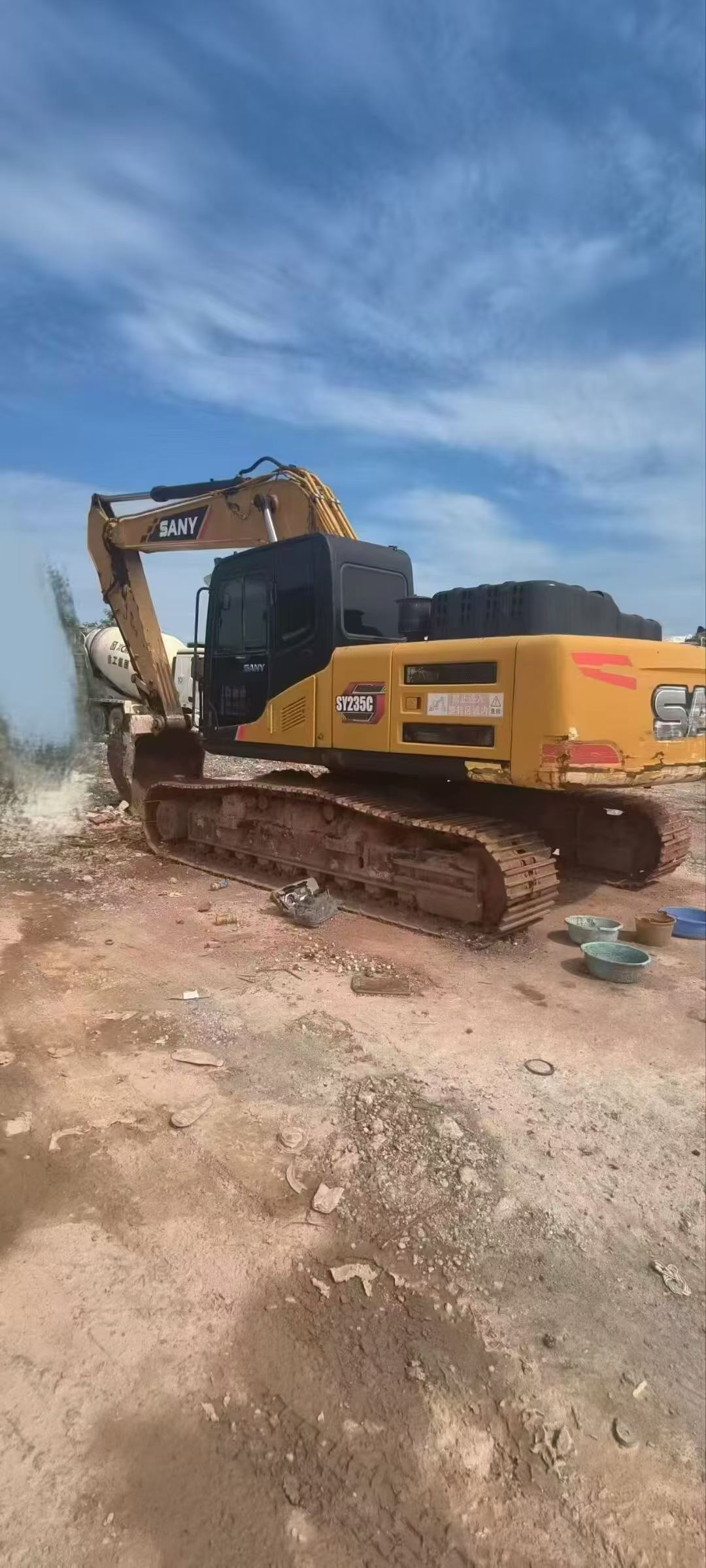

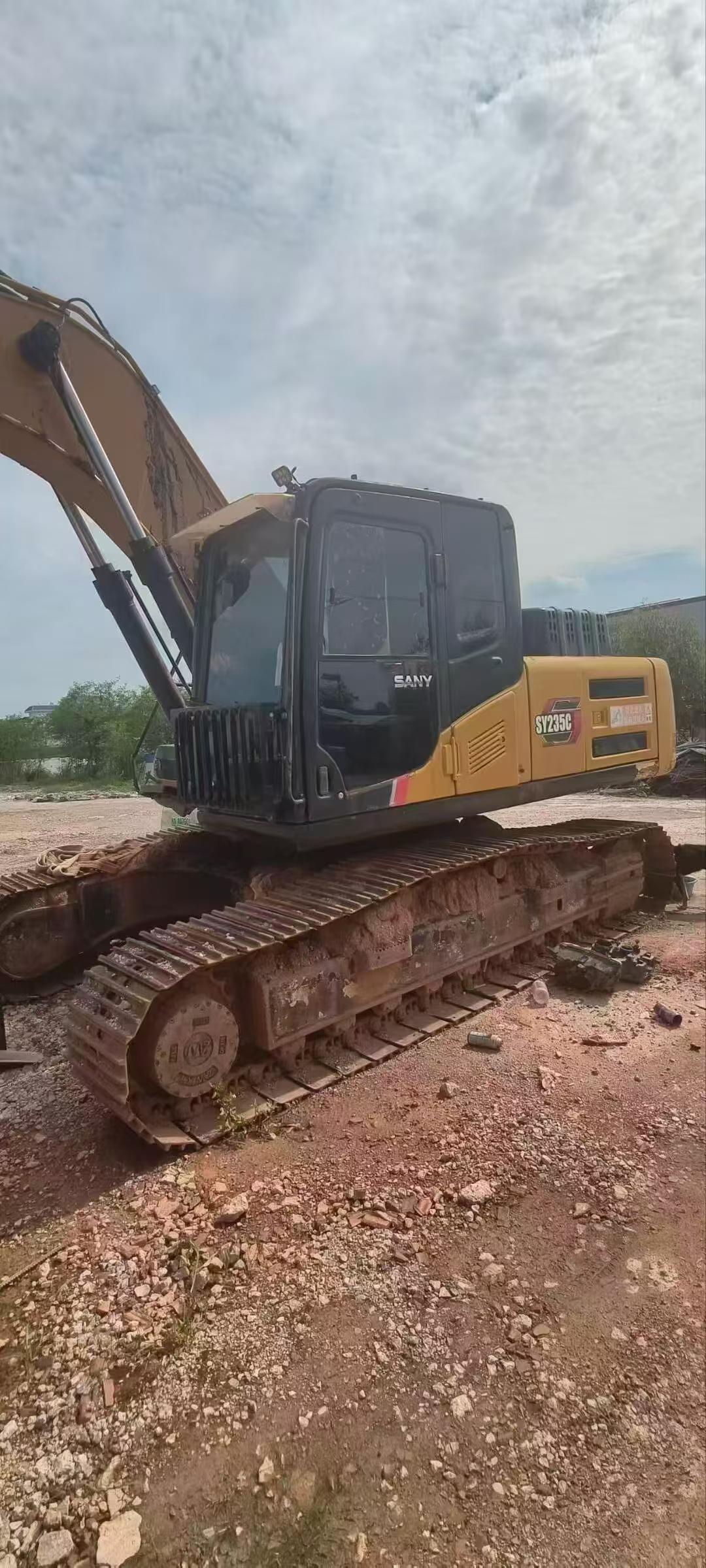

Discover the robust performance and reliability of the 2020 Sany SY235C-8 excavator, now available from our location in Hunan, China. This machine, with a cost of approximately 970,000 RMB, is designed for efficiency and durability, making it an excellent choice for construction, mining, and infrastructure projects. Built to meet the demands of tough environments, the SY235C-8 features a powerful engine, advanced hydraulic system, and comfortable operator's cabin, ensuring optimal productivity and ease of use.
- Year: 2020
- Brand: Sany
- Model: SY235C-8
- Location: Hunan, China
- Price: Approximately 970,000 RMB
| Specifications | Value |
|---|---|
| No. | 1086809 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22900 |
| Bucket capacity (m³) | 1 |
| Country of origin | Kunshan in Jiangsu Province |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 47.6 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 159 |
| Travel speed (km/h) | 3.2/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 2 x 265 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 9780 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3160 |
| Full cab height (mm) | 2930 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2860 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3640 |
| Maximum digging radius (mm) | 10180 |
| Maximum digging depth (mm) | 6920 |
| Maximum excavation height (mm) | 9380 |
| Maximum unloading height (mm) | 6515 |
| Maximum vertical digging depth (mm) | 6010 |
| Bulldozer lift or depth (mm) | There is no |
