2019 Sany SY245H

1/3
Buy Sany SY245H Used Excavator / 1
Buy Sany SY245H Used Excavator / 2
Buy Sany SY245H Used Excavator / 3

Product Description

This 2019 Sany SY245H hydraulic excavator offers proven performance for demanding earthmoving and construction applications. Manufactured by one of China's leading heavy equipment producers, this mid-size crawler excavator combines reliable operation with efficient fuel consumption. The machine is currently located in Fujian, China, and has been well-maintained throughout its service life.

Key features include:

  • 25-ton operating weight class suitable for medium to large-scale projects

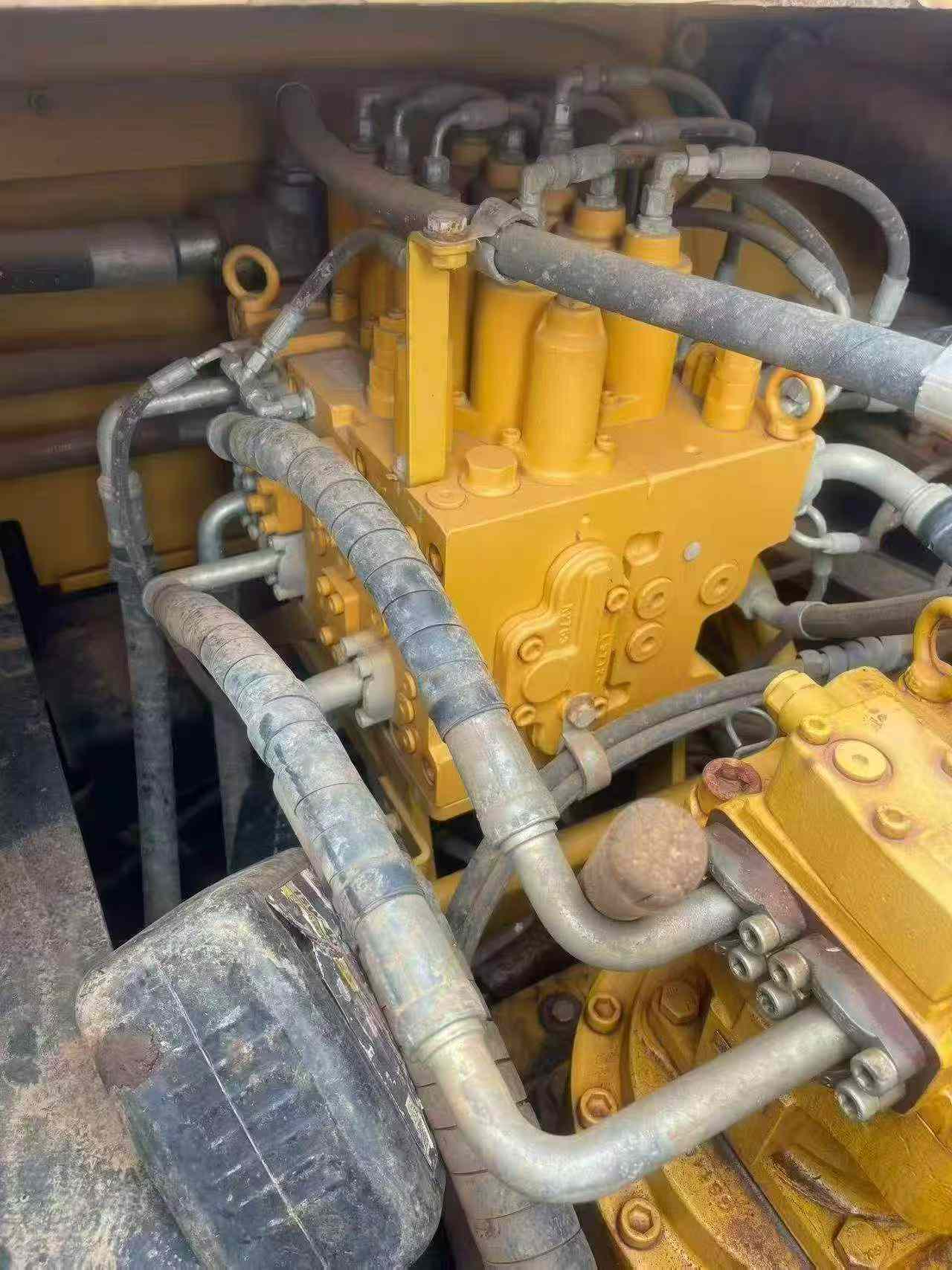

  • Efficient hydraulic system delivering responsive control and productivity
  • Robust undercarriage designed for stability and durability
  • Spacious operator cabin with ergonomic controls
  • Low hours with documented maintenance history

Ideal for excavation, trenching, loading, and material handling operations. Available for inspection by appointment. Full service records provided upon request.

SpecificationsValue
No.1162085
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe

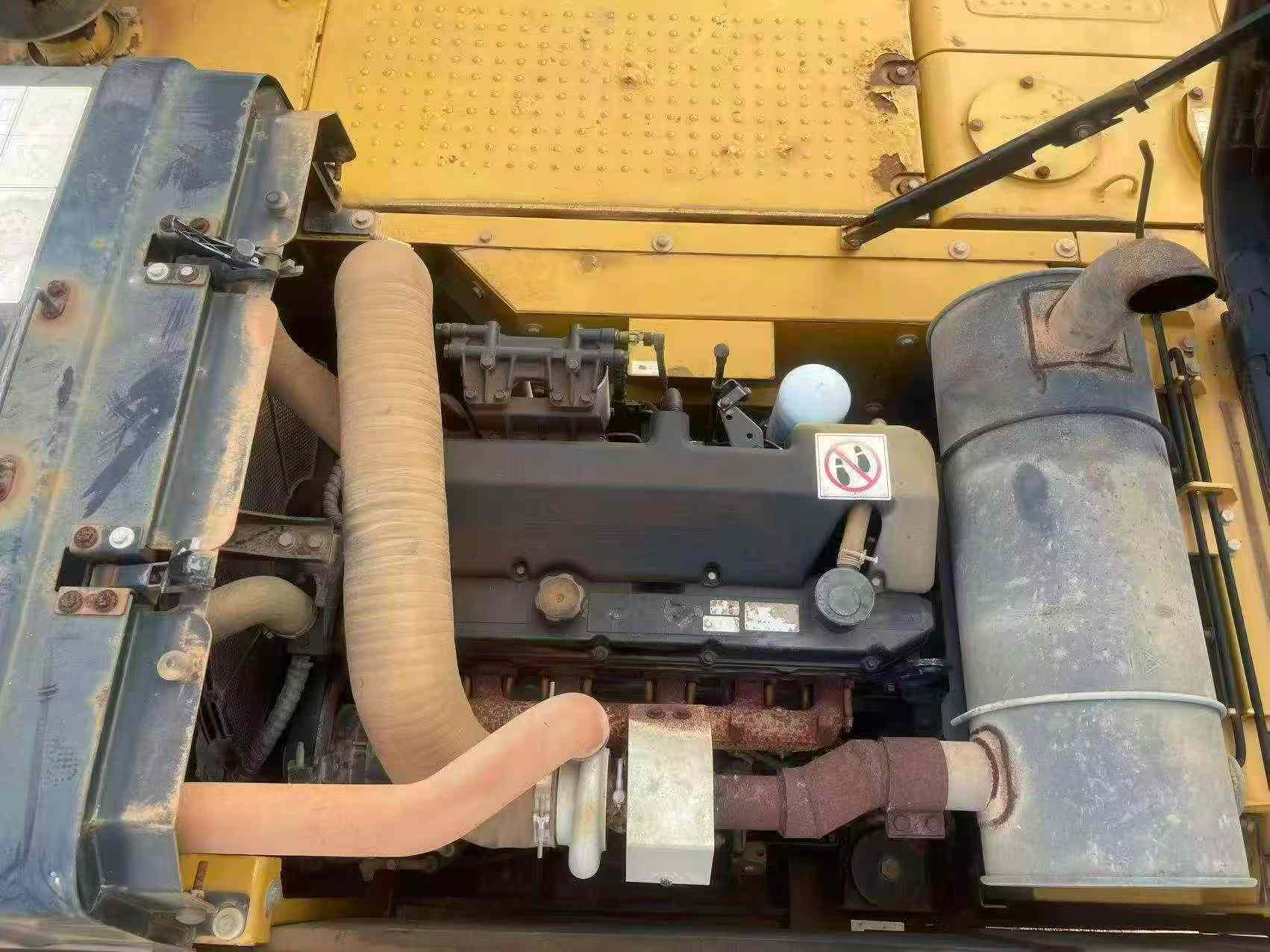

Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1162085

Brand Name:

Sany

Model Number:

SY245H

Year:

2019

Location:

Fujian China

Pub Date:
