Product Description

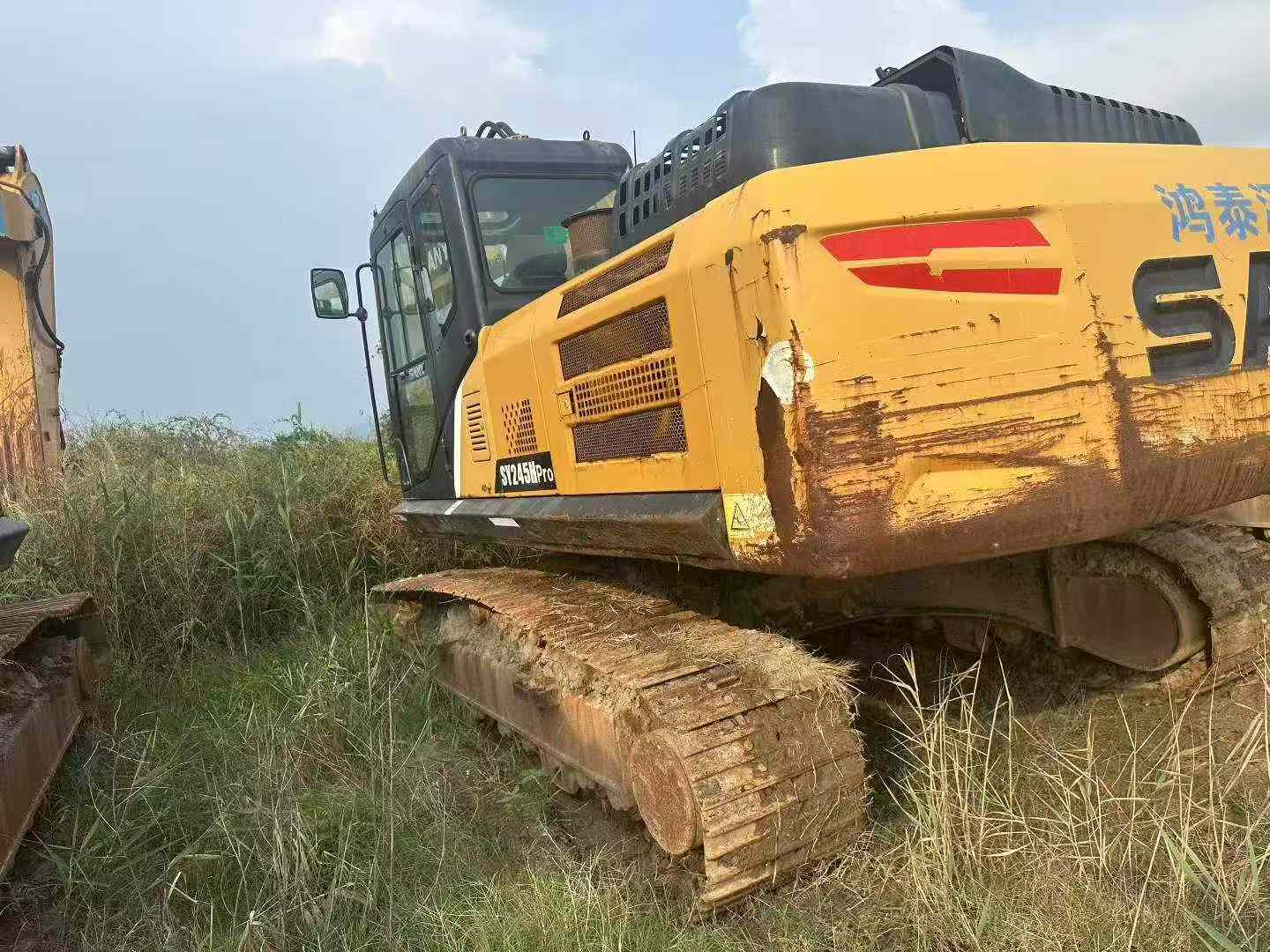

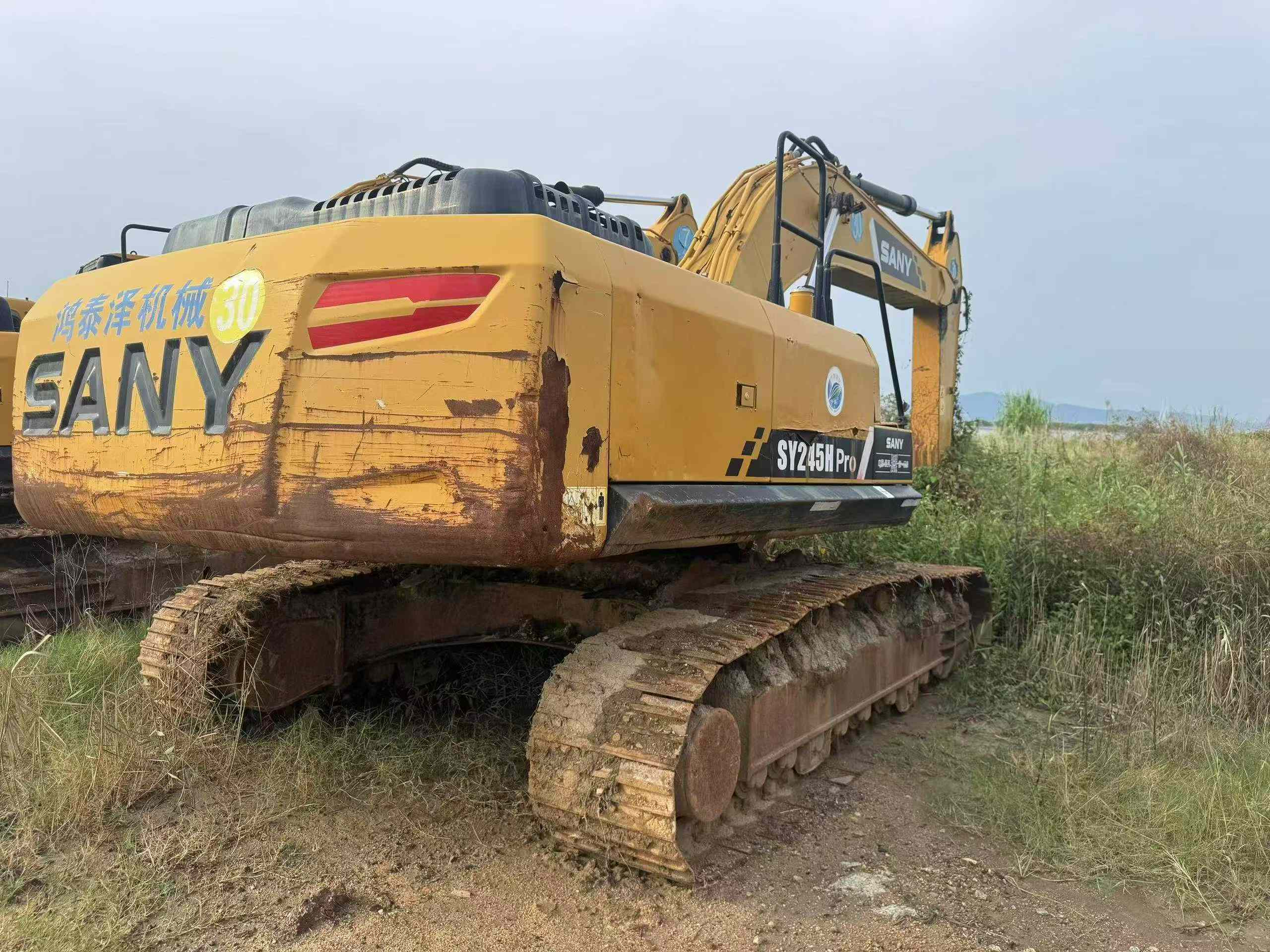

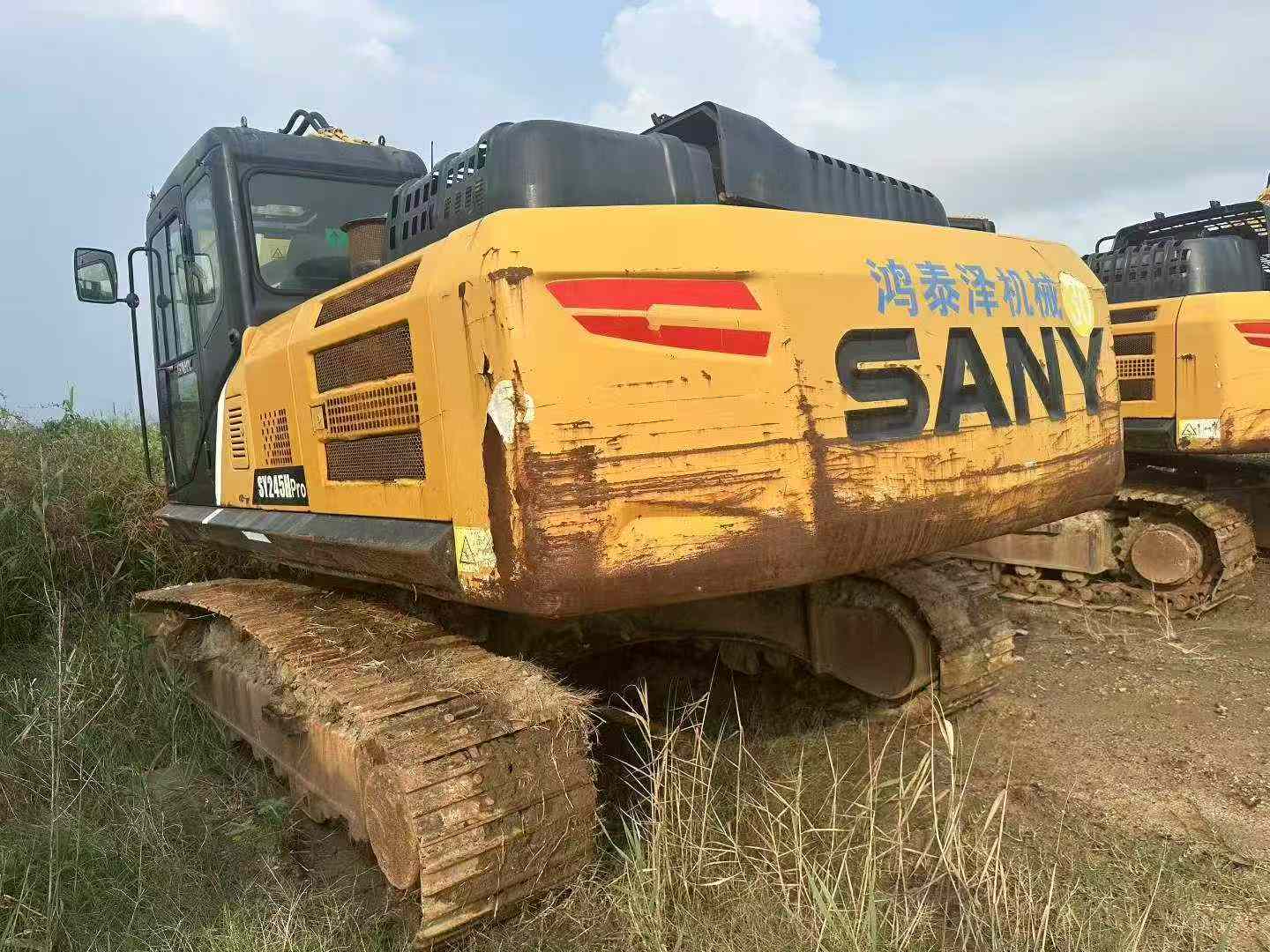

This 2020 Sany SY245H hydraulic excavator offers reliable performance for medium to heavy-duty earthmoving applications. With approximately 5,600 operating hours, this machine represents a cost-effective solution for contractors and construction companies seeking dependable equipment from a recognized manufacturer.
The SY245H is engineered for fuel efficiency and operator comfort, featuring Sany's proven hydraulic system and durable undercarriage components. Currently located in Guangdong, China, this excavator is suitable for site preparation, trenching, loading, and general excavation work.
- Year of Manufacture: 2020
- Operating Hours: ~5,600
- Operating Weight Class: 24-ton
- Location: Guangdong Province, China
- Condition: Used, operational
Ideal for buyers seeking quality used construction equipment at competitive pricing. Inspection and shipping arrangements can be coordinated upon request.
| Specifications | Value |
|---|---|
| No. | 1168588 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.3~1.5(1.5) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | D06FRC |
| Rated power (kw/rpm) | 147/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 750/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.373 |
| Ground specific pressure (Kpa) | 53.2 |
| Rotation speed (rpm) | 10.6 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 175 |
| Rod digging force (kN) | 120 |
| Travel speed (km/h) | 5.4/3.4 |
| Fuel Tank (L) | 475 |
| Hydraulic Tank (L) | 277 |
| Engine Oil changes (L) | 29 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3190 |
| Full cab height (mm) | 3255 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3800 |
| Back end turning radius (mm) | 3105 |
| Onboard width (mm) | 3045 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3640 |
| Maximum height at minimum turning radius (mm) | 8016 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10225 |
| Maximum digging depth (mm) | 6705 |
| Maximum excavation height (mm) | 9745 |
| Maximum unloading height (mm) | 6715 |
