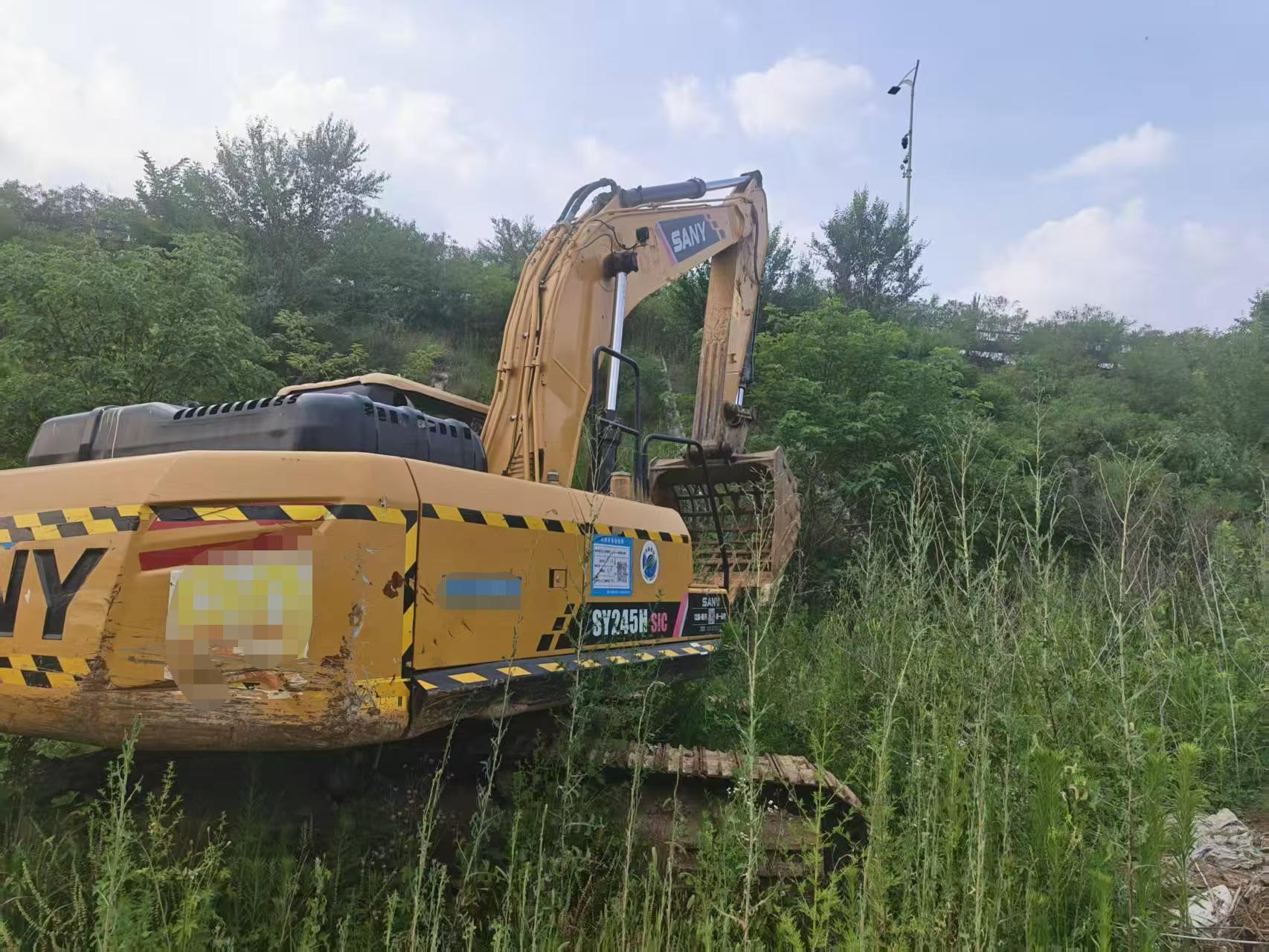

2021 Sany SY245H

1/7
Buy Sany SY245H Used Excavator / 1
Buy Sany SY245H Used Excavator / 2
Buy Sany SY245H Used Excavator / 3
Buy Sany SY245H Used Excavator / 4
Buy Sany SY245H Used Excavator / 5
Buy Sany SY245H Used Excavator / 6
Buy Sany SY245H Used Excavator / 7

Product Description

This 2021 Sany SY245H excavator represents a solid mid-sized option for contractors seeking proven performance in a reliable package. With approximately 6,000 operating hours, this machine has been actively utilized while remaining within its productive service life. The SY245H is engineered for versatility across construction, earthmoving, and demolition applications.

Currently located in Shandong, China, this excavator offers the balance of power and efficiency that Sany's H-series is known for. The 24-ton class machine delivers dependable hydraulic performance and operator comfort for extended shifts.

  • Year of Manufacture: 2021
  • Operating Hours: Approximately 6,000+
  • Location: Shandong Province, China
  • Condition: Used, operational

Ideal for businesses looking to expand their fleet with a cost-effective solution. Inspection and detailed specifications available upon request.

SpecificationsValue
No.1162485
Tonnage (tons)24
Working weight (kg)25500
Bucket capacity (m³)1.3~1.5(1.5)
powerTraditional power
manufacturerMade in China
bucketbackhoe

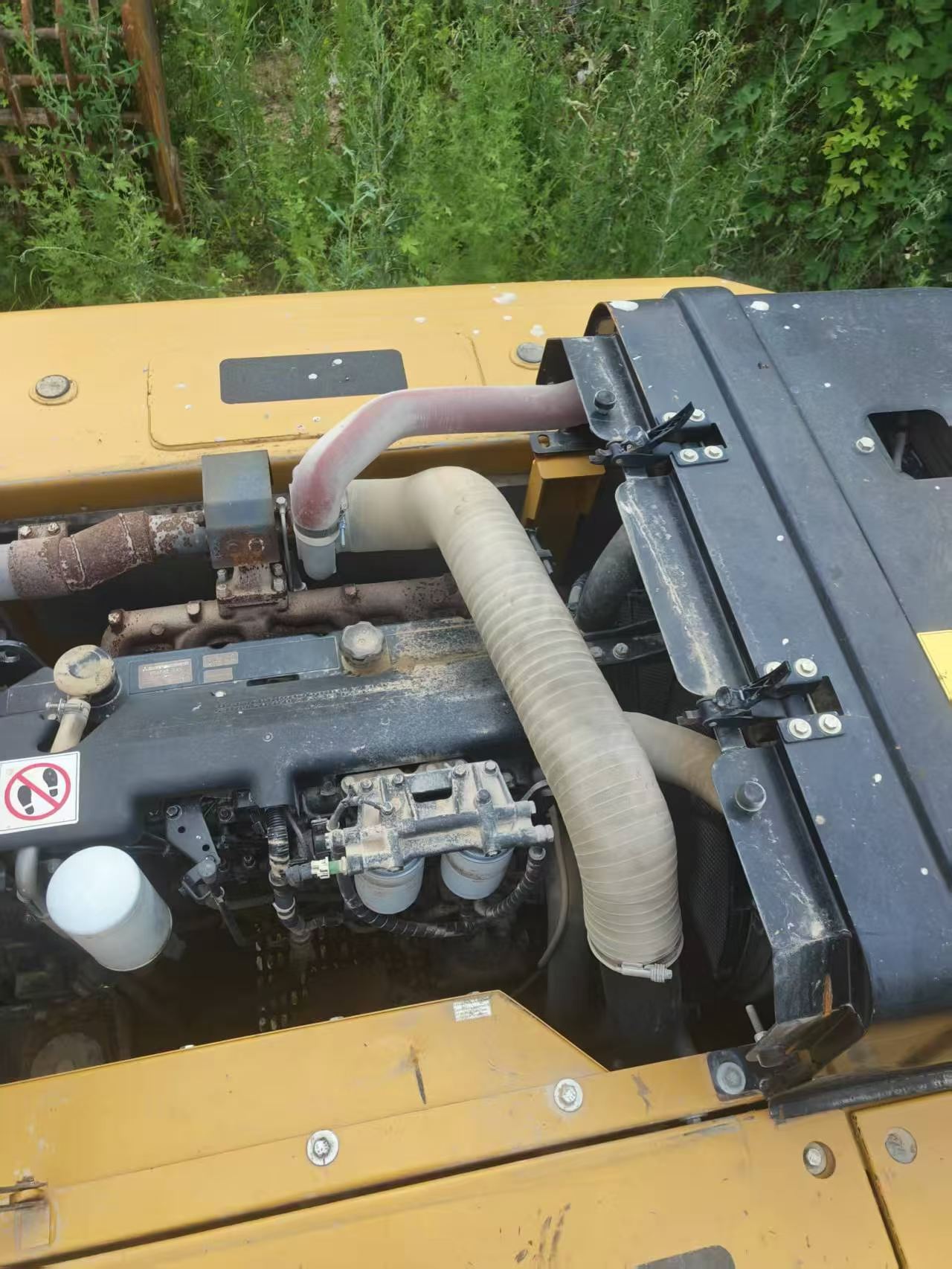

Engine typeD06FRC
Rated power (kw/rpm)147/2100
Cooling modewater-cooling
Maximum torque (N.m)750/1350
Number of cylinders (PCS)6
Displacement (L)6.373
Ground specific pressure (Kpa)53.2
Rotation speed (rpm)10.6
Climbing ability (%)70
Bucket digging force (kN)175
Rod digging force (kN)120
Travel speed (km/h)5.4/3.4
Fuel Tank (L)475
Hydraulic Tank (L)277
Engine Oil changes (L)29
Total transport length (mm)10290
Total transport width (mm)3190
Total transport height (mm)3190
Full cab height (mm)3255
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3800
Back end turning radius (mm)3105
Onboard width (mm)3045
Total track length (mm)4445
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3640
Maximum height at minimum turning radius (mm)8016
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10225
Maximum digging depth (mm)6705
Maximum excavation height (mm)9745
Maximum unloading height (mm)6715
see more

Overview

No.1162485

Brand Name:

Sany

Model Number:

SY245H

Year:

2021

Location:

Shandong China

Pub Date:

Are you interested in this machine?

Please contact us
