Product Description

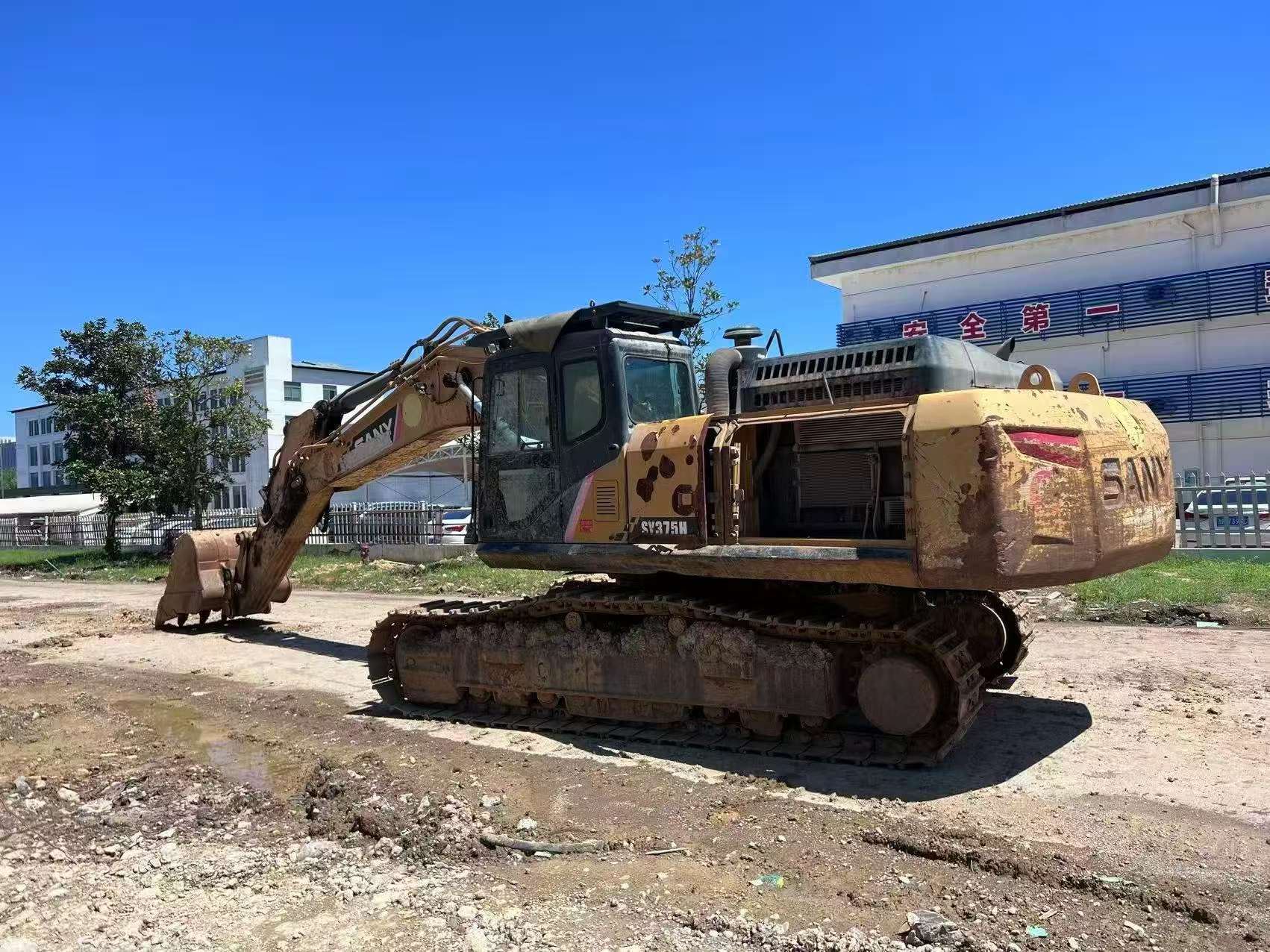

Discover the robust Sany SY375H, a 2020 model excavator currently available in Shandong, China. This machine is equipped with a 175 breaker, making it ideal for demanding demolition and construction tasks. With an operational record of 10,000 hours, this excavator has proven its durability and reliability on various job sites. The SY375H is ready for immediate on-site inspection, ensuring you can evaluate its condition firsthand. Invest in a trusted, high-performance excavator that is built to handle your most challenging projects.
- Year: 2020
- Brand: Sany
- Model: SY375H
- Location: Shandong, China

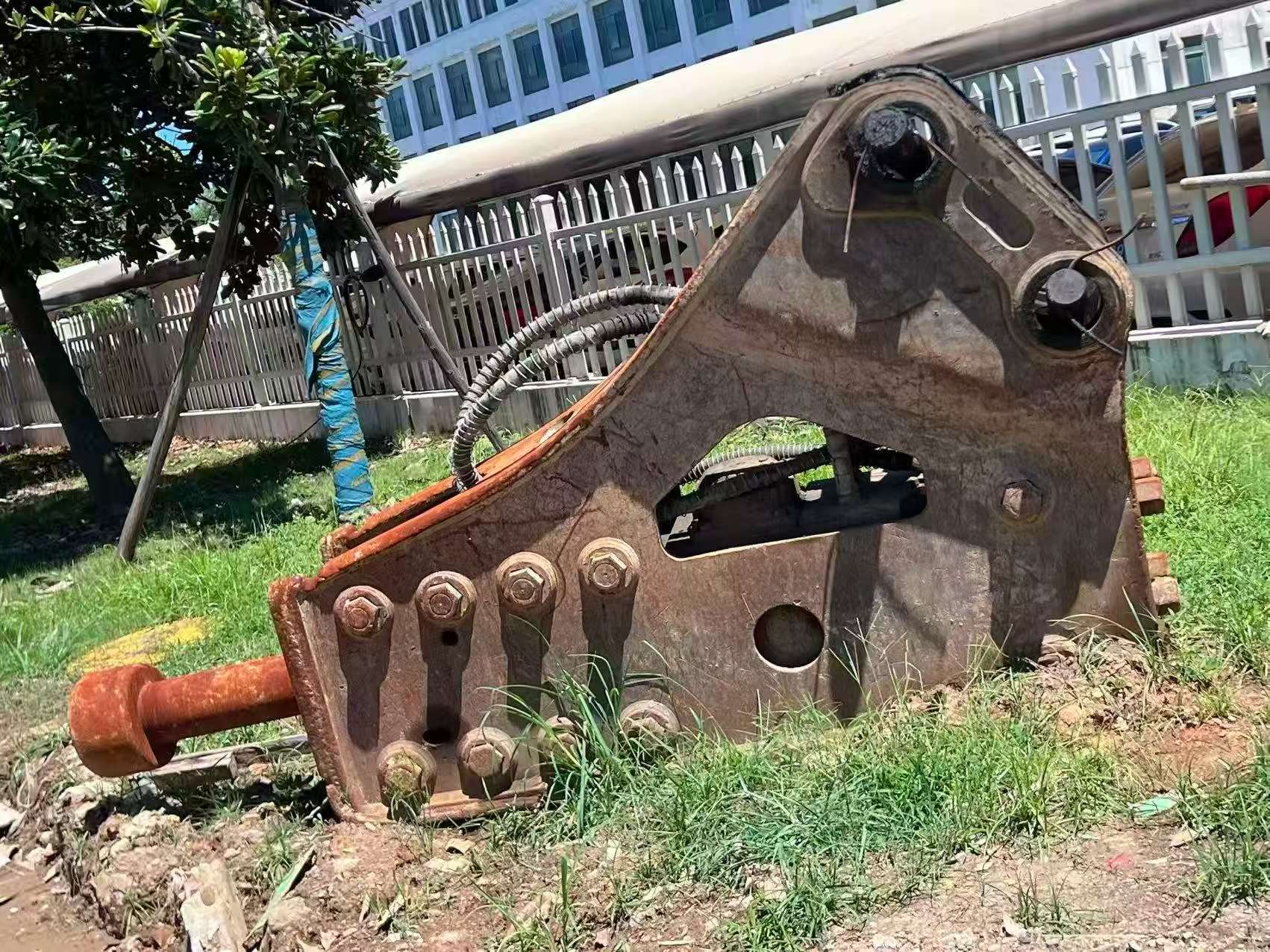

- Equipped with a 175 breaker
- Operational hours: 10,000
| Specifications | Value |
|---|---|
| No. | 1118015 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 37500 |
| Bucket capacity (m³) | 1.7-2.4 (1.9) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

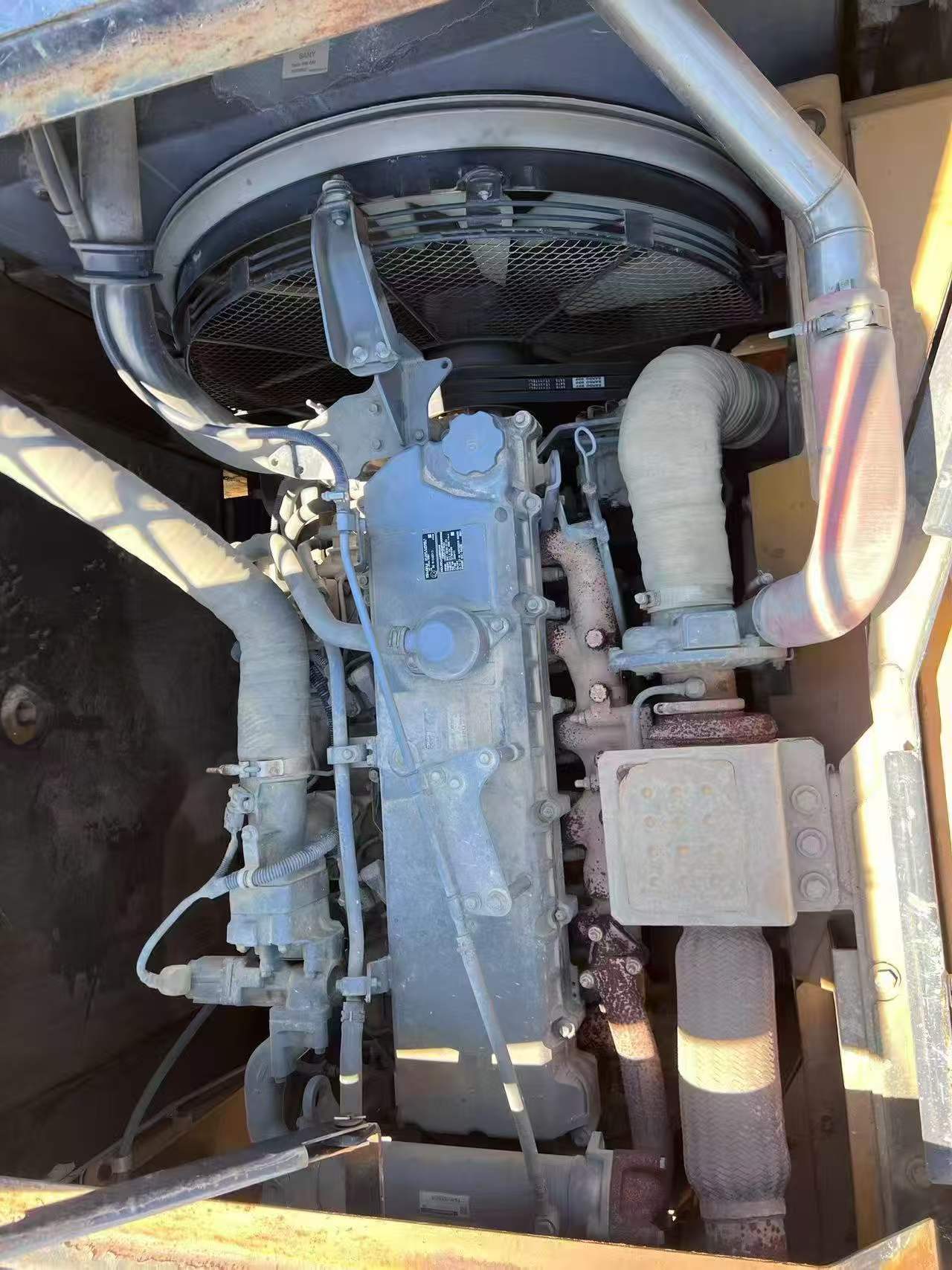

| Engine type | GH-6HK1XKSC |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection, 6 cylinders, 4 strokes, turbocharged, water cooled |
| Ground specific pressure (Kpa) | 68.8 |
| Rotation speed (rpm) | 8.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 210 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 540 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11425 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3825 |
| Full cab height (mm) | 3440 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4390 |
| Back end turning radius (mm) | 3610 |
| Onboard width (mm) | 3230 |
| Total track length (mm) | 5100 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8930 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10750 |
| Maximum digging depth (mm) | 7155 |
| Maximum excavation height (mm) | 9920 |
| Maximum unloading height (mm) | 7010 |
| Maximum vertical digging depth (mm) | 5125 |
