Product Description

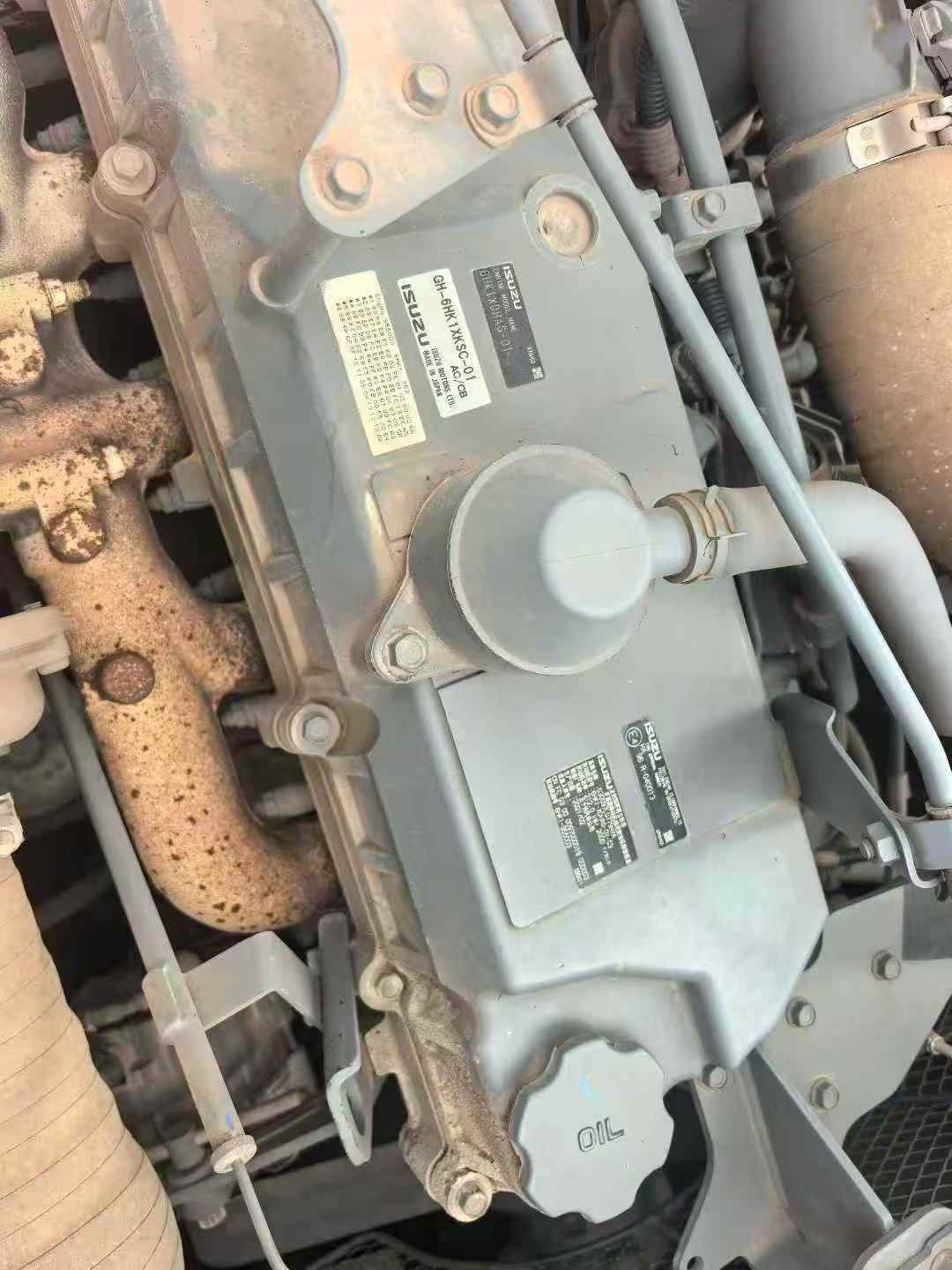

Built in 2021, this Sany SY375H excavator delivers proven 37-ton performance backed by one of China's most reliable heavy equipment manufacturers. Powered by a robust GH-6HK1XKSC engine producing 212kW at 2000rpm, this machine combines a 1.9m³ bucket capacity with 235kN bucket digging force and 10,750mm maximum reach for demanding earthmoving operations. Currently located in Sichuan, China, this unit features water-cooled turbocharged technology, 540L fuel capacity, and comprehensive travel capabilities including 70% gradeability.
Sany's established global dealer network ensures parts availability and service support remain accessible long after purchase, protecting your investment with superior resale value compared to lesser-known brands. Technical specifications include 7,155mm maximum digging depth, 5.5km/h travel speed, and 8.8rpm rotation speed. With 4,140mm track ground length and 600mm track plates, this SY375H maintains 68.8kPa ground pressure for optimal stability across varied terrain. Smart buyers choose Sany for long-term operational reliability and market-leading parts interchangeability across model years.
| Specifications | Value |
|---|---|
| No. | 1021597 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 37500 |
| Bucket capacity (m³) | 1.7-2.4 (1.9) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection, 6 cylinders, 4 strokes, turbocharged, water cooled |
| Ground specific pressure (Kpa) | 68.8 |
| Rotation speed (rpm) | 8.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 210 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 540 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11425 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3825 |
| Full cab height (mm) | 3440 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4390 |
| Back end turning radius (mm) | 3610 |
| Onboard width (mm) | 3230 |
| Total track length (mm) | 5100 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8930 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10750 |
| Maximum digging depth (mm) | 7155 |
| Maximum excavation height (mm) | 9920 |
| Maximum unloading height (mm) | 7010 |
| Maximum vertical digging depth (mm) | 5125 |
