Product Description

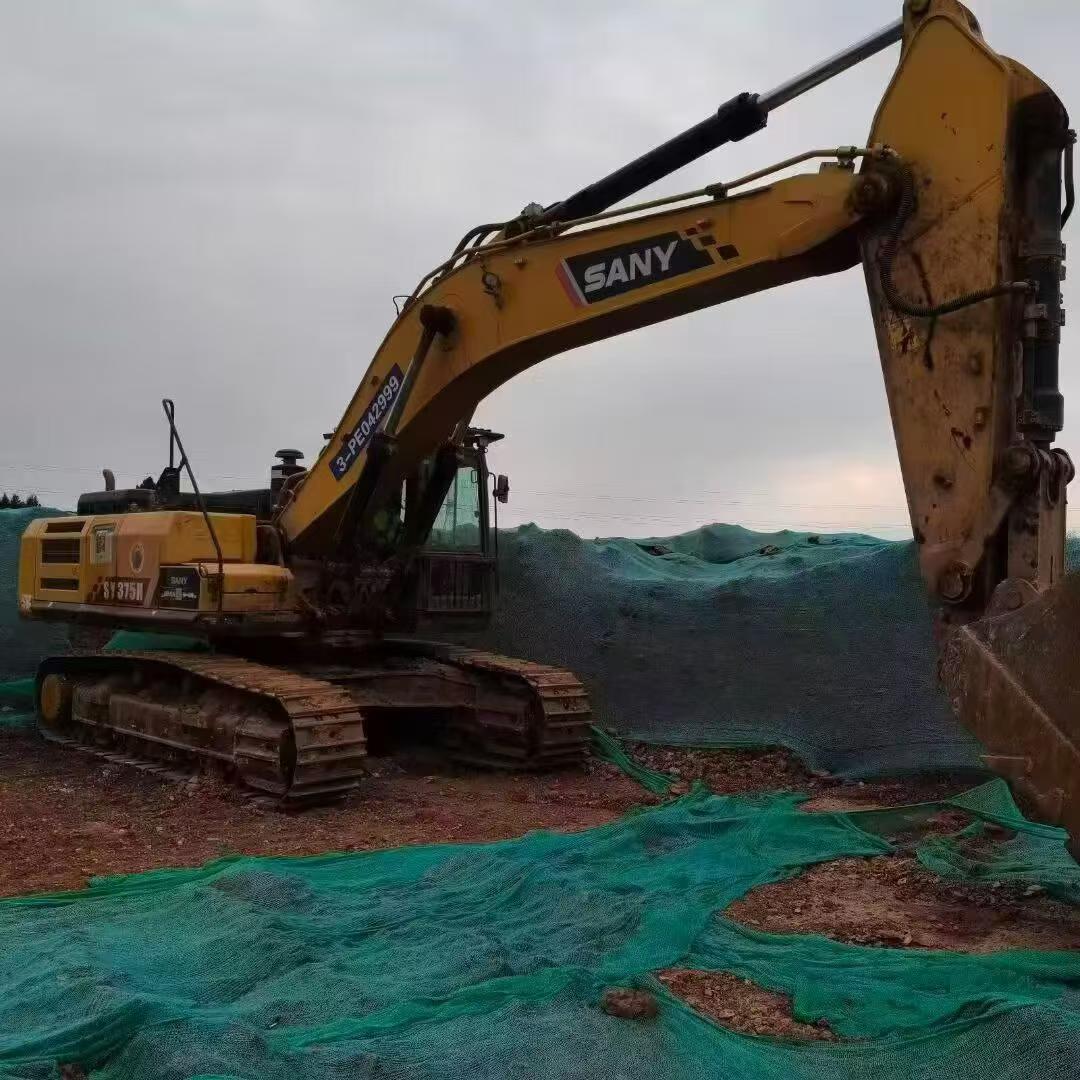

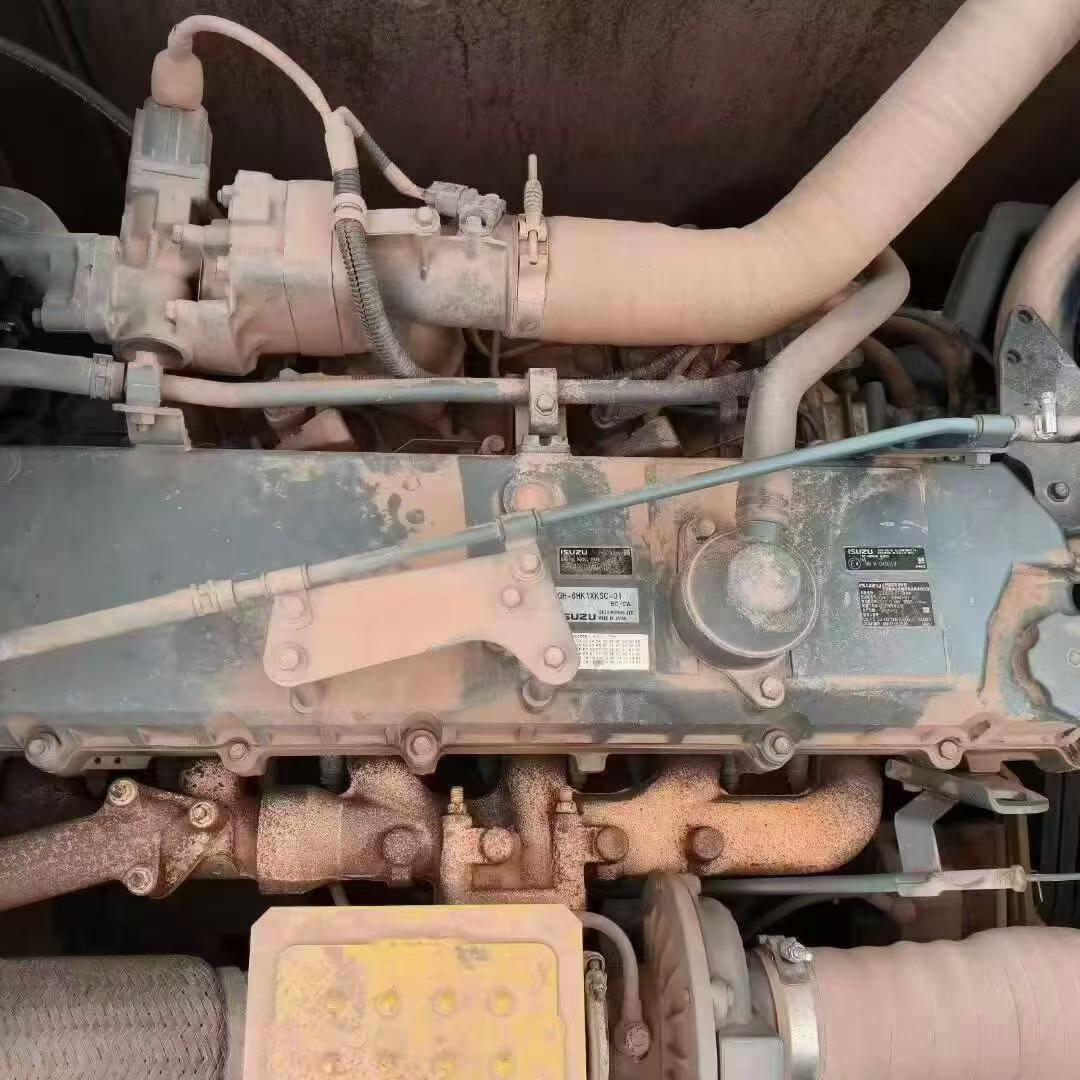

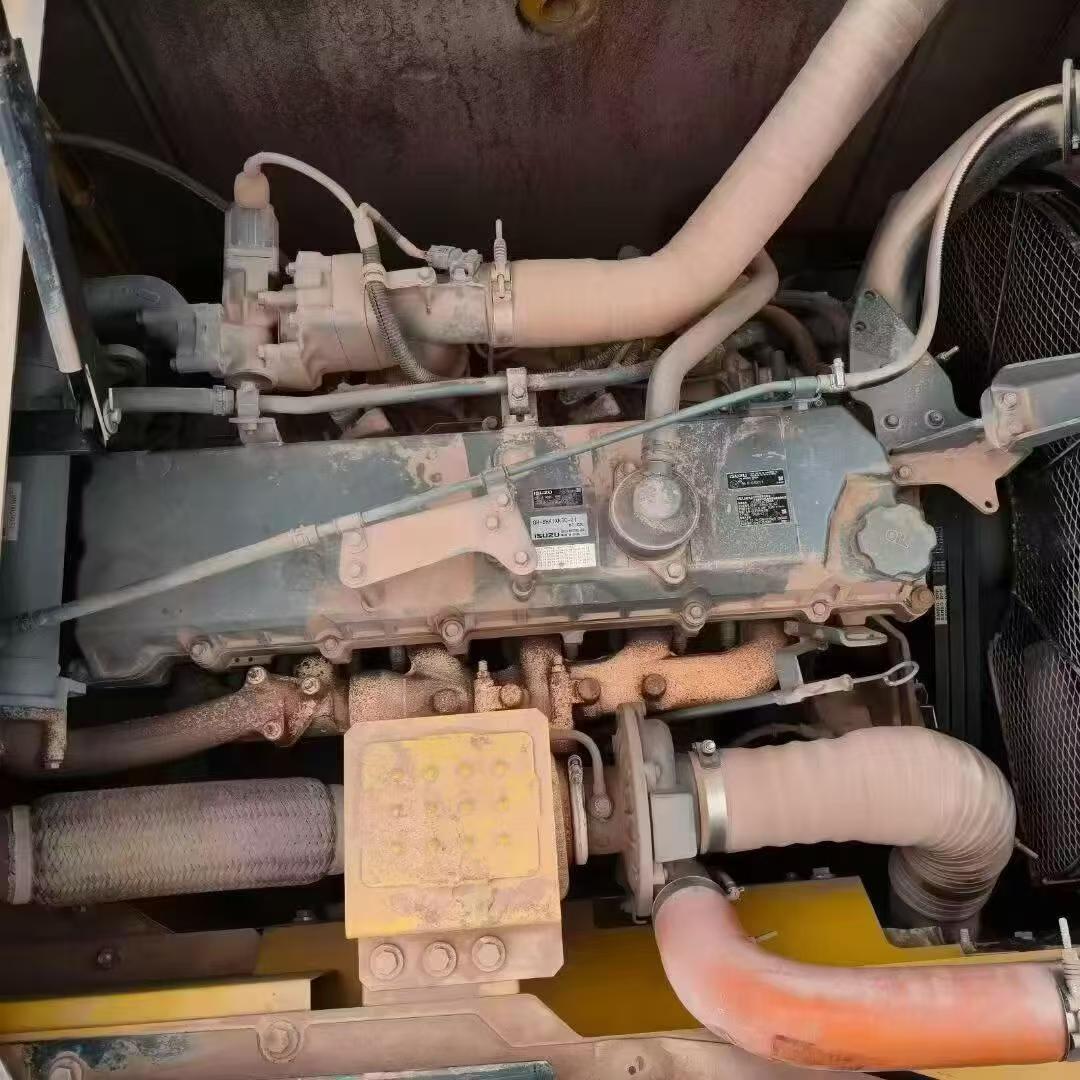

Powered by a robust GH-6HK1XKSC engine, the Sany SY375H delivers 212 kW at 2000 rpm, ensuring efficient and reliable performance. With a displacement of 7.79 L and a maximum torque of 1080 N.m at 1500 rpm, this excavator is designed for heavy-duty tasks. The water-cooled, direct injection, 6-cylinder, 4-stroke, turbocharged engine provides consistent power and durability.
- Tonnage: 37 tons
- Working weight: 37,500 kg
- Bucket capacity: 1.7-2.4 m³ (standard 1.9 m³)
- Ground specific pressure: 68.8 Kpa
- Maximum digging force: 235 kN (bucket), 210 kN (rod)
- Travel speed: 5.5/3.5 km/h
- Fuel tank capacity: 540 L
- Total transport dimensions: 11,425 mm (length) x 3,190 mm (width) x 3,825 mm (height)

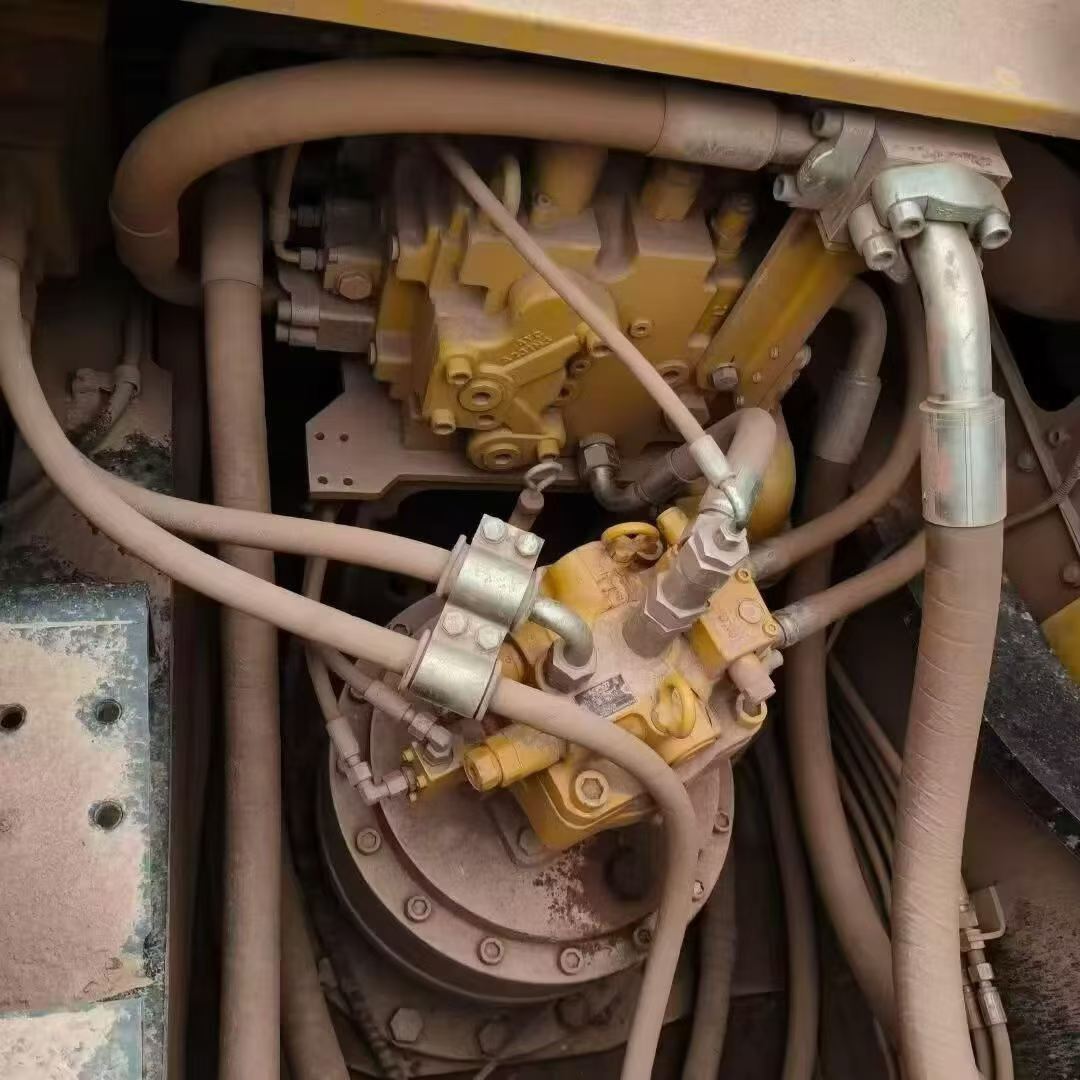

Engineered with precision, the SY375H features a backhoe bucket and advanced hydraulics, offering a maximum digging depth of 7,155 mm and a maximum unloading height of 7,010 mm. Its climbing ability of 70% and a minimum turning radius of 4,390 mm make it highly maneuverable in challenging terrains. Built in China, this model exemplifies the high standards of Sany's engineering excellence.
| Specifications | Value |
|---|---|
| No. | 1022891 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 37500 |
| Bucket capacity (m³) | 1.7-2.4 (1.9) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection, 6 cylinders, 4 strokes, turbocharged, water cooled |
| Ground specific pressure (Kpa) | 68.8 |
| Rotation speed (rpm) | 8.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 210 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 540 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11425 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3825 |
| Full cab height (mm) | 3440 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4390 |
| Back end turning radius (mm) | 3610 |
| Onboard width (mm) | 3230 |
| Total track length (mm) | 5100 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8930 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10750 |
| Maximum digging depth (mm) | 7155 |
| Maximum excavation height (mm) | 9920 |
| Maximum unloading height (mm) | 7010 |
| Maximum vertical digging depth (mm) | 5125 |
