2020 Sany SY65C

1/9

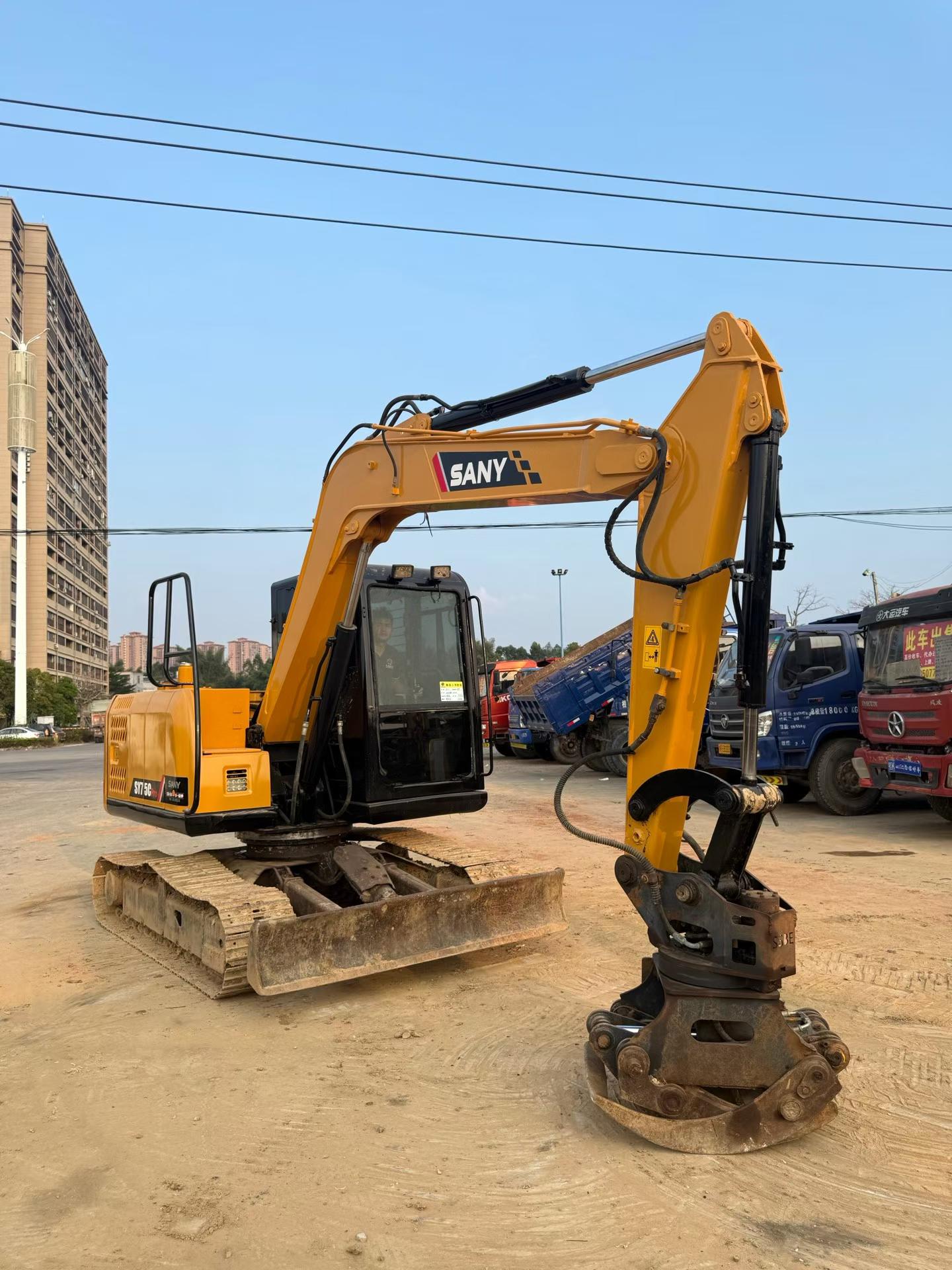

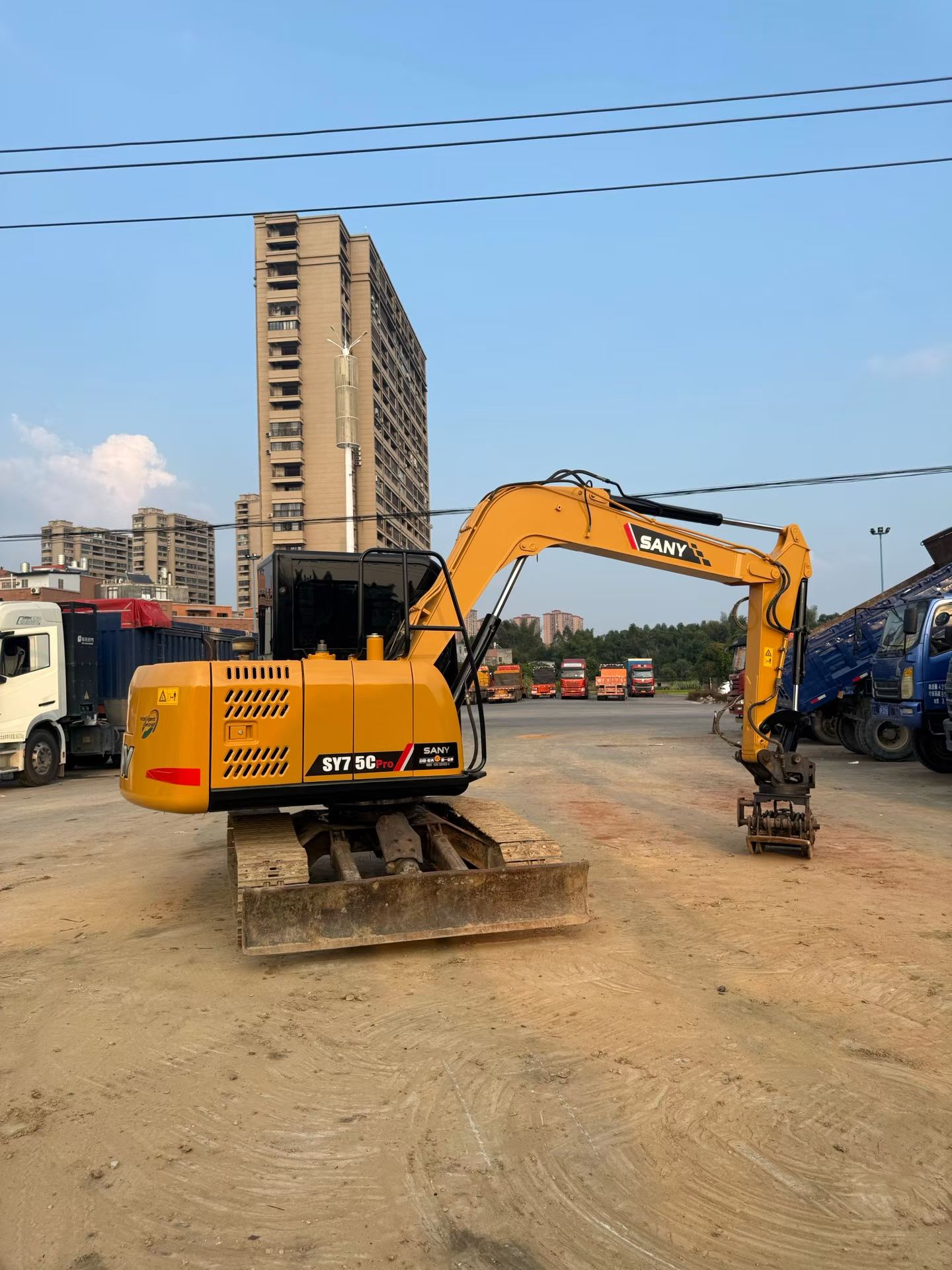

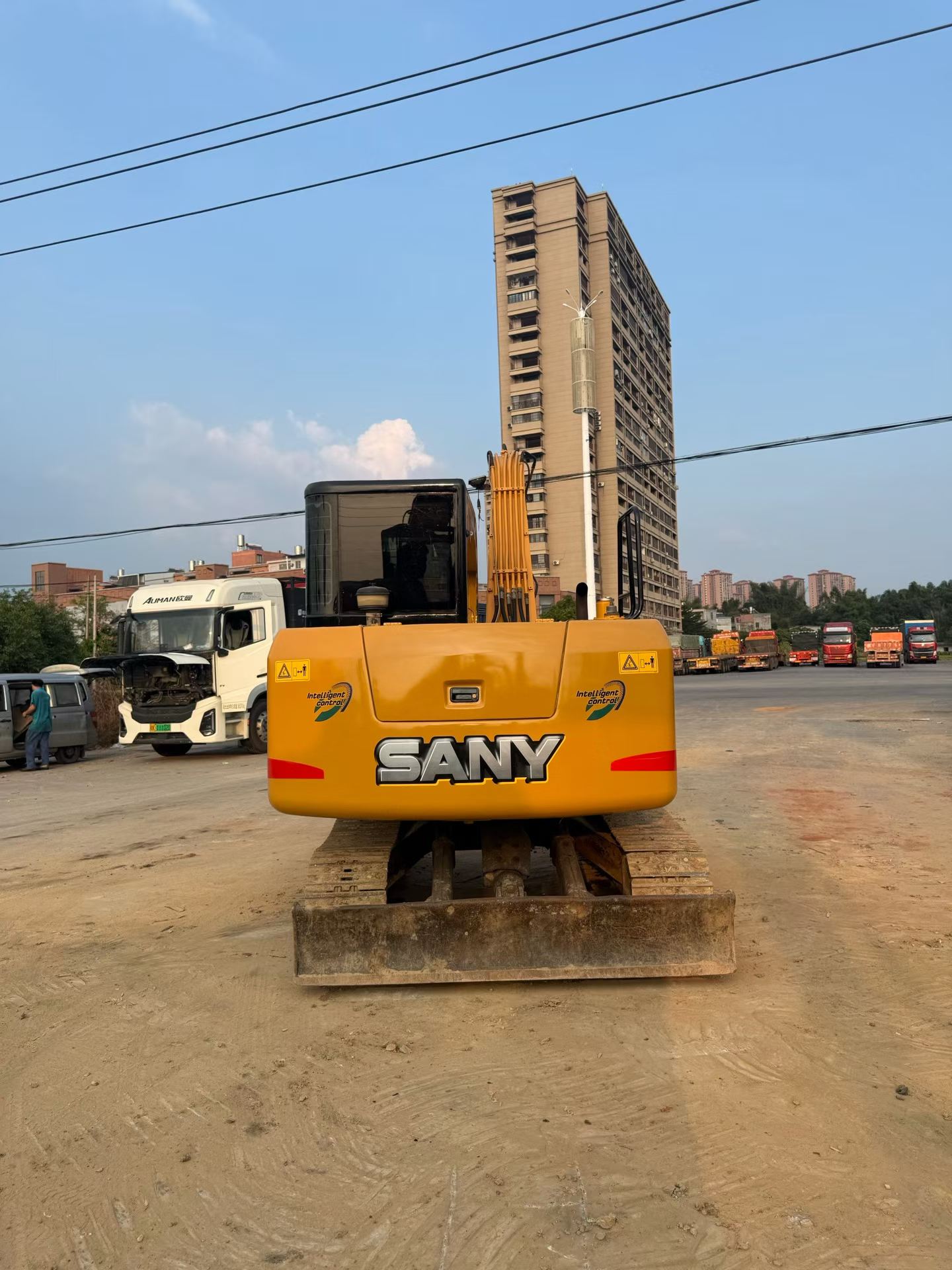

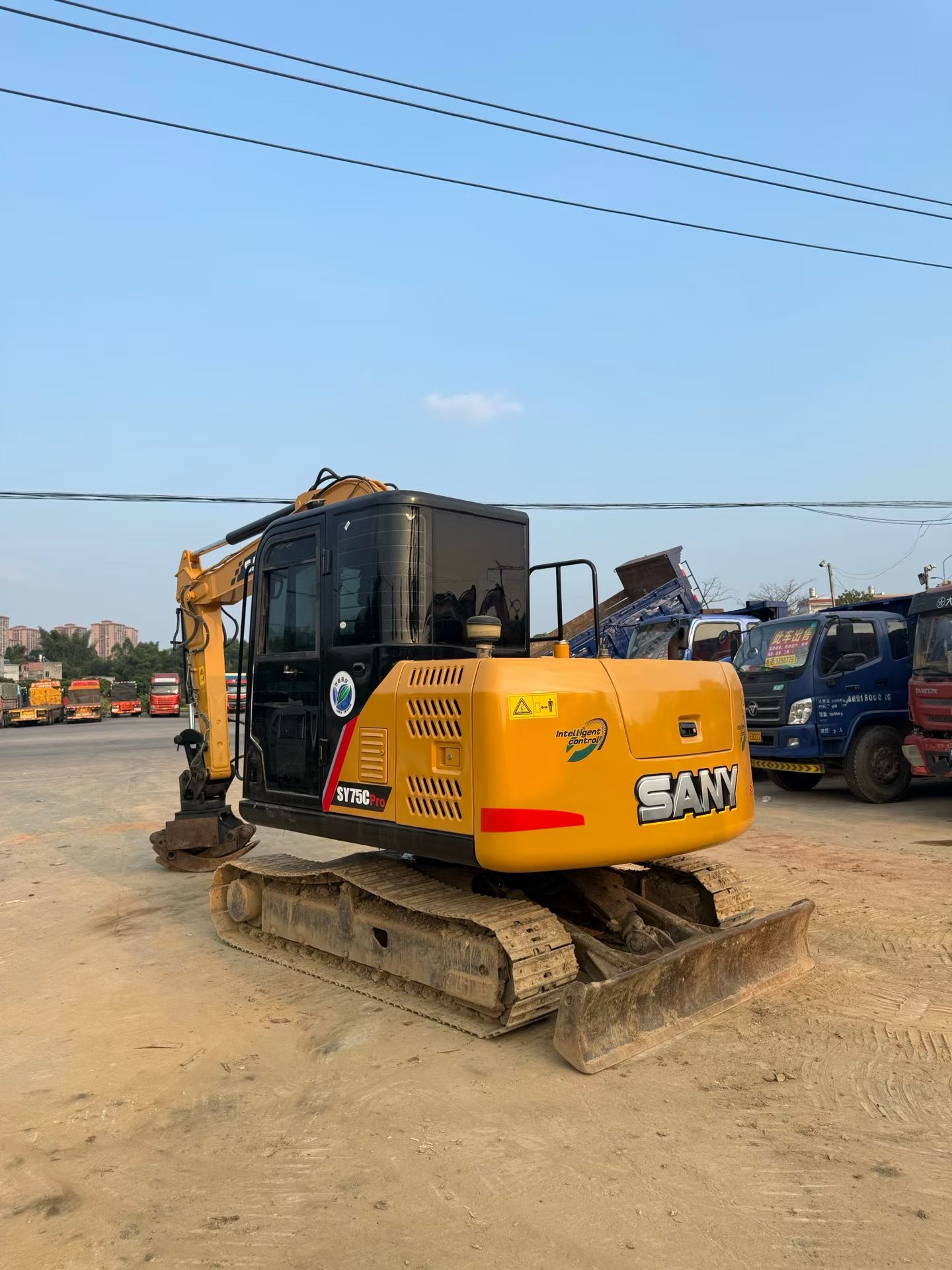

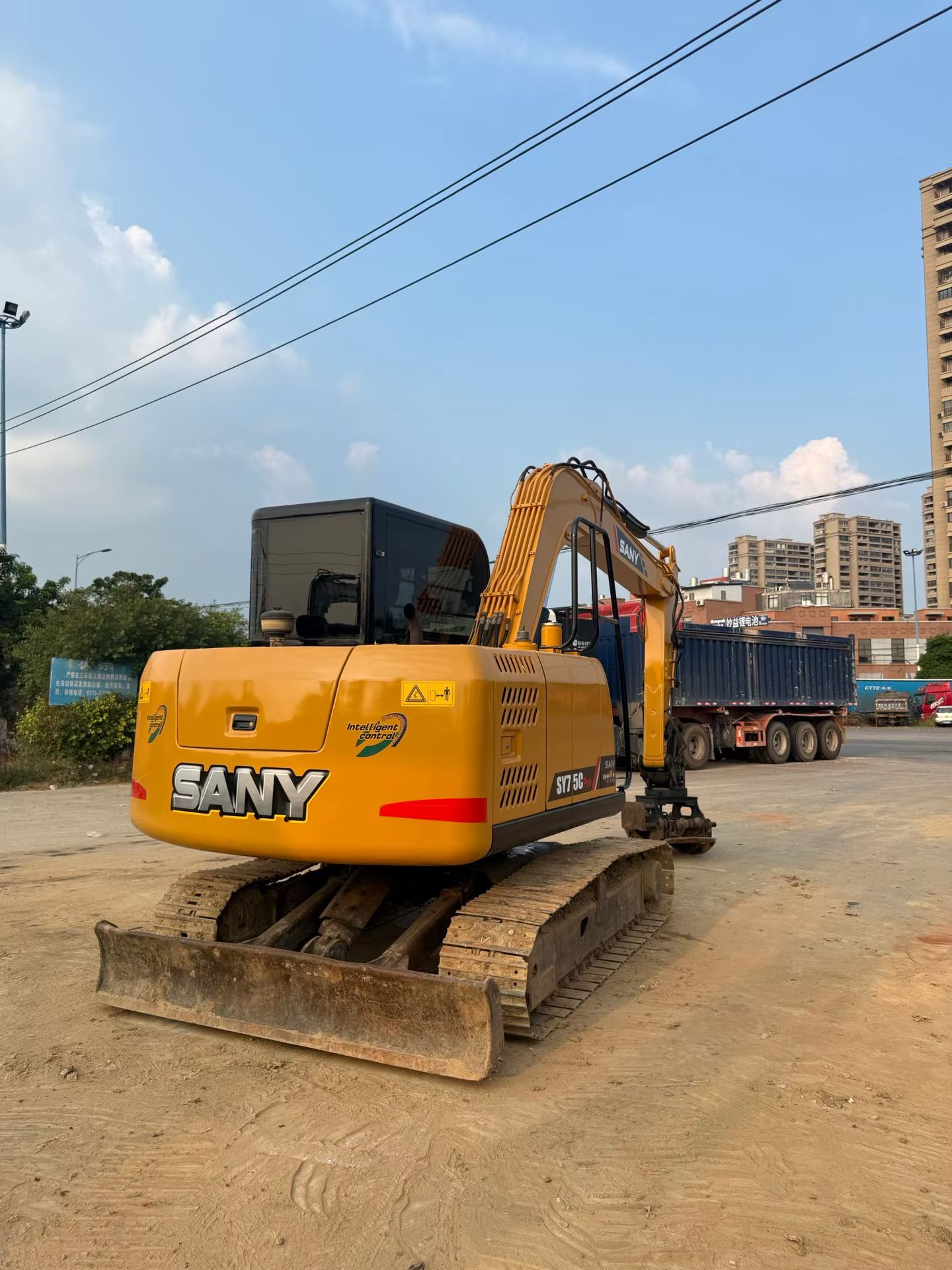

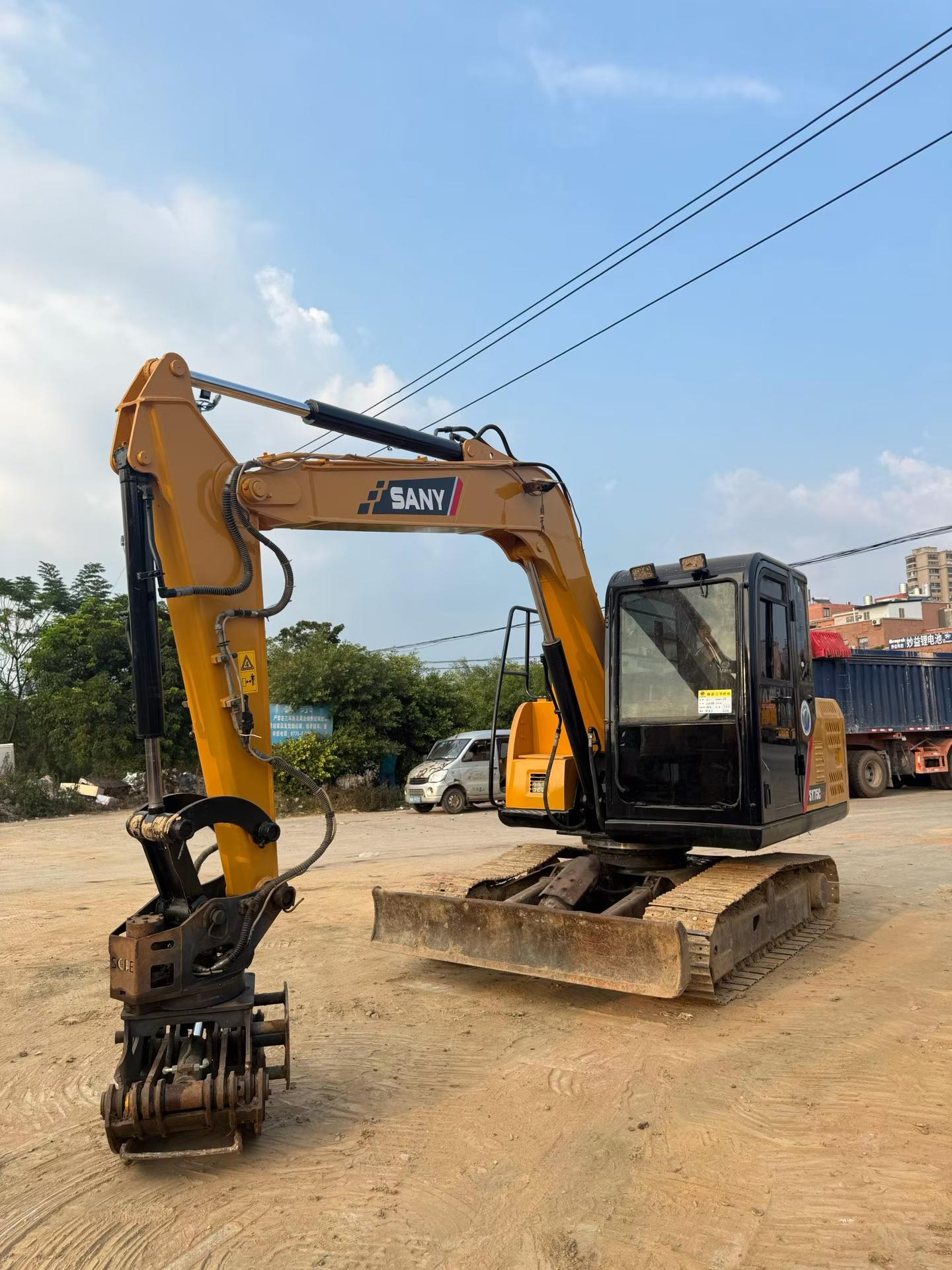

Buy Sany SY65C Used Excavator / 1
Buy Sany SY65C Used Excavator / 2
Buy Sany SY65C Used Excavator / 3
Buy Sany SY65C Used Excavator / 4
Buy Sany SY65C Used Excavator / 5
Buy Sany SY65C Used Excavator / 6
Buy Sany SY65C Used Excavator / 7
Buy Sany SY65C Used Excavator / 8
Buy Sany SY65C Used Excavator / 9

Product Description

This 2020 Sany SY65C compact excavator offers reliable performance for contractors seeking proven Chinese engineering. Currently located in Guangxi, China, this unit comes equipped with a hydraulic grapple attachment, expanding its versatility beyond standard excavation work. The SY65C is known for its 6-ton operating weight class, making it suitable for urban construction, landscaping, and light demolition applications where maneuverability matters.

Key features include:

  • Sany's established hydraulic system for consistent performance
  • Compact dimensions ideal for confined job sites

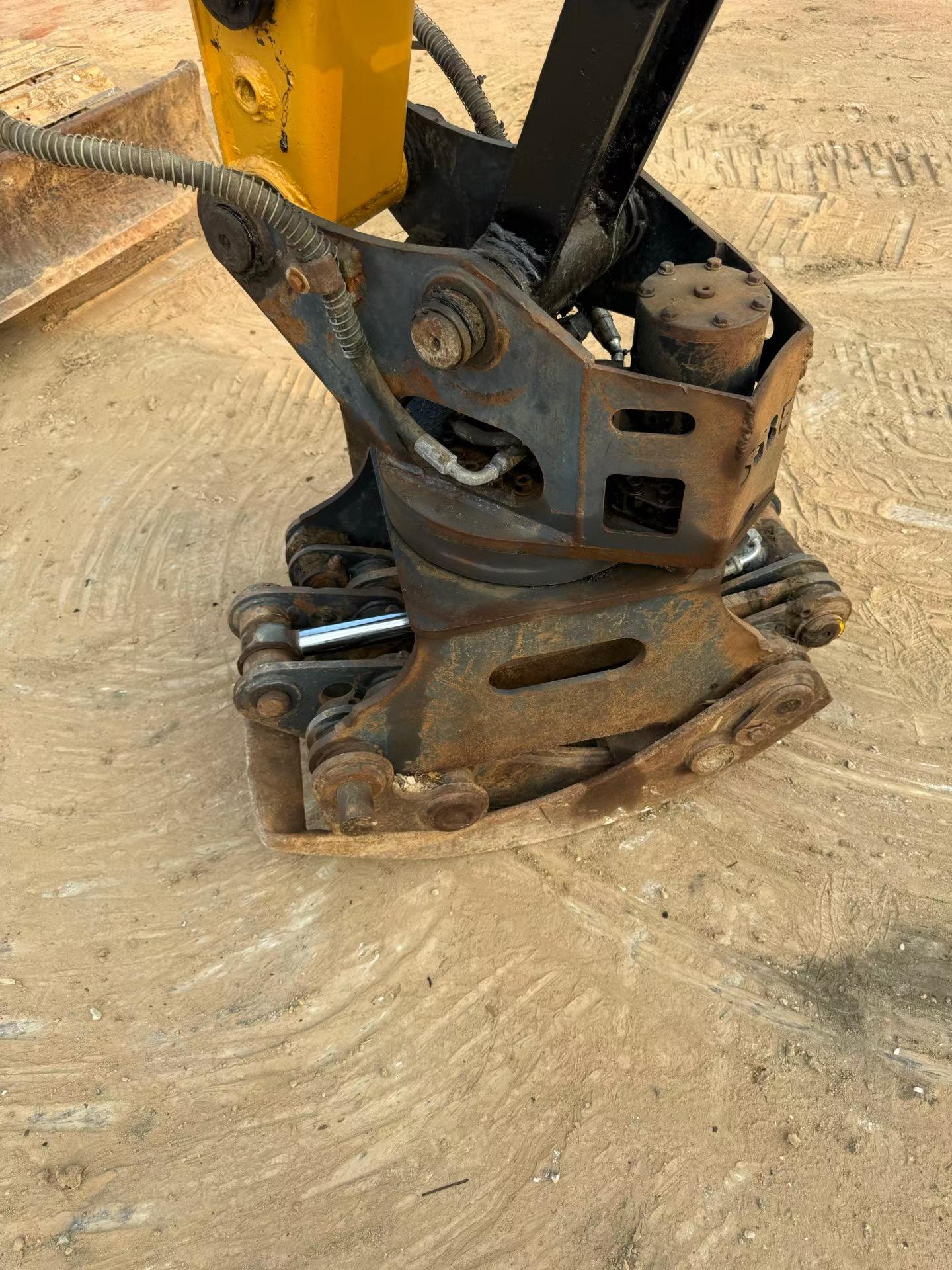

  • Includes hydraulic grapple for material handling
  • Four years of operational history with maintenance records available
  • Ready for immediate deployment

This machine represents a cost-effective entry point for businesses expanding their fleet or contractors requiring a secondary unit. Inspection welcome by appointment in Guangxi.

SpecificationsValue
No.1162624
Tonnage (tons)6
Working weight (kg)6700
Bucket capacity (m³)0.12-0.32
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe

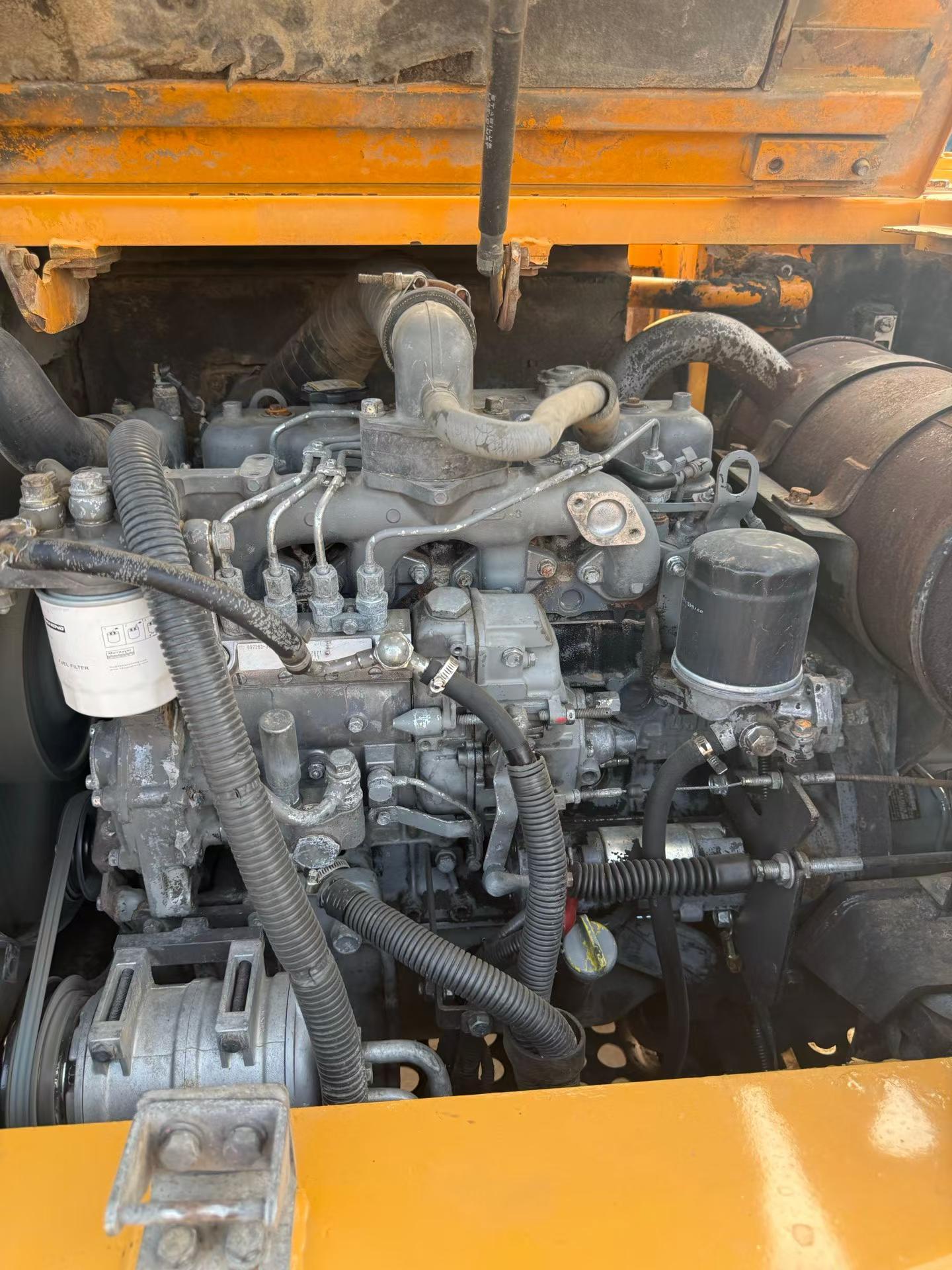

Engine typeSANY D03S3
Rated power (kw/rpm)42/2100
Cooling modewater-cooling
Maximum torque (N.m)1900/1600~2000
Number of cylinders (PCS)4
Displacement (L)2.77
Ground specific pressure (Kpa)33
Rotation speed (rpm)11.5
Climbing ability (%)70/35 °
Bucket digging force (kN)56
Rod digging force (kN)35.6
Travel speed (km/h)2.4/4.8
Main overflow set pressure (Mpa)26
Maximum flow of main pump (l/min)149
Traveling Hydraulic Circuit (Mpa)26
Rotary Hydraulic Circuit (Mpa)21.6
Control Hydraulic Circuit (Mpa)3.6
Hydraulic crushing pipeline is standardno
Main pump typeVariable swashplate plunger pump
Bucket cylinders - Number × diameter × stroke (mm)80 x 730
Bucket rod cylinders - Number × diameter × stroke (mm)90 x 900
Boom cylinders - Number × diameter × stroke (mm)110 x 885
Fuel Tank (L)145
Hydraulic Tank (L)120
Engine Oil changes (L)9
Coolant (L)12
Total transport length (mm)6000
Total transport width (mm)2160
Total transport height (mm)2560
Full cab height (mm)2560
Minimum ground clearance (mm)375
Back end turning radius (mm)1720
Total track length (mm)2710
Track gauge (mm)1680
Track plate width (mm)400
Total track width (mm)2160
Track ground length (mm)2180
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)42
Maximum digging radius (mm)6160
Maximum digging depth (mm)3985
Maximum excavation height (mm)6930
Maximum unloading height (mm)5145
Maximum vertical digging depth (mm)3470
Bulldozer lift or depth (mm)200/480
Dodging plate width × height (mm)460(dodging plate height)
see more

Overview

No.1162624

Brand Name:

Sany

Model Number:

SY65C

Year:

2020

Location:

Guangxi China

Pub Date:
