Product Description

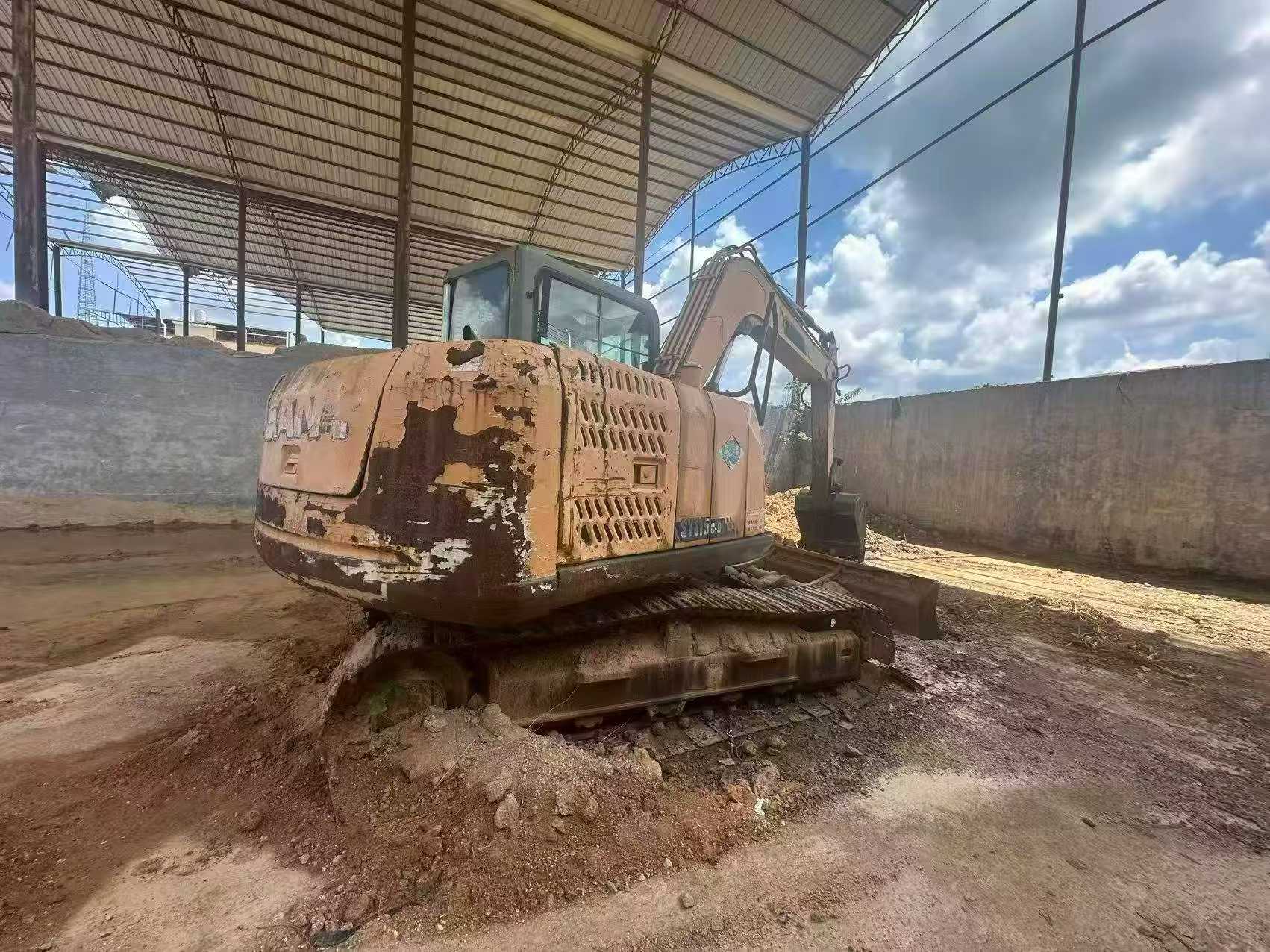

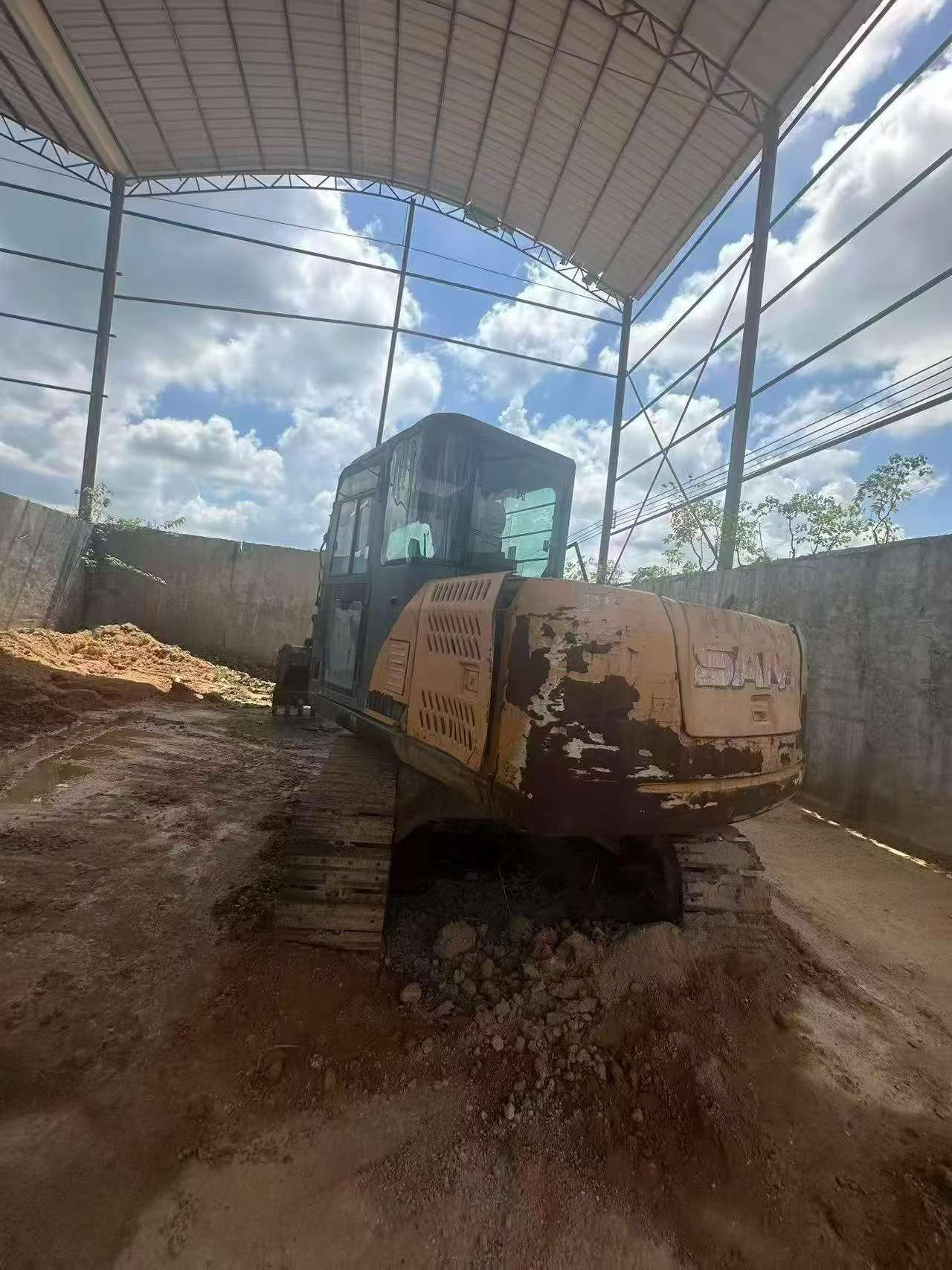

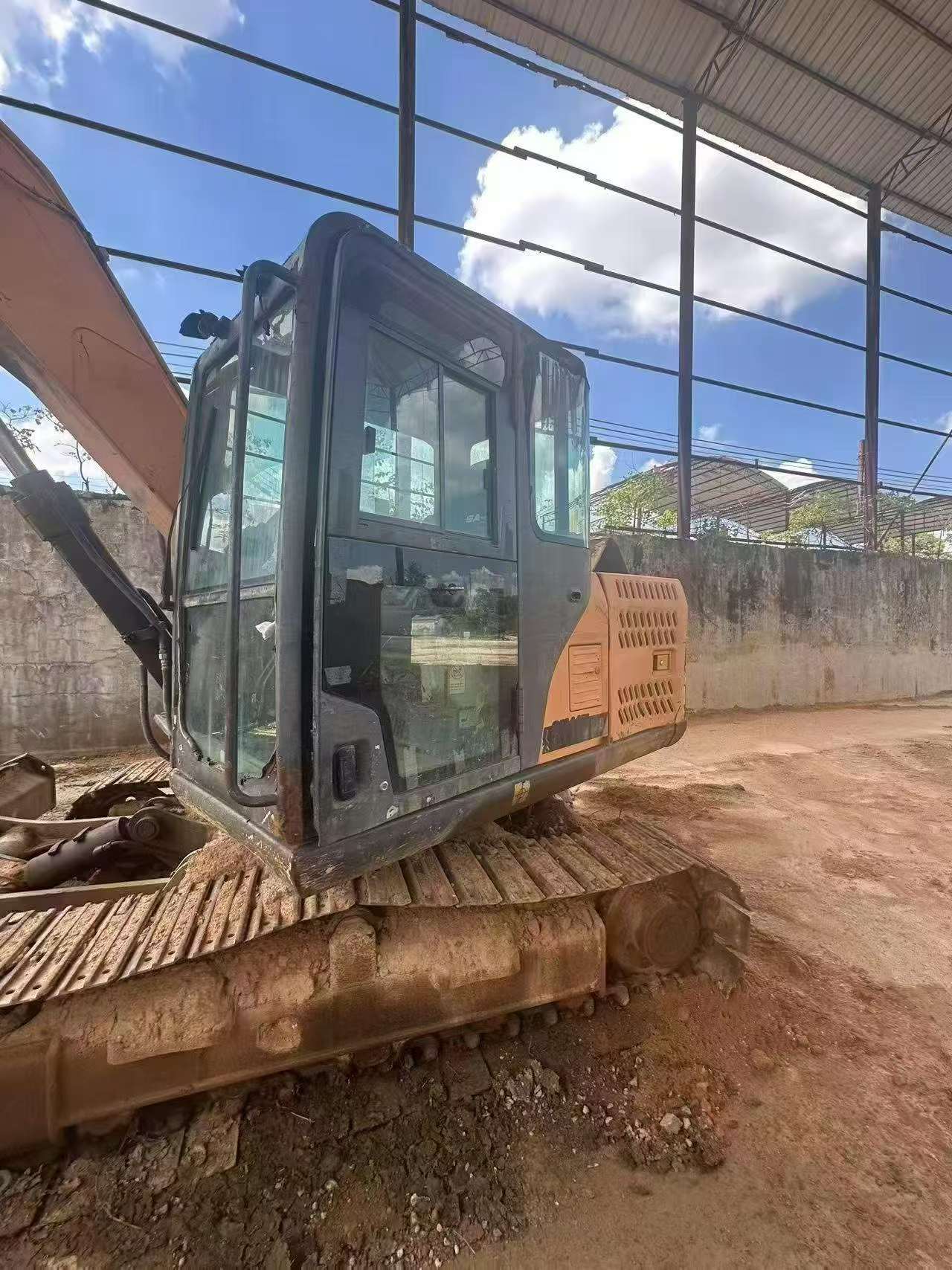

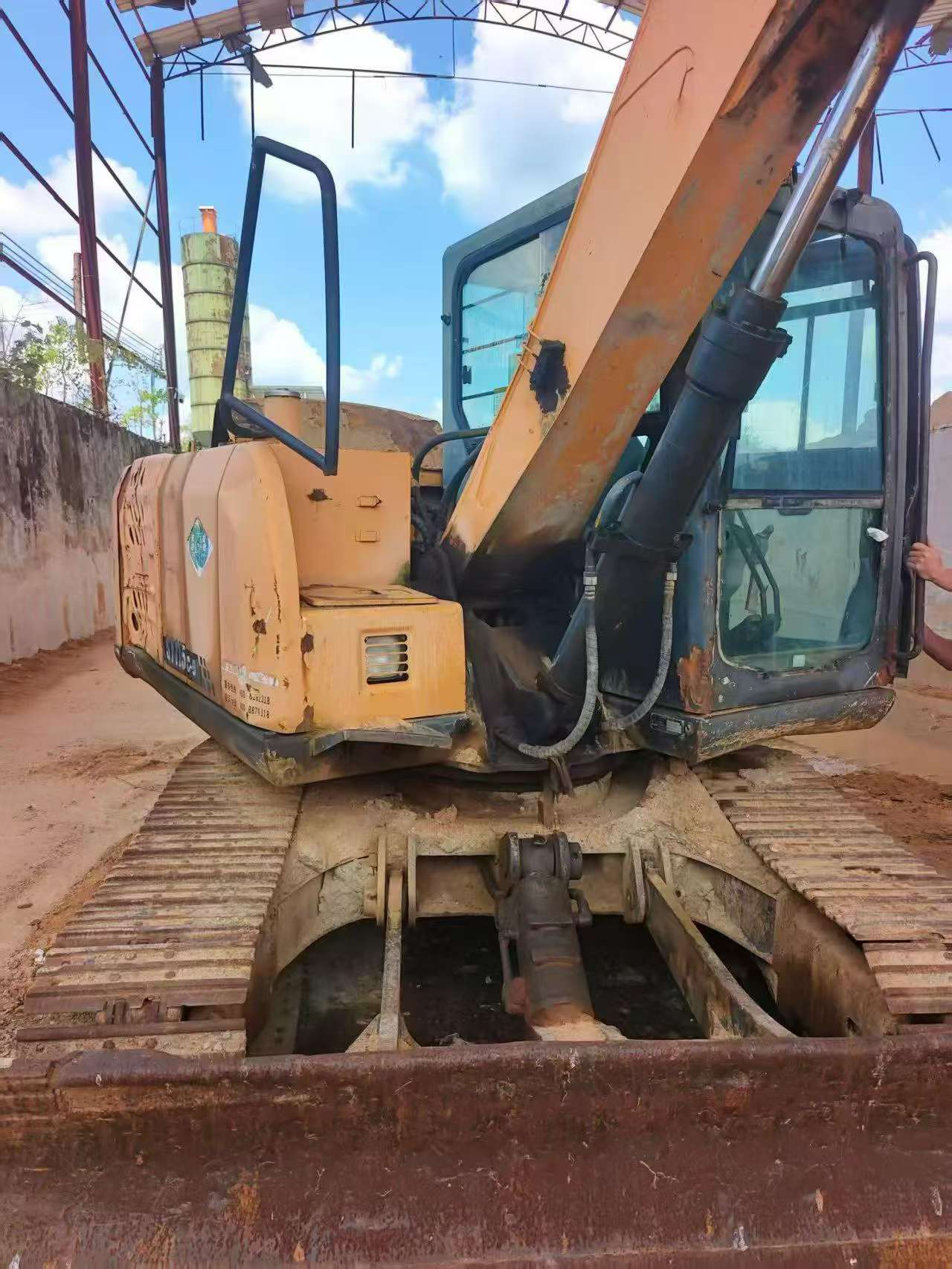

Discover the reliability and performance of the 2014 Sany SY95C excavator, currently available in Guangxi, China. This robust machine is designed to meet the demands of various construction and excavation projects, offering a blend of efficiency and durability. The SY95C is known for its powerful digging capabilities and ease of maintenance, making it a preferred choice for contractors and construction firms.
- Year: 2014
- Brand: Sany
- Model: SY95C
- Location: Guangxi, China
| Specifications | Value |
|---|---|
| No. | 1135575 |
| Tonnage (tons) | 9 |
| Working weight (kg) | 9180 |
| Bucket capacity (m³) | 0.2-0.45 (0.39) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

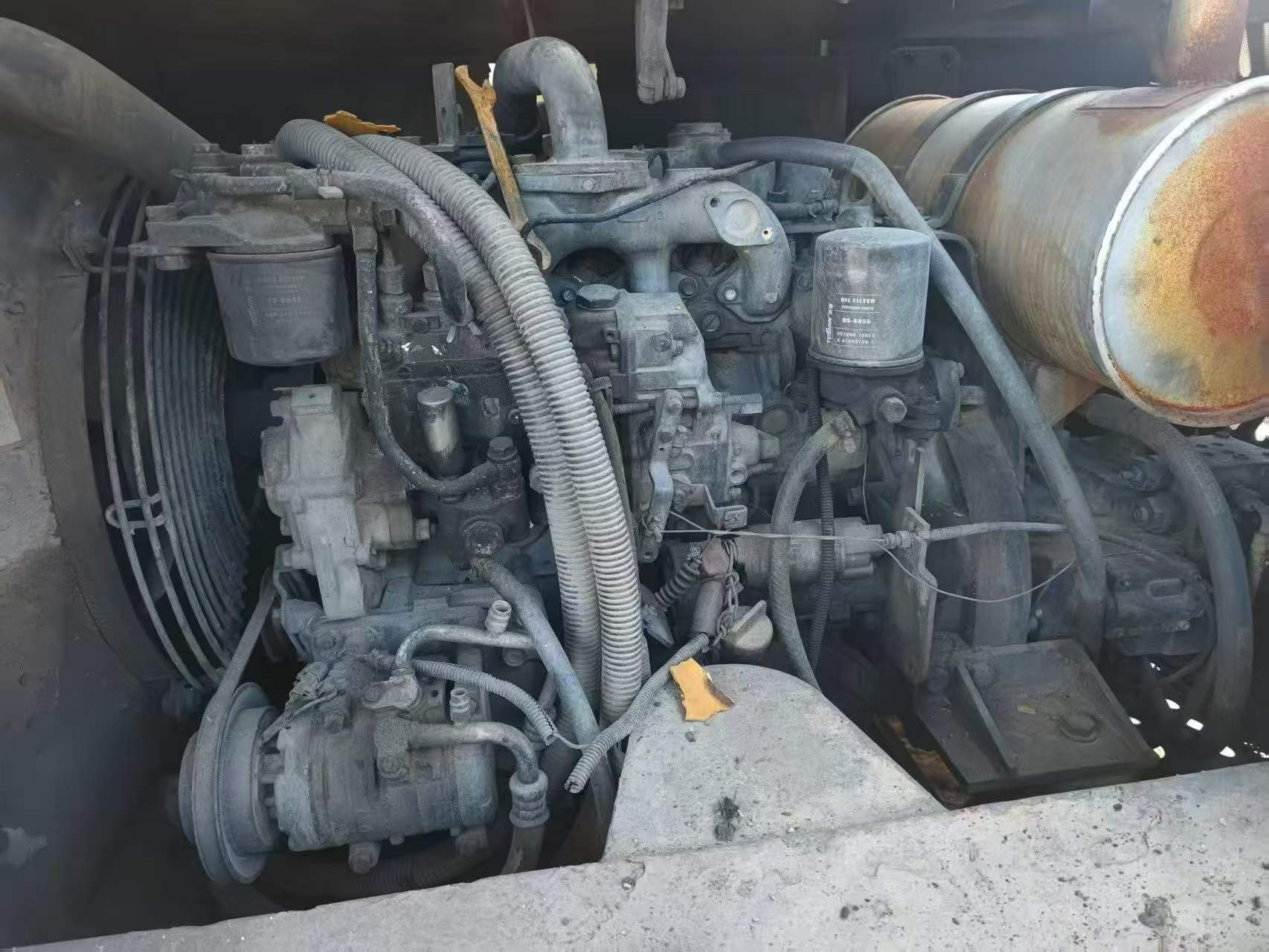

| Engine type | Kubota V3800DI-T-E3B |
| Rated power (kw/rpm) | 60.7/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 305.4/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.769 |
| Ground specific pressure (Kpa) | 38.6 |
| Rotation speed (rpm) | 11.2 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 63.6 |
| Rod digging force (kN) | 46.8 |
| Travel speed (km/h) | 5.0/2.9 |
| Fuel Tank (L) | 160 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6560 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2650 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1990 |
| Back end turning radius (mm) | 1885 |
| Onboard width (mm) | 2160 |
| Total track length (mm) | 2980 |
| Track gauge (mm) | 1810 |
| Track plate width (mm) | 450 |
| Maximum height at minimum turning radius (mm) | 5700 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 41 |
| Maximum digging radius (mm) | 6660 |
| Maximum digging depth (mm) | 4330 |
| Maximum excavation height (mm) | 7260 |
| Maximum unloading height (mm) | 5210 |
| Maximum vertical digging depth (mm) | 3080 |
| Bulldozer lift or depth (mm) | 330/330 |
| Dodging plate width × height (mm) | 420 (height) |
