2020 Sumitomo SH130-3

1/9
Buy Sumitomo SH130-3 Used Excavator / 1
Buy Sumitomo SH130-3 Used Excavator / 2
Buy Sumitomo SH130-3 Used Excavator / 3
Buy Sumitomo SH130-3 Used Excavator / 4
Buy Sumitomo SH130-3 Used Excavator / 5
Buy Sumitomo SH130-3 Used Excavator / 6
Buy Sumitomo SH130-3 Used Excavator / 7
Buy Sumitomo SH130-3 Used Excavator / 8
Buy Sumitomo SH130-3 Used Excavator / 9

Product Description

This 2020 Sumitomo SH130-3 hydraulic excavator offers reliable performance for medium-duty construction and earthmoving applications. Currently located in Guangdong, China, this unit presents an opportunity for businesses seeking proven Japanese engineering at competitive pricing.

The SH130-3 features Sumitomo's reputation for durability and fuel efficiency in the 13-ton class. With its compact footprint and versatile boom configuration, this machine is well-suited for urban construction, utility work, and general excavation tasks.

  • Year of manufacture: 2020
  • Model: Sumitomo SH130-3
  • Location: Guangdong Province, China
  • Condition: Well-maintained with attractive cosmetic appearance
  • Competitively priced for export or domestic resale

Ideal for contractors and equipment dealers looking to expand their fleet with dependable used machinery. Contact us for detailed specifications, operational hours, and shipping arrangements.

SpecificationsValue
No.1136737
Tonnage (tons)13
Working weight (kg)12300
Bucket capacity (m³)0.5
Boom length (mm)5850
Rod length (mm)2500
Country of originXiamen (in Fujian Province)
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

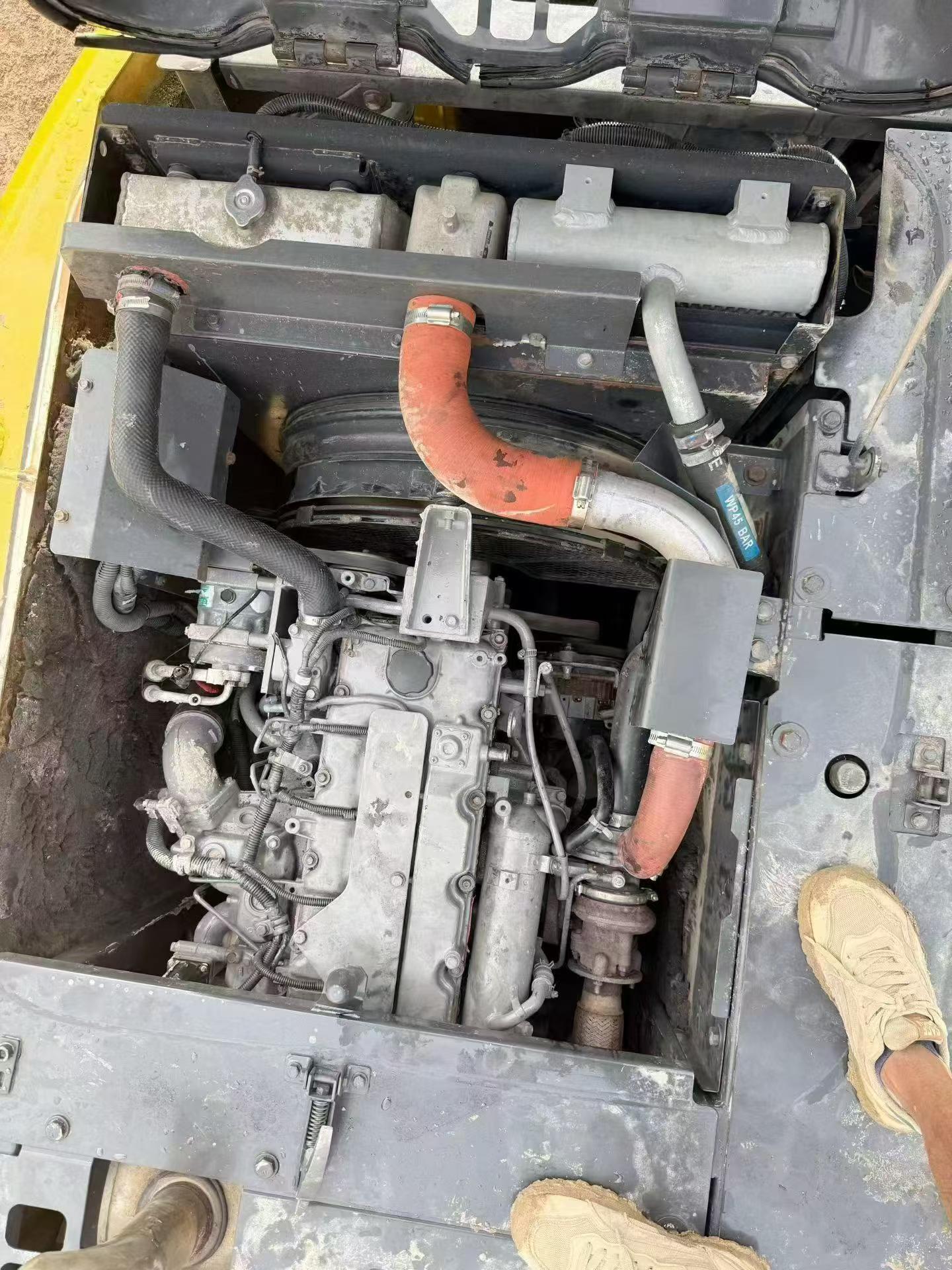

Engine typeIsuzu AJ-4JJ1X
Rated power (kw/rpm)70.9/2000
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)2.999
Working formFour-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling
Ground specific pressure (Kpa)40
Rotation speed (rpm)14.3
Climbing ability (%)70
Bucket digging force (kN)
Rod digging force (kN)
Travel speed (km/h)3.4/5.6
Main overflow set pressure (Mpa)34.3
Rotary hydraulic motor typeQuantitative axial piston motor
Type of walking hydraulic motorVariable axial piston motor
Hydraulic crushing pipeline is standardno

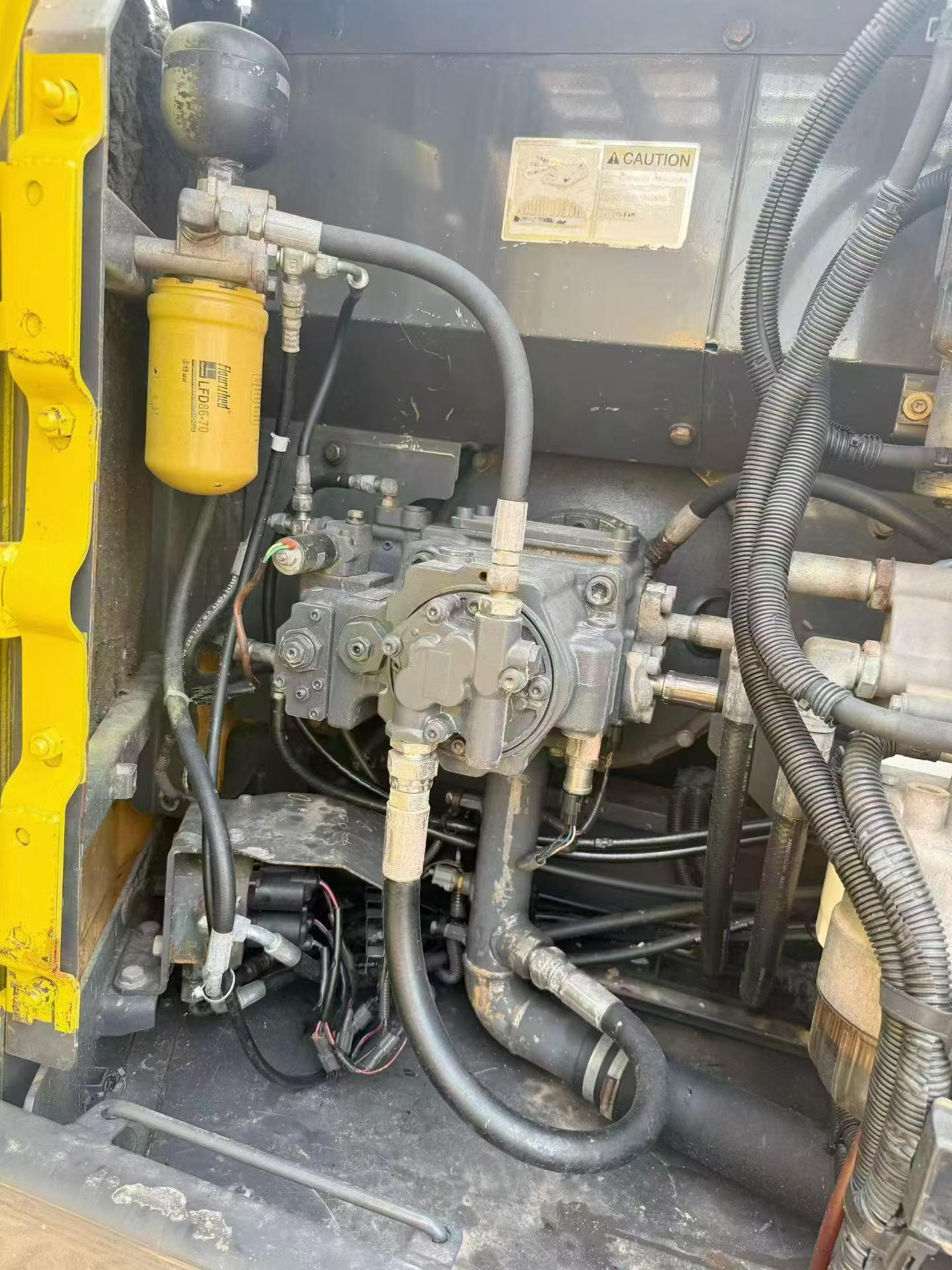

Main pump typeVariable axial piston pump ×2+ gear pump
Fuel Tank (L)260
Hydraulic Tank (L)157
Total transport length (mm)7620
Total transport width (mm)2540
Total transport height (mm)2790
Full cab height (mm)2790
Counterweight ground clearance (mm)895
Minimum ground clearance (mm)440
Minimum turning radius of front working device (mm)2340
Back end turning radius (mm)2130
Total track length (mm)3500
Track gauge (mm)1990
Track plate width (mm)500
Total track width (mm)2490
Track ground length (mm)2790
Maximum digging radius (mm)8310
Maximum digging depth (mm)5540
Maximum excavation height (mm)8770
Maximum unloading height (mm)6390
Maximum vertical digging depth (mm)4950
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
