2016 Sumitomo SH210-5

1/9

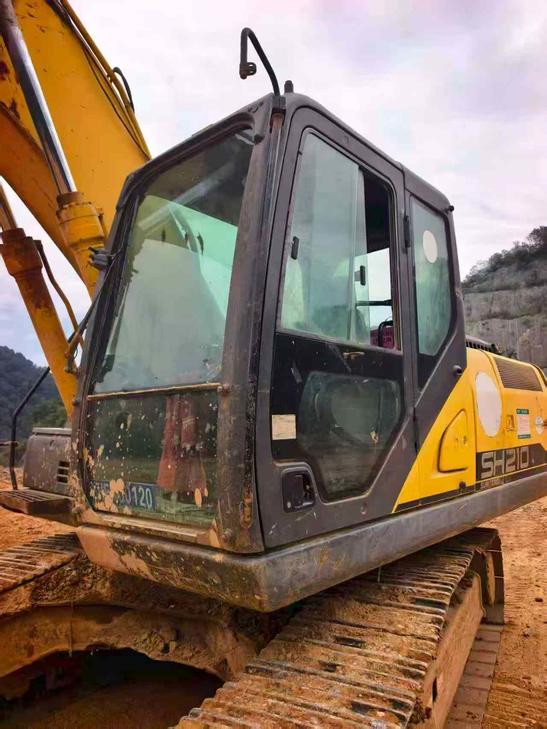

Buy Sumitomo SH210-5 Used Excavator / 1

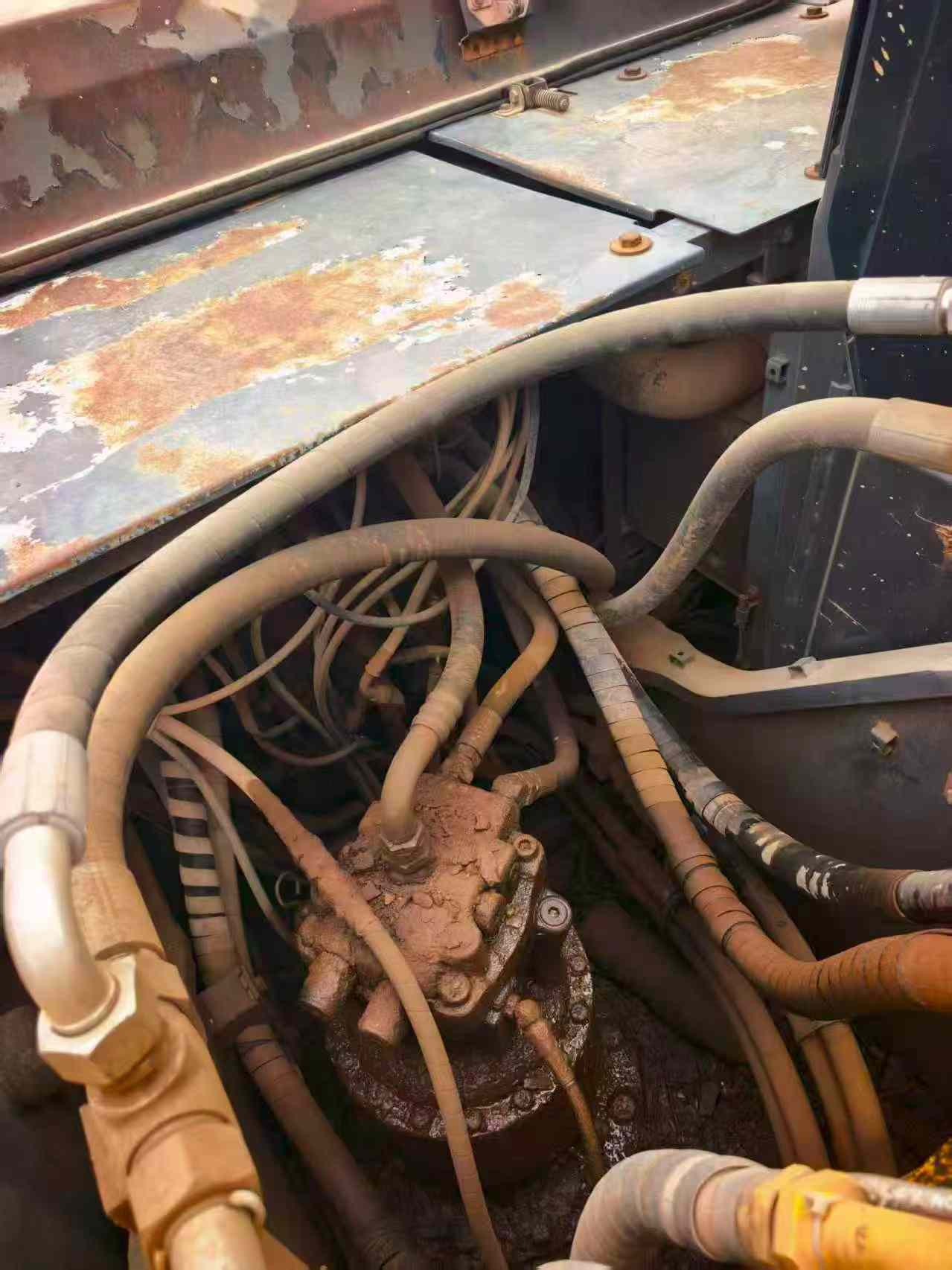

Buy Sumitomo SH210-5 Used Excavator / 2

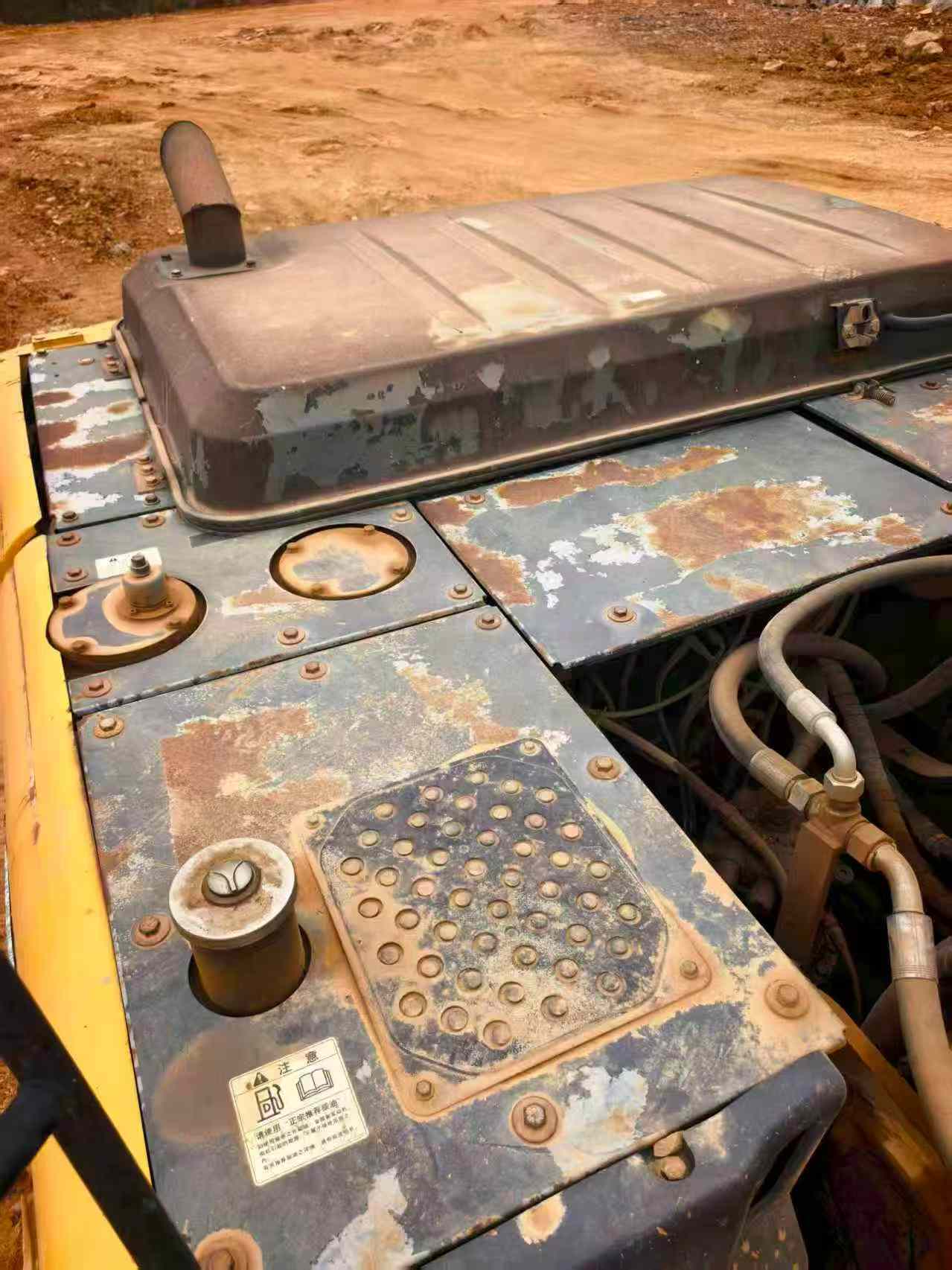

Buy Sumitomo SH210-5 Used Excavator / 3

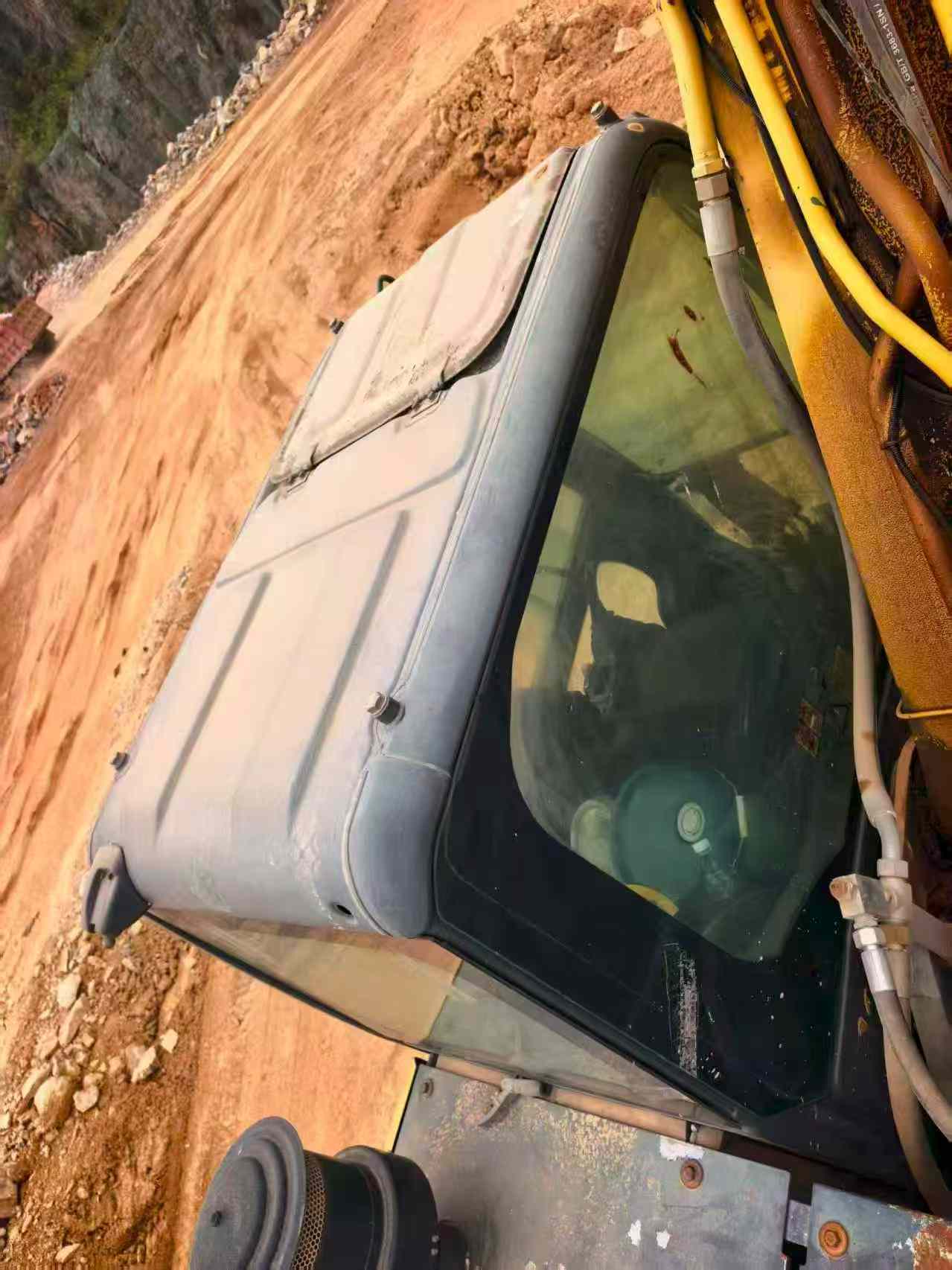

Buy Sumitomo SH210-5 Used Excavator / 4

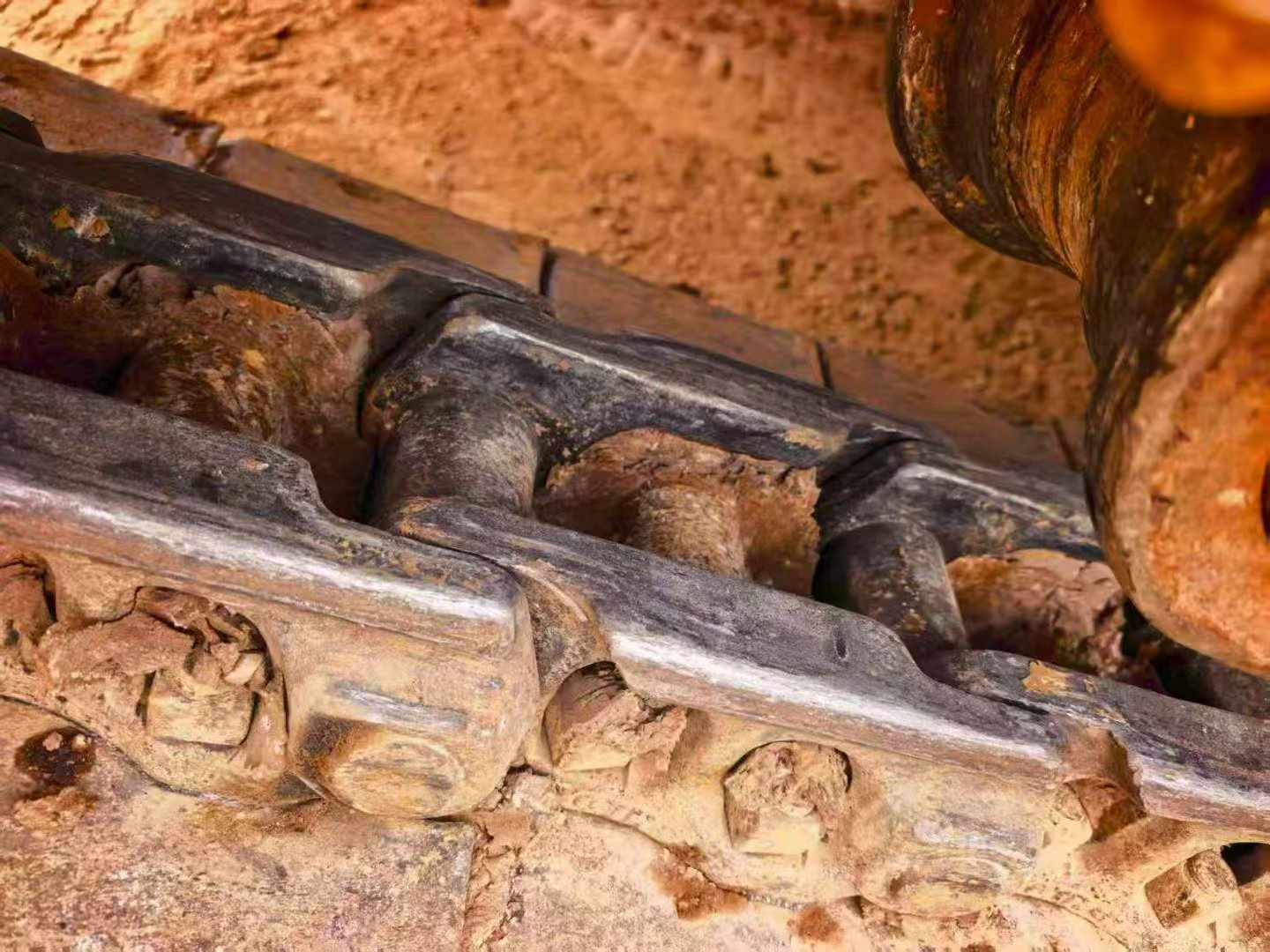

Buy Sumitomo SH210-5 Used Excavator / 5

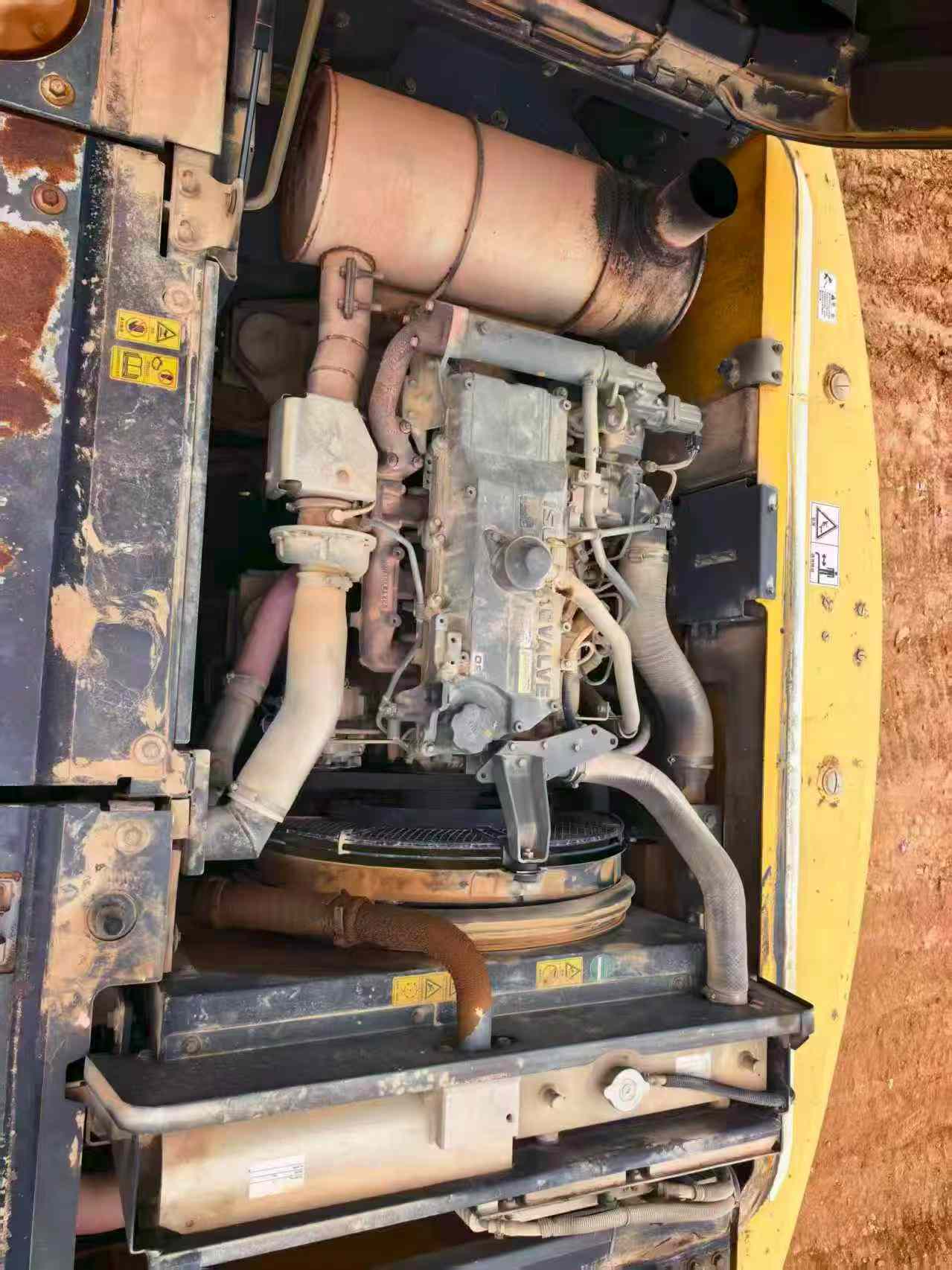

Buy Sumitomo SH210-5 Used Excavator / 6

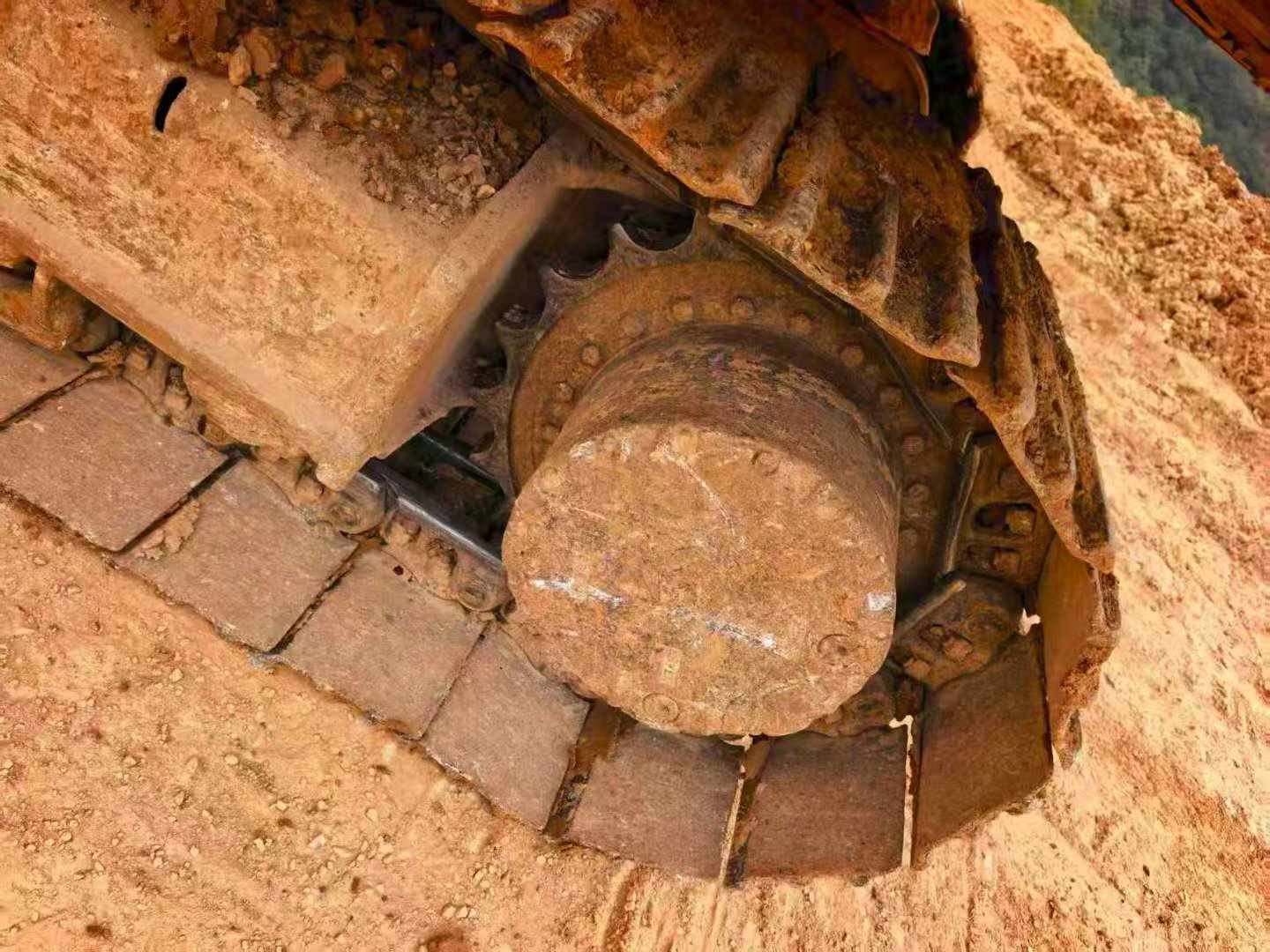

Buy Sumitomo SH210-5 Used Excavator / 7

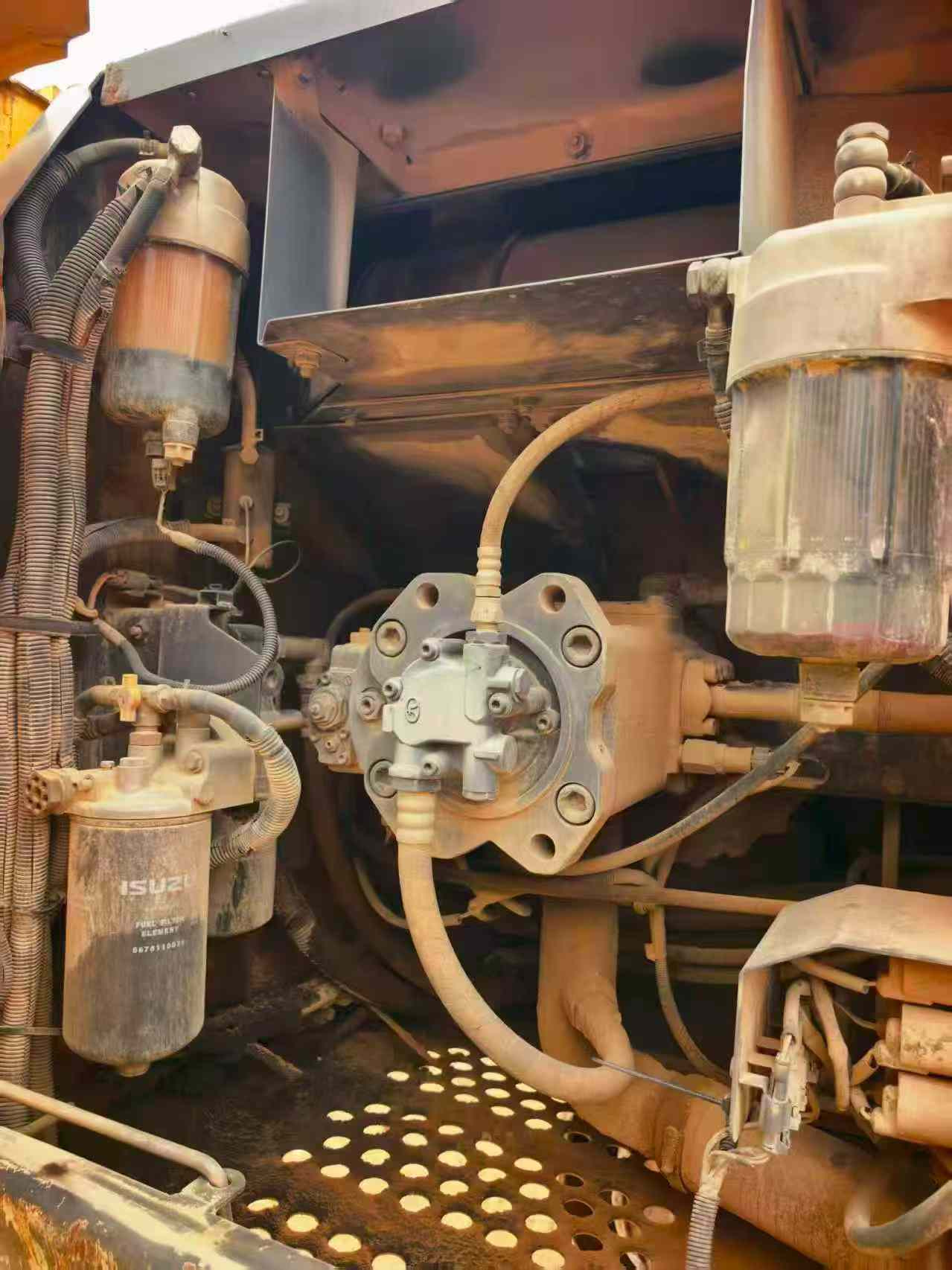

Buy Sumitomo SH210-5 Used Excavator / 8

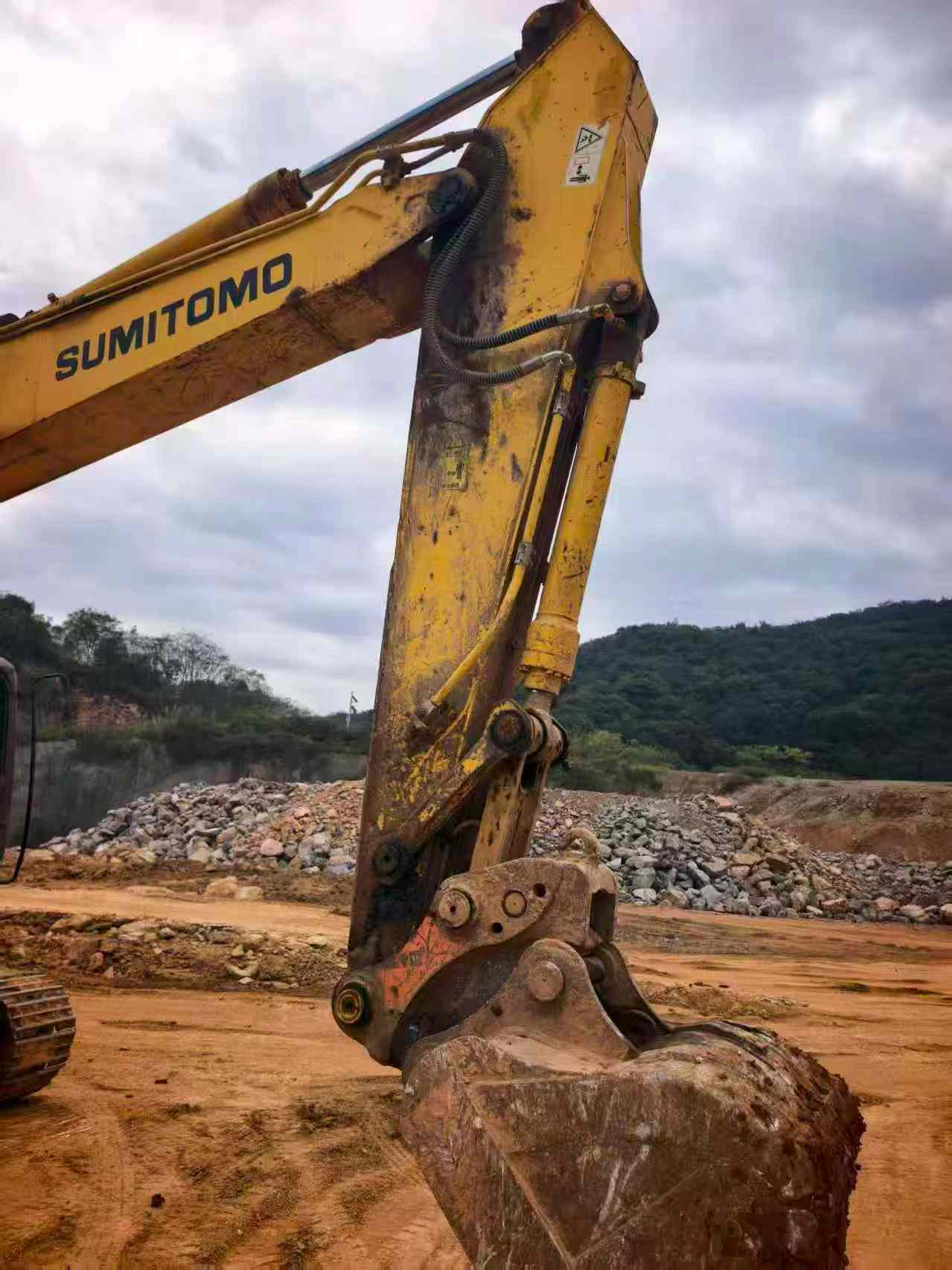

Buy Sumitomo SH210-5 Used Excavator / 9

Product Description

This 2016 Sumitomo SH210-5 hydraulic excavator offers reliable performance for contractors seeking proven Japanese engineering at competitive value. With moderate operating hours, this machine has been maintained in Fujian, China and is ready for immediate deployment on your construction or earthmoving projects.

The SH210-5 is built on Sumitomo's established 21-ton platform, delivering efficient digging performance and fuel economy. Standard features include a robust undercarriage, responsive hydraulic system, and operator-focused cab design that reduces fatigue during extended shifts.

  • Year: 2016
  • Model: Sumitomo SH210-5
  • Location: Fujian, China
  • Condition: Used, operational
  • Availability: Ready for inspection

Suitable for general excavation, trenching, loading, and site development work. Contact us for detailed specifications, current inspection reports, and shipping arrangements to your location.

SpecificationsValue
No.1162084
Tonnage (tons)21
Working weight (kg)20600
Bucket capacity (m³)0.9-1.0
Boom length (mm)5700
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)117.3/1800
Cylinder diameter × stroke (mm)115 x 125
Number of cylinders (PCS)4
Displacement (L)5.193
Ground specific pressure (Kpa)45
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)142
Rod digging force (kN)103
Travel speed (km/h)3.4/5.6
Type of walking hydraulic motorVariable axial piston motor
Maximum flow of main pump (l/min)422
Main pump type
Bucket cylinders - Number × diameter × stroke (mm)
Bucket rod cylinders - Number × diameter × stroke (mm)140 x 1460
Boom cylinders - Number × diameter × stroke (mm)
Fuel Tank (L)410
Hydraulic Tank (L)147
Engine Oil changes (L)23.1
Coolant (L)26
Hydraulic System (L)240
Total transport length (mm)9400
Total transport width (mm)2800
Total transport height (mm)2970
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)460
Minimum turning radius of front working device (mm)3600
Back end turning radius (mm)2720
Total track length (mm)4180
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900
Maximum digging depth (mm)6650
Maximum excavation height (mm)9610
Maximum unloading height (mm)6810
Maximum vertical digging depth (mm)5960
see more

Overview

No.1162084

Brand Name:

Sumitomo

Model Number:

SH210-5

Year:

2016

Location:

Fujian China

Pub Date:

Are you interested in this machine?

Please contact us
