2022 Sumitomo SH210-5

1/9

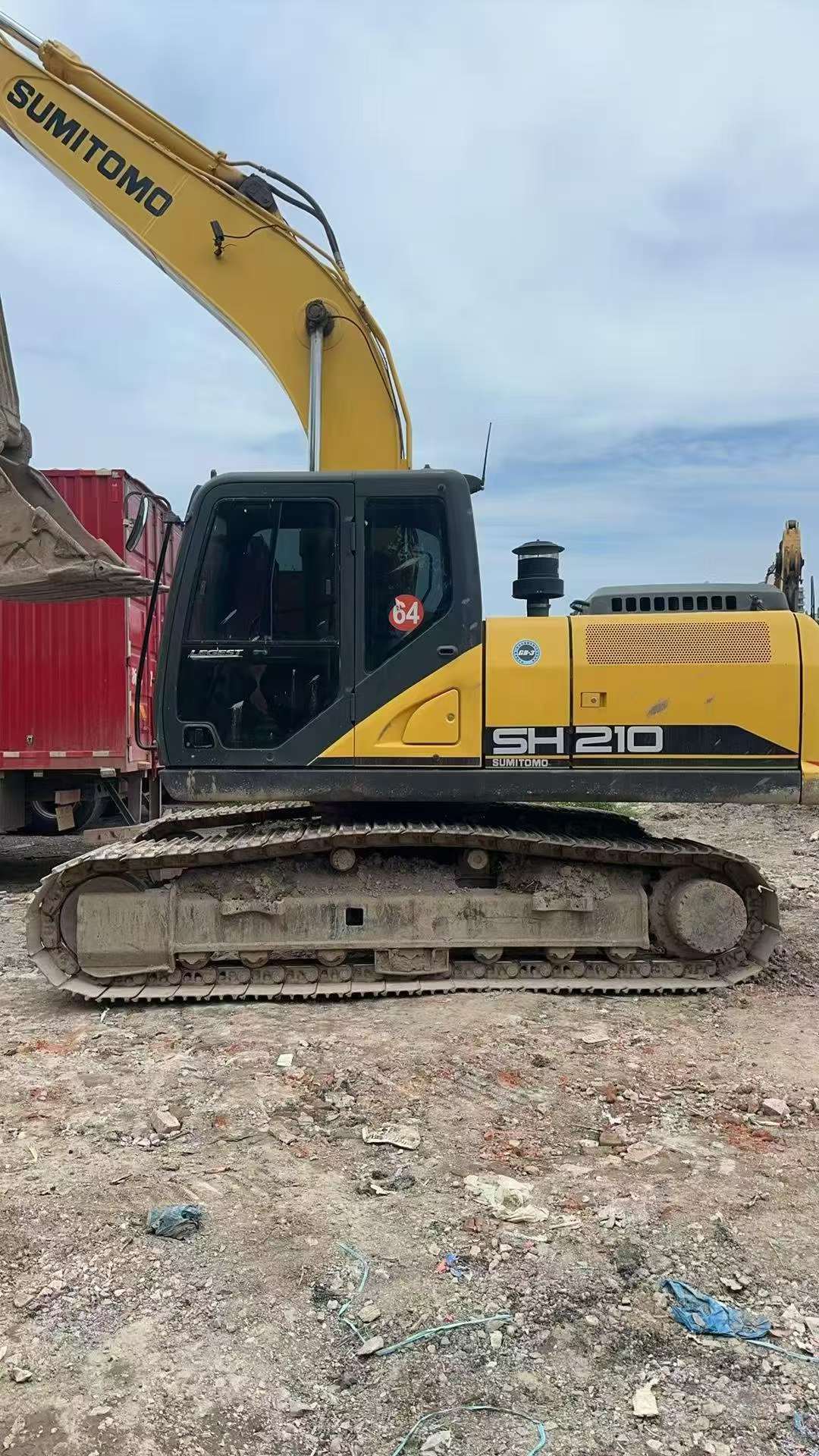

Buy Sumitomo SH210-5 Used Excavator / 1
Buy Sumitomo SH210-5 Used Excavator / 2

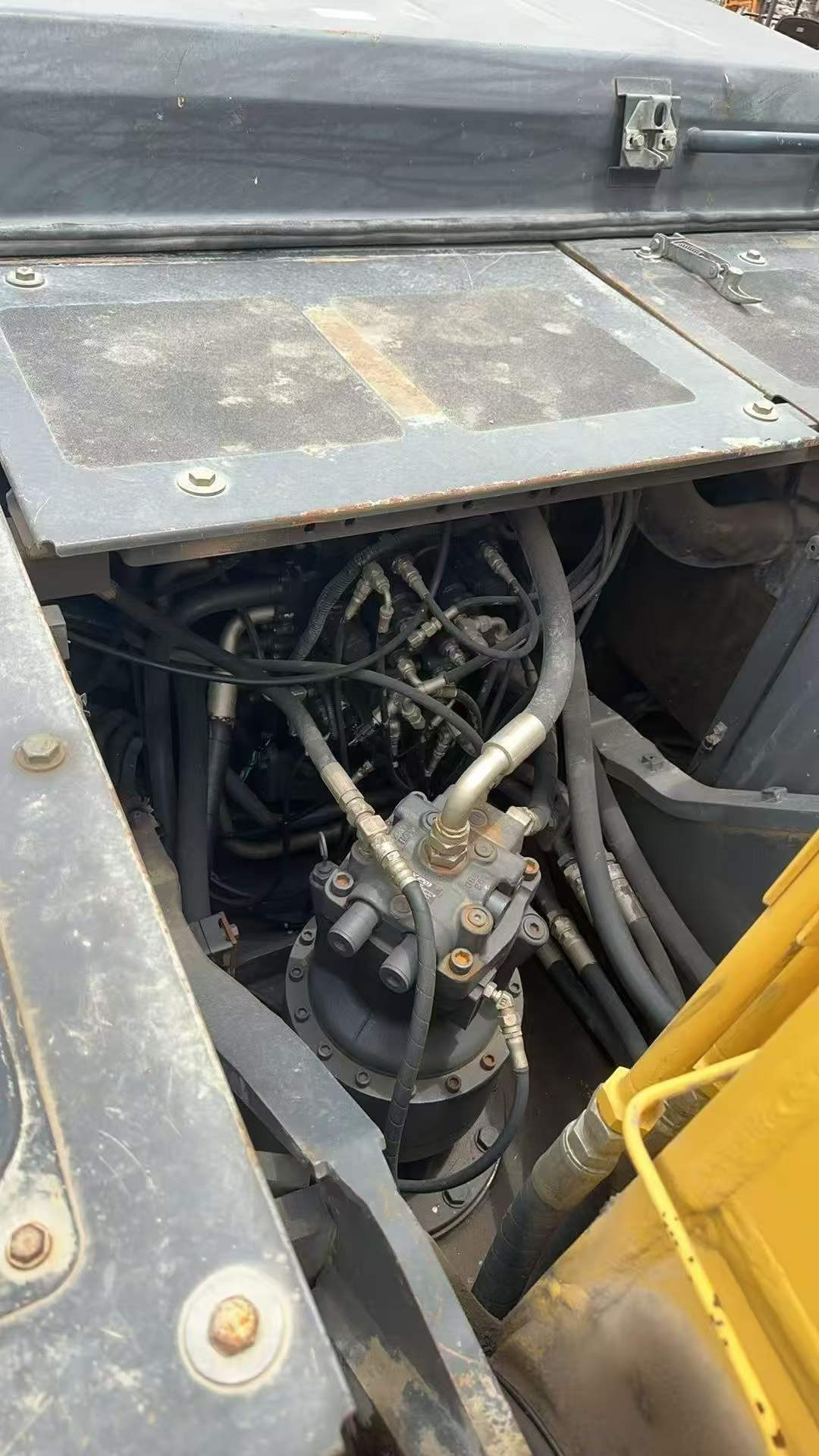

Buy Sumitomo SH210-5 Used Excavator / 3

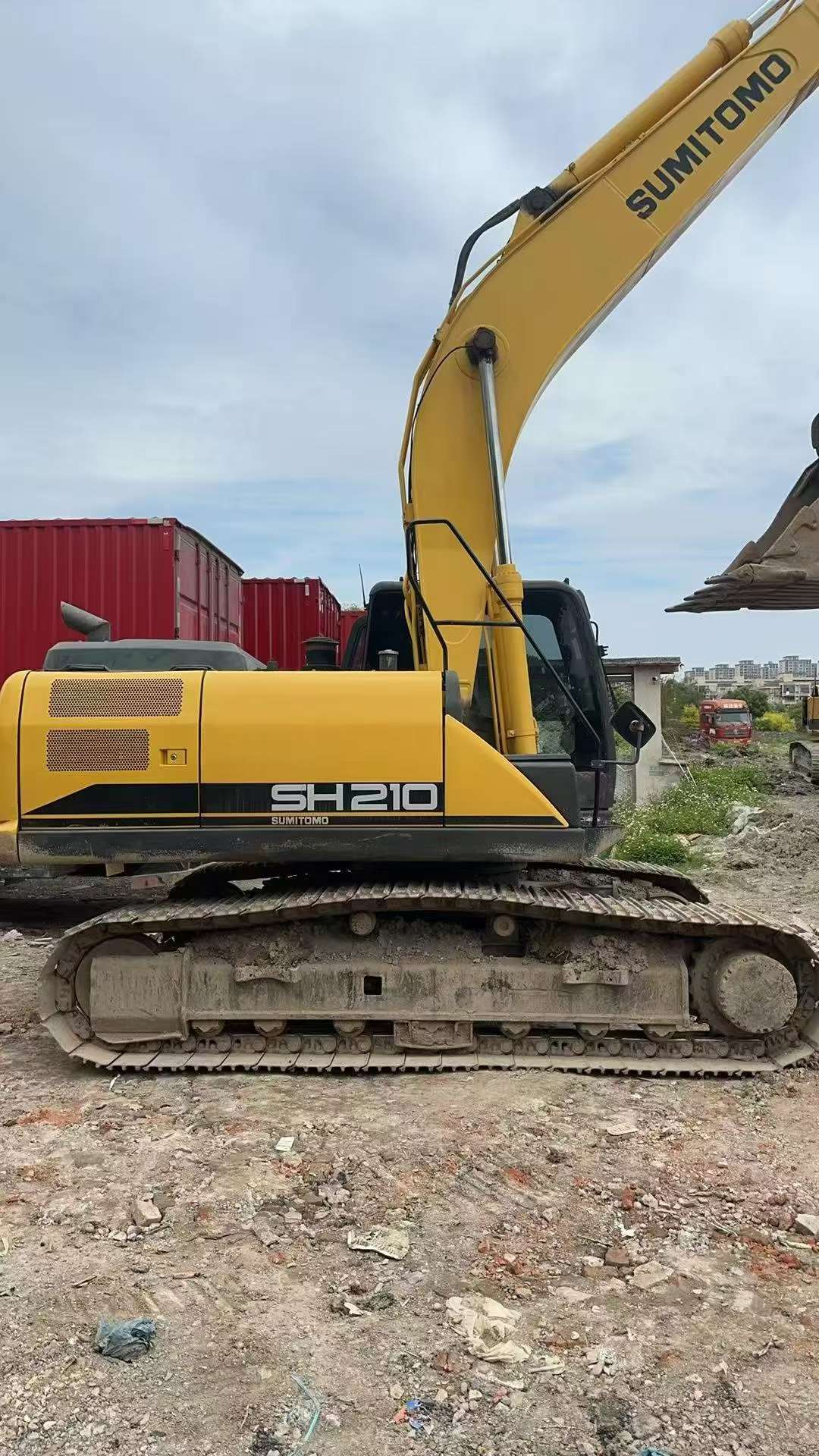

Buy Sumitomo SH210-5 Used Excavator / 4

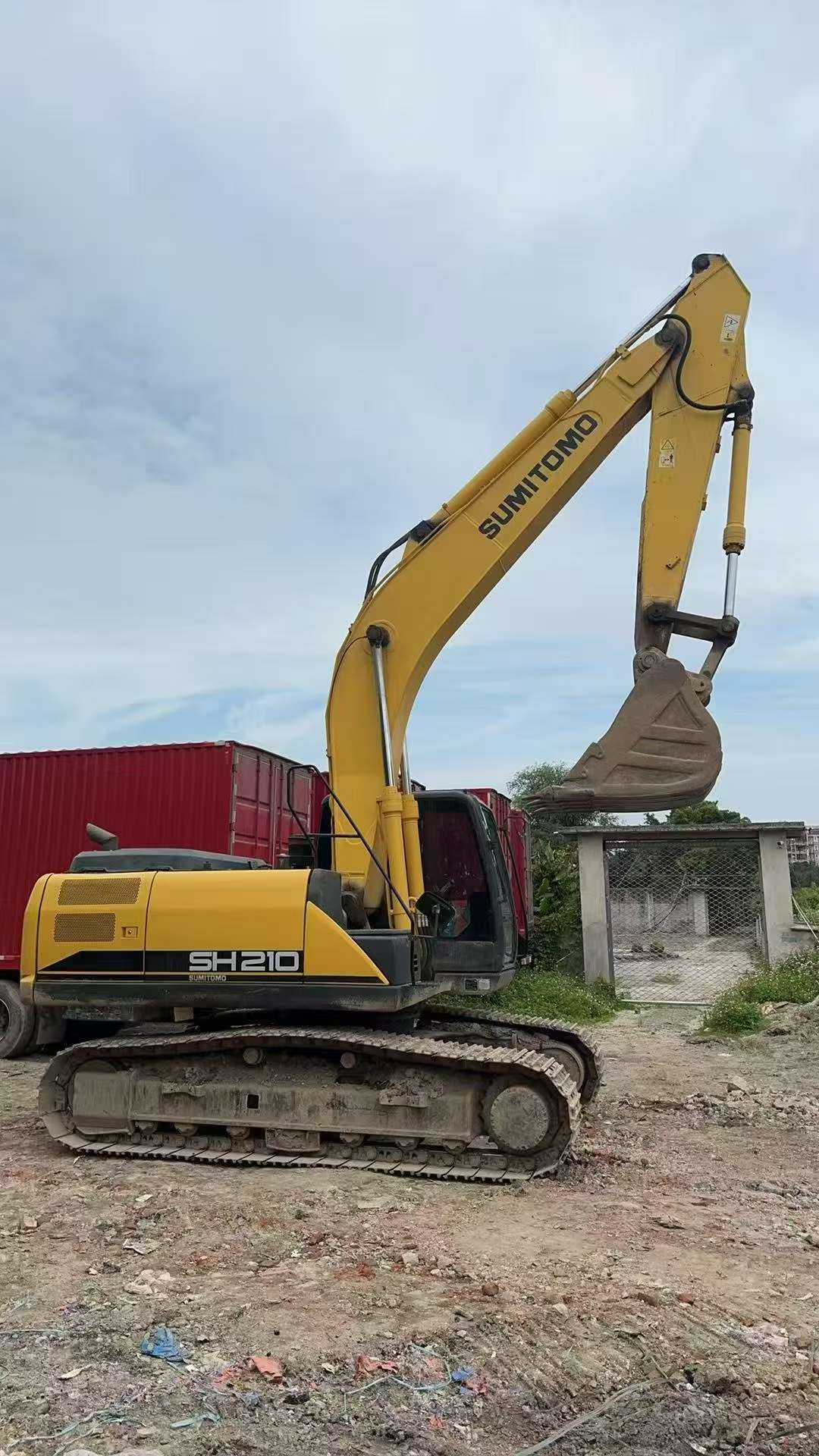

Buy Sumitomo SH210-5 Used Excavator / 5
Buy Sumitomo SH210-5 Used Excavator / 6

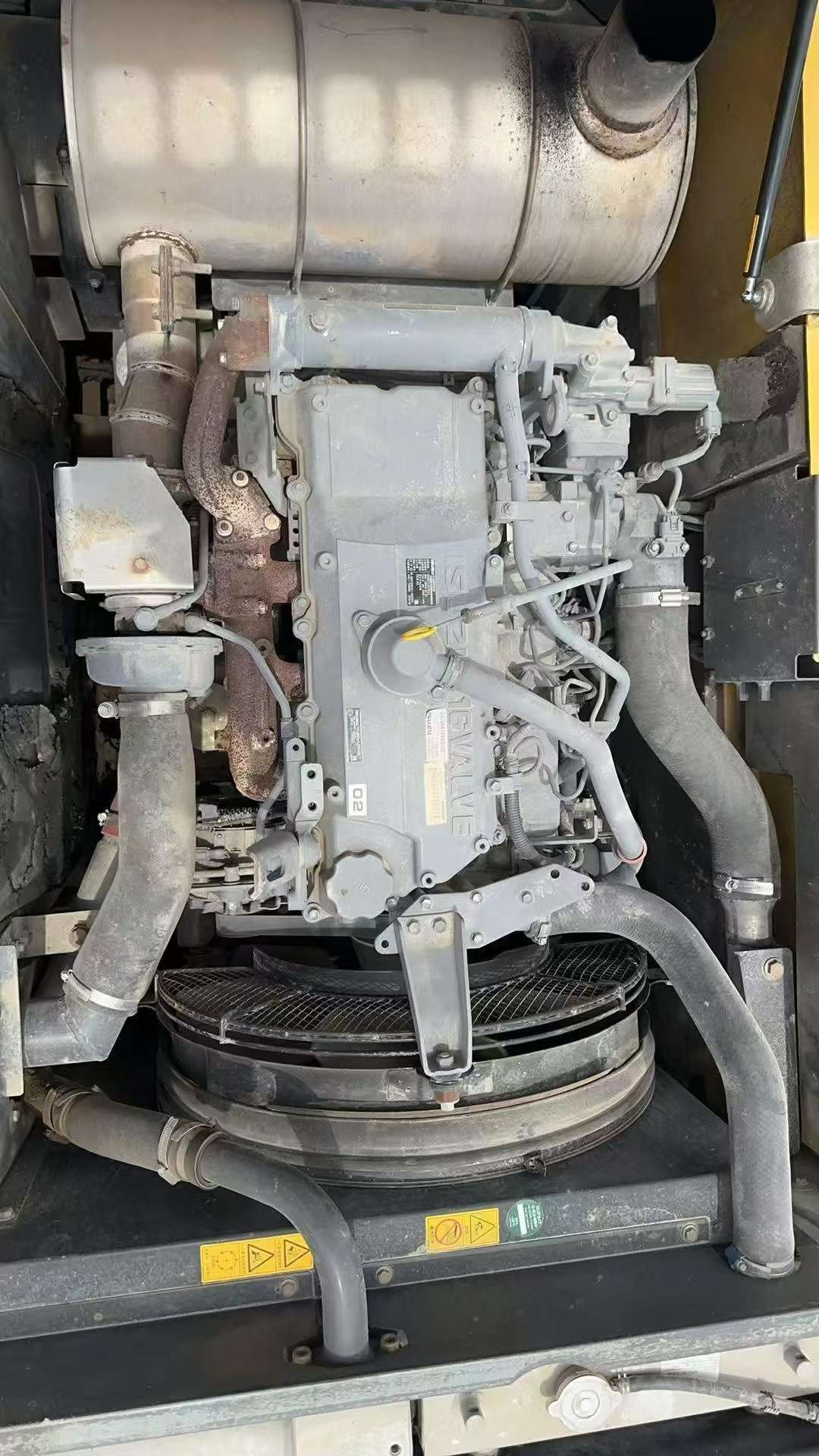

Buy Sumitomo SH210-5 Used Excavator / 7
Buy Sumitomo SH210-5 Used Excavator / 8
Buy Sumitomo SH210-5 Used Excavator / 9

Product Description

This 2022 Sumitomo SH210-5 hydraulic excavator represents a near-prime opportunity for contractors seeking reliable performance in a proven mid-size platform. With minimal operational hours since manufacture, this unit delivers the balanced power and fuel efficiency that defines the SH210-5 series. Currently located in Zhejiang, China, the machine is available for inspection and export coordination.

  • Year of Manufacture: 2022
  • Model: SH210-5 hydraulic excavator
  • Operating weight class: approximately 21 tons
  • Low-hour machine with exceptional condition
  • Sumitomo's reputation for durability and serviceability
  • Suitable for earthmoving, grading, and general construction applications
  • Located in Zhejiang Province, China

Contact FairTradeMachinery for detailed specifications, current hour meter readings, and shipping arrangements to your project site.

SpecificationsValue
No.1161441
Tonnage (tons)21
Working weight (kg)20600
Bucket capacity (m³)0.9-1.0
Boom length (mm)5700
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type
Rated power (kw/rpm)117.3/1800
Cylinder diameter × stroke (mm)115 x 125
Number of cylinders (PCS)4
Displacement (L)5.193
Ground specific pressure (Kpa)45
Rotation speed (rpm)11.5
Climbing ability (%)70
Bucket digging force (kN)142
Rod digging force (kN)103
Travel speed (km/h)3.4/5.6
Type of walking hydraulic motorVariable axial piston motor
Maximum flow of main pump (l/min)422
Main pump type
Bucket cylinders - Number × diameter × stroke (mm)
Bucket rod cylinders - Number × diameter × stroke (mm)140 x 1460
Boom cylinders - Number × diameter × stroke (mm)
Fuel Tank (L)410
Hydraulic Tank (L)147
Engine Oil changes (L)23.1
Coolant (L)26
Hydraulic System (L)240
Total transport length (mm)9400
Total transport width (mm)2800
Total transport height (mm)2970
Counterweight ground clearance (mm)1040
Minimum ground clearance (mm)460
Minimum turning radius of front working device (mm)3600
Back end turning radius (mm)2720
Total track length (mm)4180
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900
Maximum digging depth (mm)6650
Maximum excavation height (mm)9610
Maximum unloading height (mm)6810
Maximum vertical digging depth (mm)5960
see more

Overview

No.1161441

Brand Name:

Sumitomo

Model Number:

SH210-5

Year:

2022

Location:

Zhejiang China

Pub Date:
