2015 Sumitomo SH350-5

1/9

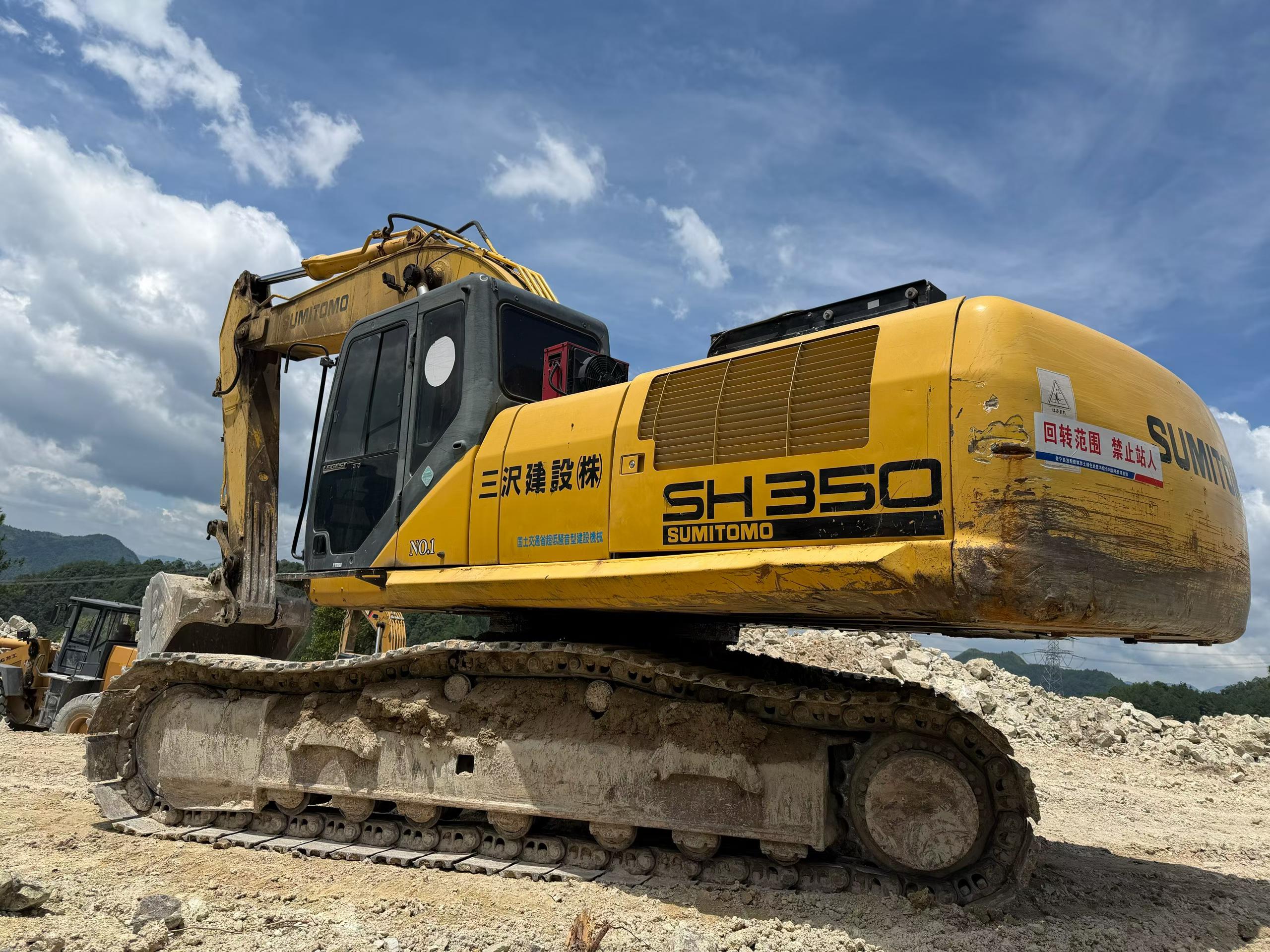

Buy Sumitomo SH350-5 Used Excavator / 1

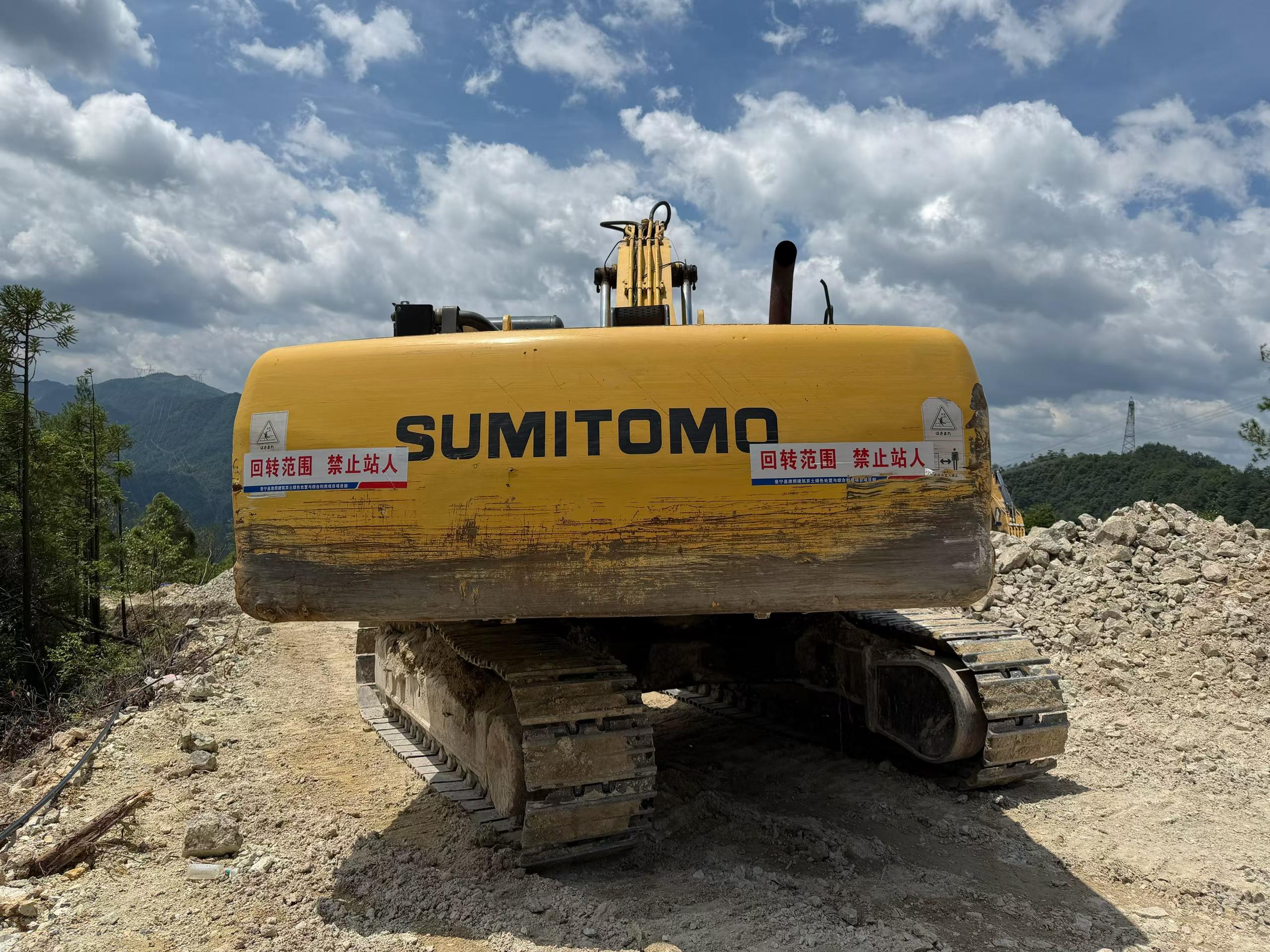

Buy Sumitomo SH350-5 Used Excavator / 2
Buy Sumitomo SH350-5 Used Excavator / 3

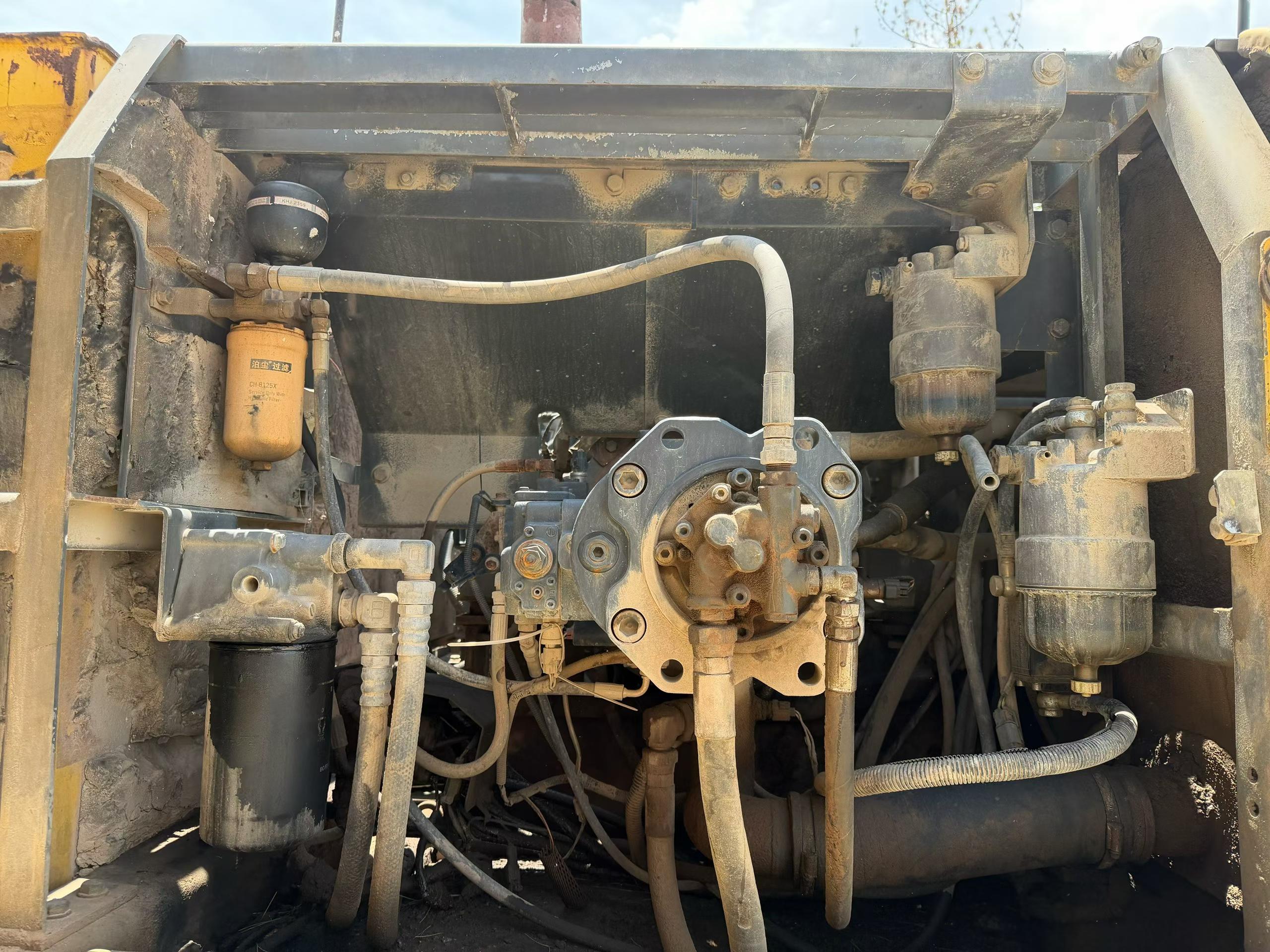

Buy Sumitomo SH350-5 Used Excavator / 4

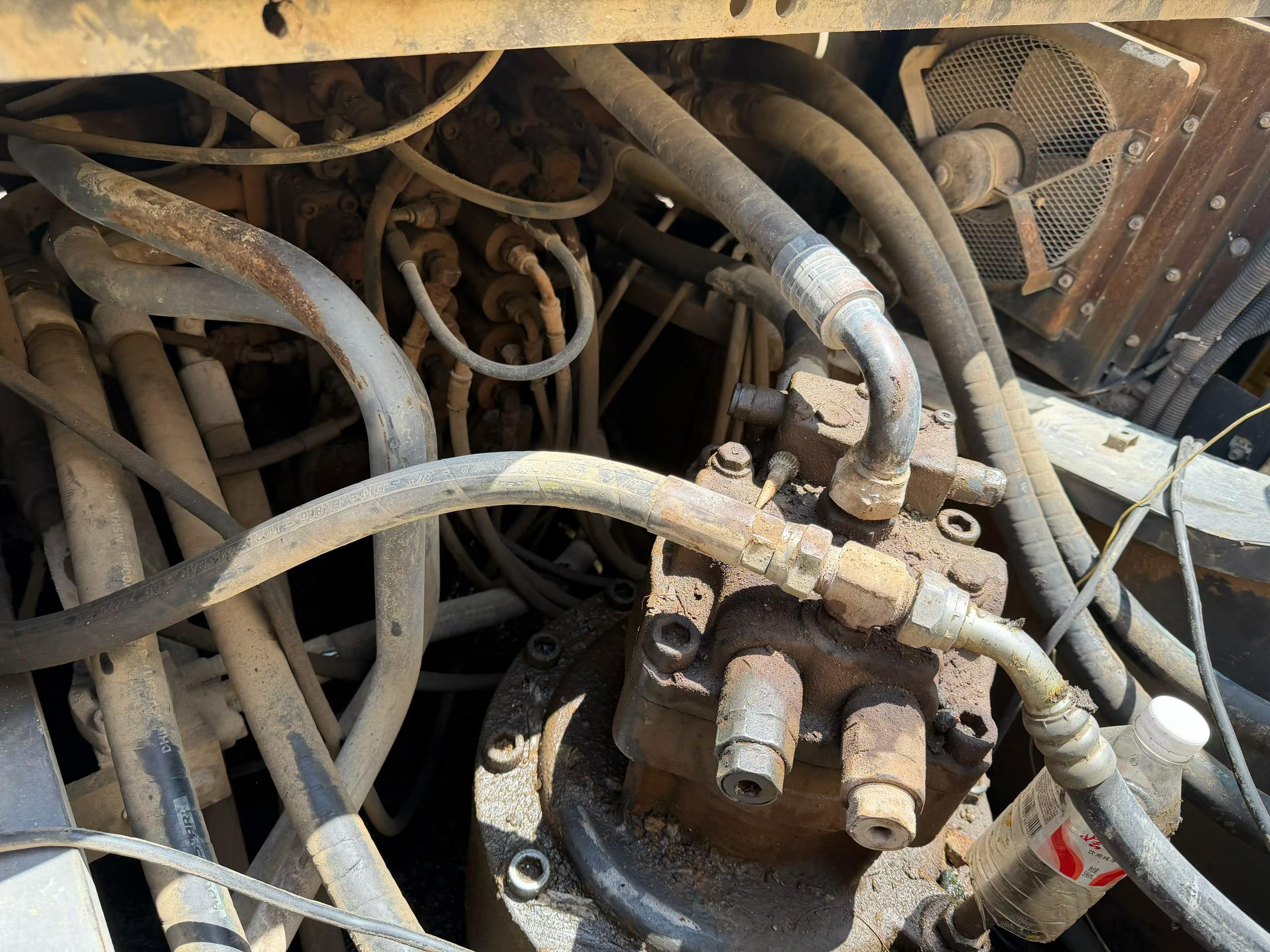

Buy Sumitomo SH350-5 Used Excavator / 5

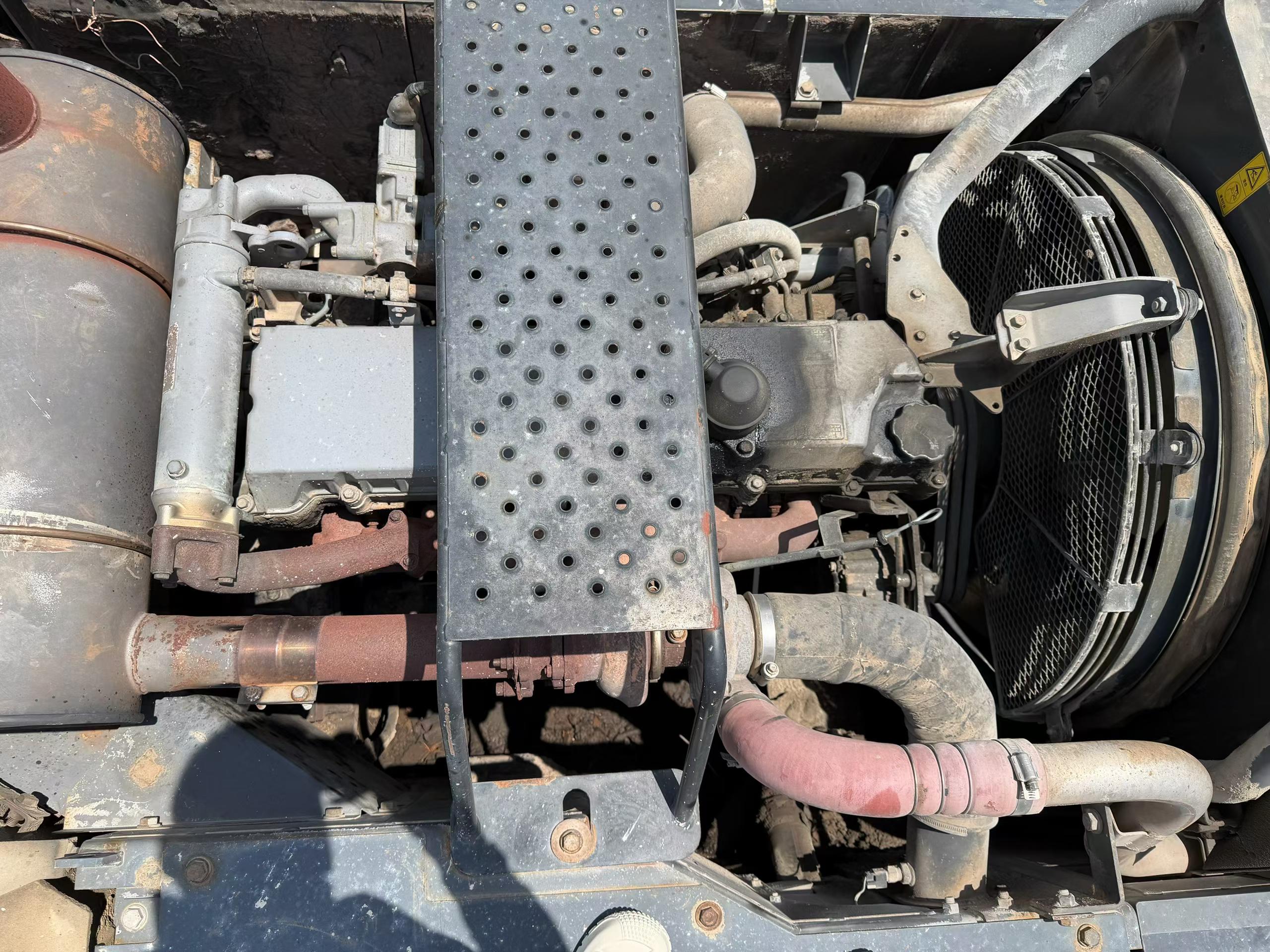

Buy Sumitomo SH350-5 Used Excavator / 6

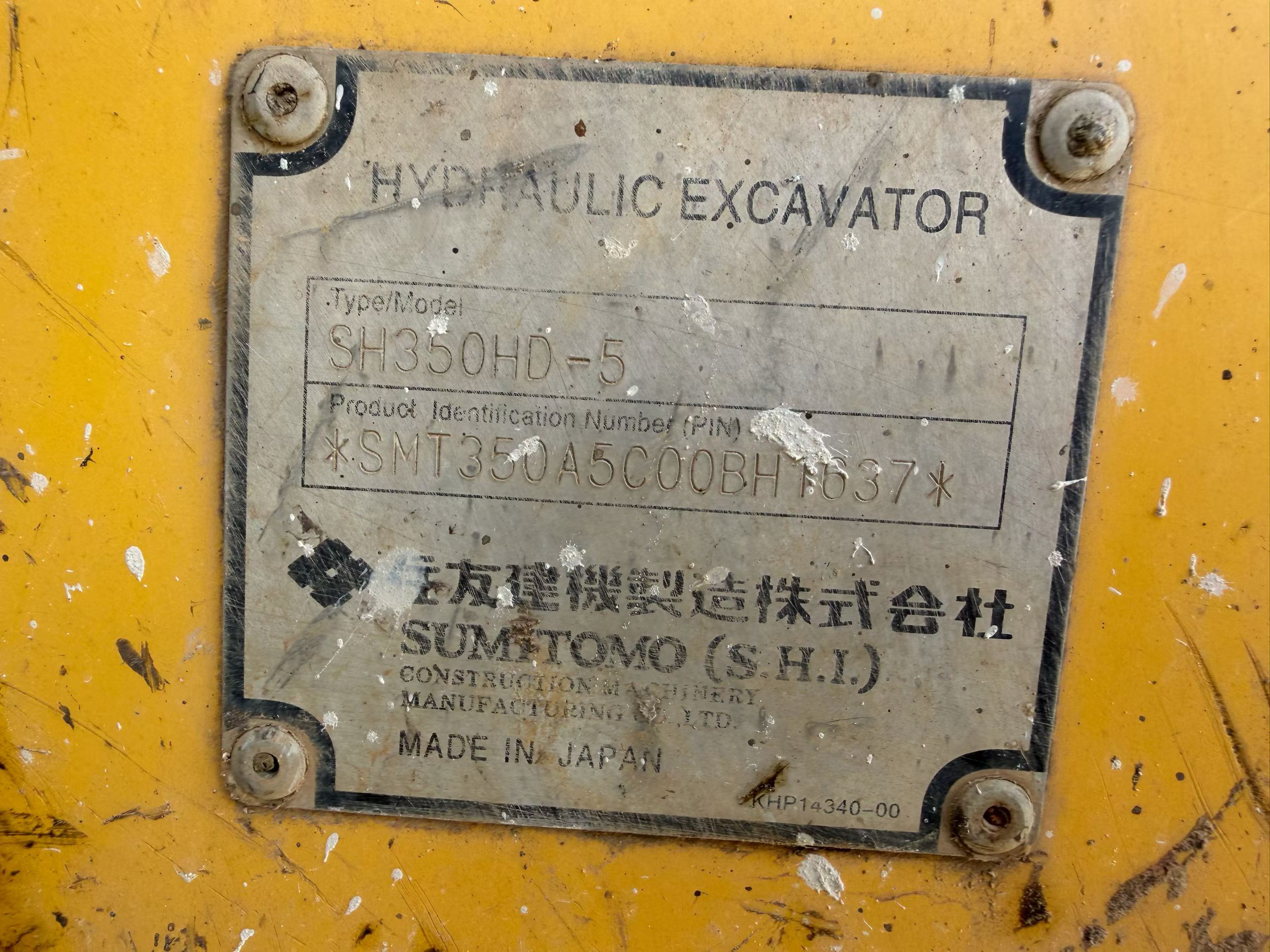

Buy Sumitomo SH350-5 Used Excavator / 7

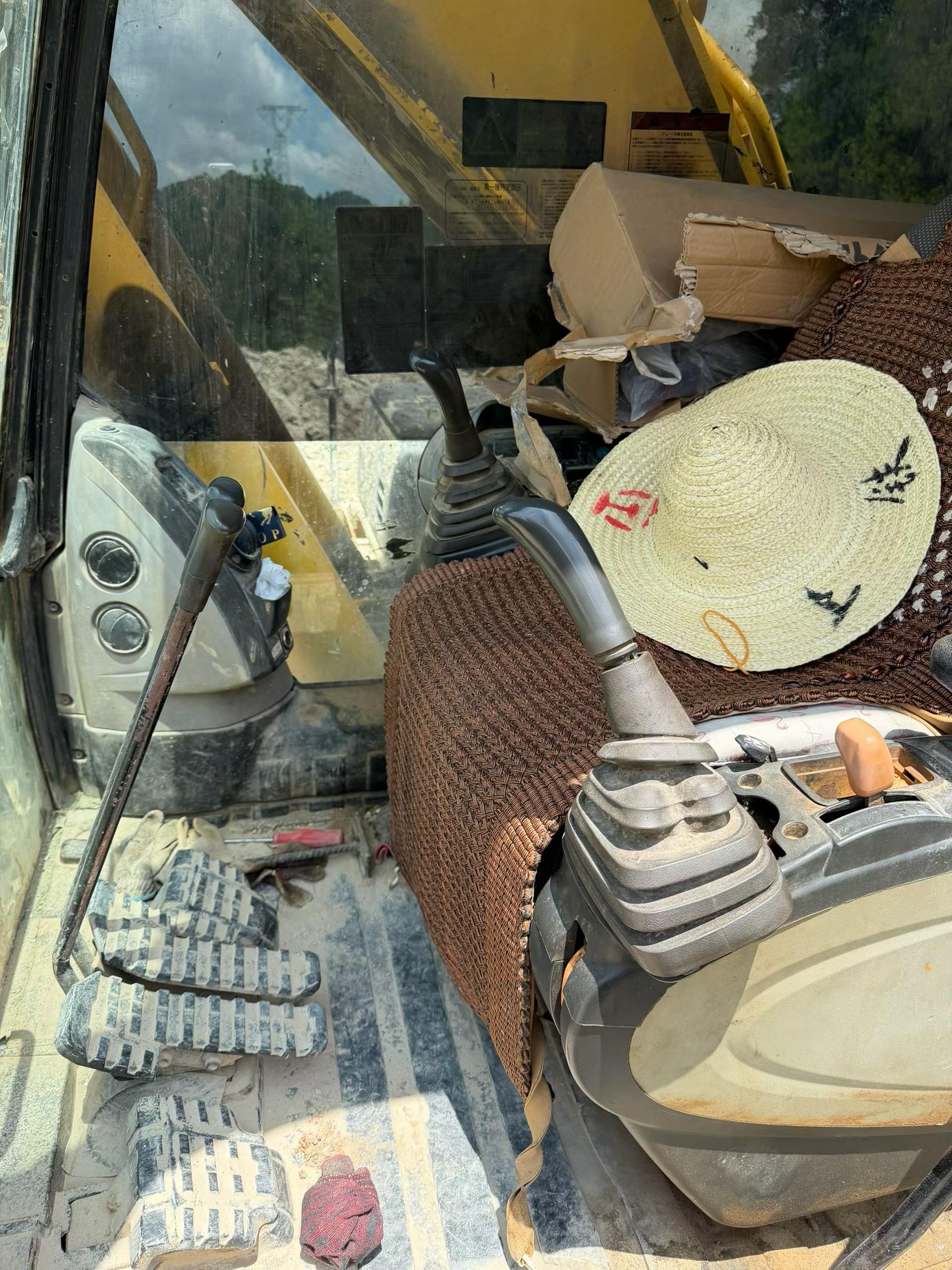

Buy Sumitomo SH350-5 Used Excavator / 8

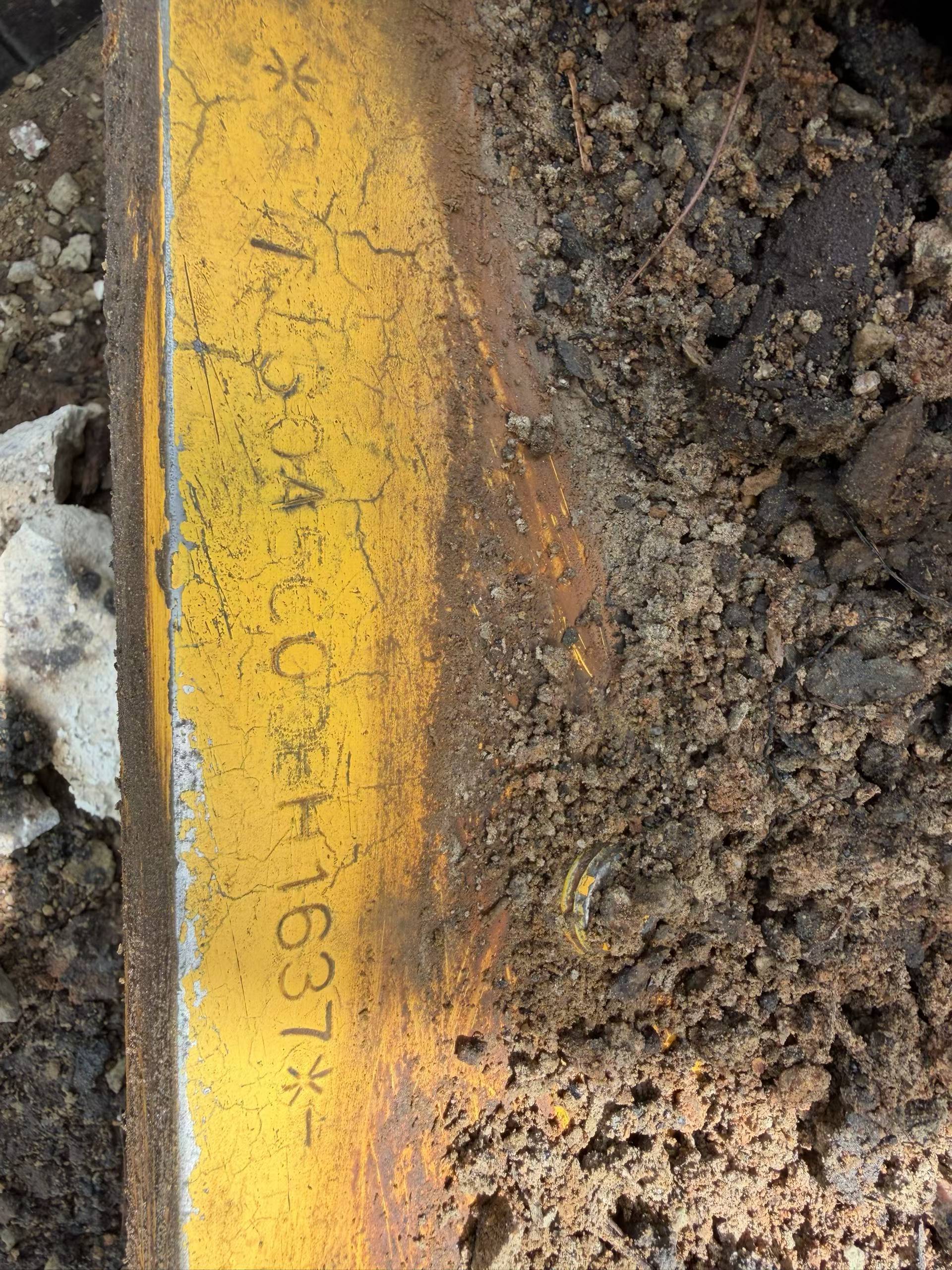

Buy Sumitomo SH350-5 Used Excavator / 9

Product Description

This 2015 Sumitomo SH350-5 hydraulic excavator is currently available in Zhejiang, China. The SH350-5 represents Sumitomo's reliable mid-size excavator platform, engineered for demanding earthmoving and construction applications. With nearly a decade of service, this machine offers proven performance at a competitive price point for operations requiring substantial digging capacity and reach.

  • Operating weight class: approximately 35 tons
  • Sumitomo's fuel-efficient engine technology
  • Hydraulic system designed for smooth operation and precision control
  • Robust undercarriage for stability on varied terrain
  • Suitable for excavation, material handling, and site development

This unit is priced at RMB 158,000. Ideal for contractors and civil engineering firms seeking dependable equipment with established performance records. Inspection and detailed service history available upon request.

SpecificationsValue
No.1162531
Tonnage (tons)35
Working weight (kg)35200
Bucket capacity (m³)1.2-1.8
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeAH-6HK1XYSS
Rated power (kw/rpm)202/2000
Displacement (L)7.79
Ground specific pressure (Kpa)71
Rotation speed (rpm)9.8
Climbing ability (%)70
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Main overflow set pressure (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4650
Track gauge (mm)2600
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more

Overview

No.1162531

Brand Name:

Sumitomo

Model Number:

SH350-5

Year:

2015

Location:

Zhejiang China

Pub Date:
