2015 Sumitomo SH380-5

1/9

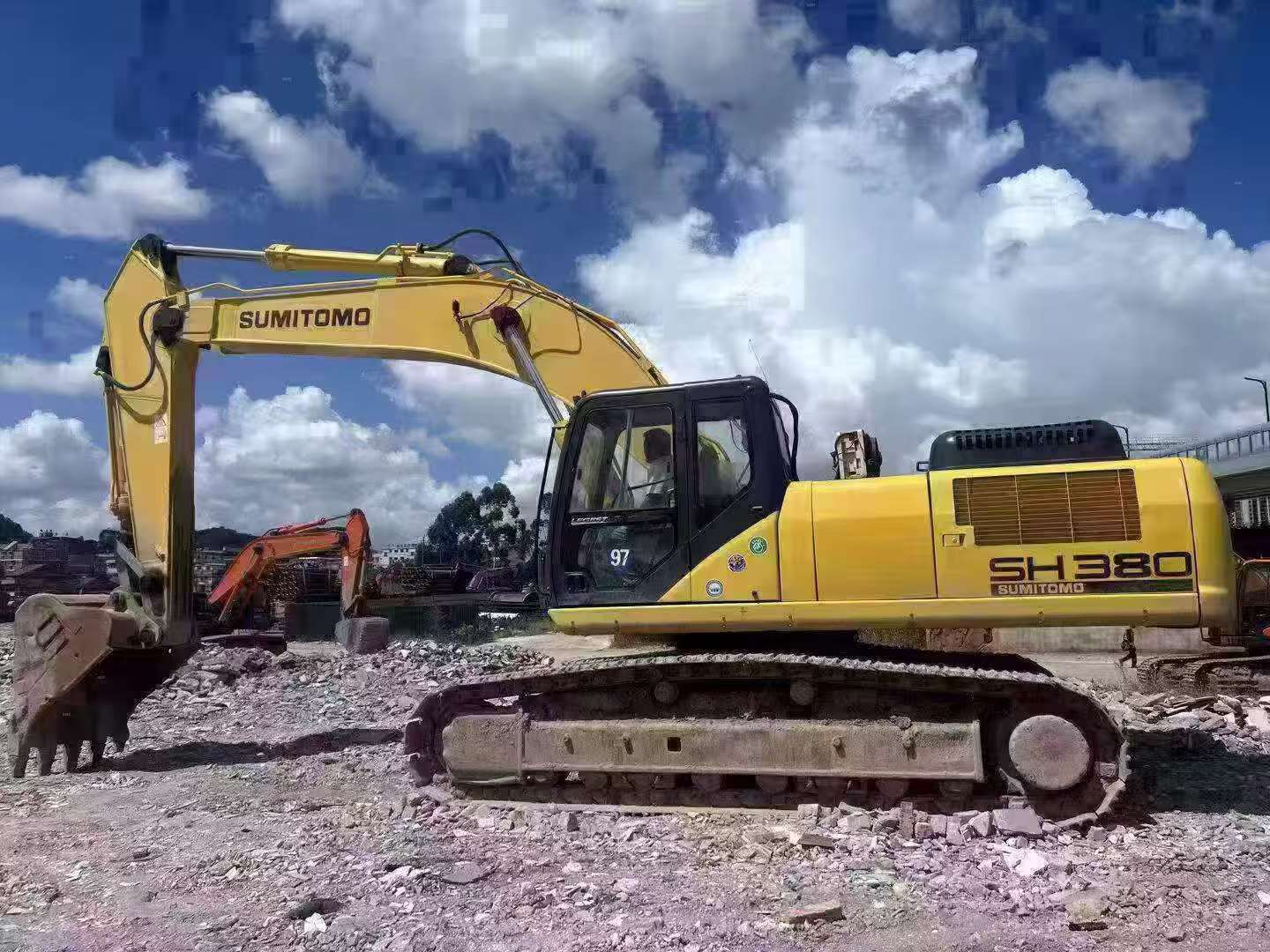

Buy Sumitomo SH380-5 Used Excavator / 1

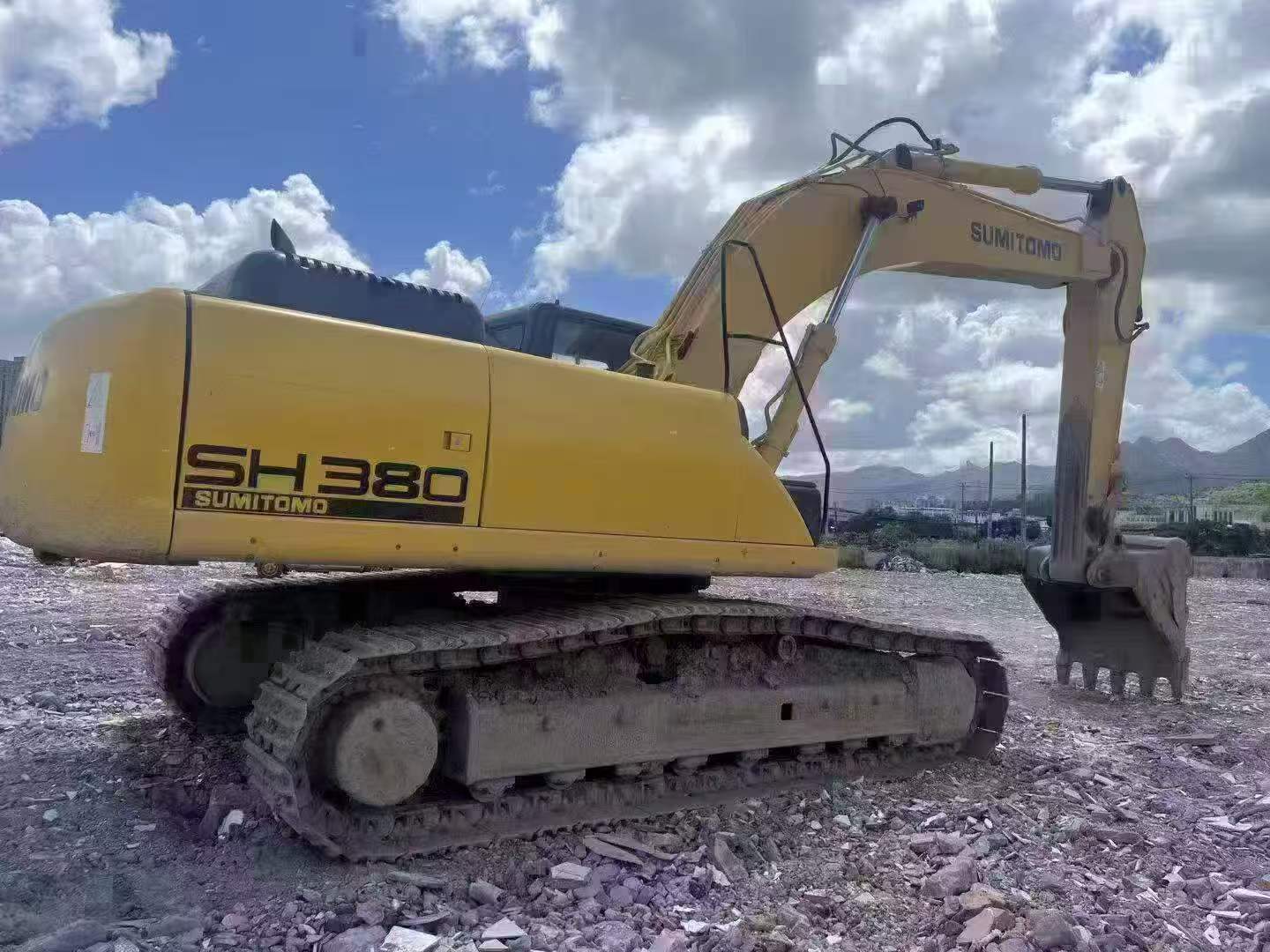

Buy Sumitomo SH380-5 Used Excavator / 2

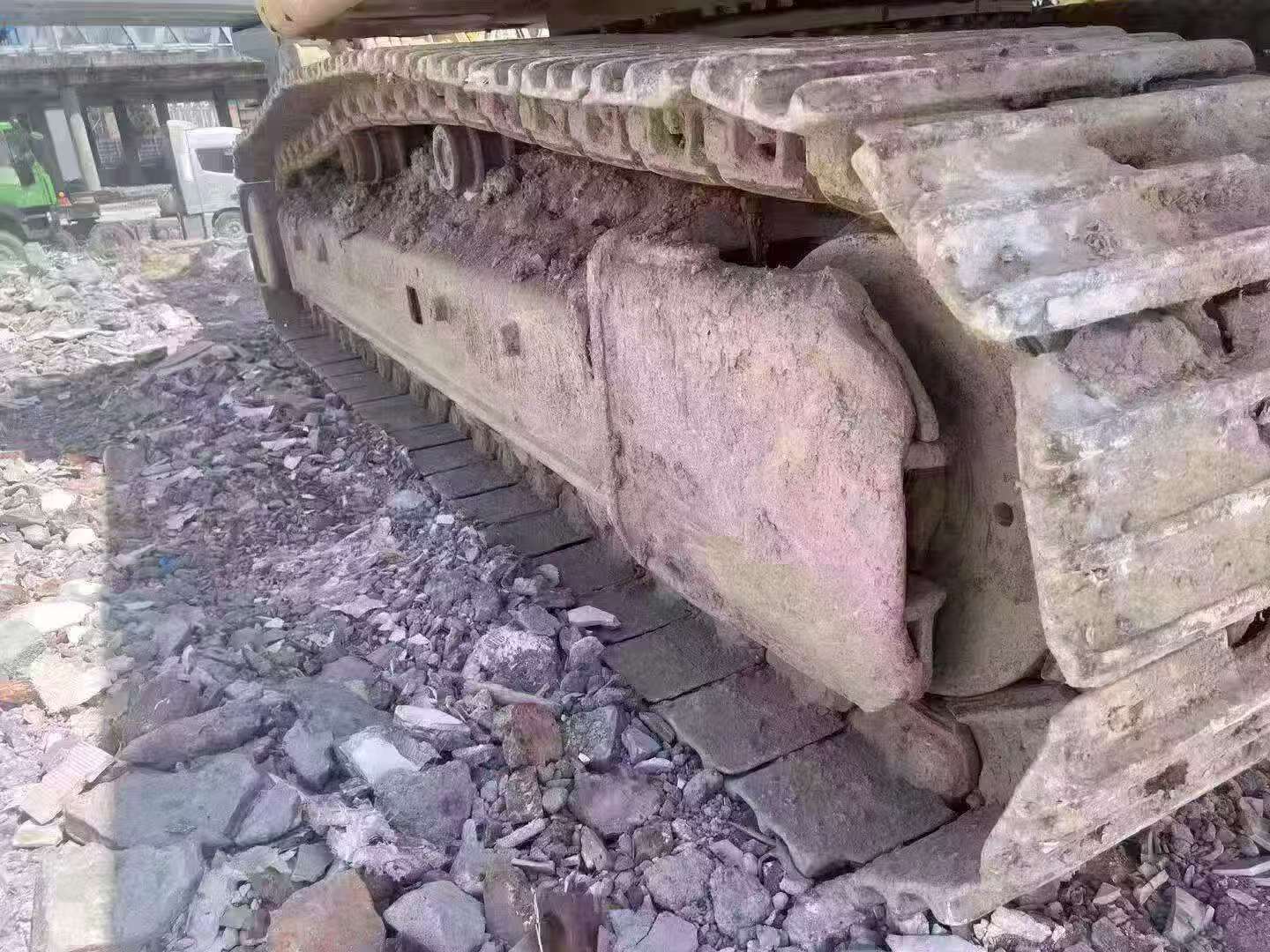

Buy Sumitomo SH380-5 Used Excavator / 3

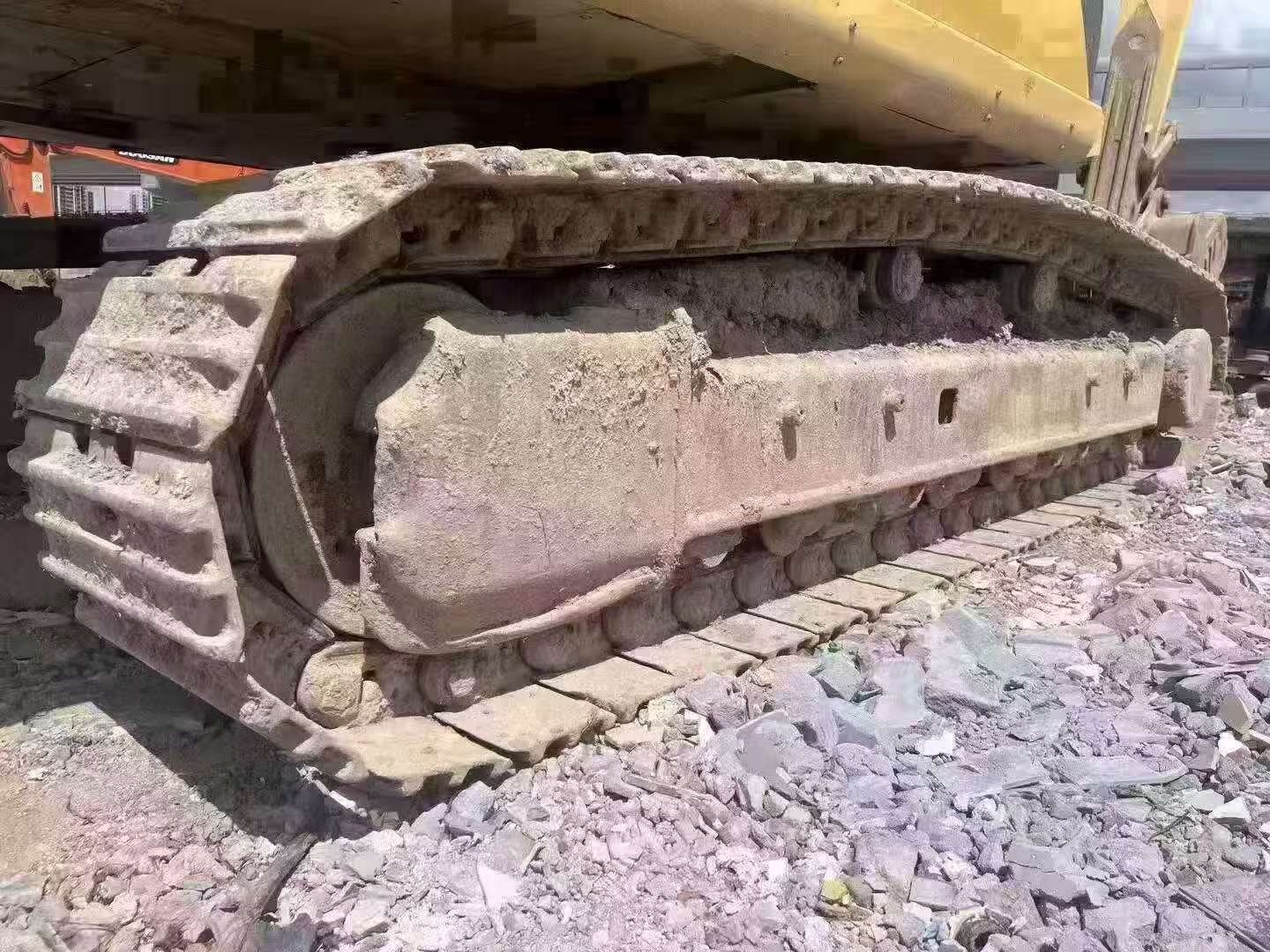

Buy Sumitomo SH380-5 Used Excavator / 4

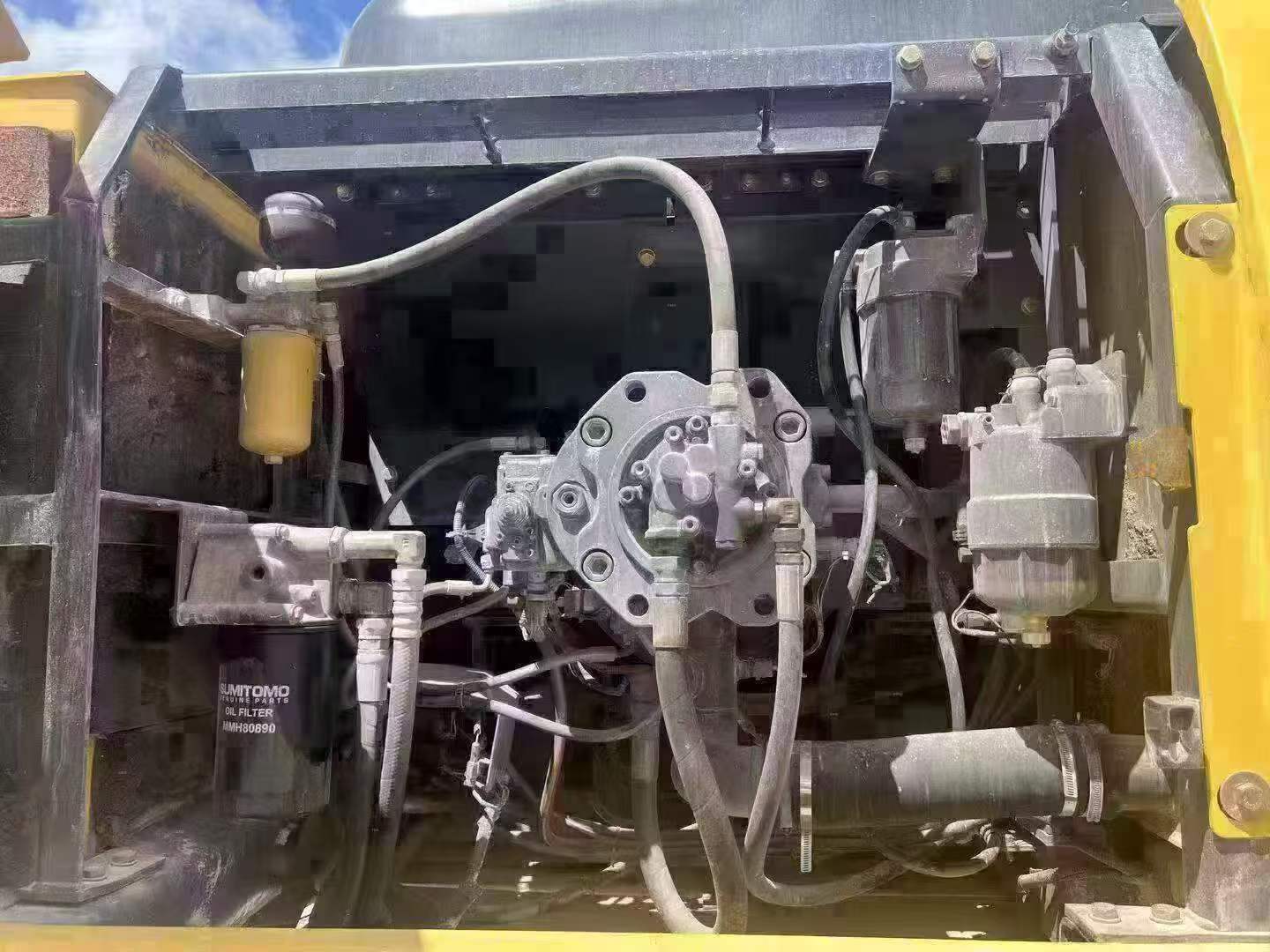

Buy Sumitomo SH380-5 Used Excavator / 5

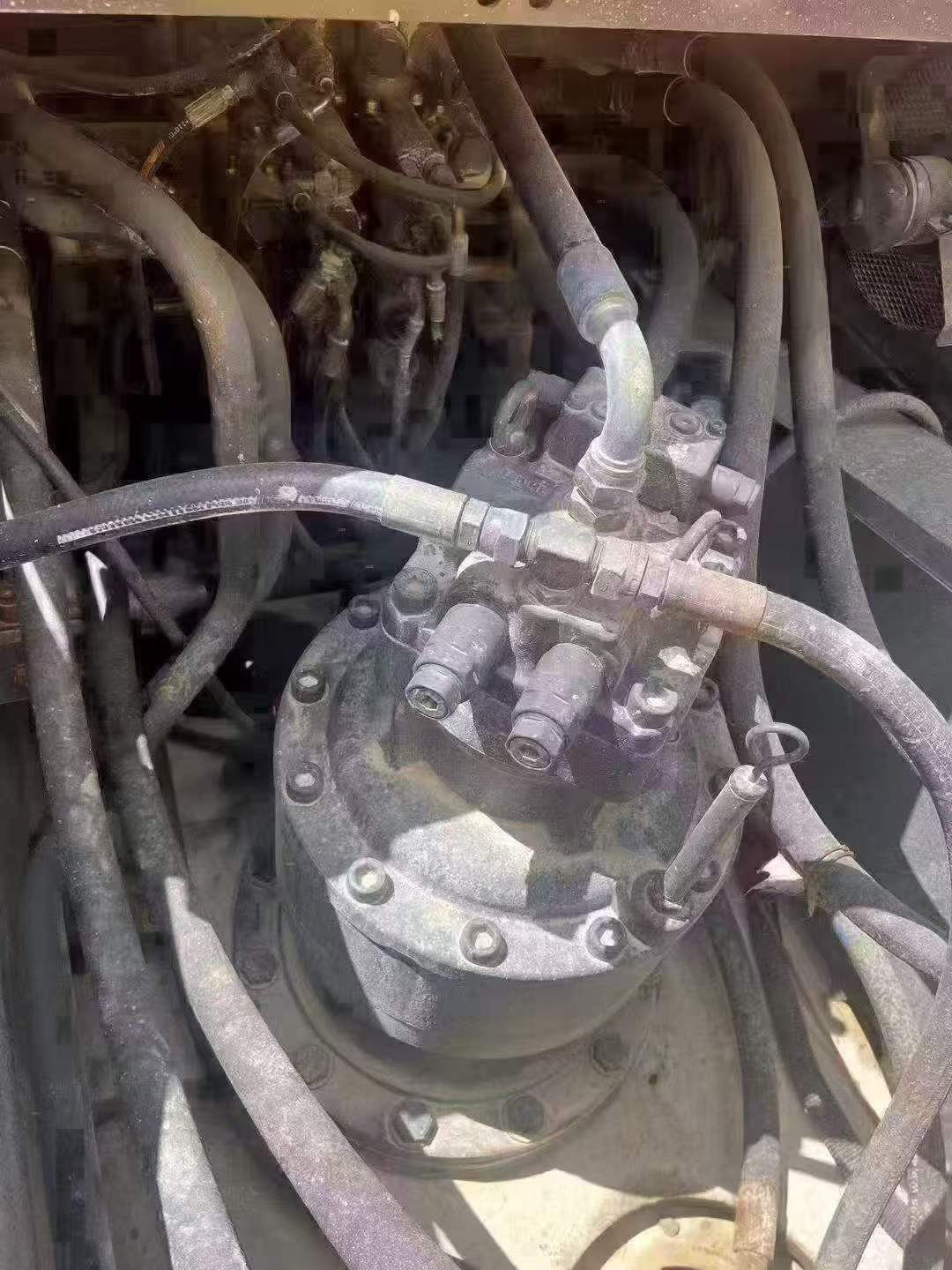

Buy Sumitomo SH380-5 Used Excavator / 6

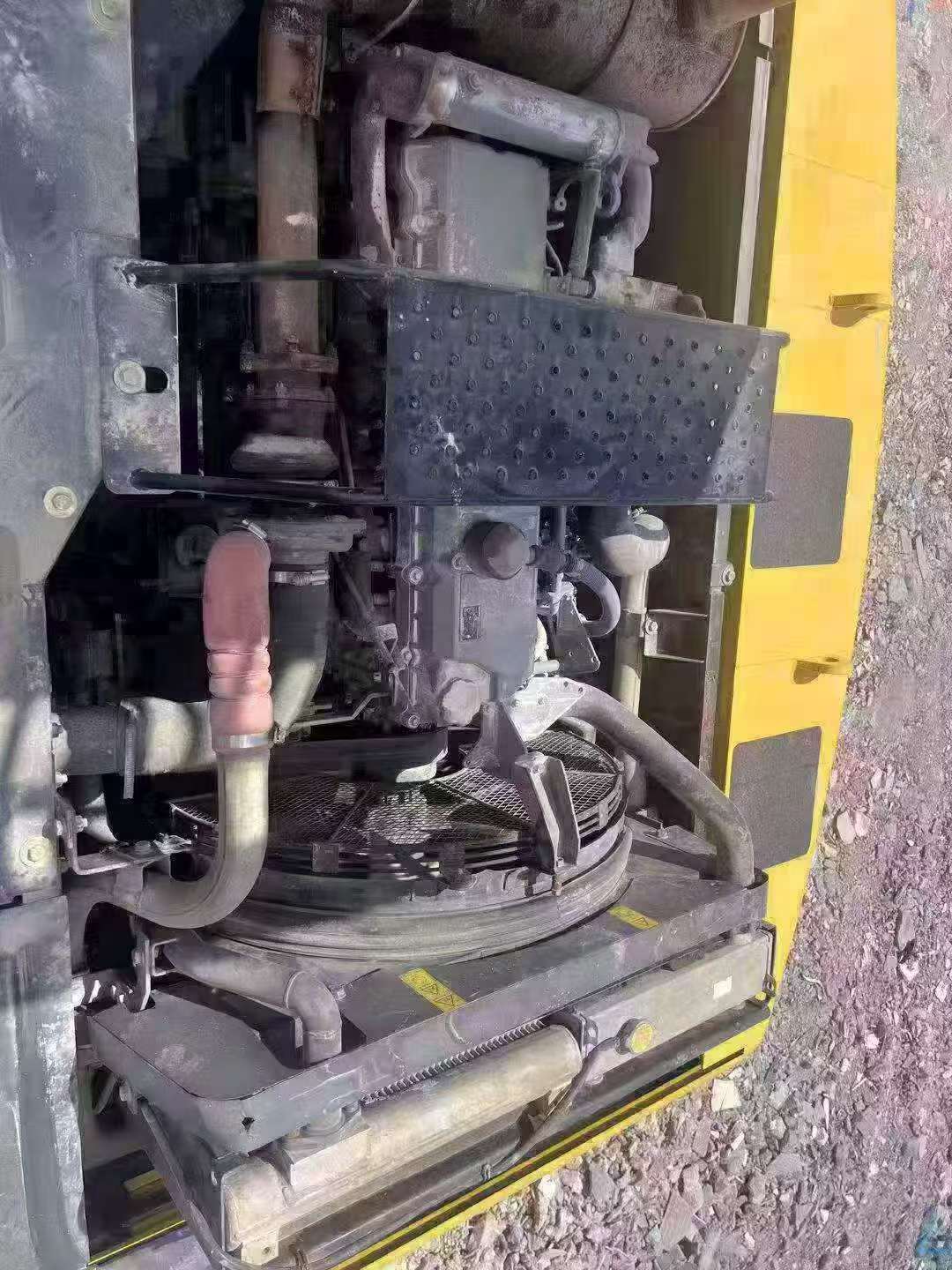

Buy Sumitomo SH380-5 Used Excavator / 7

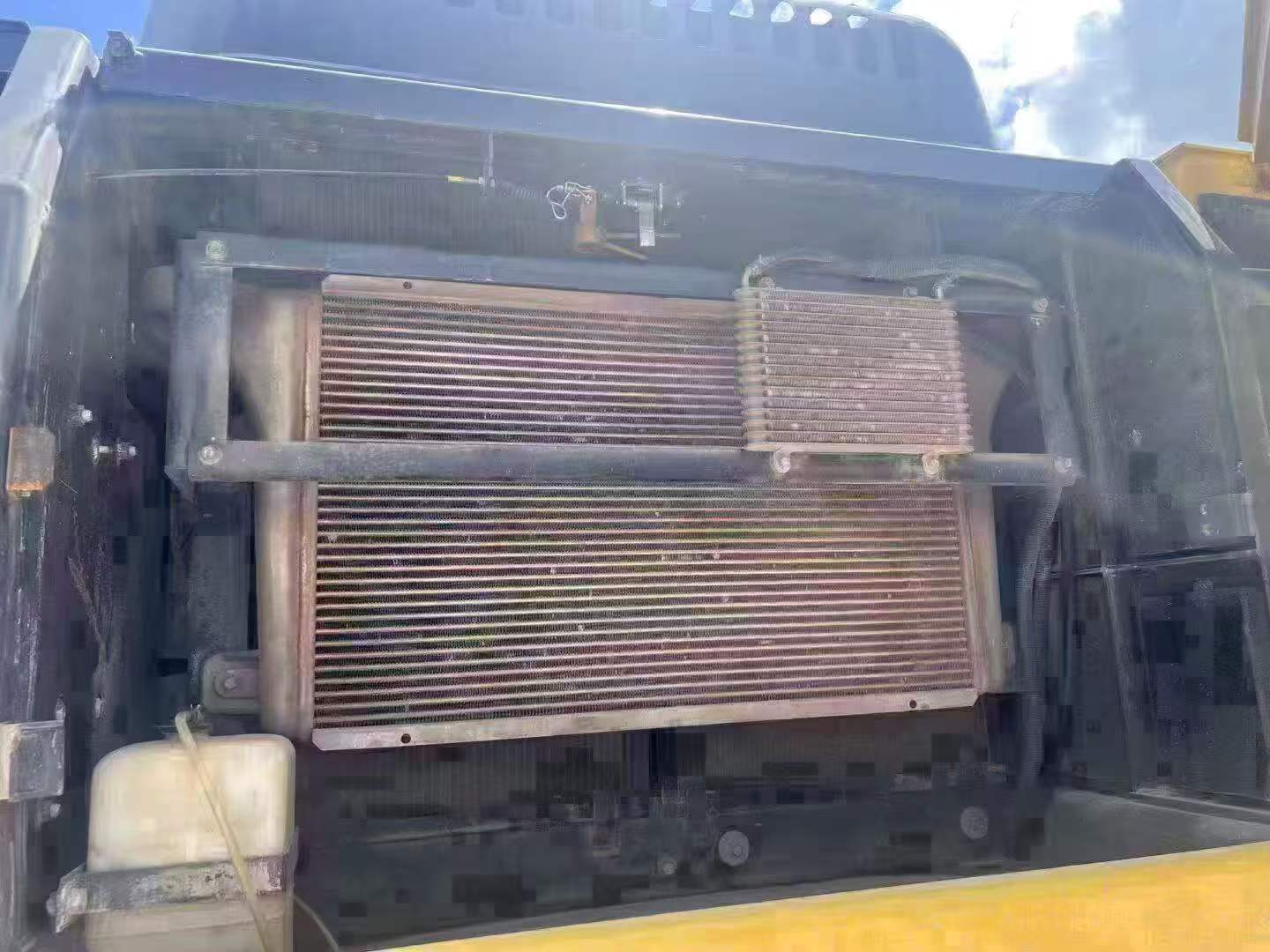

Buy Sumitomo SH380-5 Used Excavator / 8
Buy Sumitomo SH380-5 Used Excavator / 9

Product Description

Discover the reliability and efficiency of the 2015 Sumitomo SH380-5, a robust excavator designed for demanding industrial applications. Located in Zhejiang, China, this used machine offers a powerful performance that has been trusted by construction and mining professionals. With its durable build and efficient operation, the SH380-5 is equipped to handle a variety of challenging tasks, making it a valuable addition to any fleet. This model is known for its superior digging force and stability, ensuring productivity on any job site.

  • Year: 2015
  • Brand: Sumitomo
  • Model: SH380-5
  • Location: Zhejiang, China
SpecificationsValue
No.1135482
Tonnage (tons)38
Working weight (kg)36600
Bucket capacity (m³)1.8
Boom length (mm)6400
Rod length (mm)3200
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeIsuzu AH-6HK1X
Rated power (kw/rpm)202/2000
Displacement (L)7.790
Ground specific pressure (Kpa)68
Rotation speed (rpm)9.8
Climbing ability (%)70% (35°)
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Type of walking hydraulic motorVariable capacity piston pump
Main pump typeVariable capacity piston pump
Working Hydraulic Circuit (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)175
Hydraulic System (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4980
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more

Overview

No.1135482

Brand Name:

Sumitomo

Model Number:

SH380-5

Year:

2015

Location:

Zhejiang China

Pub Date
