2020 Sumitomo SH380-5

1/9
Buy Sumitomo SH380-5 Used Excavator / 1

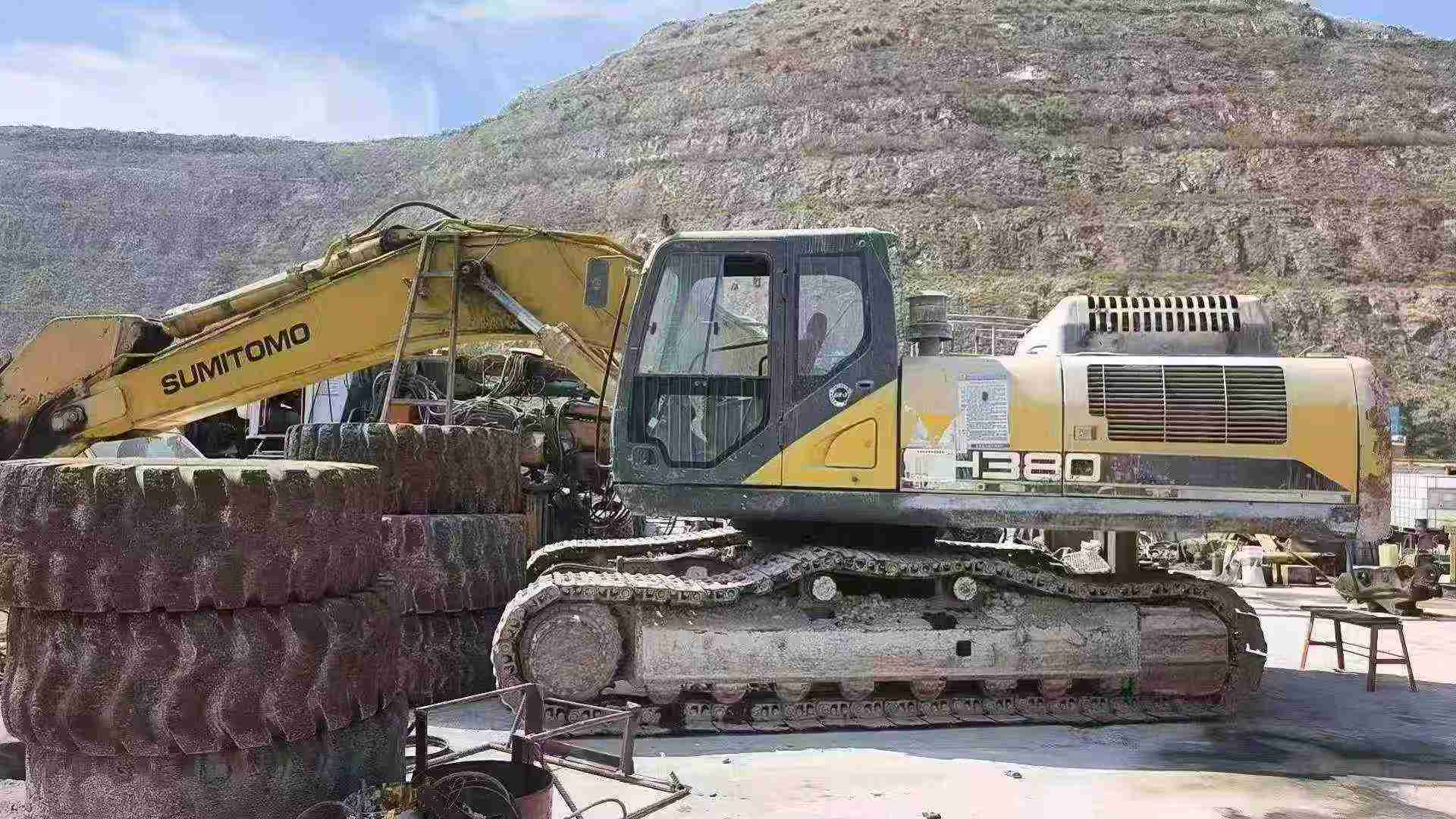

Buy Sumitomo SH380-5 Used Excavator / 2

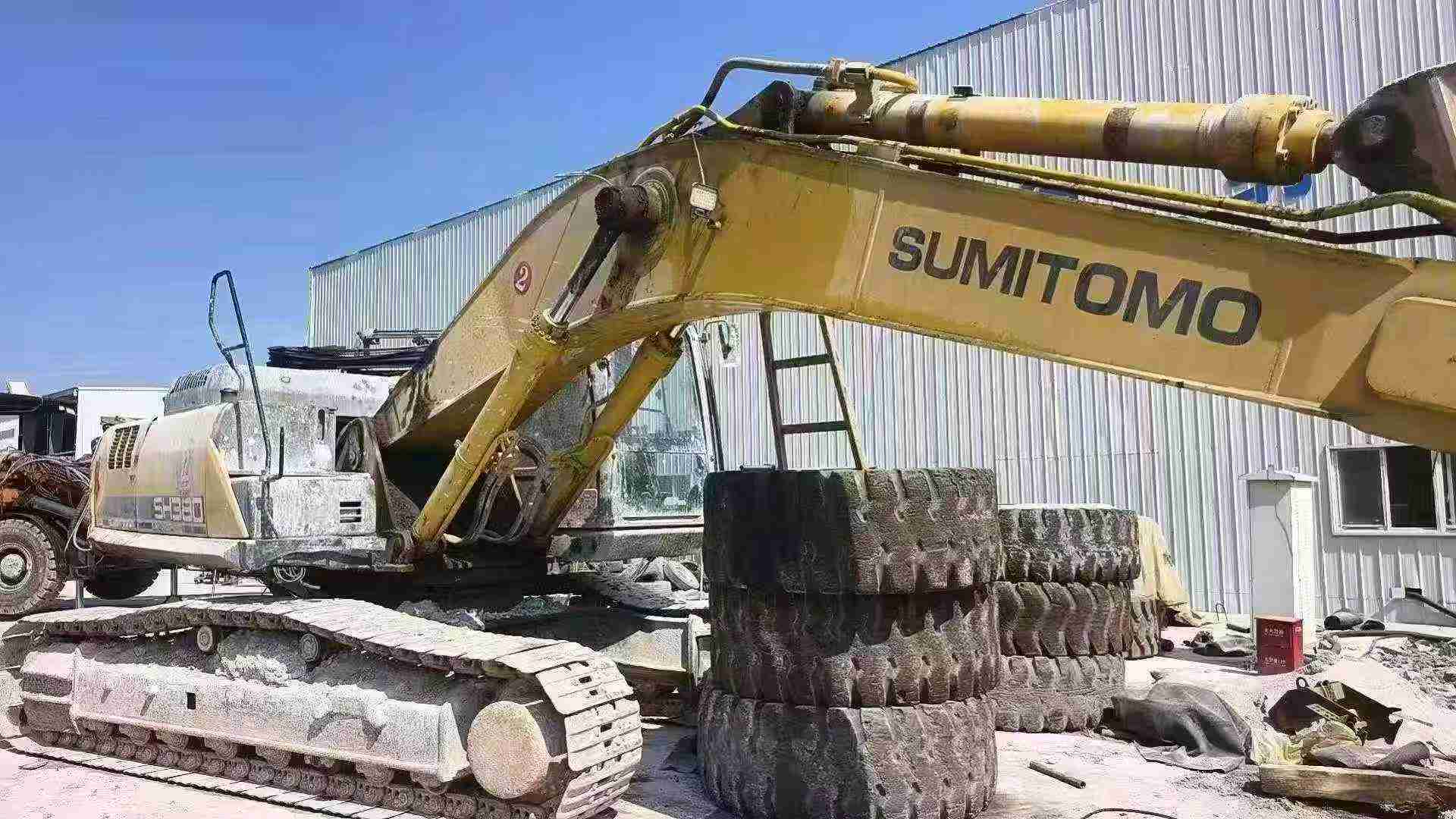

Buy Sumitomo SH380-5 Used Excavator / 3

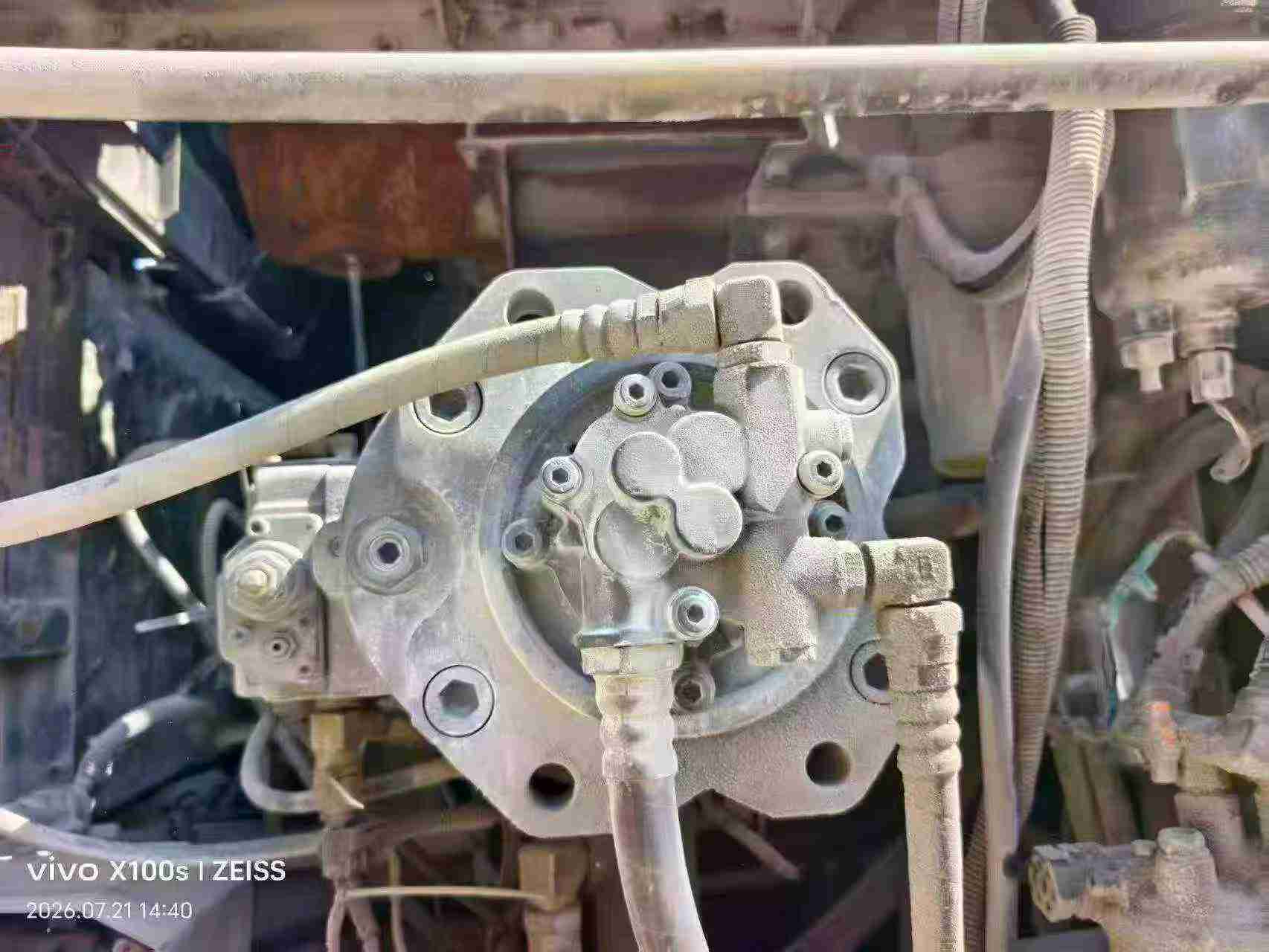

Buy Sumitomo SH380-5 Used Excavator / 4

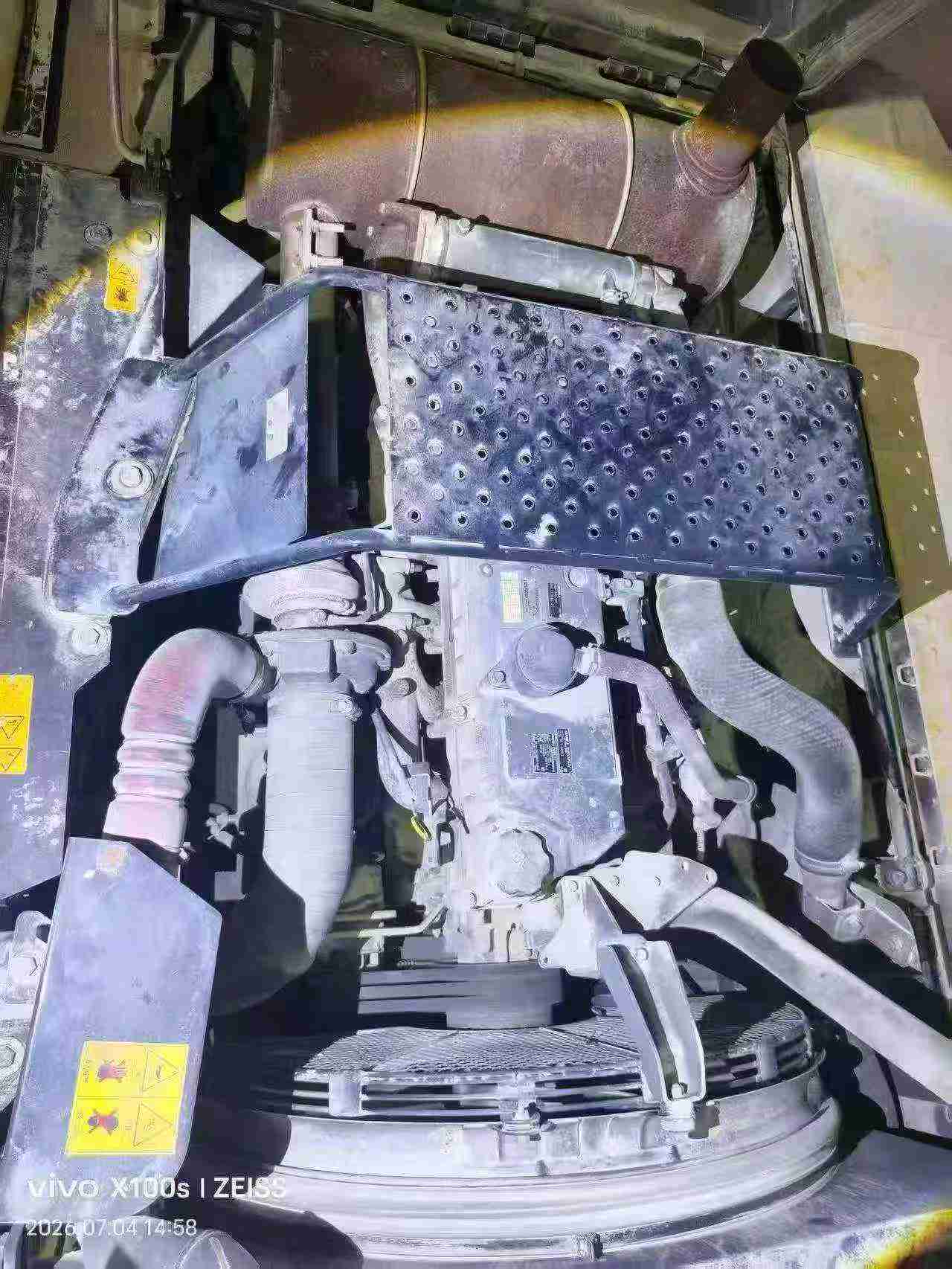

Buy Sumitomo SH380-5 Used Excavator / 5

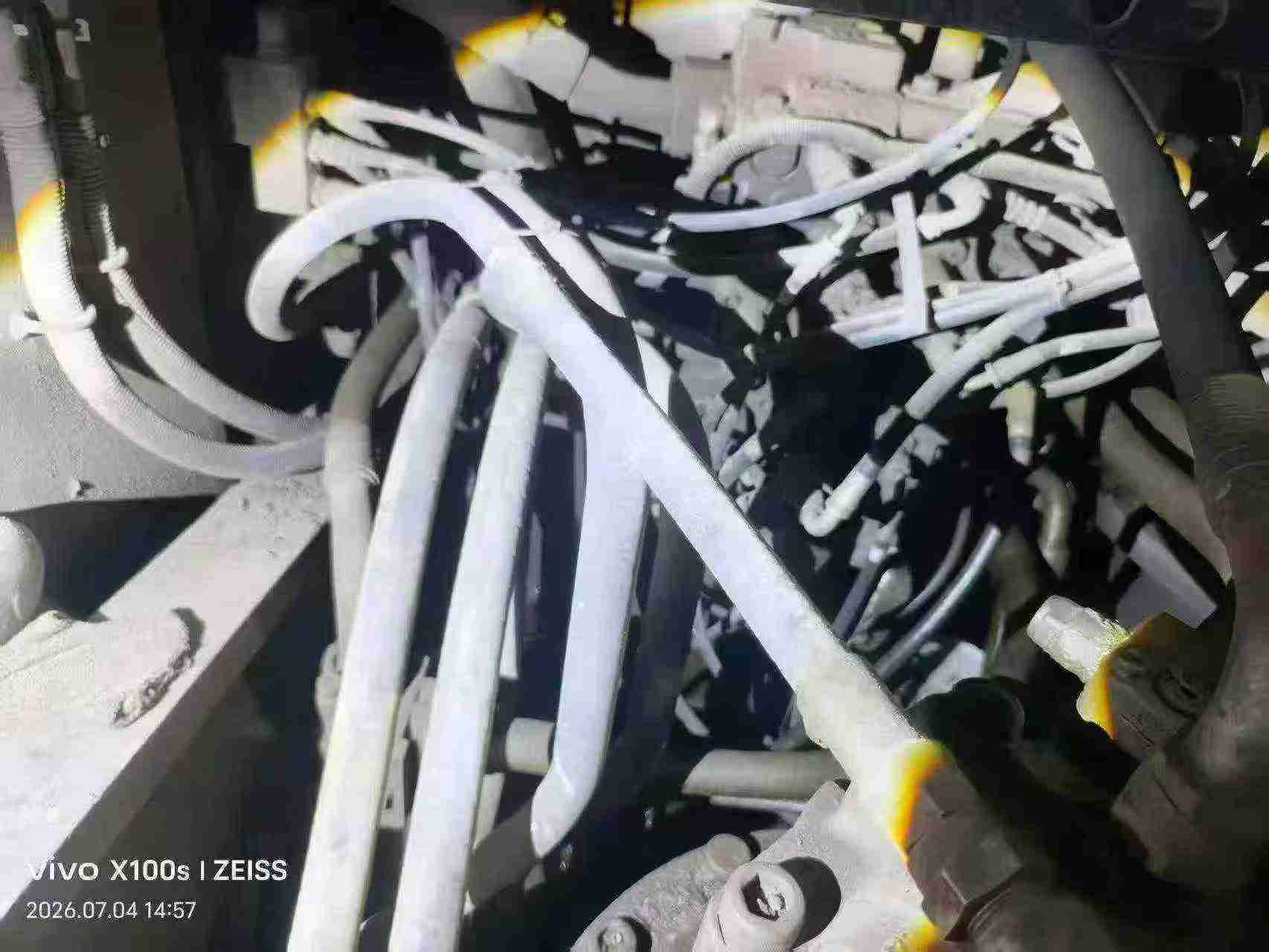

Buy Sumitomo SH380-5 Used Excavator / 6

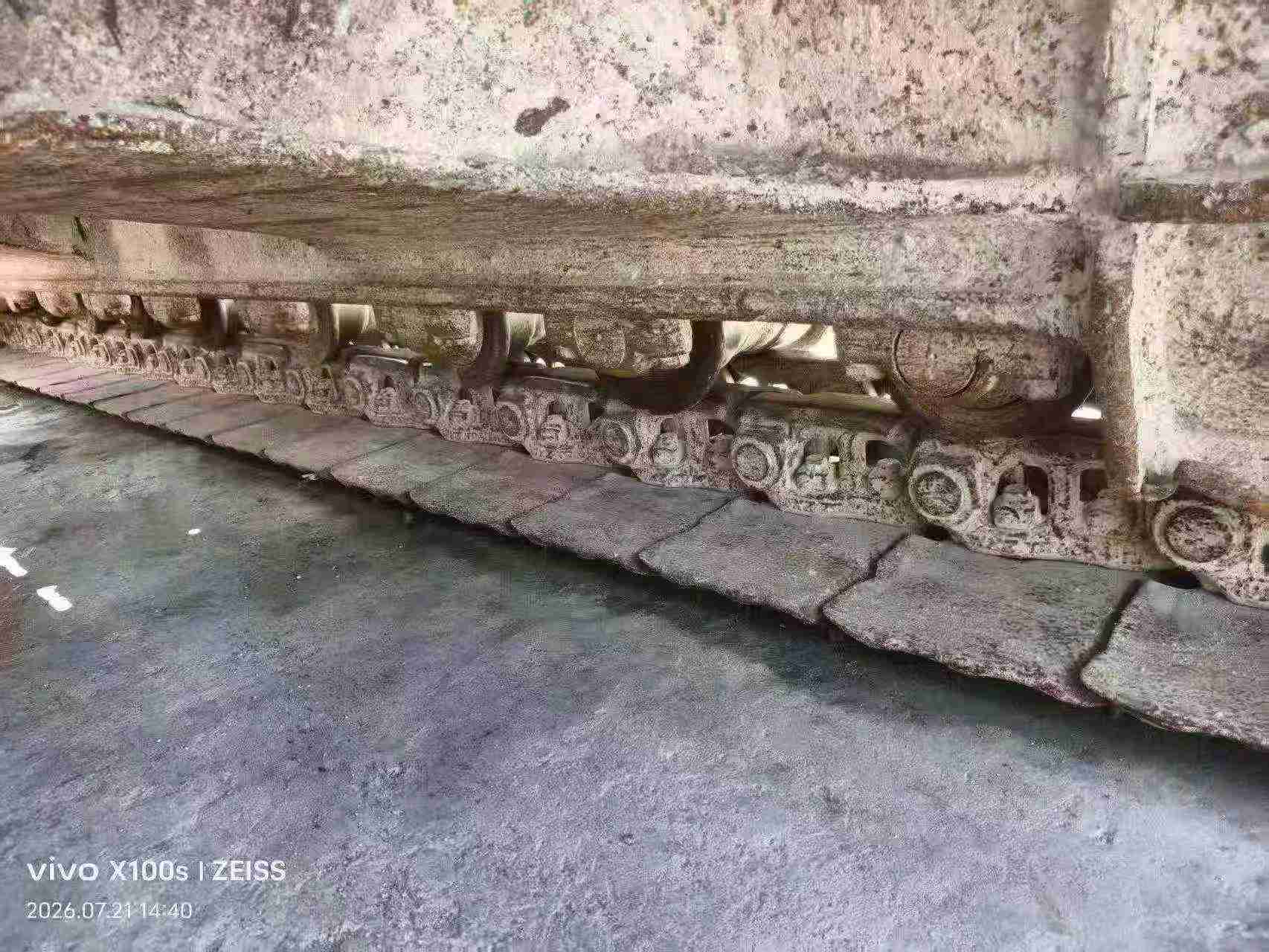

Buy Sumitomo SH380-5 Used Excavator / 7

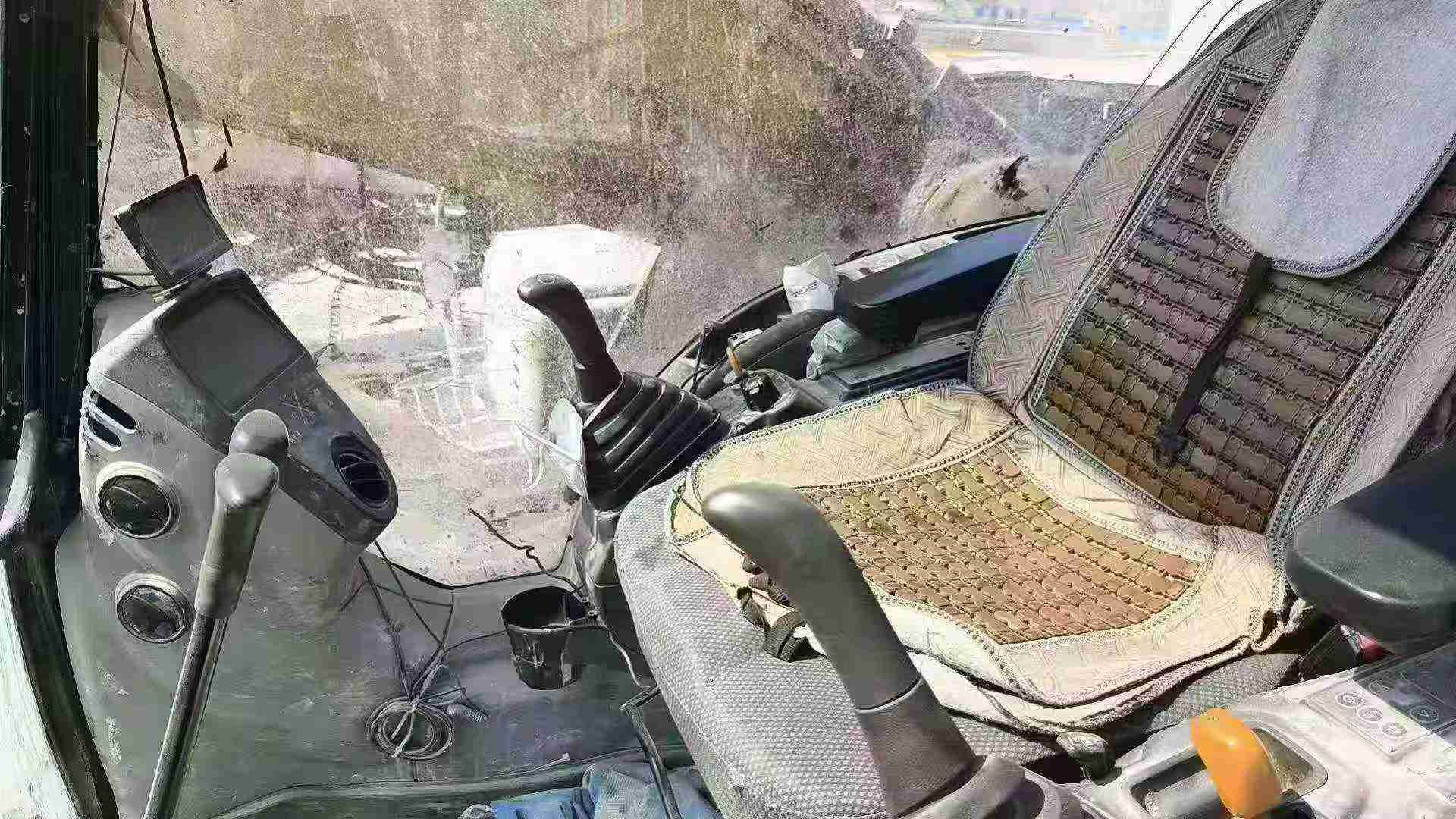

Buy Sumitomo SH380-5 Used Excavator / 8

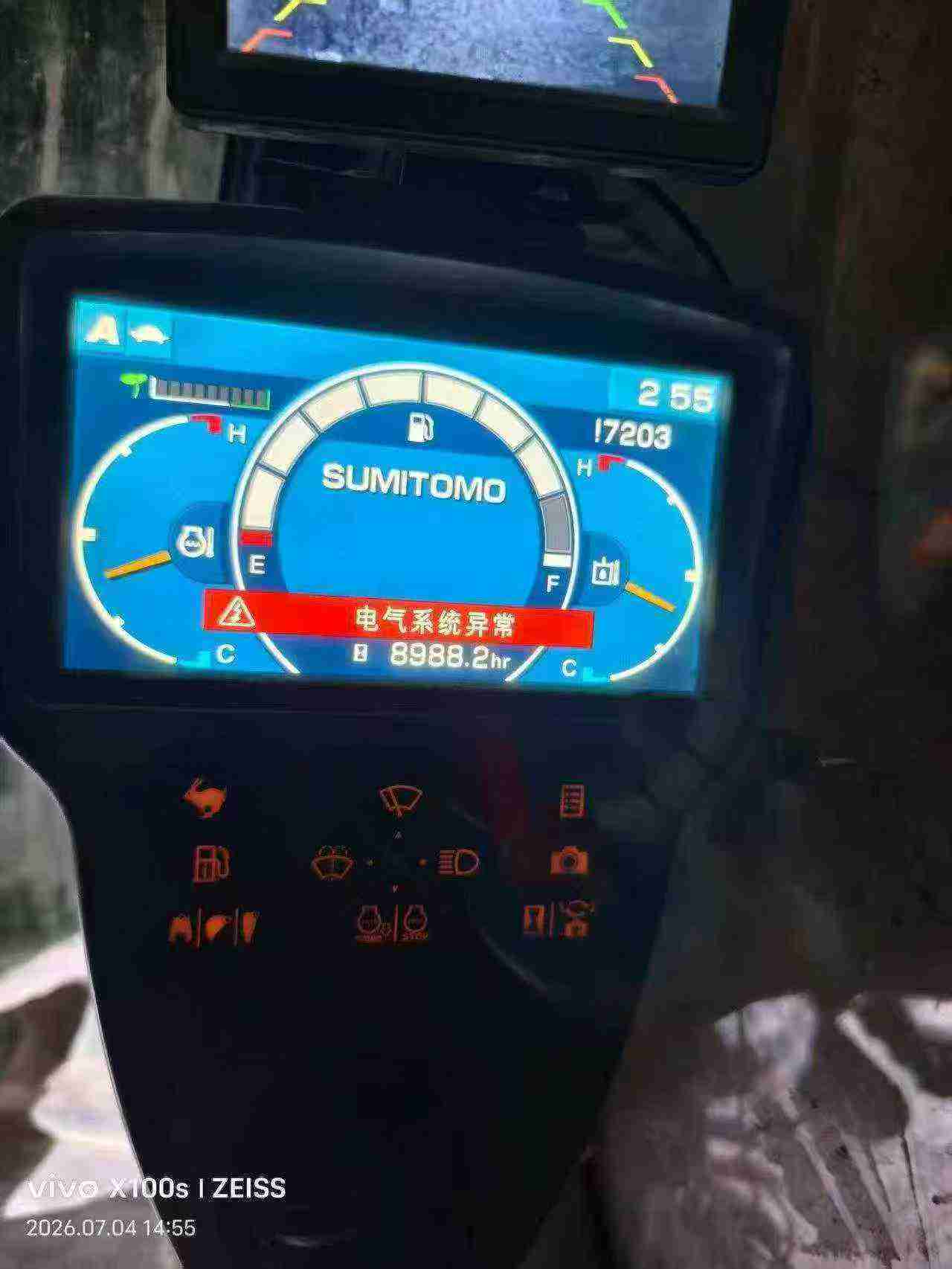

Buy Sumitomo SH380-5 Used Excavator / 9

Product Description

Discover the 2020 Sumitomo SH380-5, a robust and reliable excavator now available in Zhejiang, China. This machine, known for its durability and efficiency, is offered at a competitive price, making it an excellent investment for any construction or mining project. The SH380-5 model is designed to deliver high performance with reduced operating costs, ensuring that your operations run smoothly and profitably.

  • Year: 2020
  • Brand: Sumitomo
  • Model: SH380-5
  • Location: Zhejiang, China
SpecificationsValue
No.1116278
Tonnage (tons)38
Working weight (kg)36600
Bucket capacity (m³)1.8
Boom length (mm)6400
Rod length (mm)3200
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeIsuzu AH-6HK1X
Rated power (kw/rpm)202/2000
Displacement (L)7.790
Ground specific pressure (Kpa)68
Rotation speed (rpm)9.8
Climbing ability (%)70% (35°)
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Type of walking hydraulic motorVariable capacity piston pump
Main pump typeVariable capacity piston pump
Working Hydraulic Circuit (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)175
Hydraulic System (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4980
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more

Overview

No.1116278

Brand Name:

Sumitomo

Model Number:

SH380-5

Year:

2020

Location:

Zhejiang China

Pub Date
