Product Description

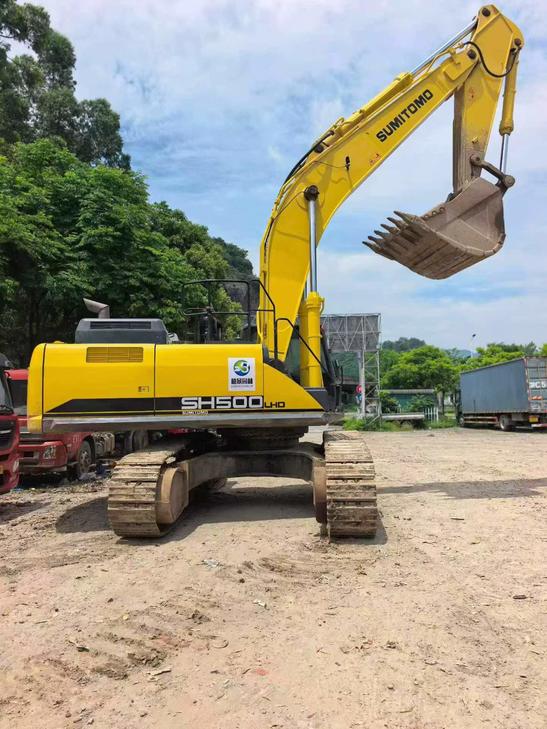

This 2022 Sumitomo SH500LHD-6 hydraulic excavator represents a premium addition to any heavy construction fleet. With minimal operating hours since manufacture, this late-model unit demonstrates the reliability and performance Sumitomo is known for in the 50-ton class. Currently located in Zhejiang, China, this machine is available for immediate inspection and delivery.
Key features of the SH500LHD-6 include:
- Fuel-efficient engine with advanced hydraulic systems
- Extended reach configuration for versatile job site applications
- Operator-focused cab design with enhanced visibility
- Low-hour condition with comprehensive maintenance records
- Suitable for mining, quarrying, and large-scale earthmoving projects
This excavator is ready for deployment in demanding environments where productivity and uptime are critical. Contact us for detailed specifications, current hour meter readings, and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1145350 |
| Tonnage (tons) | 50 |
| Working weight (kg) | 50000 |
| Bucket capacity (m³) | 2.8-3.0 |
| Boom length (mm) | 6550 |
| Rod length (mm) | 2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 270.0/2000 |
| Displacement (L) | 9.839 |
| Ground specific pressure (Kpa) | 85 |
| Rotation speed (rpm) | 9.0 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 274 |
| Rod digging force (kN) | 251 |
| Travel speed (km/h) | 5.3 / 3.2 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 230 |
| Hydraulic System (L) | 460 |
| Total transport length (mm) | 11680 |
| Total transport width (mm) | 3350 |
| Total transport height (mm) | 3770 |
| Counterweight ground clearance (mm) | 1330 |
| Minimum ground clearance (mm) | 535 |
| Minimum turning radius of front working device (mm) | 4800 |
| Back end turning radius (mm) | 3730 |
| Total track length (mm) | 5450 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3350 |
| Maximum digging radius (mm) | 10920 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 10560 |
| Maximum unloading height (mm) | 7080 |
| Maximum vertical digging depth (mm) | 4030 |
Overview
No.1145350
Brand Name:
SumitomoModel Number:
SH500LHD-6Year:
2022
Location:
Zhejiang China
