Product Description
This 2020 Volvo 290BLC excavator from Shandong, China delivers reliable performance for demanding jobsites. The machine demonstrates excellent structural integrity with well-maintained major components showing no leaks. Power and hydraulic response remain strong, ensuring efficient cycle times and smooth operation across varied applications.
Key features include:
- Coordinated hydraulic system for precise control
- Strong digging force and consistent performance
- Normal wear patterns indicating proper maintenance

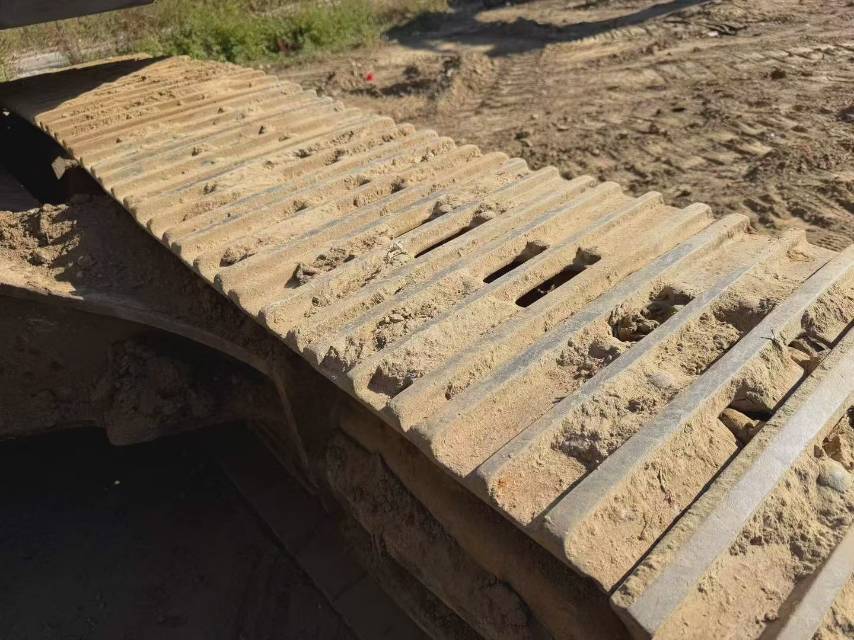

- Solid undercarriage condition
- Ready for immediate deployment
This used Volvo excavator offers dependable performance for construction, earthmoving, and material handling operations. The machine has been properly maintained and is available for inspection in Shandong province.
| Specifications | Value |
|---|---|
| No. | 1161629 |
| Tonnage (tons) | 29 |
| Working weight (kg) | 28500-29900 |
| Bucket capacity (m³) | 1.3 |
| Boom length (mm) | 6200 (Heavy arm) |
| Rod length (mm) | 3050 |
| Country of origin | Korea/Shanghai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

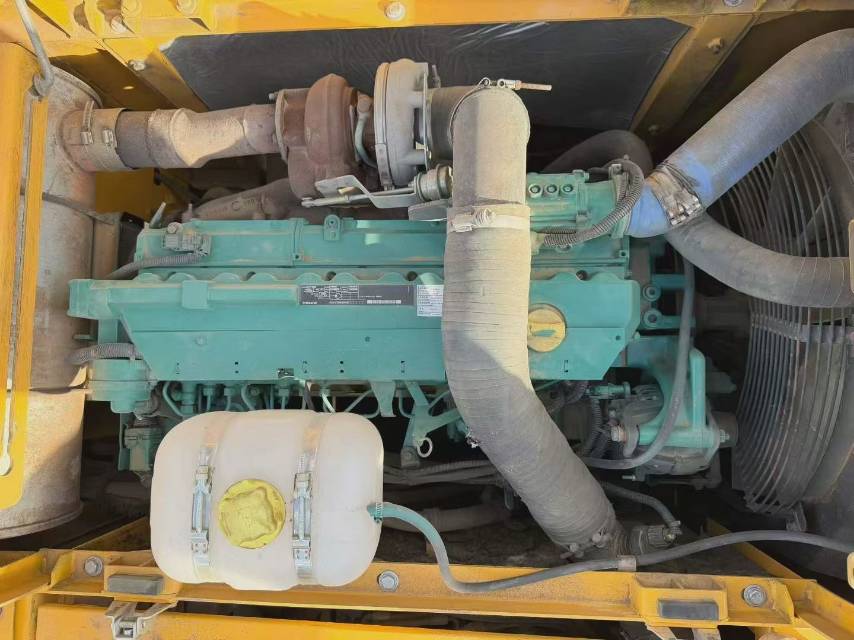

| Engine type | Volvo VOLVO D7D |
| Rated power (kw/rpm) | 153/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 108 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.1 |
| Working form | Turbocharging; Electric control direct injection; Charge air cooler |
| Ground specific pressure (Kpa) | 54.1 (when counterweight is 5.4 tons) |
| Rotation speed (rpm) | 10.2 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 181.4 (Standard mode) /198.4 (Extra Power mode) |
| Rod digging force (kN) | 127.6 (Standard mode) /139.5 (Extra mode) |
| Maximum tractive force (kN) | 230.5 |
| Travel speed (km/h) | 3.3/5.2 |
| Rotary hydraulic motor type | Axial piston hydraulic motor (with mechanical brake) |
| Type of walking hydraulic motor | Variable axial piston motor ×2 |
| Maximum flow of main pump (l/min) | 250 * 2 + 19 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Main pump type | Variable axial piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-140 x 1140 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-150 x 1745 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 1480 |
| Fuel Tank (L) | 470 |
| Hydraulic Tank (L) | 195 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 44 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 10400 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3290 (total height of big arm) |
| Full cab height (mm) | 3030 |
| Counterweight ground clearance (mm) | 1145 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4180 |
| Back end turning radius (mm) | 3050 |
| Total track length (mm) | 4870 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | Three teeth 600/700/800/900; Two teeth 700 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4015 |
| Maximum digging radius (mm) | 10690 |
| Maximum digging depth (mm) | 7320 |
| Maximum excavation height (mm) | 10040 |
| Maximum unloading height (mm) | 7050 |
| Maximum vertical digging depth (mm) | 6200 |
| Maximum excavation radius of stop surface (mm) | 10490 |
| Maximum effective digging depth (mm) | 7140 |
