Product Description

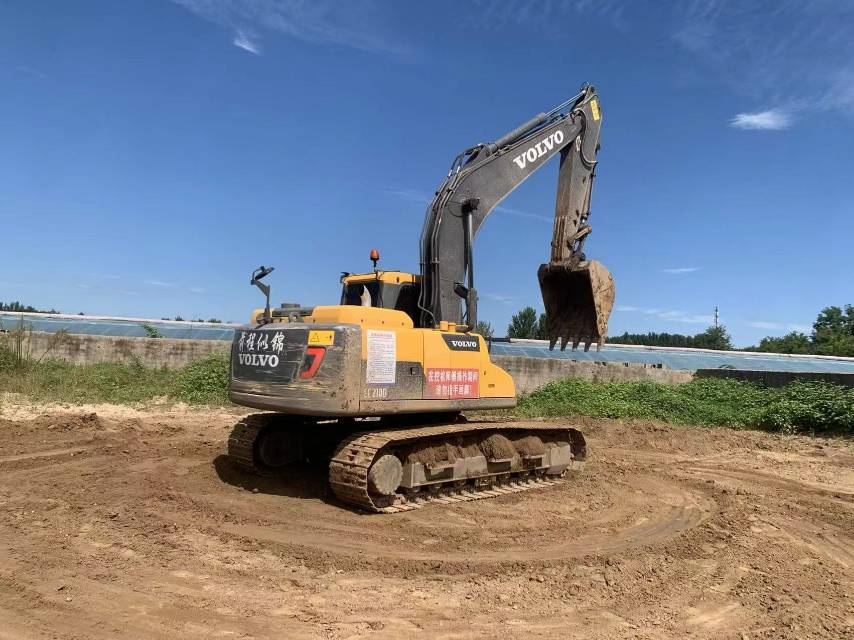

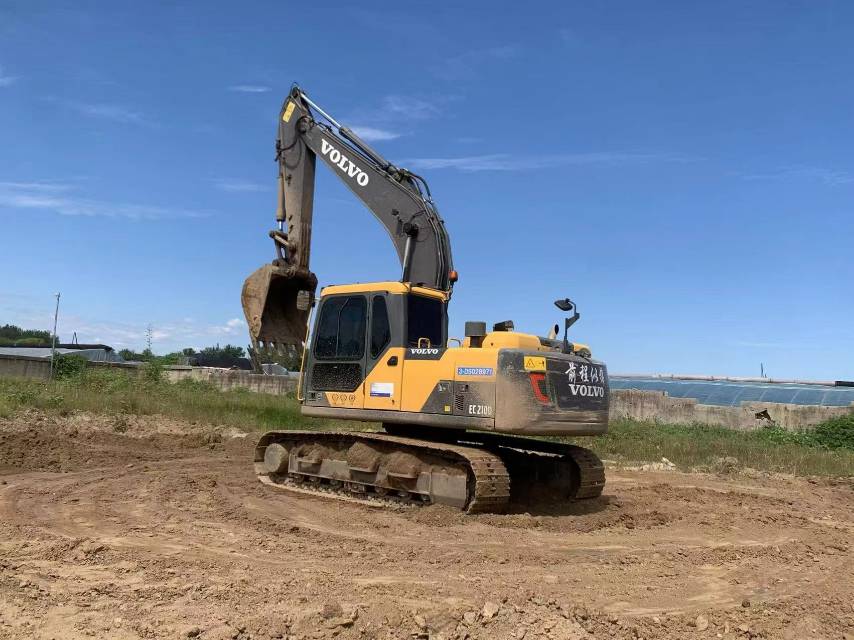

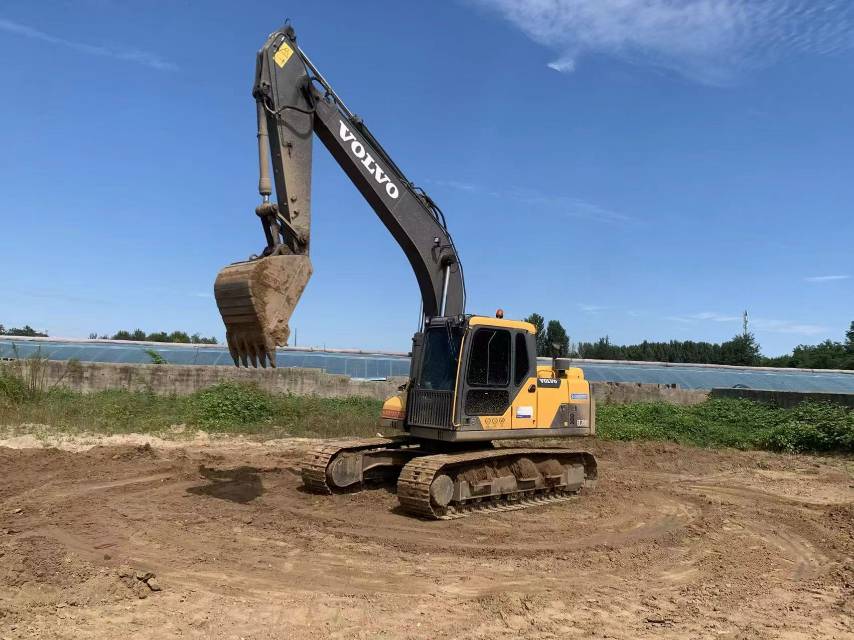

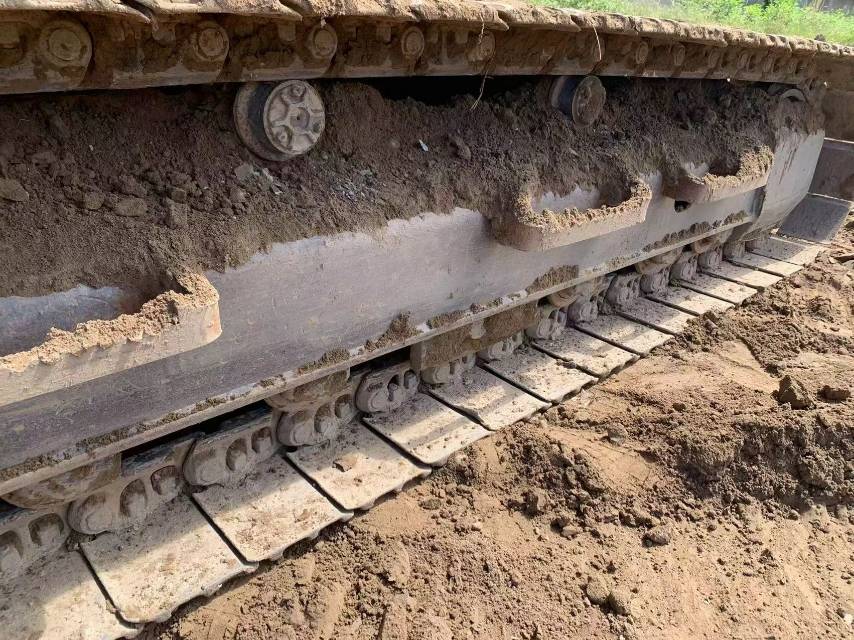

This 2020 Volvo EC70 compact excavator is available from Hebei, China, presenting an excellent opportunity for buyers seeking reliable used equipment. The machine retains its original factory paint throughout, indicating careful ownership and minimal cosmetic wear. Operating condition is assessed at approximately 80% of new, with all major components intact and unmodified since manufacture.
Key highlights include:
- No oil leaks from major assemblies including engine, hydraulics, and drivetrain
- Original configuration with no major component replacements or rebuilds
- Well-maintained condition suitable for immediate deployment
- Compact class design ideal for urban construction and utility work
The Volvo EC70 is known for its maneuverability in confined spaces while maintaining the performance standards expected from Volvo construction equipment. This unit's preservation of original components and paint suggests consistent maintenance practices throughout its service life.
| Specifications | Value |
|---|---|
| No. | 1145370 |
| Tonnage (tons) | 17 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

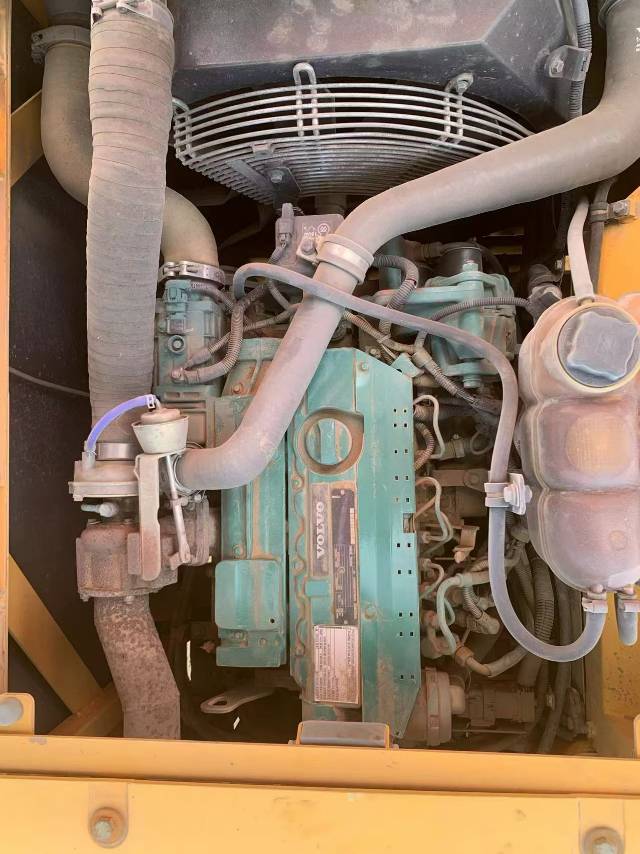

| Engine type | Volvo D4E |
| Rated power (kw/rpm) | 90-91/2200 |
| Cylinder diameter × stroke (mm) | 101 x 126 |
| Maximum torque (N.m) | 495/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.038 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 101.3-116.7 |
| Rod digging force (kN) | 71.9-98.2 |
| Maximum tractive force (kN) | 145 |
| Travel speed (km/h) | 3.1/5.6 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |

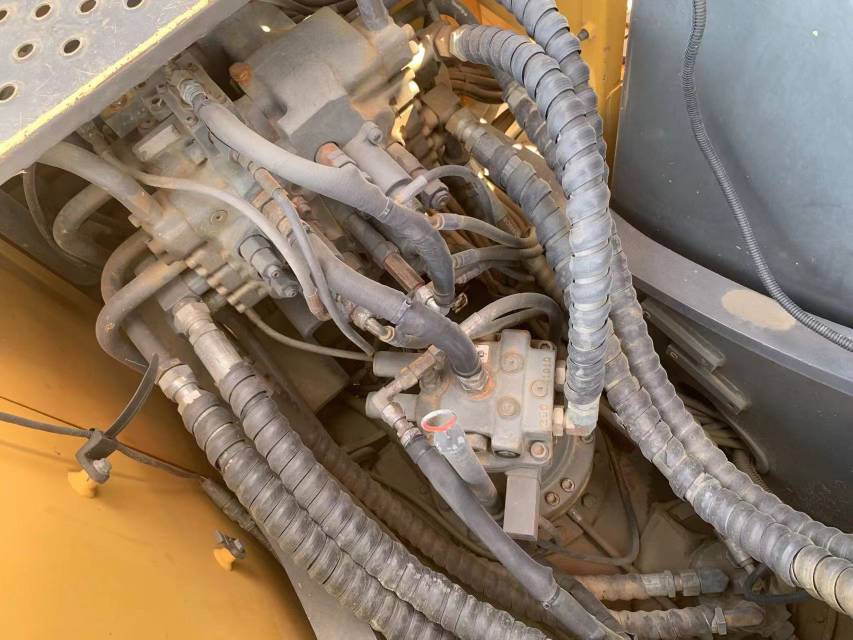

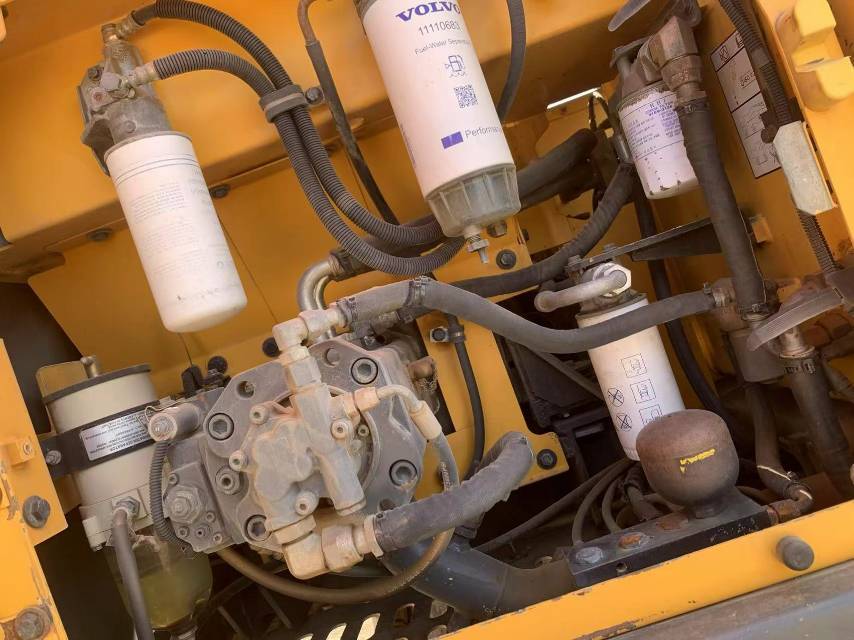

| Main pump type | Two variable displacement axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 34.3 / 36.3 |
| Pilot pump flow (L/min) | 2 x 150 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1×105 x 1 000 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1×105 x 1 345 |
| Boom cylinders - Number × diameter × stroke (mm) | 2×115 x 1 165 |
| Fuel Tank (L) | 253 |
| Hydraulic Tank (L) | 111 |
| Engine Oil changes (L) | 16.5 |
| Coolant (L) | 23.7 |
| Hydraulic System (L) | 225 |
| Total transport length (mm) | 8800 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2900 |
| Counterweight ground clearance (mm) | 1010 |
| Minimum ground clearance (mm) | 460 |
| Onboard width (mm) | 2490 |
| Track gauge (mm) | 2200 |

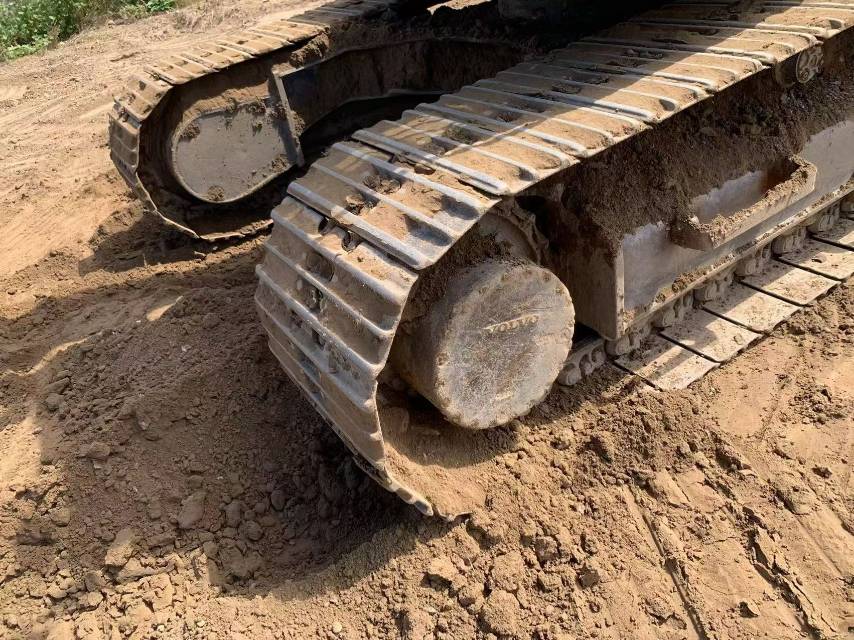

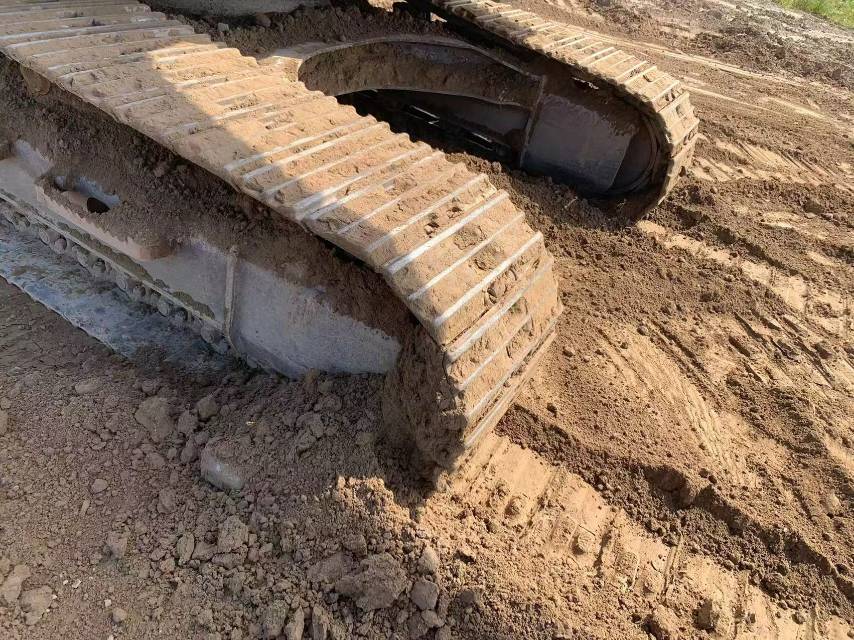

| Track plate width (mm) | 500 / 600 / 700 / 800 / 900 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 8633-9344 |
| Maximum digging depth (mm) | 5740-6440 |
| Maximum unloading height (mm) | 6170-6539 |
| Maximum vertical digging depth (mm) | 3698-4133 |
| Maximum excavation radius of stop surface (mm) | 8491-9188 |
