HOME>>Volvo>>Volvo EC18D

2020 Volvo EC18D

1/6

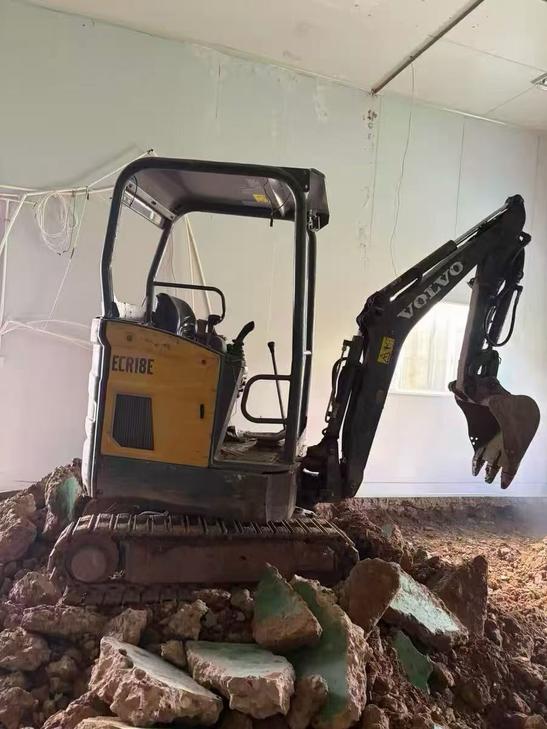

Buy Volvo EC18D Used Excavator / 1
Buy Volvo EC18D Used Excavator / 2
Buy Volvo EC18D Used Excavator / 3
Buy Volvo EC18D Used Excavator / 4
Buy Volvo EC18D Used Excavator / 5

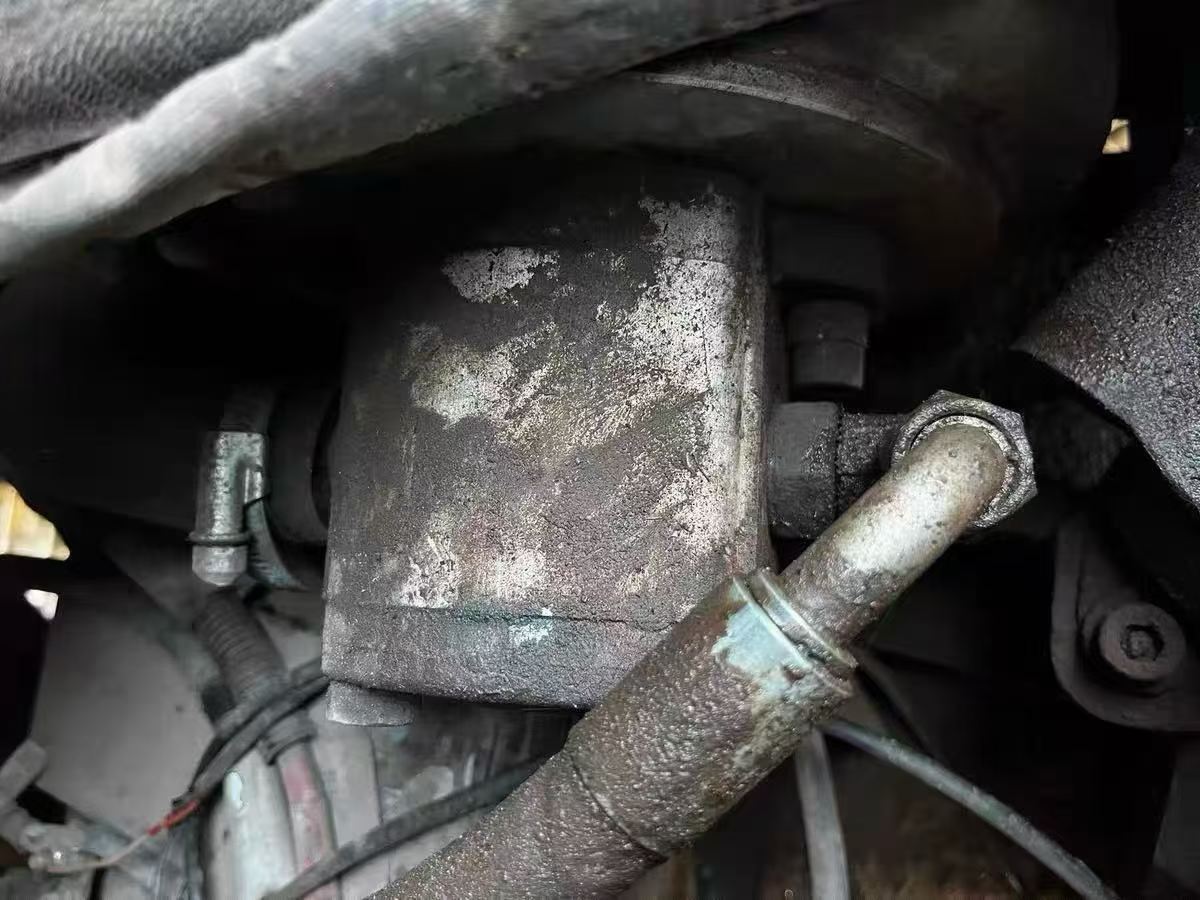

Buy Volvo EC18D Used Excavator / 6

Product Description

This 2020 Volvo EC18D compact excavator offers reliable performance for urban construction and site development projects. Currently located in Yunnan, China, this machine comes equipped with a hydraulic breaker attachment and compact bucket, making it suitable for demolition, trenching, and light excavation work in confined spaces.

The EC18D is known for its maneuverability in tight job sites while maintaining the durability expected from Volvo construction equipment. This unit has been maintained in working condition and is ready for deployment.

  • Year: 2020
  • Model: Volvo EC18D
  • Included: Hydraulic hammer attachment and compact bucket
  • Location: Yunnan, China
  • Condition: Used, operational

Ideal for contractors requiring a versatile compact excavator for residential, utility, or landscaping applications. Contact us for shipping arrangements and additional equipment details.

SpecificationsValue
No.1161728
Tonnage (tons)1.8
Working weight (kg)1770
Bucket capacity (m³)0.01 - 0.05
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeD0.9A
Rated power (kw/rpm)12/2420
Cylinder diameter × stroke (mm)72 x 73.6
Maximum torque (N.m)51
Number of cylinders (PCS)3
Displacement (L)898
Ground specific pressure (Kpa)30.5
Rotation speed (rpm)9.5
Climbing ability (%)30
Bucket digging force (kN)1510
Travel speed (km/h)3.7
Turning torque (Nm)243
Main overflow set pressure (Mpa)17
Maximum flow of main pump (l/min)34
Main pump typeGear pump
Fuel Tank (L)20
Hydraulic Tank (L)15
Engine Oil changes (L)3.7
Coolant (L)4
Hydraulic System (L)21
Total transport length (mm)3770
Total transport height (mm)2318
Minimum ground clearance (mm)159
Minimum turning radius of front working device (mm)1452
Back end turning radius (mm)1052
Onboard width (mm)993
Track plate width (mm)230
Total track width (mm)1336
Number of wheels (single side) (each)3
Maximum digging radius (mm)3856
Maximum digging depth (mm)2387
Maximum excavation height (mm)3460
Maximum unloading height (mm)2462
Maximum vertical digging depth (mm)1772
Dodging plate width × height (mm)238*230
Maximum excavation radius of stop surface (mm)3799
see more

Overview

No.1161728

Brand Name:

Volvo

Model Number:

EC18D

Year:

2020

Location:

Yunnan China

Pub Date:

Are you interested in this machine?

Please contact us
