Product Description

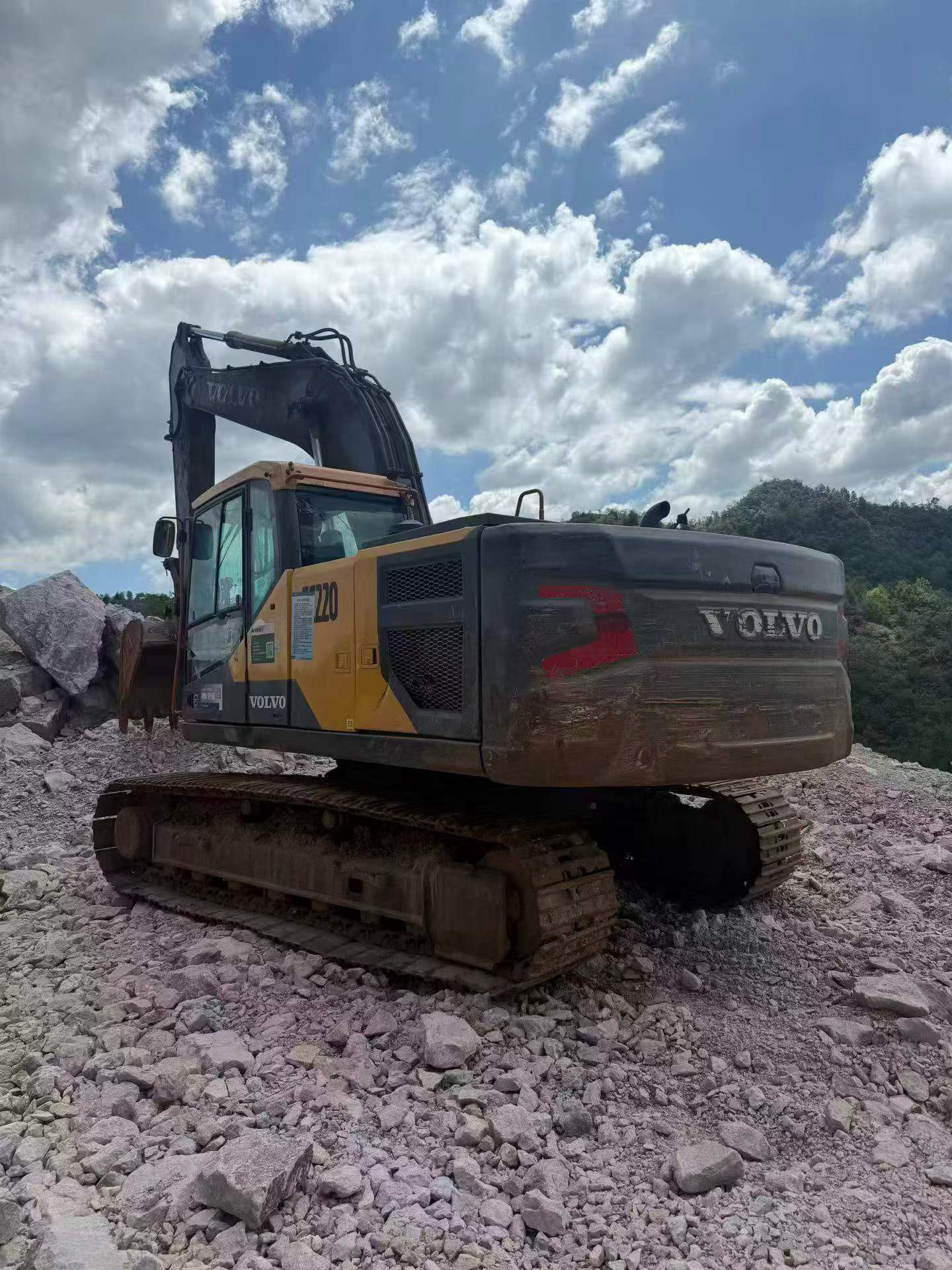

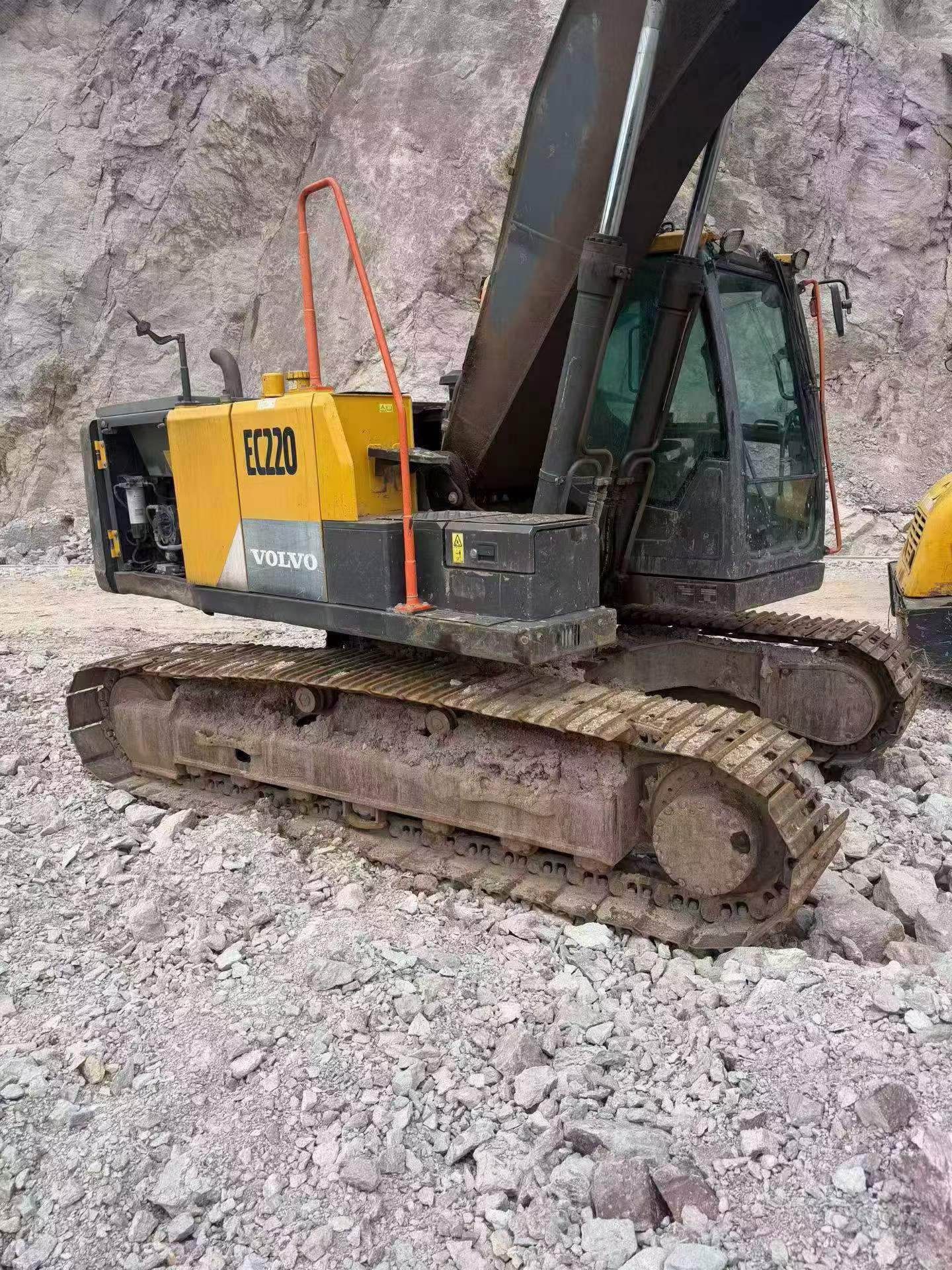

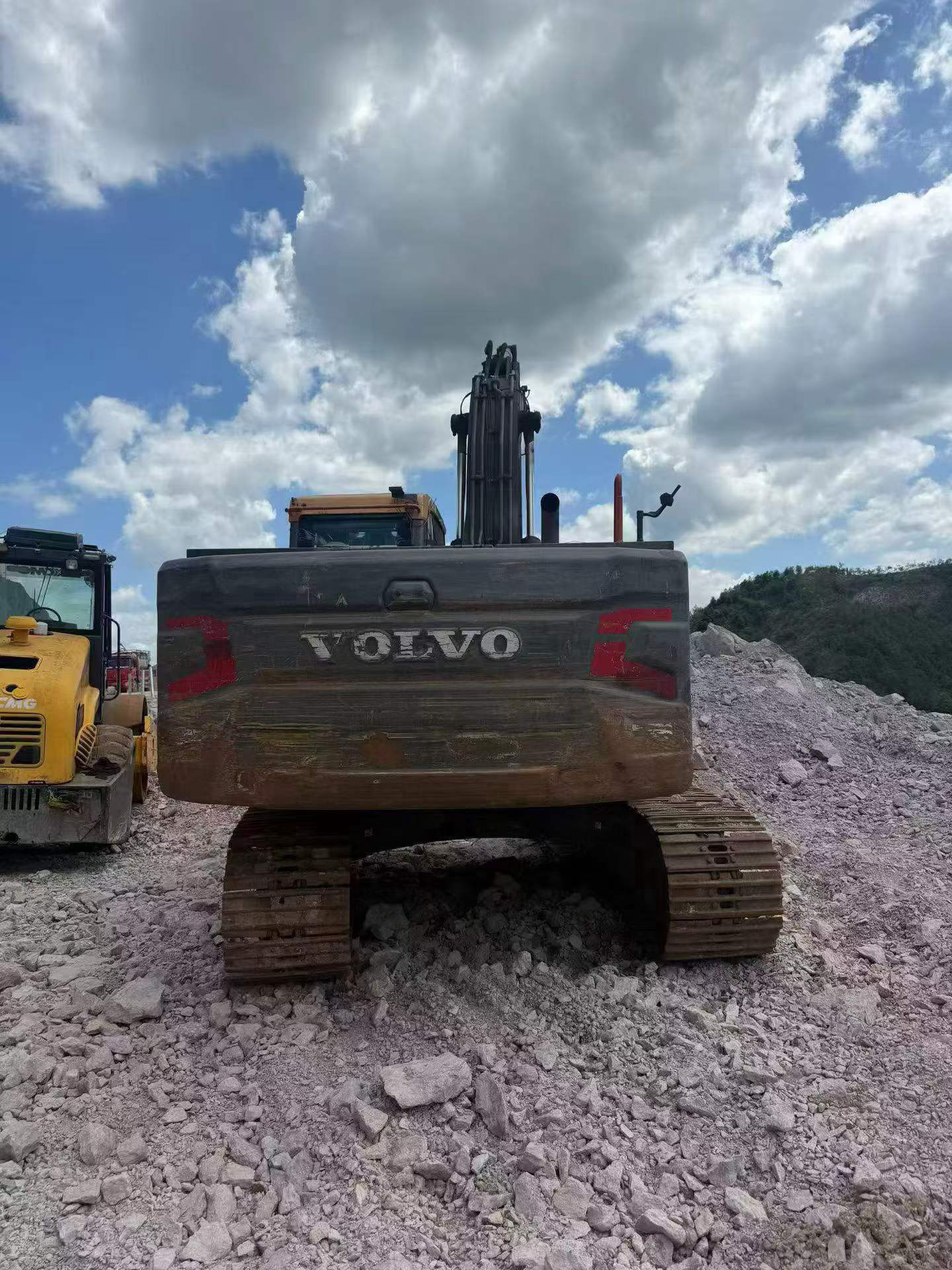

Discover the 2021 Volvo EC200, a robust and reliable excavator available for your next project. Located in Zhejiang, China, this used machine is part of Volvo's esteemed line, known for its durability and efficiency. Ideal for a variety of applications, from construction to demolition, the EC200 offers the performance and versatility needed to tackle tough jobs with ease. Built to last, this excavator ensures high productivity and low operating costs, making it a smart choice for any industrial fleet.
- Year: 2021
- Brand: Volvo
- Model: EC200
- Location: Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1134910 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20500 |
| Bucket capacity (m³) | 0.95 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D5E |
| Rated power (kw/rpm) | 123/2000 |
| Maximum torque (N.m) | 670/1600 |
| Rotation speed (rpm) | 13 |
| Bucket digging force (kN) | 136 |
| Rod digging force (kN) | 92 |
| Maximum tractive force (kN) | 172 |
| Travel speed (km/h) | 5.6/3.5 |
| Turning torque (Nm) | 69 |
| Maximum flow of main pump (l/min) | 2*200 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Fuel Tank (L) | 300 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 14 |
| Total transport length (mm) | 9690 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2926 |
| Full cab height (mm) | 2915 |
| Counterweight ground clearance (mm) | 1011 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2850 |
| Onboard width (mm) | 2500 |
| Total track length (mm) | 4163 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 9930 |
| Maximum digging depth (mm) | 6744 |
