2020 Volvo EC250DL

1/9
Buy Volvo EC250DL Used Excavator / 1

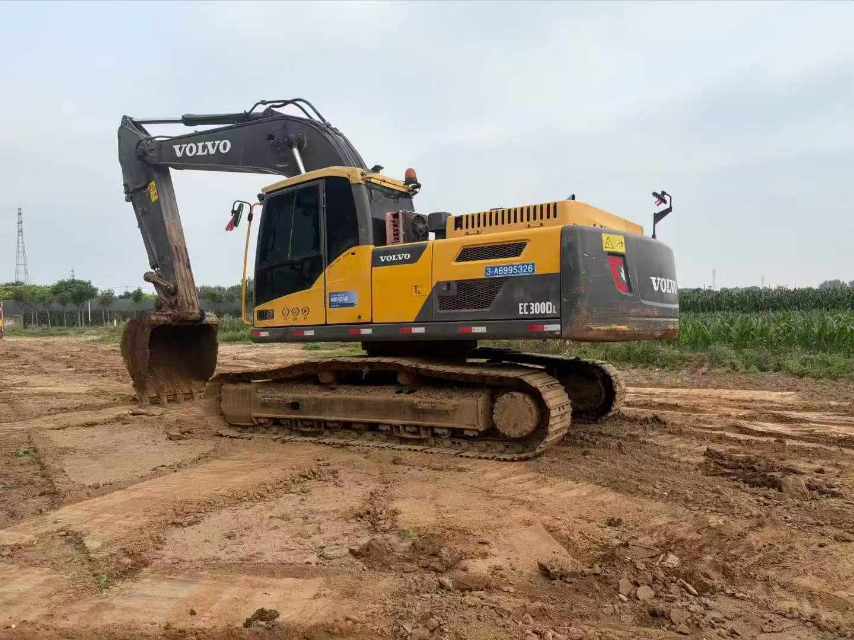

Buy Volvo EC250DL Used Excavator / 2

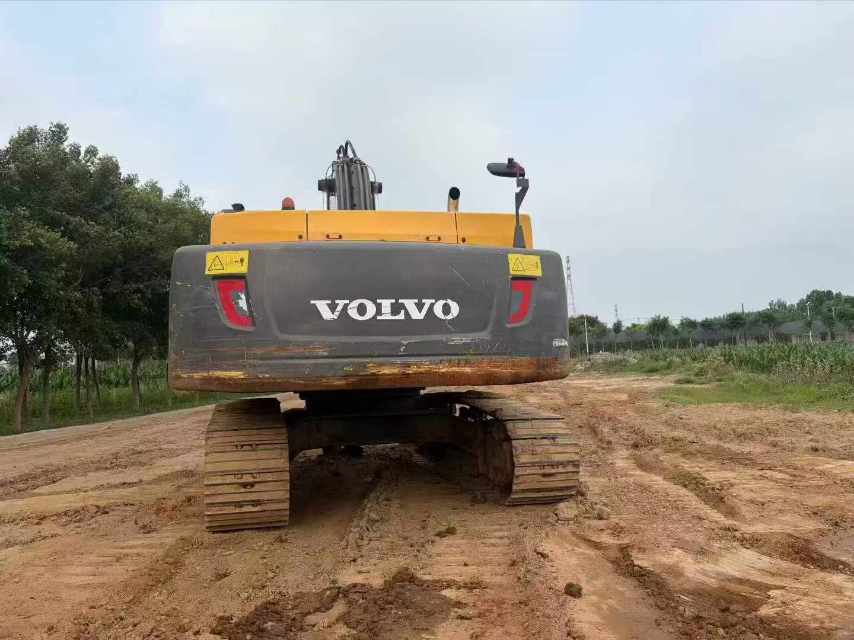

Buy Volvo EC250DL Used Excavator / 3

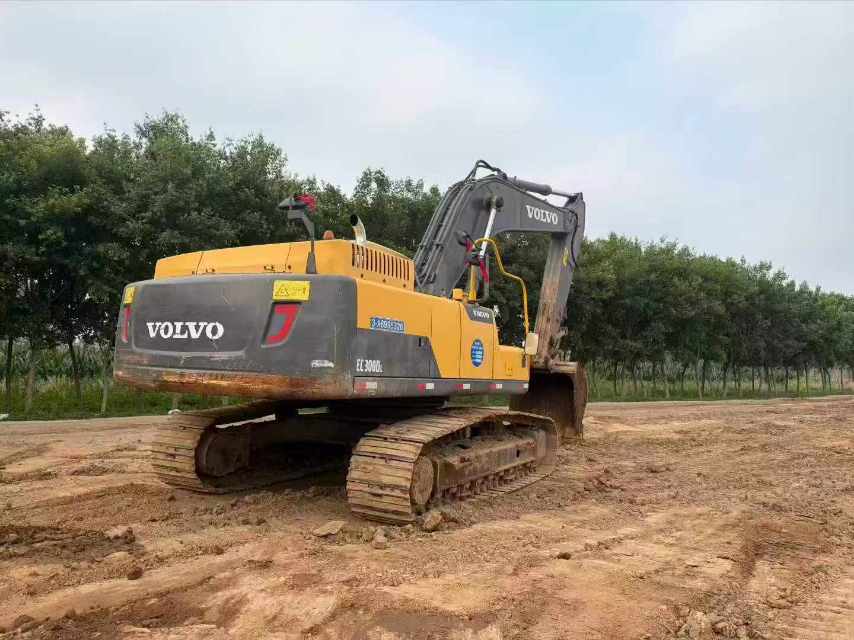

Buy Volvo EC250DL Used Excavator / 4

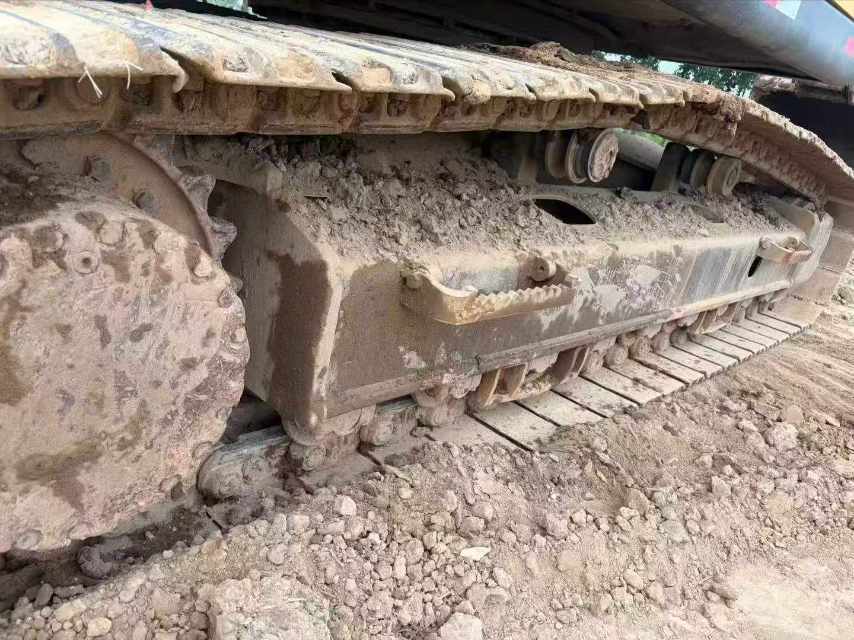

Buy Volvo EC250DL Used Excavator / 5

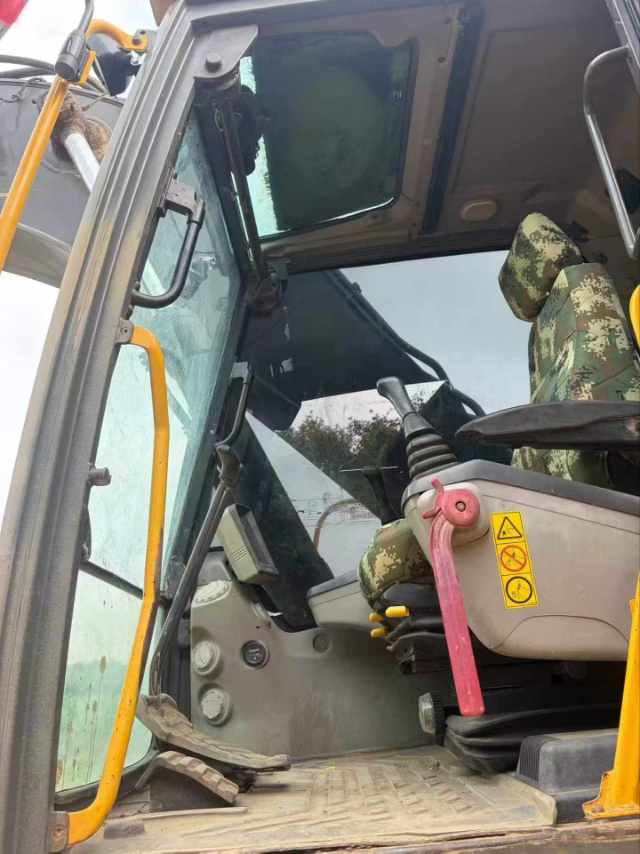

Buy Volvo EC250DL Used Excavator / 6

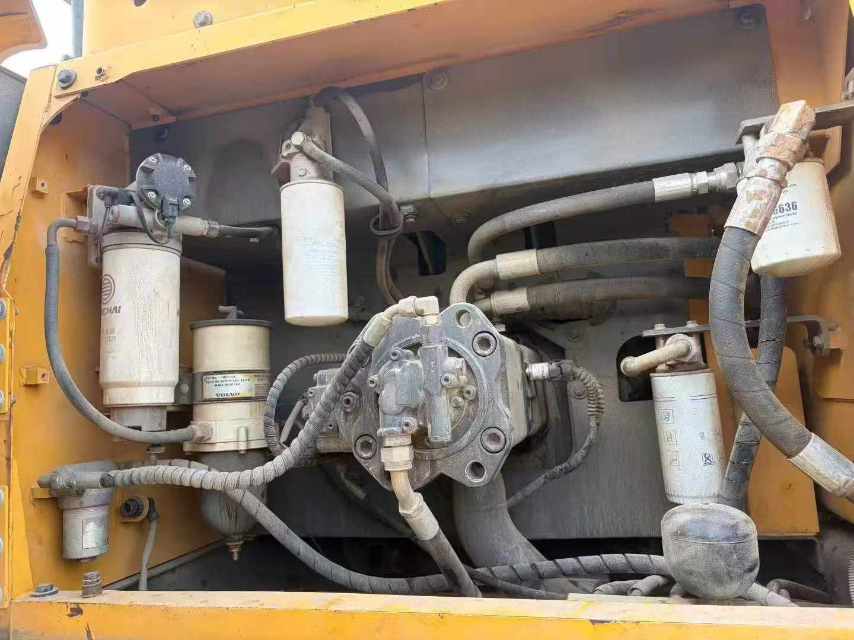

Buy Volvo EC250DL Used Excavator / 7

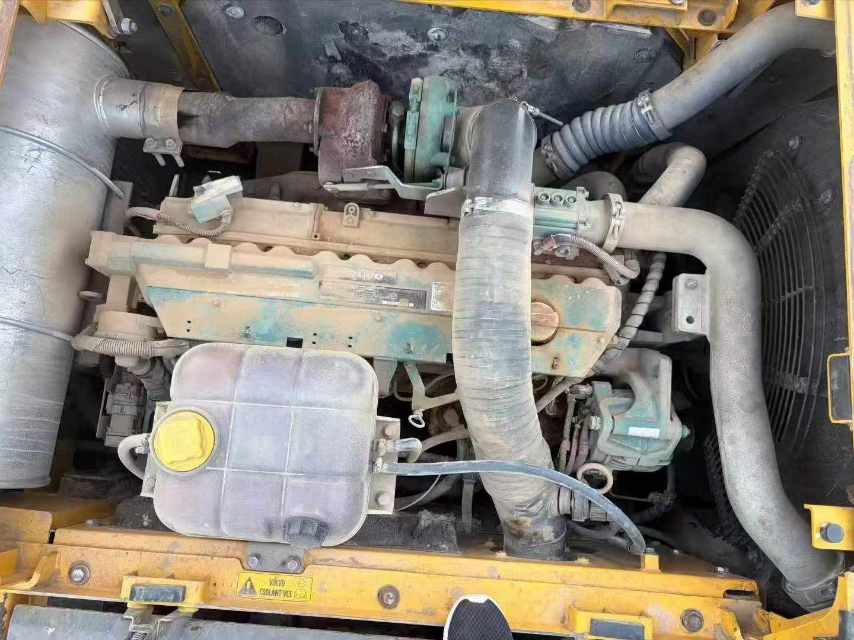

Buy Volvo EC250DL Used Excavator / 8

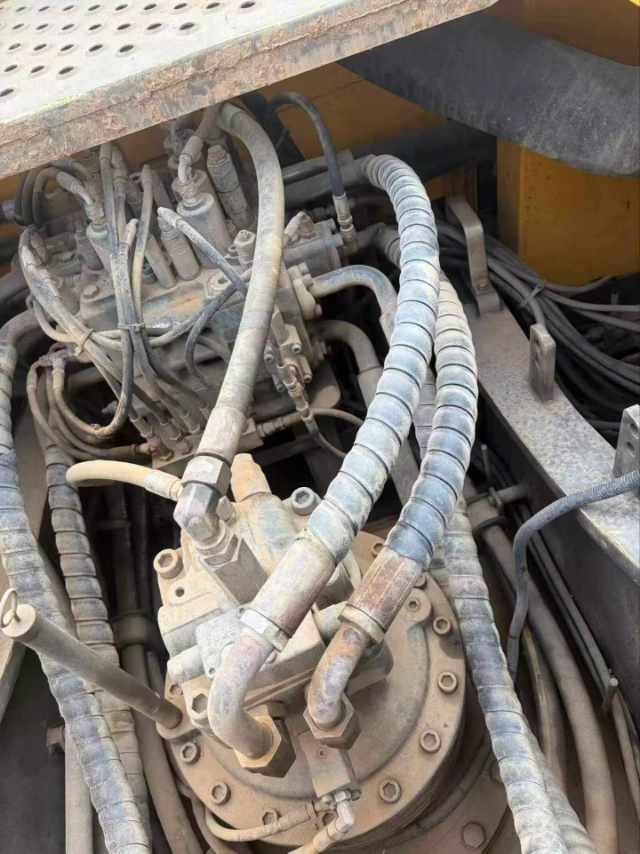

Buy Volvo EC250DL Used Excavator / 9

Product Description

Discover the 2020 Volvo EC250DL, a premium excavator located in Peking, China. This machine has been meticulously maintained and is ready for immediate deployment. With no history of major repairs or hidden issues, it offers a reliable and efficient solution for your construction projects. The engine is in excellent condition, ensuring robust performance, while the hydraulic system operates smoothly, providing precise control and durability. Ideal for demanding work environments, this excavator will streamline your operations, saving you both time and effort.

  • Year: 2020
  • Brand: Volvo
  • Model: EC250DL
  • Location: Peking, China
  • Engine: Excellent condition
  • Hydraulic System: Smooth and reliable
SpecificationsValue
No.1165367
Tonnage (tons)25
Working weight (kg)24600-28000
Bucket capacity (m³)0.48-1.85
Country of originKorea
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeD7E
Rated power (kw/rpm)138/1800
Cylinder diameter × stroke (mm)108 x 130
Maximum torque (N.m)870 / 1350
Number of cylinders (PCS)6
Displacement (L)7.1
Rotation speed (rpm)11.9
Climbing ability (%)35
Maximum tractive force (kN)217
Travel speed (km/h)3.5 / 5.5
Turning torque (Nm)91.6
Maximum flow of main pump (l/min)2 x 240
Traveling Hydraulic Circuit (Mpa)36.3
Rotary Hydraulic Circuit (Mpa)27.9
Working Hydraulic Circuit (Mpa)33.3/36.3
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)470
Hydraulic Tank (L)195
Engine Oil changes (L)32
Coolant (L)41
Hydraulic System (L)400
Total transport length (mm)10260
Total transport width (mm)3190
Full cab height (mm)3020
Counterweight ground clearance (mm)1080
Minimum ground clearance (mm)470
Onboard width (mm)2890
Total track length (mm)4650
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3850
Maximum digging radius (mm)10260
Maximum digging depth (mm)6980
Maximum excavation height (mm)9620
Maximum unloading height (mm)6700
Maximum vertical digging depth (mm)5650
Maximum excavation radius of stop surface (mm)9690
see more

Overview

No.1165367

Brand Name:

Volvo

Model Number:

EC250DL

Year:

2020

Location:

Peking China

Pub Date:
