Product Description

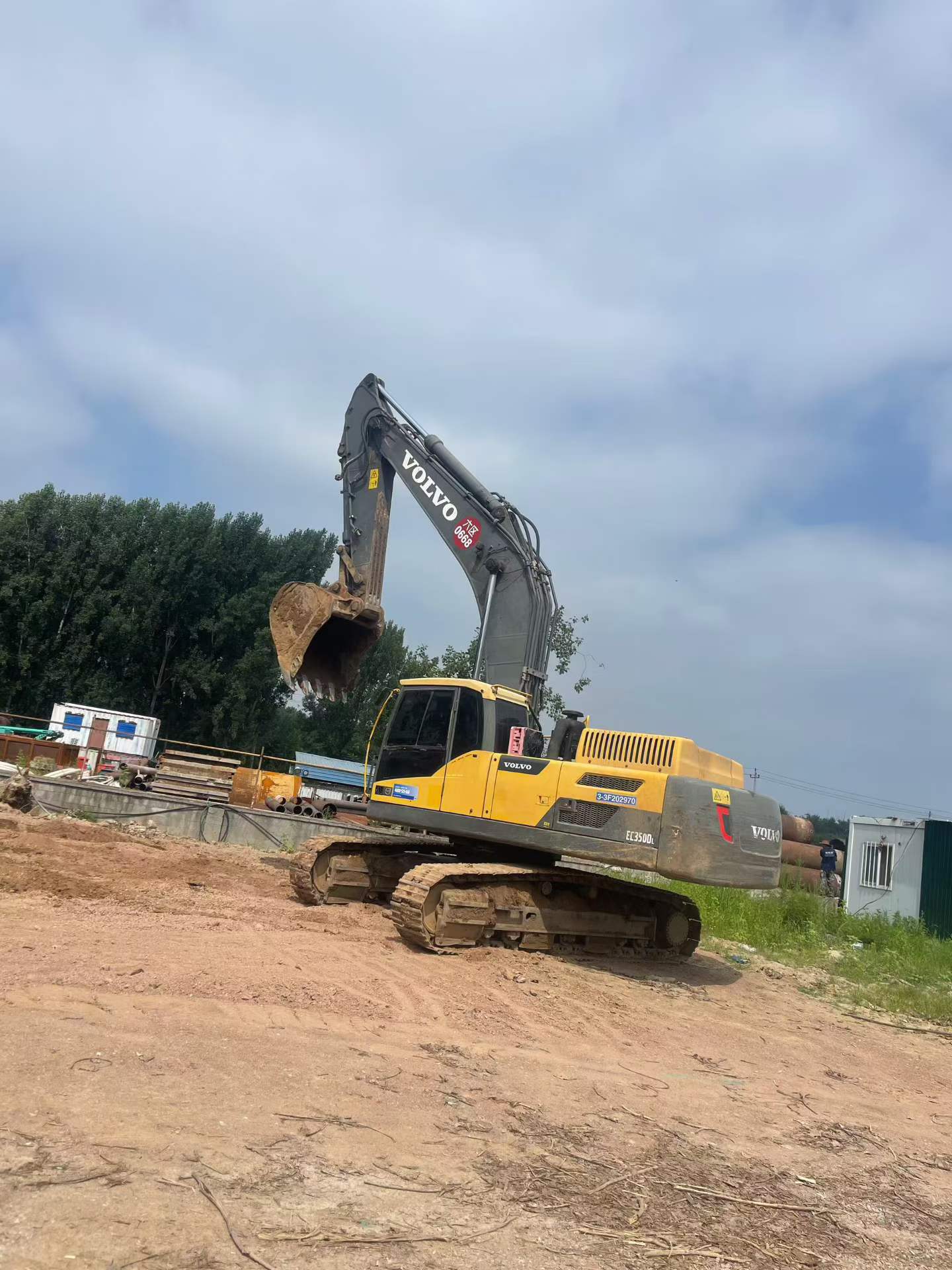

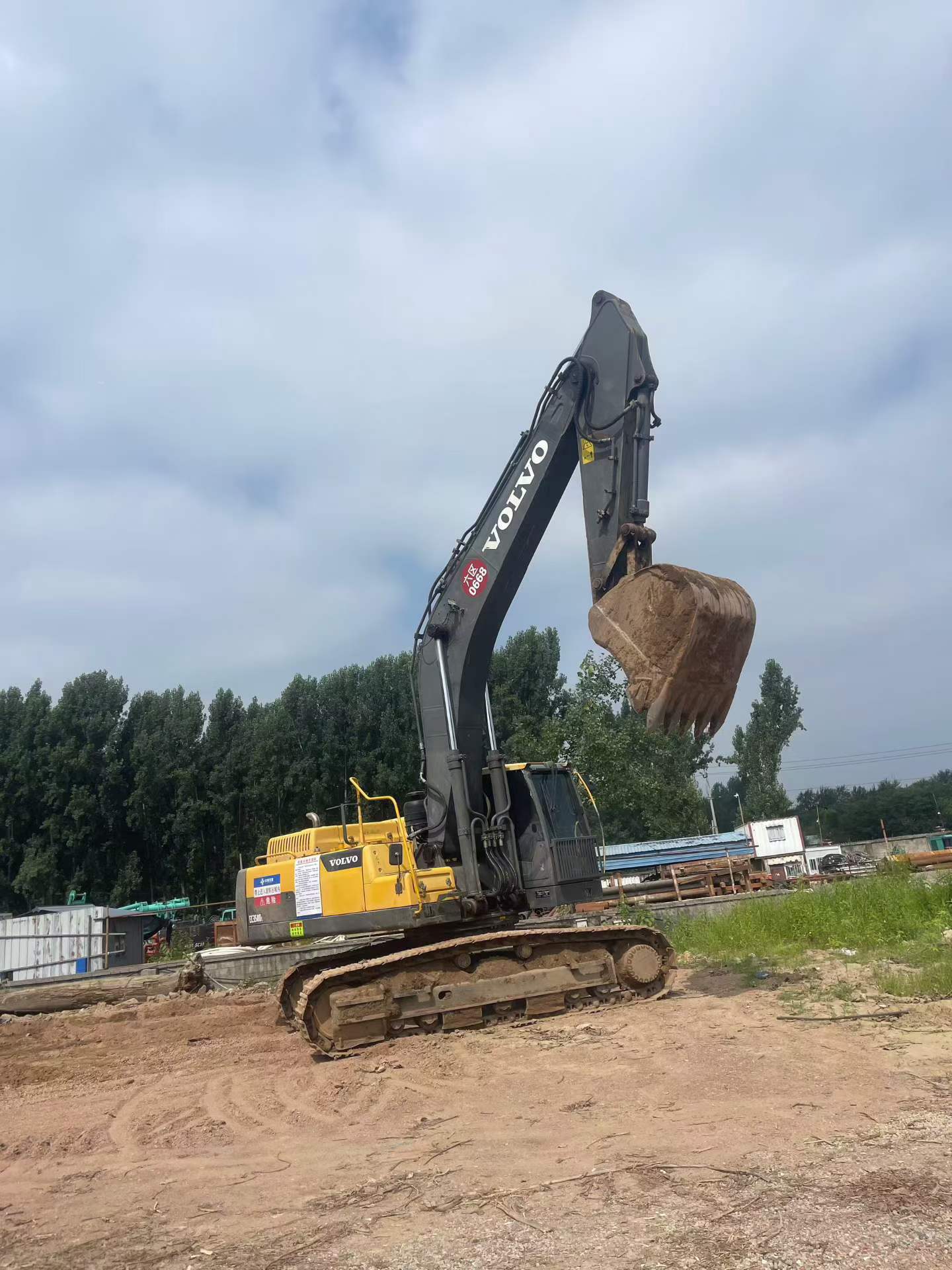

Built to endure the harshest job sites, this 2020 Volvo EC350D is a proven 35-ton workhorse with years of reliable performance behind it — and plenty more ahead. Sourced from Hebei, China, this backhoe excavator runs on Volvo's robust D8K engine producing 197 kW at 1800 rpm, backed by 1340 N·m of maximum torque and a 7.8L displacement. Four years in, this machine stands as a direct testament to Volvo's joint-venture build quality and Korean-origin engineering standards.
Designed for demanding excavation work, it delivers a maximum digging depth of 7,480 mm, a digging radius of 11,110 mm, and bucket capacity ranging from 1.0 to 2.53 m³ — giving operators the flexibility to handle everything from trenching to mass earthmoving.

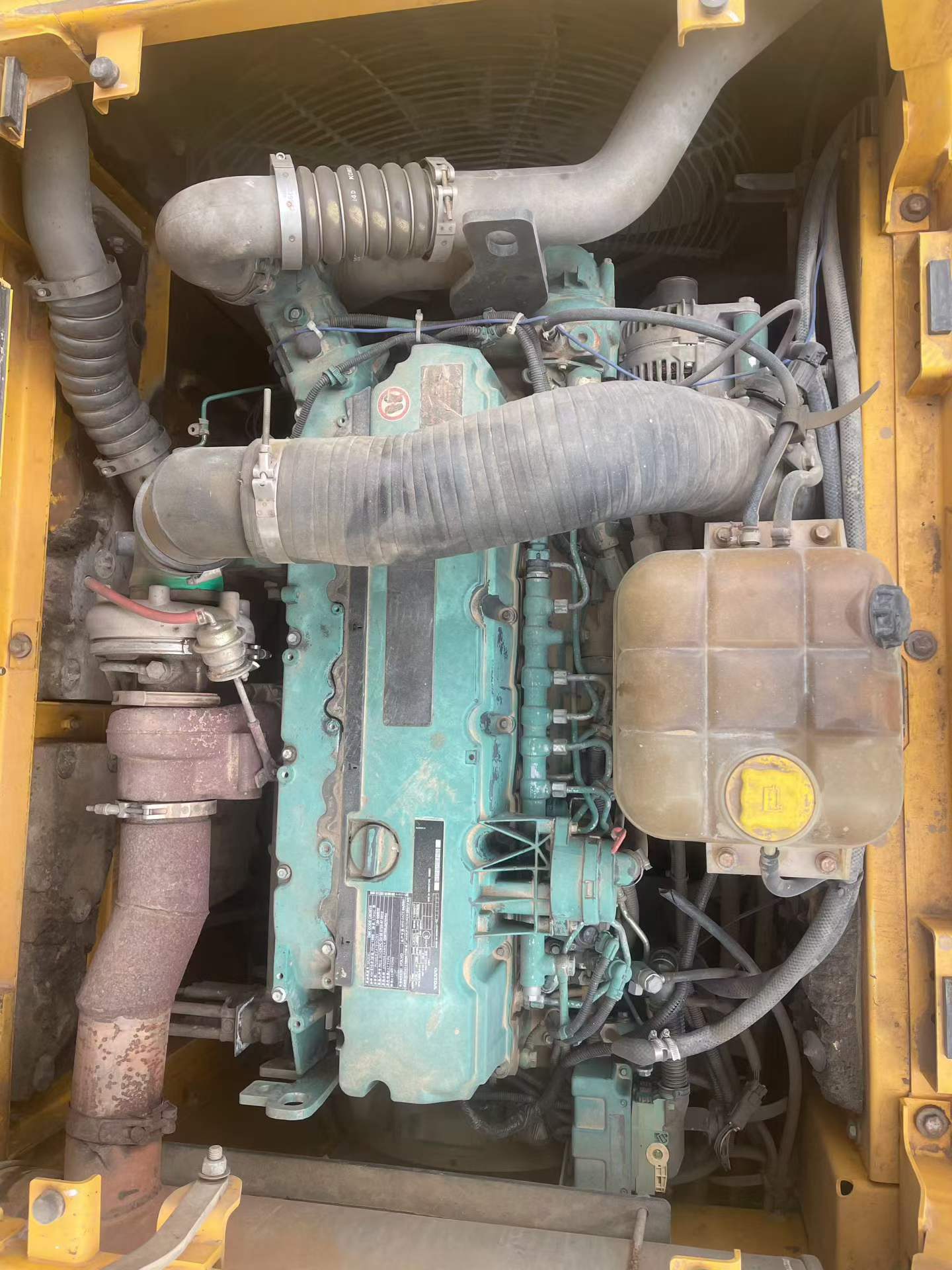

- Engine: Volvo D8K | 197 kW / 1800 rpm | 1340 N·m max torque
- Operating weight: 34,300 – 38,700 kg
- Max digging depth: 7,480 mm | Max digging radius: 11,110 mm
- Bucket capacity: 1.0 – 2.53 m³ (backhoe)
- Max tractive force: 261 kN | Climbing ability: 35°
- Main pump max flow: 2 × 288 L/min
- Fuel tank: 580 L | Hydraulic system: 465 L

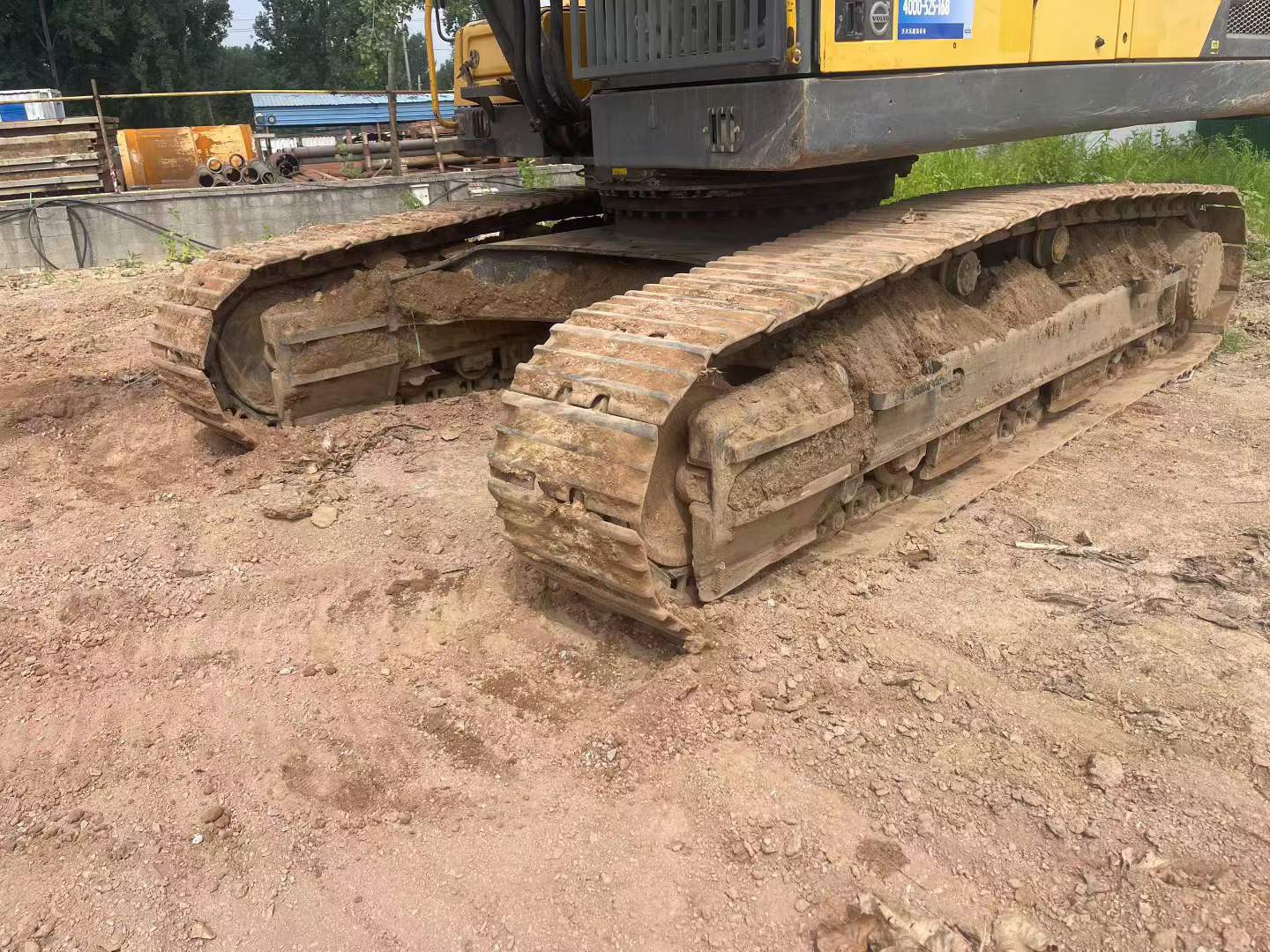

- Track plate width: 600 mm | Track gauge: 2,590 mm
- Location: Hebei, China | Year: 2020
| Specifications | Value |
|---|---|
| No. | 1102190 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 34300-38700 |
| Bucket capacity (m³) | 1.0-2.53 |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D8K |
| Rated power (kw/rpm) | 197/1800 |
| Cylinder diameter × stroke (mm) | 110 x 138 |
| Maximum torque (N.m) | 1340 |
| Displacement (L) | 7.8 |
| Rotation speed (rpm) | 10.3 |
| Climbing ability (%) | 35 ° |
| Maximum tractive force (kN) | 261 |
| Travel speed (km/h) | 3.3/5.1 |
| Turning torque (Nm) | 126 |
| Maximum flow of main pump (l/min) | 2 x 288 |
| Traveling Hydraulic Circuit (Mpa) | 33.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Working Hydraulic Circuit (Mpa) | 33.3/36.3 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 170 x 1700 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 150 x 1530 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 215 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 41 |
| Hydraulic System (L) | 465 |
| Total transport length (mm) | 11190 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3230 |
| Full cab height (mm) | 3030 |
| Counterweight ground clearance (mm) | 1180 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 4120 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3700 |
| Maximum digging radius (mm) | 11110 |
| Maximum digging depth (mm) | 7480 |
| Maximum excavation height (mm) | 10330 |
| Maximum unloading height (mm) | 7250 |
| Maximum vertical digging depth (mm) | 5890 |
| Maximum excavation radius of stop surface (mm) | 10900 |
