Product Description

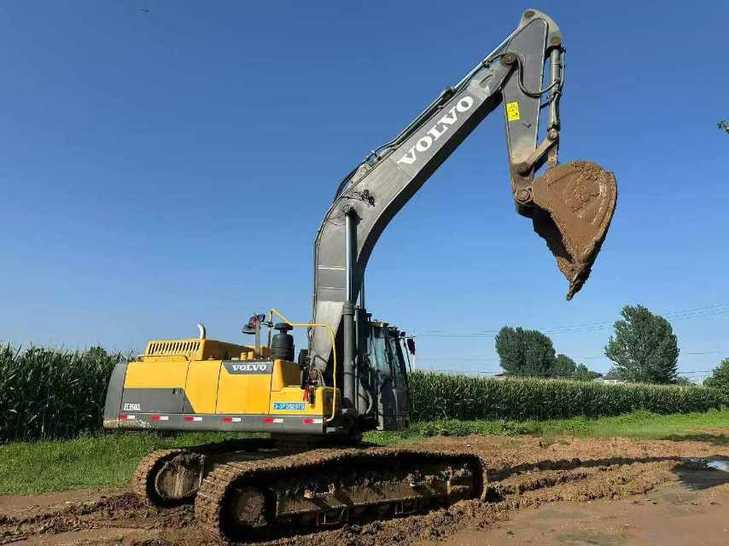

Discover the 2017 Volvo EC350DL, a robust and reliable excavator available in Peking, China. This machine is in excellent condition, with no oil leaks or seepage, ensuring a clean and efficient operation. It features a large undercarriage with eight rollers, providing enhanced stability and durability on various terrains. The original track pads are intact, and the travel chassis has minimal play, contributing to its smooth and precise movement. The hydraulic system operates smoothly and powerfully, making it ideal for daily earthwork tasks without any operational issues. Ready to be deployed immediately, this excavator is a solid choice for your construction projects.

  • Year: 2017
  • Brand: Volvo
  • Model: EC350DL
  • Location: Peking, China
  • No oil leaks or seepage
  • Large undercarriage with eight rollers
  • Original track pads
  • Minimal travel chassis play
  • Smooth and powerful hydraulic actions
  • Ideal for daily earthwork tasks
SpecificationsValue
No.1165369
Tonnage (tons)35
Working weight (kg)34,300 - 38,700
Bucket capacity (m³)1 - 2.53
Boom length (mm)6450
Rod length (mm)2600
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeD8K
Rated power (kw/rpm)210/1800
Cooling modewater-cooling
Cylinder diameter × stroke (mm)110 x 138
Maximum torque (N.m)1340 / 1350
Number of cylinders (PCS)6
Displacement (L)7.8
Rotation speed (rpm)10.3
Climbing ability (%)35
Bucket digging force (kN)177
Rod digging force (kN)187
Maximum tractive force (kN)261
Travel speed (km/h)3.3 / 5.1
Turning torque (Nm)126
Maximum flow of main pump (l/min)2 x 288
Traveling Hydraulic Circuit (Mpa)33.3
Rotary Hydraulic Circuit (Mpa)27.9
Working Hydraulic Circuit (Mpa)33.3 / 36.3
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)580
Hydraulic Tank (L)215
Engine Oil changes (L)32
Coolant (L)41
Hydraulic System (L)465
Total transport length (mm)11270
Total transport width (mm)3190
Full cab height (mm)3230
Counterweight ground clearance (mm)1180
Minimum ground clearance (mm)500
Onboard width (mm)2990
Total track length (mm)4950
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)4020
Maximum digging radius (mm)10590
Maximum digging depth (mm)6880
Maximum excavation height (mm)10170
Maximum unloading height (mm)7060
Maximum vertical digging depth (mm)5440
Maximum excavation radius of stop surface (mm)10370
see more

Overview

No.1165369

Brand Name:

Volvo

Model Number:

EC350DL

Year:

2017

Location:

Peking China

Pub Date:
