Product Description

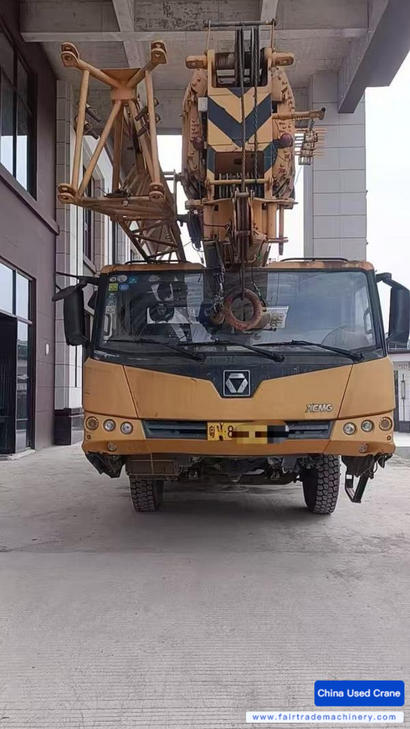

Proven performance defines this 2018 XCMG 20L5, a workhorse designed for demanding applications where reliability cannot be compromised. With several years of operational history behind it, this machine demonstrates the robust engineering and durability that XCMG builds into every unit. Heavy-duty components and field-tested construction ensure consistent performance across excavation, loading, and material handling tasks.
Built to withstand rigorous jobsite conditions, this model has earned its reputation through real-world use. Currently located in Hunan Hengyang, it represents an opportunity to acquire proven equipment at a fraction of new pricing. Key advantages include:
- Established track record from a trusted global manufacturer
- Mature design with known performance characteristics
- Durable construction engineered for extended service life
- Cost-effective solution for contractors requiring dependable machinery
Fair Trade Machinery delivers worldwide shipping and comprehensive support. Contact our team for detailed specifications, operational hours, and current condition assessment.
| Specifications | Value |
|---|---|
| No. | 1022019 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 1.0-1.2 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 47.5 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 157 |
| Rod digging force (kN) | 116 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.7/3.1 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9630 |
| Total transport width (mm) | 2910 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Minimum turning radius of front working device (mm) | 3530 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4155 |
| Track gauge (mm) | 2290 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 9760 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9540 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 6480 |
