Product Description

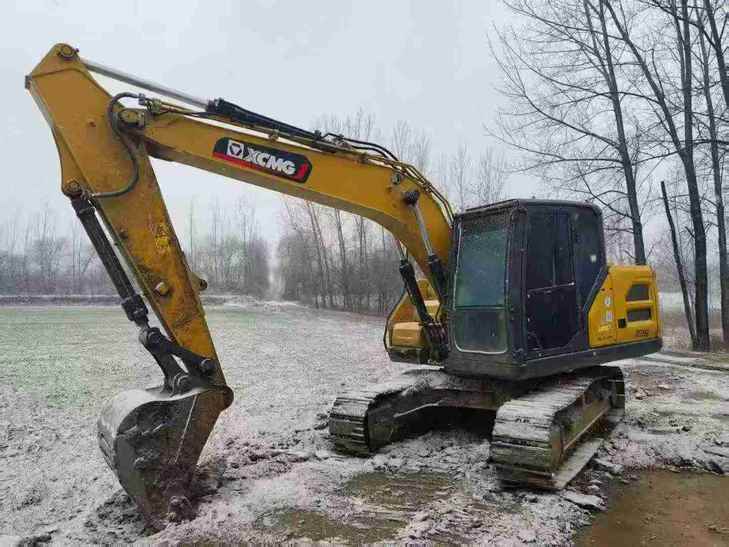

Built for precision and control, this 2024 XCMG XE135B delivers 13-ton performance with operator-centric engineering. Powered by an ISUZU BB-4BG1TRP engine producing 69.6kW, this excavator combines reliable turbocharged power with responsive hydraulics—dual plunger pumps supply 2×123 L/min for smooth, coordinated movements across boom, arm, and bucket functions.
Operators benefit from exceptional sightlines and stable platform dynamics. With a 2910mm track ground length and 500mm-wide plates, ground pressure stays low at 42 kPa, ensuring confident operation on varied terrain. The machine rotates at 12.3 rpm with minimal rear swing radius (2294mm), critical for confined jobsites. Digging forces reach 85kN (bucket) and 65kN (arm), while an 8296mm maximum reach and 5538mm dig depth handle demanding excavation tasks.
Cabin comfort supports long shifts—water-cooled engine operation reduces noise and vibration. Hydraulic controls respond predictably under the 31.4 MPa main system pressure. Currently located in Shaoxing, Zhejiang, this Xuzhou-manufactured unit represents proven Chinese engineering with Japanese powertrain reliability.
| Specifications | Value |
|---|---|
| No. | 1021123 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13800 |
| Bucket capacity (m³) | 0.4-0.52 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2510 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU BB-4BG1TRP |
| Rated power (kw/rpm) | 69.6/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42 |
| Rotation speed (rpm) | 12.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 85 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 5.16/3.03 |
| Main overflow set pressure (Mpa) | 31.4/34.3 |
| Maximum flow of main pump (l/min) | 2*123 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 14 |
| Total transport length (mm) | 7770 |
| Total transport width (mm) | 2512 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 964 |
| Minimum ground clearance (mm) | 478 |
| Minimum turning radius of front working device (mm) | 2335 |
| Back end turning radius (mm) | 2294 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2910 |
| Maximum digging radius (mm) | 8296 |
| Maximum digging depth (mm) | 5538 |
| Maximum excavation height (mm) | 8641 |
| Maximum unloading height (mm) | 6181 |
| Maximum vertical digging depth (mm) | 4727 |
