Product Description

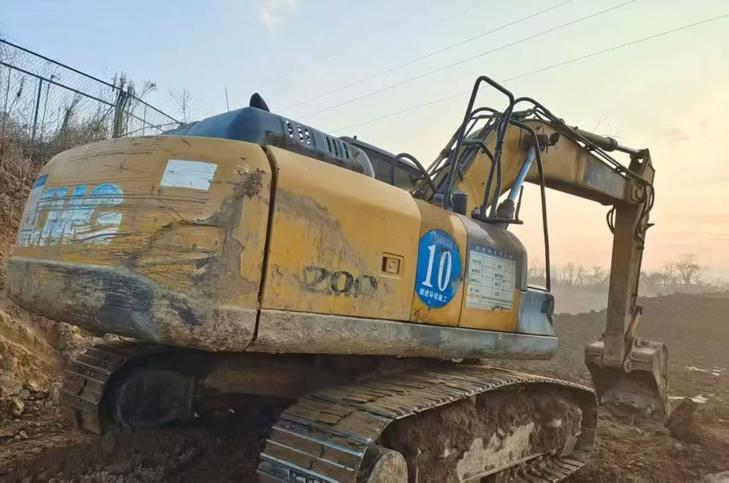

Built for operators who demand precision and power, this 2017 XCMG XE200DA delivers 20-ton performance with superior cabin ergonomics and jobsite control. Powered by a QSB7 engine producing 135 kW at 2050 rpm, this excavator combines 740 N·m of torque with a 0.93 m³ bucket capacity to handle demanding excavation tasks across diverse terrain.
Operator-focused engineering ensures all-day productivity. Wide-angle cabin visibility provides clear sightlines to the 9790 mm maximum digging radius, while intuitive hydraulic controls deliver responsive bucket digging force of 149 kN. The 5680 mm boom and 2710 mm arm configuration offer excellent reach and depth capability, extending to 6460 mm below grade. Ground-level stability comes from optimized 46.9 kPa ground pressure and a robust 21,200 kg working weight.
- Engine: QSB7, 6-cylinder, 6.7L displacement
- Maximum digging depth: 6460 mm
- Bucket digging force: 149 kN
- Travel speed: 5.3/2.9 km/h
- Fuel capacity: 400L for extended shifts
- Location: Hunan, China
| Specifications | Value |
|---|---|
| No. | 1022466 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2710 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 46.9 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 121 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/2.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2900 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Maximum digging radius (mm) | 9790 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9680 |
| Maximum unloading height (mm) | 6815 |
| Maximum vertical digging depth (mm) | 5590 |
