Product Description

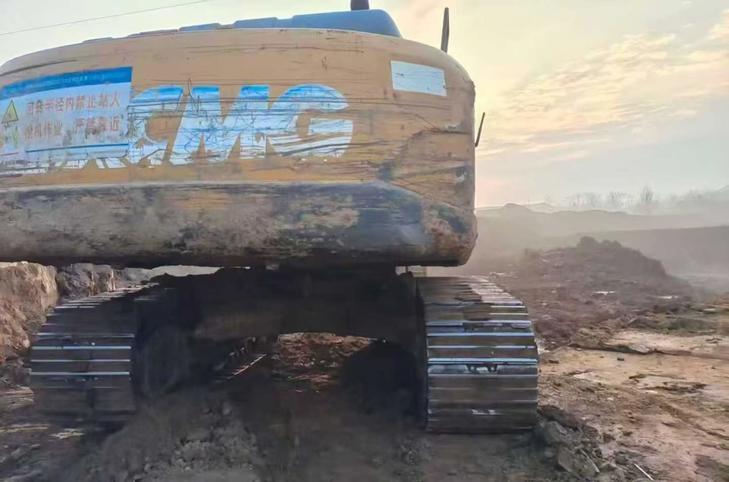

Built for serious earthmoving operations, this 2017 XCMG XE200DA excavator delivers 20-ton class performance with proven reliability. Powered by a QSB7 engine producing 135kW at 2050 rpm, this machine combines 149kN bucket digging force with a 9790mm maximum reach—ideal for infrastructure, mining, and heavy construction projects. The 0.93m³ bucket capacity and 6460mm maximum digging depth ensure productive cycles across demanding applications.
XCMG's global parts network and strong resale value make this excavator a strategic investment in the used equipment market. Key specifications include:
- 21,200kg working weight with 6.7L displacement engine
- 5680mm boom and 2710mm arm configuration for optimal versatility
- 400L fuel tank supporting extended operational shifts
- 35% climbing ability and 46.9kPa ground pressure for varied terrain
- Transport dimensions: 9625mm × 2900mm × 3100mm
Currently located in Wenzhou, Zhejiang, this China-manufactured excavator represents accessible quality backed by XCMG's established dealer support and readily available OEM components—critical factors that protect your investment long-term.
| Specifications | Value |
|---|---|
| No. | 1022501 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2710 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 46.9 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 121 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/2.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2900 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Maximum digging radius (mm) | 9790 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9680 |
| Maximum unloading height (mm) | 6815 |
| Maximum vertical digging depth (mm) | 5590 |
