Product Description

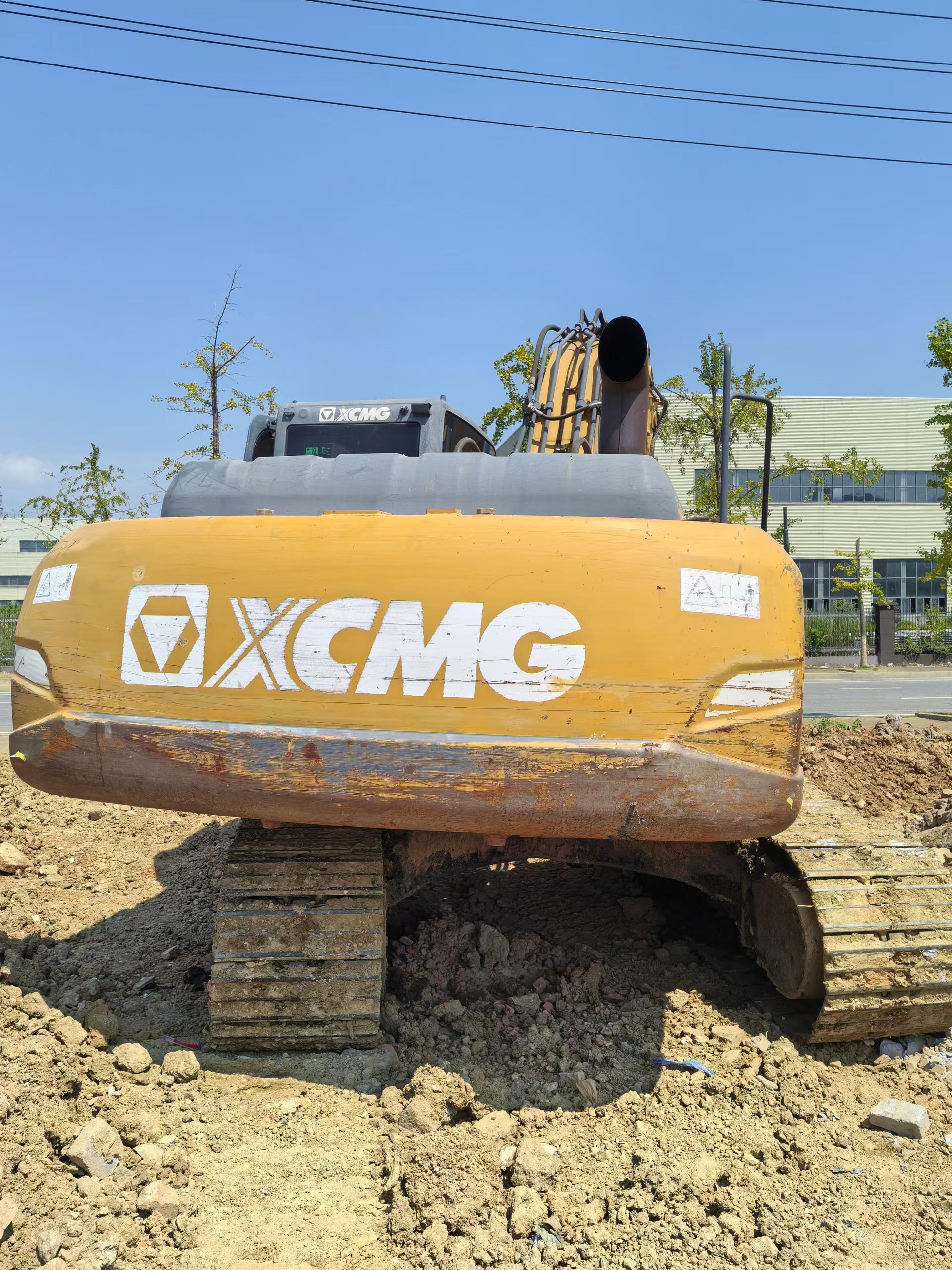

This 2020 XCMG XE200DA excavator represents excellent value for operations requiring proven hydraulic performance and robust build quality. With 6,670 operational hours recorded, the machine demonstrates careful use and regular maintenance throughout its service life.

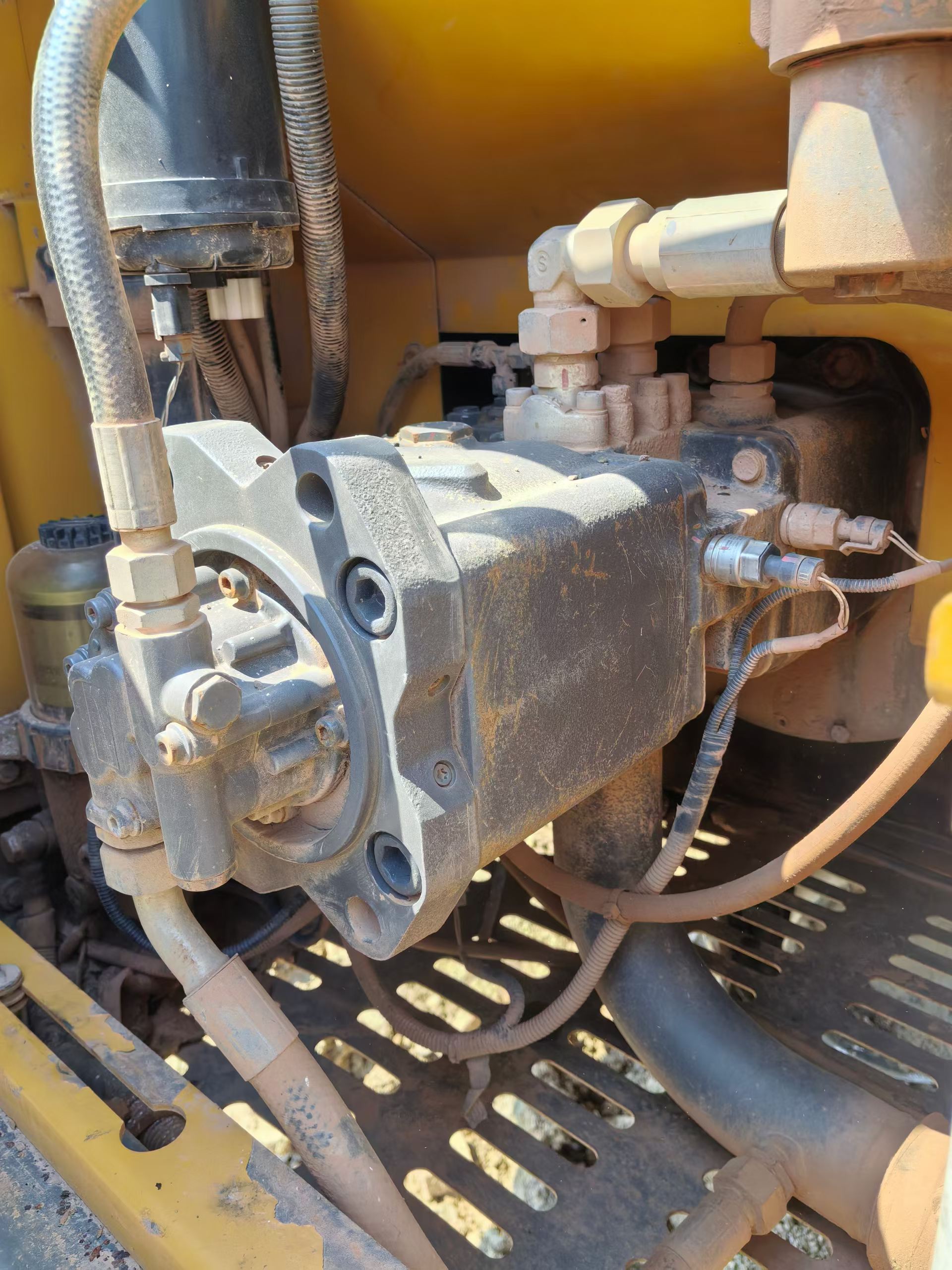

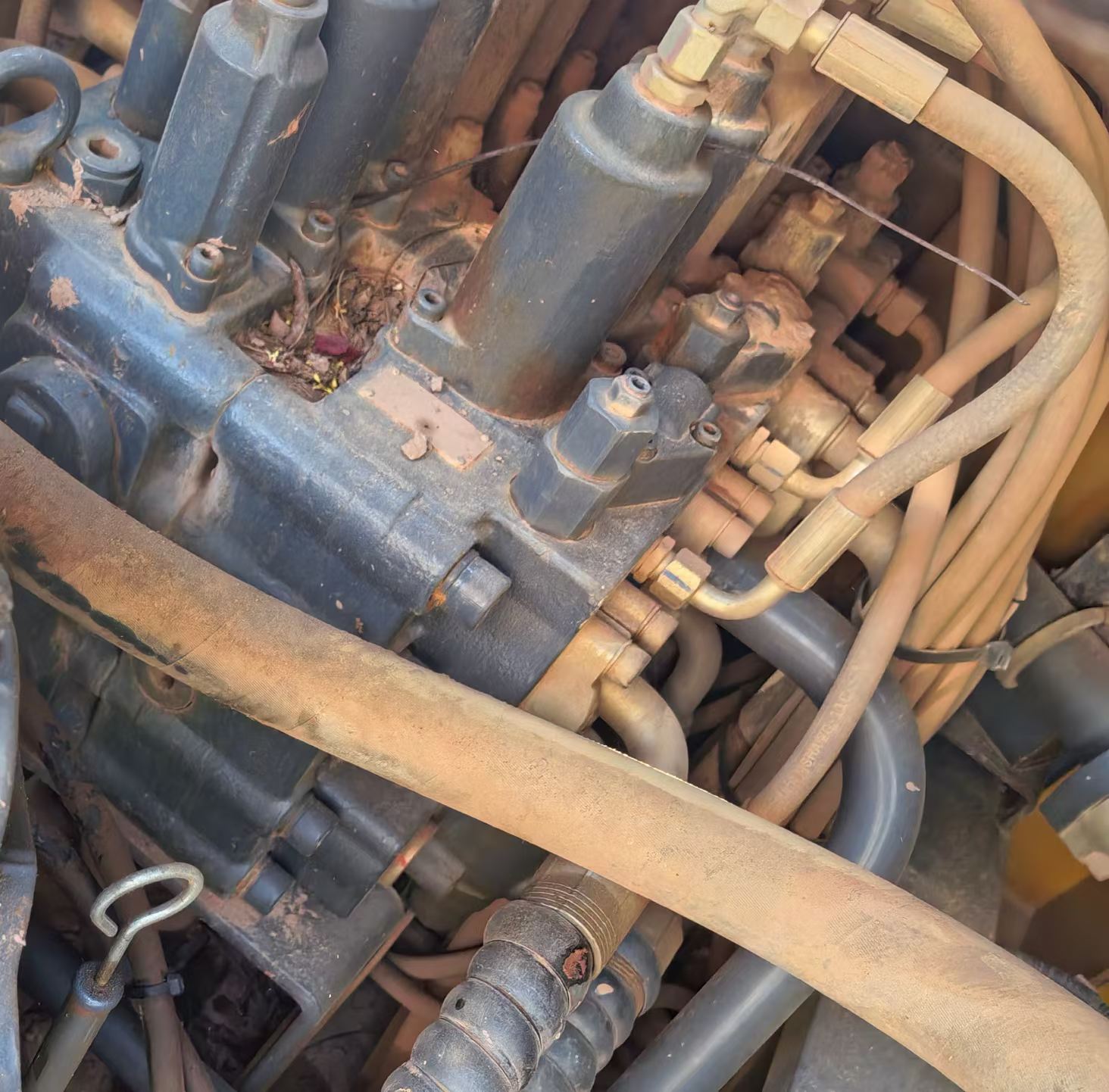

Currently located in Jiangxi, China, this unit features original undercarriage components showing approximately 80% remaining life, significantly reducing near-term replacement costs. Major structural components and hydraulic systems are in strong operational condition, having passed recent performance evaluations.
- Year: 2020
- Model: XCMG XE200DA

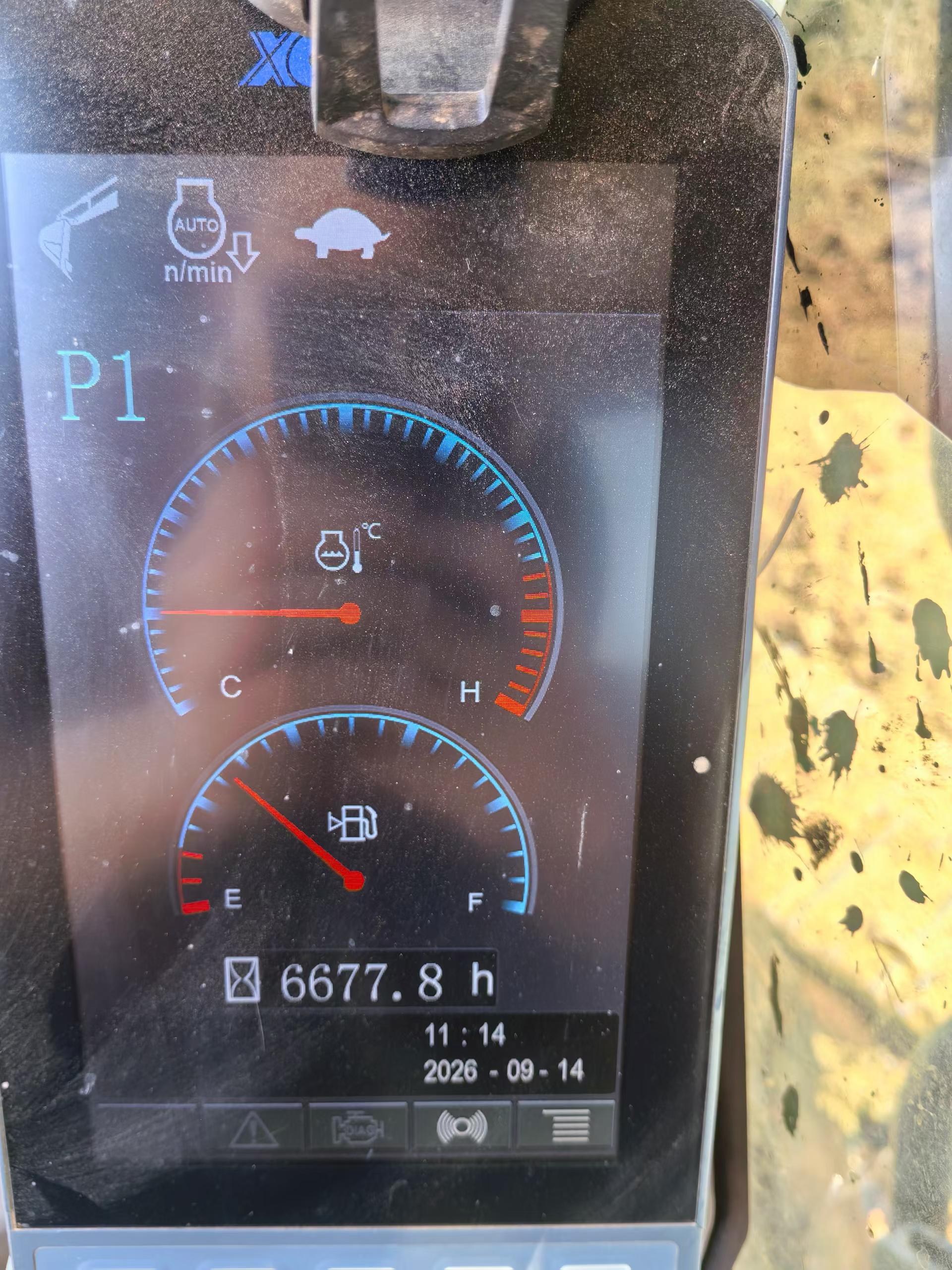

- Hours: 6,670
- Undercarriage: 80% original condition
- Location: Jiangxi, China
- Status: Ready for immediate deployment
Suitable for earthmoving, excavation, and general construction applications. Available for inspection by arrangement.
| Specifications | Value |
|---|---|
| No. | 1143917 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.93 |

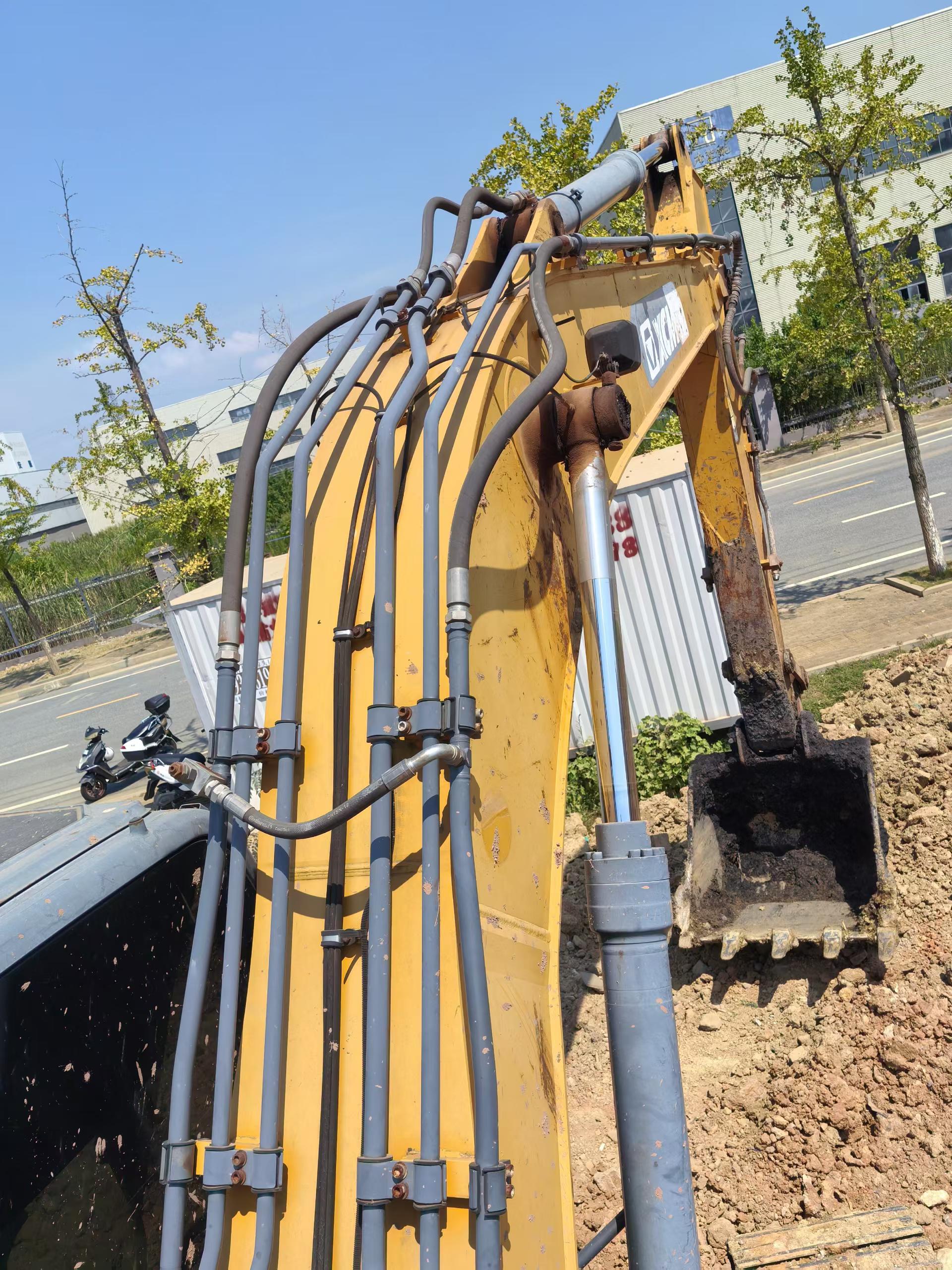

| Boom length (mm) | 5680 |
| Rod length (mm) | 2710 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

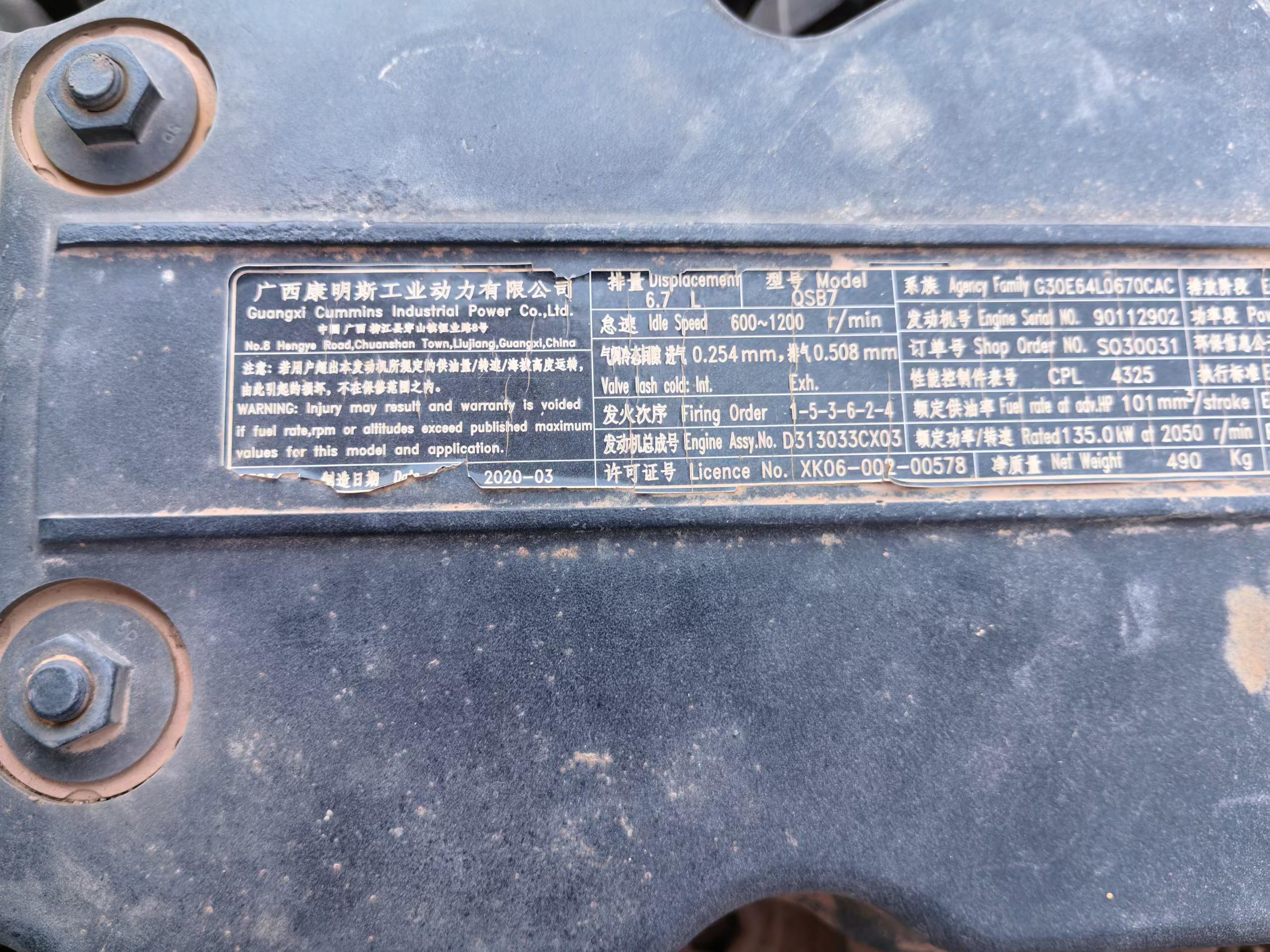

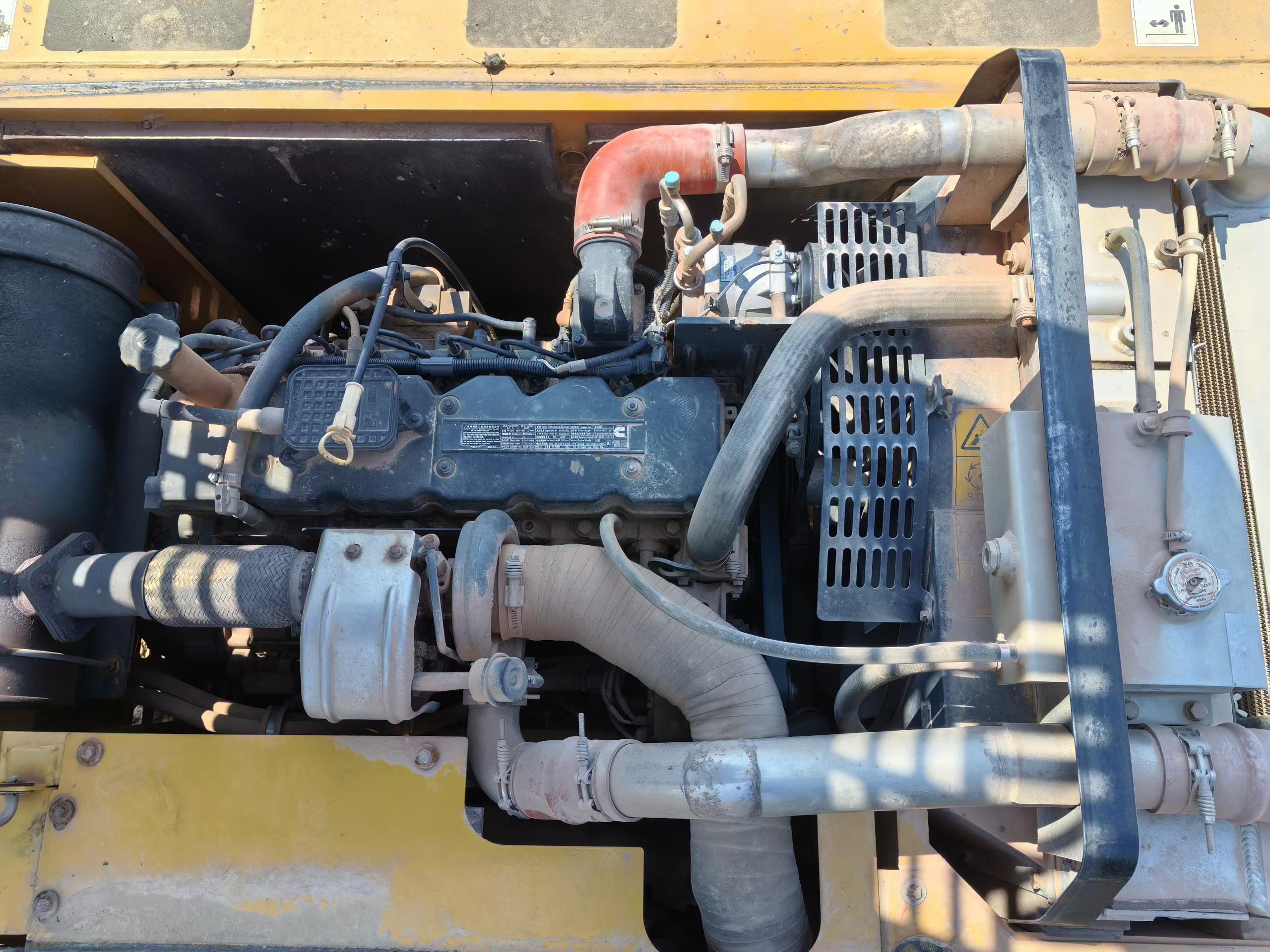

| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 46.9 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 121 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/2.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2900 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Maximum digging radius (mm) | 9790 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9680 |
| Maximum unloading height (mm) | 6815 |
| Maximum vertical digging depth (mm) | 5590 |
