Available now from stock in Zhejiang, China: a 2020 XCMG XE200DA crawler excavator, offered as a working machine that has seen regular site service. The XE200DA is a 20-ton class hydraulic excavator, a model widely deployed on earthmoving, trenching and general construction work across domestic and export markets. This unit is described by the seller as a "working machine" — it has been in active use rather than sitting idle, which means it starts, travels, swings and digs as it should.
- Year: 2020
- Brand / Model: XCMG XE200DA
- Class: 20-ton crawler excavator
- Location: Zhejiang, China
- Condition: used, in working order

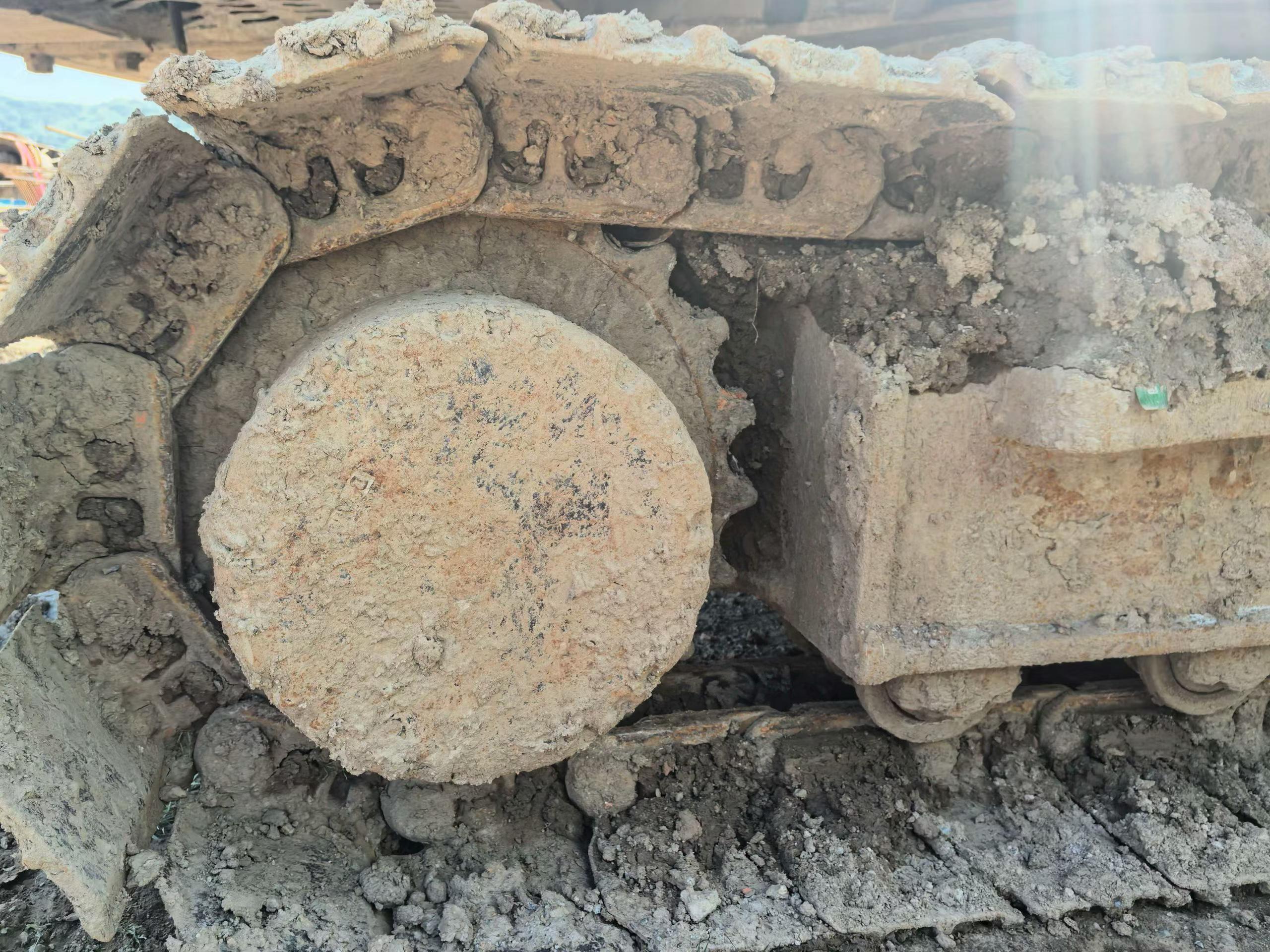

Because it has been a production machine, buyers should expect normal wear on undercarriage, pins and bushings, and hydraulic components. A full inspection, hour meter reading and undercarriage measurement can be arranged before purchase, and additional photos or a live video walkaround are available on request. Zhejiang loading is straightforward for container or flat-rack shipment. Contact us for current pricing and inspection scheduling.
| Specifications | Value |
|---|---|
| No. | 1157390 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2710 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 46.9 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 121 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/2.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2900 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Maximum digging radius (mm) | 9790 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9680 |
| Maximum unloading height (mm) | 6815 |
| Maximum vertical digging depth (mm) | 5590 |
