Product Description

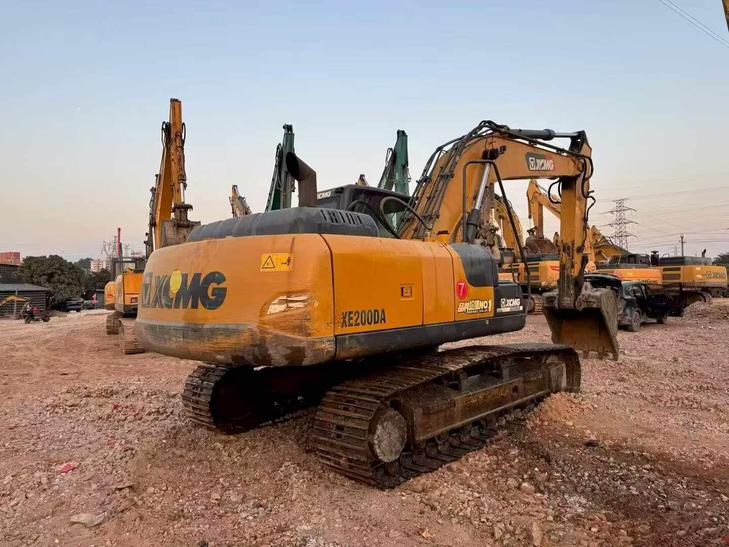

Engineered for precision and control, this 2022 XCMG XE200DA delivers consistent performance across demanding job sites. Operating at 21,200 kg working weight, the machine combines a robust QSB7 engine producing 135 kW at 2050 rpm with intelligent hydraulic systems designed for responsive handling. Operators benefit from stable platform dynamics with 46.9 kPa ground pressure distribution, enabling confident maneuvering on variable terrain while maintaining 35% climbing capability.
Cabin design prioritizes visibility and ergonomic control placement, critical for managing the 9,790 mm maximum digging radius and 6,460 mm depth range. The 11.6 rpm rotation speed provides smooth, predictable swing movements, while 149 kN bucket digging force and 121 kN rod force deliver reliable material penetration without compromising operator feedback.
- Working Weight: 21,200 kg
- Rated Power: 135 kW @ 2050 rpm (QSB7 engine)
- Bucket Capacity: 0.93 m³
- Maximum Digging Depth: 6,460 mm
- Ground Pressure: 46.9 kPa
- Location: Zhuhai, Guangdong, China
| Specifications | Value |
|---|---|
| No. | 1019006 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2710 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 135/2050 |
| Maximum torque (N.m) | 740/1250 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Ground specific pressure (Kpa) | 46.9 |
| Rotation speed (rpm) | 11.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 121 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.3/2.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 24 |
| Total transport length (mm) | 9625 |
| Total transport width (mm) | 2900 |
| Total transport height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 486 |
| Maximum digging radius (mm) | 9790 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 9680 |
| Maximum unloading height (mm) | 6815 |
| Maximum vertical digging depth (mm) | 5590 |
