Product Description

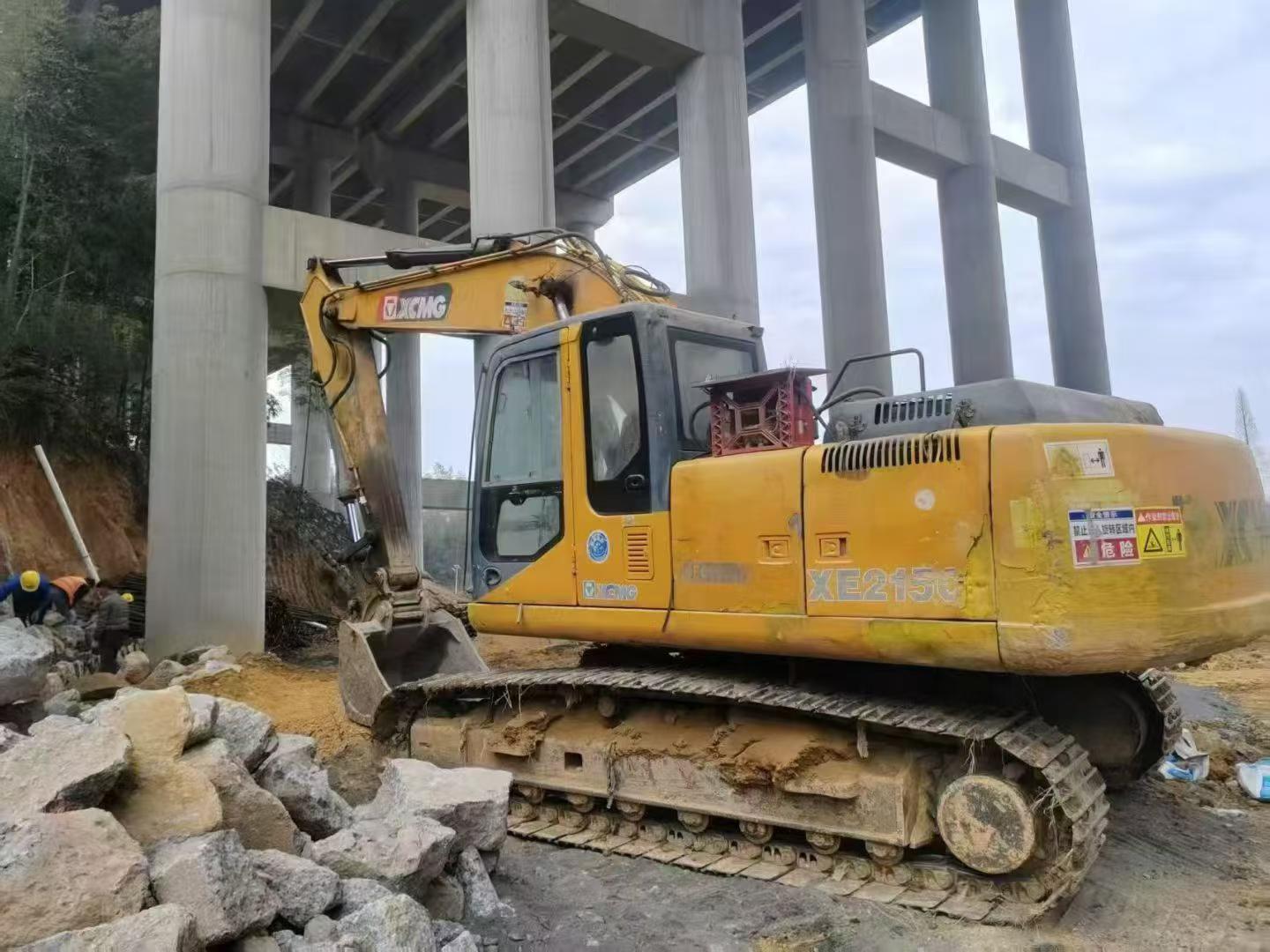

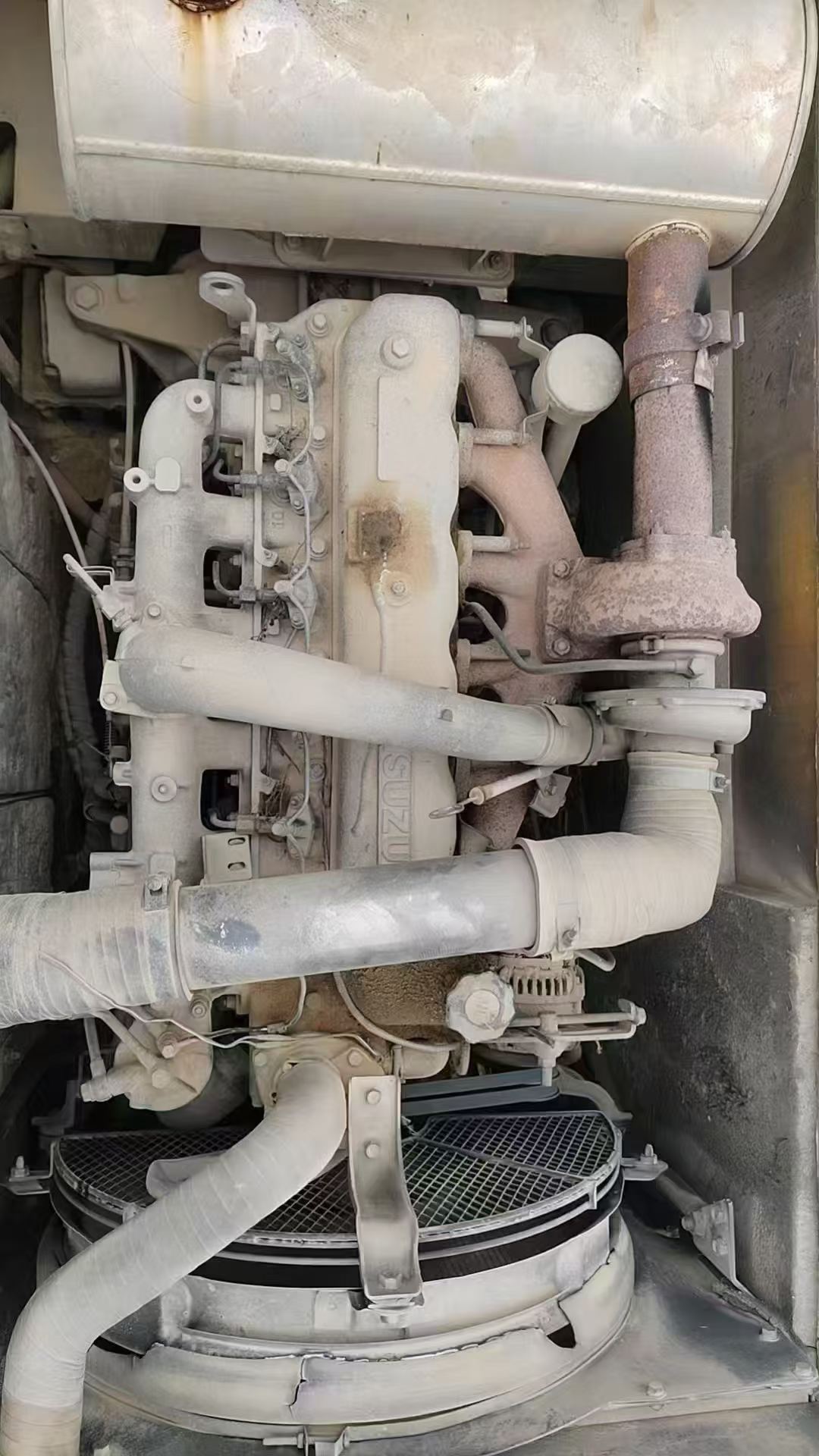

With a working weight of 21,500 kg and a bucket capacity of 0.93 m³, the 2013 XCMG XE215CA excavator is a robust choice for demanding construction projects. Located in Hunan, this machine is powered by an Isuzu CC-6BG1TRP engine, delivering 128.5 kW at 2100 rpm. Featuring a water-cooled, 6-cylinder, 4-stroke, turbocharged engine with air-to-air cooling, it ensures reliable performance even in challenging conditions.
- Boasting a maximum digging depth of 6655 mm and a maximum digging radius of 9925 mm, this excavator is designed for efficiency and precision.

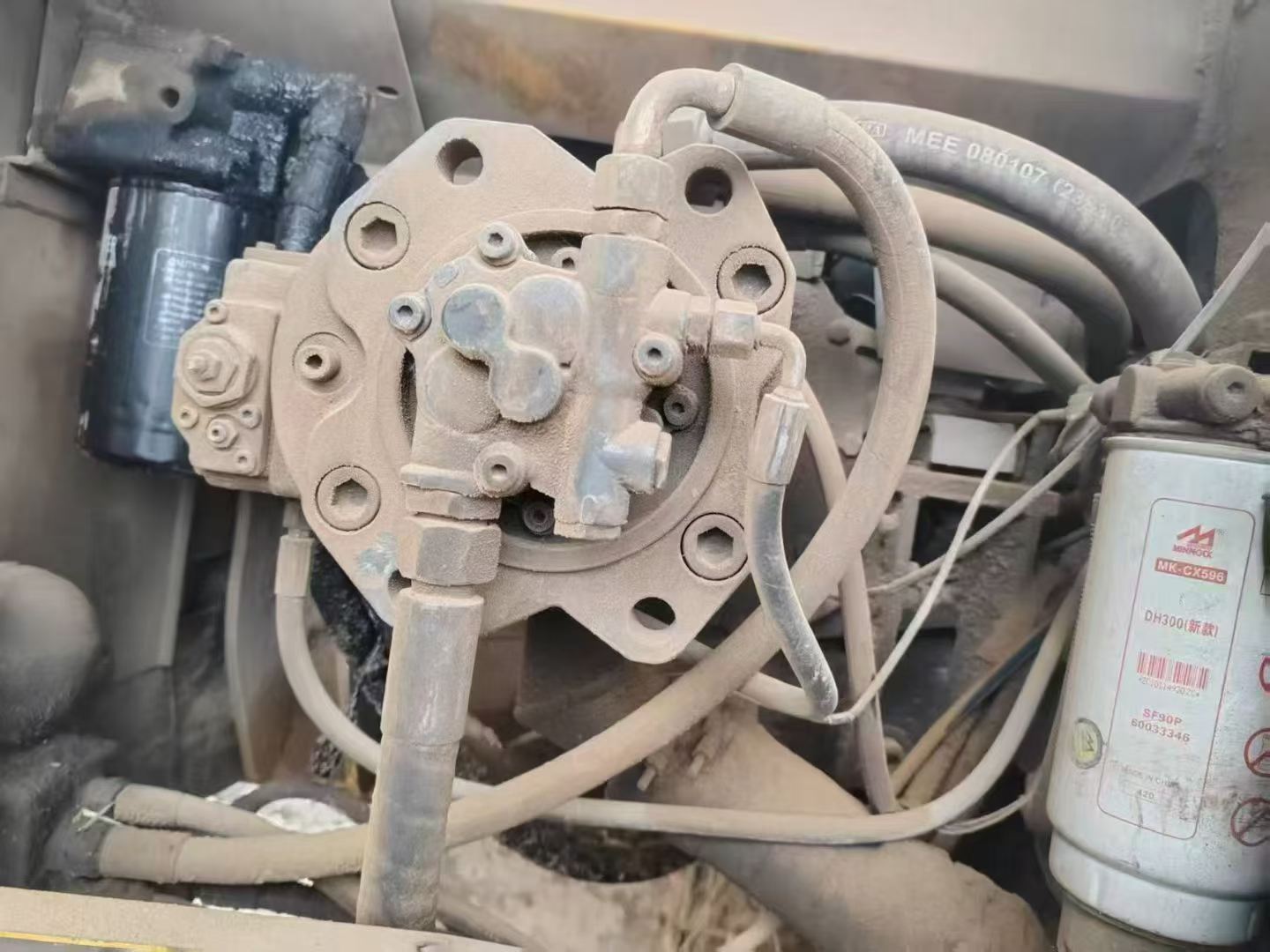

- Equipped with a 2 x 209 l/min main pump and a 34.3 Mpa traveling hydraulic circuit, it offers powerful and responsive operation.
- XCMG's reputation for durability and parts availability makes this model a safe investment, ensuring high resale value and minimal downtime.
| Specifications | Value |
|---|---|
| No. | 1004092 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu CC-6BG1TRP |
| Rated power (kw/rpm) | 128.5/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 637/1800 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cooling |
| Ground specific pressure (Kpa) | 45.5 |
| Rotation speed (rpm) | 13.3 |
| Climbing ability (%) | 35 or less |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 111 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.5/3.3 |
| Maximum flow of main pump (l/min) | 2 x 209 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Main pump type | 2 plunger pumps |
| Fuel Tank (L) | 360 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 25 |
| Total transport length (mm) | 9565 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3000 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2790 |
| Onboard width (mm) | 2710 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4270 |
| Maximum digging radius (mm) | 9925 |
| Maximum digging depth (mm) | 6655 |
| Maximum excavation height (mm) | 9640 |
| Maximum unloading height (mm) | 6800 |
| Maximum vertical digging depth (mm) | 5695 |
