Product Description
Strengthen your fleet capacity with this reliable 2014 XCMG XE215CA excavator, currently positioned in Guizhou and ready for immediate deployment. Operating at 21 tons with a robust 0.93 m³ bucket capacity, this machine delivers consistent performance across demanding jobsites. Powered by an Isuzu CC-6BG1TRP engine generating 128.5 kW at 2100 rpm, it provides dependable output for extended operational cycles.
Key specifications include:
- Maximum digging reach of 9925 mm with 6655 mm depth capability
- Bucket digging force: 149 kN; Rod digging force: 111 kN
- Dual plunger pumps delivering 2 × 209 l/min flow rate
- 360-liter fuel capacity for prolonged runtime between refills
- 35% climbing ability for versatile terrain navigation
Built for contractors managing multiple projects simultaneously, this excavator integrates seamlessly as a backup unit or fleet expansion. Water-cooled turbocharged engine with air-to-air intercooling ensures thermal stability during continuous operation. Compact transport dimensions (9565 × 2990 × 3000 mm) facilitate efficient mobilization between sites. Add proven Chinese manufacturing quality to your equipment roster without compromising produ
| Specifications | Value |
|---|---|
| No. | 999315 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

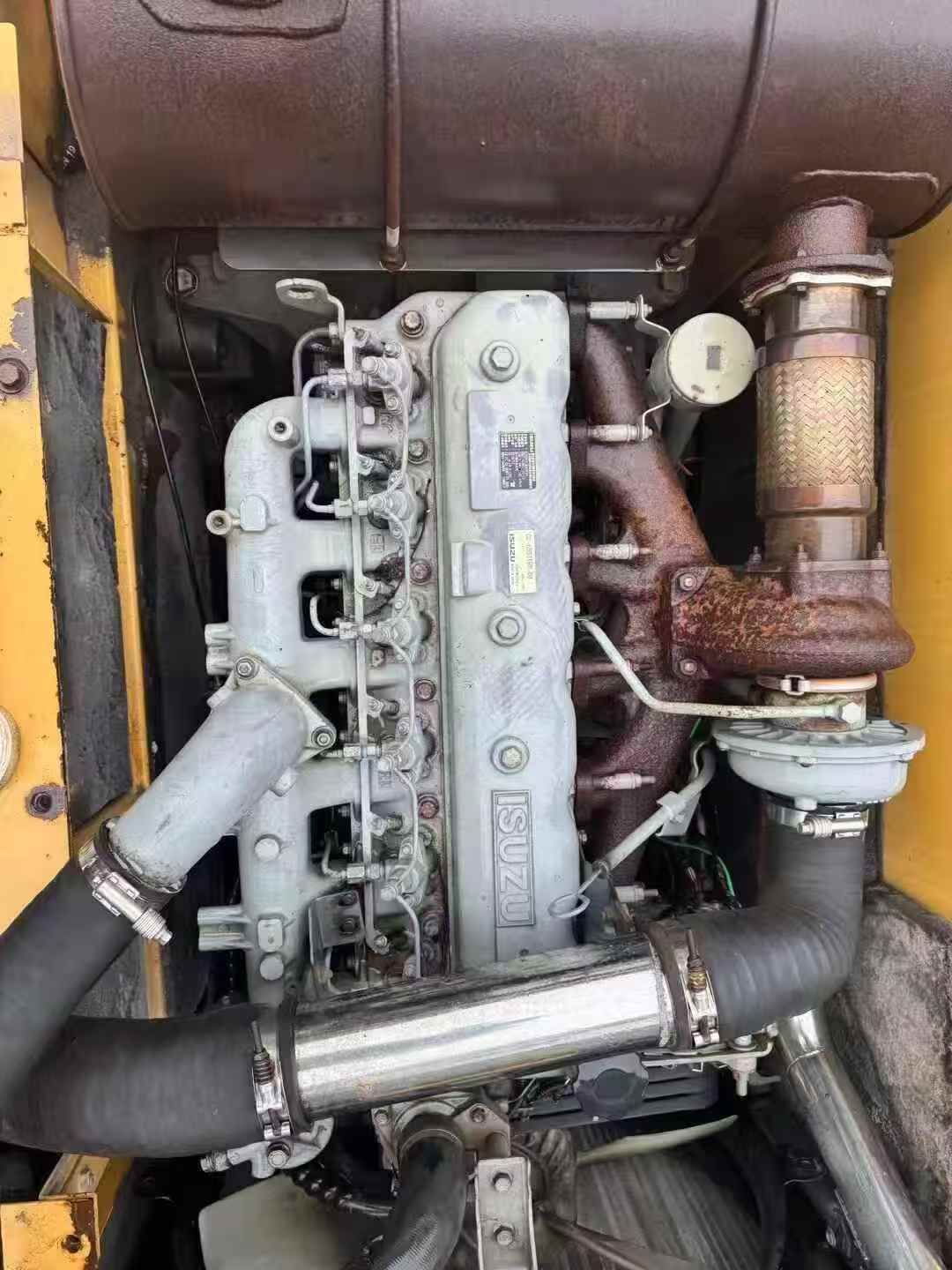

| Engine type | Isuzu CC-6BG1TRP |
| Rated power (kw/rpm) | 128.5/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 637/1800 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cooling |
| Ground specific pressure (Kpa) | 45.5 |
| Rotation speed (rpm) | 13.3 |
| Climbing ability (%) | 35 or less |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 111 |
| Maximum tractive force (kN) | 184 |
| Travel speed (km/h) | 5.5/3.3 |
| Maximum flow of main pump (l/min) | 2 x 209 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Main pump type | 2 plunger pumps |
| Fuel Tank (L) | 360 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 25 |
| Total transport length (mm) | 9565 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3000 |
| Counterweight ground clearance (mm) | 1050 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2790 |
| Onboard width (mm) | 2710 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4270 |
| Maximum digging radius (mm) | 9925 |
| Maximum digging depth (mm) | 6655 |
| Maximum excavation height (mm) | 9640 |
| Maximum unloading height (mm) | 6800 |
| Maximum vertical digging depth (mm) | 5695 |
