Product Description

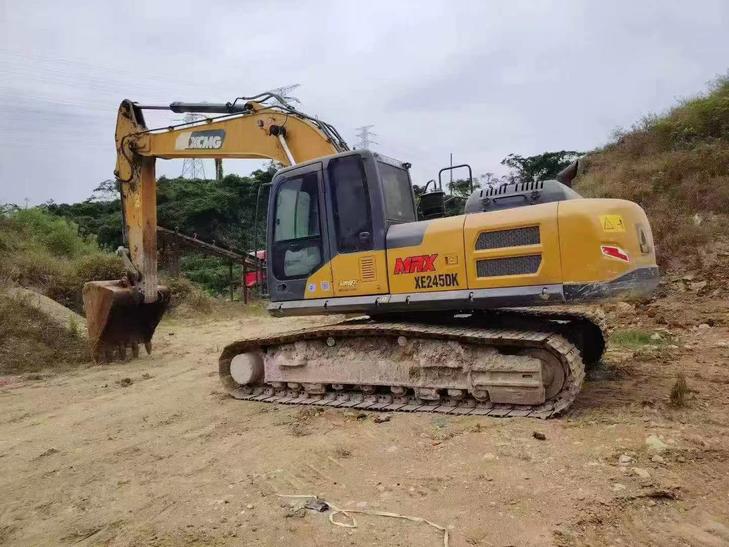

XCMG XE245DK hydraulic excavator from 2021, currently located in Zhejiang, China. This earthmoving-focused machine has been dedicated to excavation and grading operations, offering reliable performance for mid-sized construction and infrastructure projects.
- Year of Manufacture: 2021
- Model: XE245DK MAX
- Operating Weight Class: Approximately 24-25 metric tons
- Primary Application: Earthmoving and excavation
- Condition: Used, verified hours and documentation available
- Current Location: Zhejiang Province, China
The XE245DK series is known for its fuel efficiency and robust undercarriage design, making it suitable for demanding site conditions. This unit has been maintained for earthwork applications and is ready for inspection. Interested buyers should contact the seller directly to arrange viewing and discuss shipping logistics for international or domestic delivery.
| Specifications | Value |
|---|---|
| No. | 1167796 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 0.9-1.4 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2964 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSB7 |
| Rated power (kw/rpm) | 150/2050 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 56.7 |
| Rotation speed (rpm) | 11.2 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 185 |
| Rod digging force (kN) | 129 |
| Maximum tractive force (kN) | 199 |
| Travel speed (km/h) | 5.3/3.6 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 19.5 |
| Total transport length (mm) | 10170 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3130 |
| Counterweight ground clearance (mm) | 1062 |
| Minimum ground clearance (mm) | 1062 |
| Minimum turning radius of front working device (mm) | 3510 |
| Back end turning radius (mm) | 2955 |
| Total track length (mm) | 4445 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 3190 |
| Maximum digging radius (mm) | 10240 |
| Maximum digging depth (mm) | 6972 |
| Maximum excavation height (mm) | 10048 |
| Maximum unloading height (mm) | 7123 |
| Maximum vertical digging depth (mm) | 5567 |
