Product Description

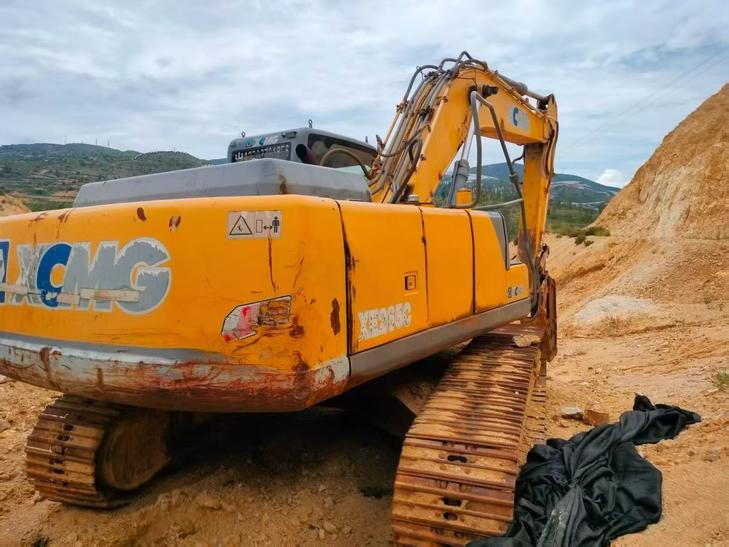

Discover the 2013 XCMG XE265C, a robust and reliable excavator, currently available in Yunnan, China. This used heavy machine is equipped with both a hammer and a bucket, making it versatile for a wide range of construction and excavation tasks. With an operational history of over 70,000 hours, this XE265C has proven its durability and efficiency on various job sites. Ideal for contractors and construction firms looking for a cost-effective solution without compromising on quality and performance.
- Year: 2013
- Brand: XCMG
- Model: XE265C
- Location: Yunnan, China
- Equipped with hammer and bucket
- Total operational hours: Over 70,000
| Specifications | Value |
|---|---|
| No. | 1120677 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.05 ~ 1.25 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2960 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | ISUZU CC-6BG1TRP-05 |
| Rated power (kw/rpm) | 135.5/2150 |
| Maximum torque (N.m/rpm) | 637 |
| Ground specific pressure (Kpa) | 50.1 |
| Rotation speed (rpm) | 11.3 |
| Climbing ability (%) | 35 or less |
| Bucket digging force (kN) | 161 |
| Rod digging force (kN) | 125 |
| Maximum tractive force (kN) | 194 |
| Travel speed (km/h) | 5.9/4.0 |
| Main overflow set pressure (Mpa) | 34.3/37 |
| Maximum flow of main pump (l/min) | 2 x 256 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Main pump type | 2 plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 240 |
| Engine Oil changes (L) | 25 |
| Total transport length (mm) | 10160 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3100 |
| Minimum turning radius of front working device (mm) | 3850 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 10240 |
| Maximum digging depth (mm) | 6895 |
| Maximum excavation height (mm) | 9662 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5480 |
| Maximum excavation radius of stop surface (mm) | 6750 |
