Product Description
Discover the exceptional 2015 XCMG XE265C, a robust and reliable excavator available in Yunnan, China. This machine is part of the final batch featuring direct injection technology, ensuring optimal performance and fuel efficiency. The XE265C boasts an outstanding exterior condition, reflecting its meticulous maintenance and operational care. Ideal for demanding construction and excavation projects, this model offers a blend of durability and functionality. With a competitive price point, it presents a cost-effective solution for businesses looking to enhance their fleet with high-quality, pre-owned equipment.
- Year: 2015
- Brand: XCMG
- Model: XE265C
- Location: Yunnan, China
- Condition: Excellent exterior, well-maintained
- Features: Direct injection engine technology
| Specifications | Value |
|---|---|
| No. | 1165014 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25500 |
| Bucket capacity (m³) | 1.05 ~ 1.25 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2960 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

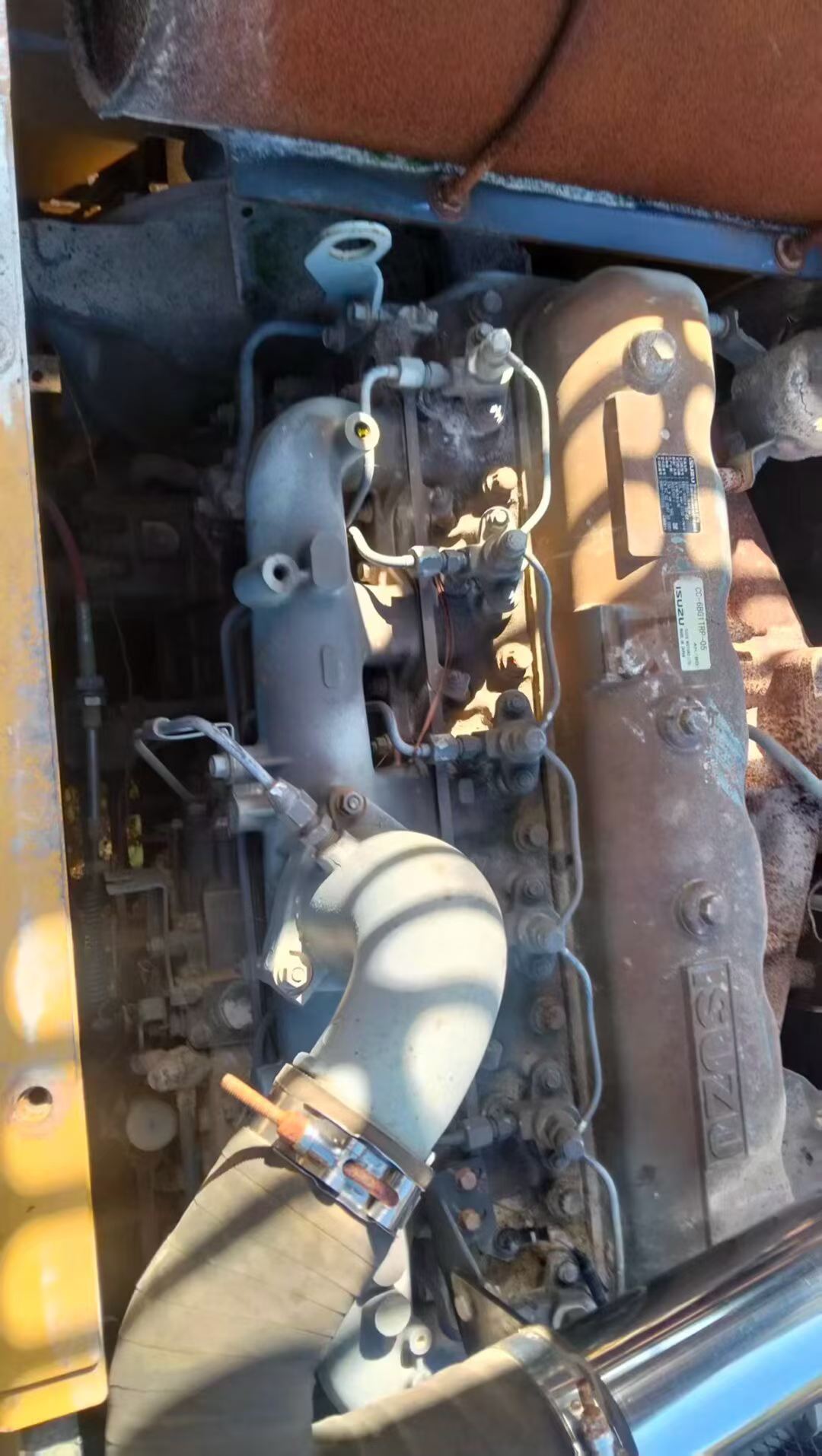

| Engine type | ISUZU CC-6BG1TRP-05 |
| Rated power (kw/rpm) | 135.5/2150 |
| Maximum torque (N.m/rpm) | 637 |
| Ground specific pressure (Kpa) | 50.1 |
| Rotation speed (rpm) | 11.3 |
| Climbing ability (%) | 35 or less |
| Bucket digging force (kN) | 161 |
| Rod digging force (kN) | 125 |
| Maximum tractive force (kN) | 194 |
| Travel speed (km/h) | 5.9/4.0 |
| Main overflow set pressure (Mpa) | 34.3/37 |
| Maximum flow of main pump (l/min) | 2 x 256 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Main pump type | 2 plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 240 |
| Engine Oil changes (L) | 25 |
| Total transport length (mm) | 10160 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3100 |
| Minimum turning radius of front working device (mm) | 3850 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 10240 |
| Maximum digging depth (mm) | 6895 |
| Maximum excavation height (mm) | 9662 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5480 |
| Maximum excavation radius of stop surface (mm) | 6750 |
