2016 XCMG XE335C

1/3
Used XCMG XE335C Excavator 2016 Model / 1
Used XCMG XE335C Excavator 2016 Model / 2

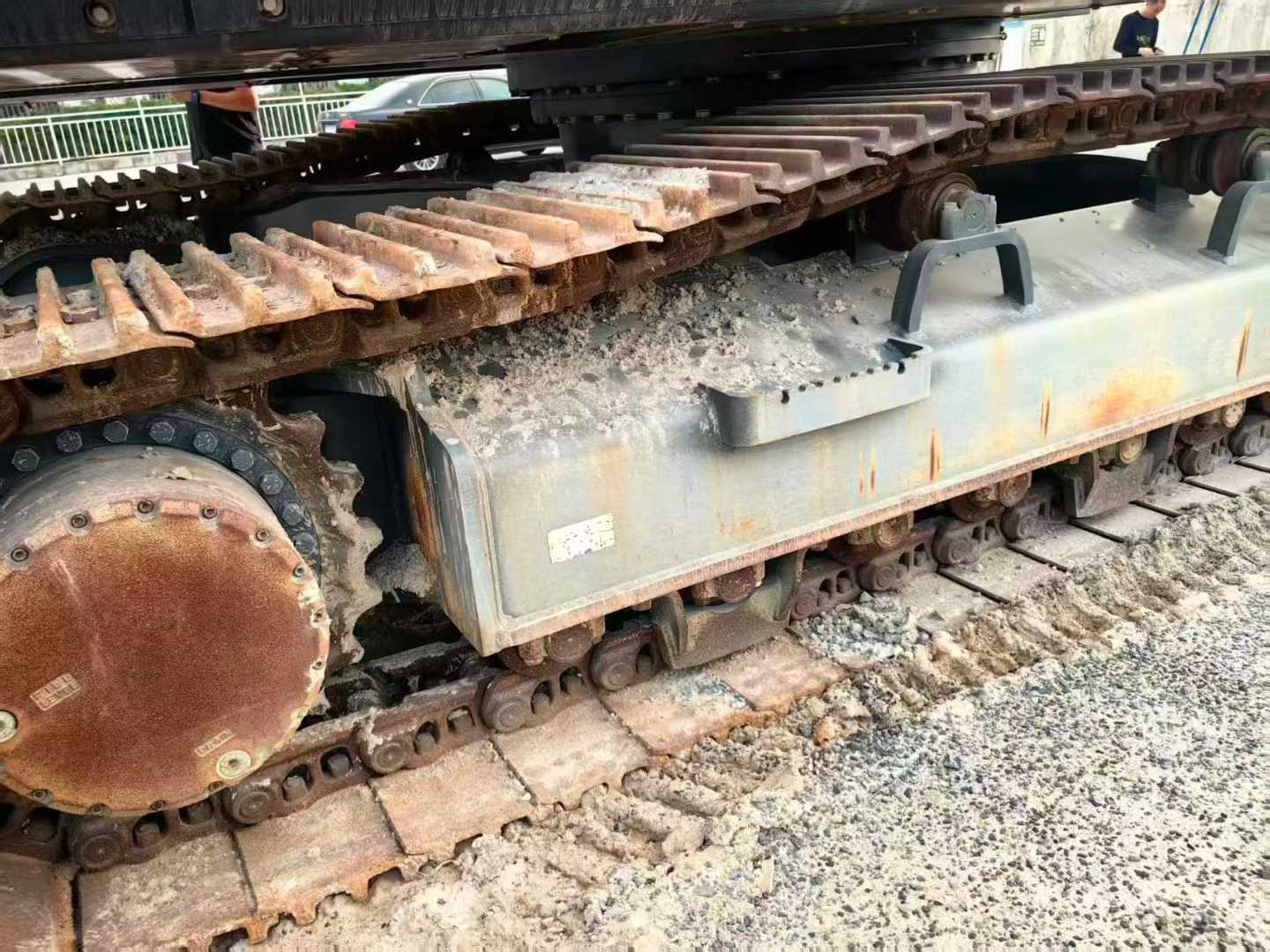

Used XCMG XE335C Excavator 2016 Model / 3

Product Description

Proven in demanding conditions since 2016, this XCMG XE335C excavator delivers the reliability heavy operations require. With a robust 33-ton working weight and powerful ISUZU 6-cylinder engine producing 184kW at 2000rpm, this machine has established itself as a dependable workhorse across construction and mining sites. The 7.79L turbocharged, water-cooled engine provides consistent performance, while the dual plunger hydraulic system ensures precise control during extended shifts.

Built to last, this Chinese-manufactured excavator features impressive reach capabilities—10,720mm maximum digging radius and 6,912mm digging depth—backed by substantial bucket digging force of 263kN. The 1.4-1.6m³ bucket capacity and 6,400mm boom length maintain productivity across diverse applications. Currently located in Shenzhen, Guangdong, this XE335C represents years of proven field performance. Its 35° climbing ability and 66Kpa ground pressure demonstrate engineering designed for challenging terrain, while the 630L fuel tank supports uninterrupted operation. A reliable choice for operators seeking tested durability over flashy features.

SpecificationsValue
No.1019432
Tonnage (tons)33
Working weight (kg)33800
Bucket capacity (m³)1.4-1.6
Boom length (mm)6400
Rod length (mm)2670
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeThe ISUZU Isuzu
Rated power (kw/rpm)184/2000
Cooling modewater-cooling
Number of cylinders (PCS)6
Displacement (L)7.79
Working formTurbocharged/air-to-air cooling
Ground specific pressure (Kpa)66
Rotation speed (rpm)9.7
Climbing ability (%)35 °
Bucket digging force (kN)263
Rod digging force (kN)225
Travel speed (km/h)5.5/3.3
Main overflow set pressure (Mpa)34.3/37
Maximum flow of main pump (l/min)2*280
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)26.5
Hydraulic crushing pipeline is standardno
Main pump typeTwo plunger pumps
Pilot pump flow (L/min)3.9
Fuel Tank (L)630
Hydraulic Tank (L)320
Engine Oil changes (L)28
Total transport length (mm)11226
Total transport width (mm)3190
Total transport height (mm)3330
Counterweight ground clearance (mm)1170
Minimum ground clearance (mm)495
Minimum turning radius of front working device (mm)4424
Back end turning radius (mm)3450
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3183
Maximum digging radius (mm)10720
Maximum digging depth (mm)6912
Maximum excavation height (mm)10360
Maximum unloading height (mm)7134
Maximum vertical digging depth (mm)6480
see more

Overview

No.1019432

Brand Name:

XCMG

Model Number:

XE335C

Year:

2016

Location:

Guangdong China

Pub Date:
