Product Description

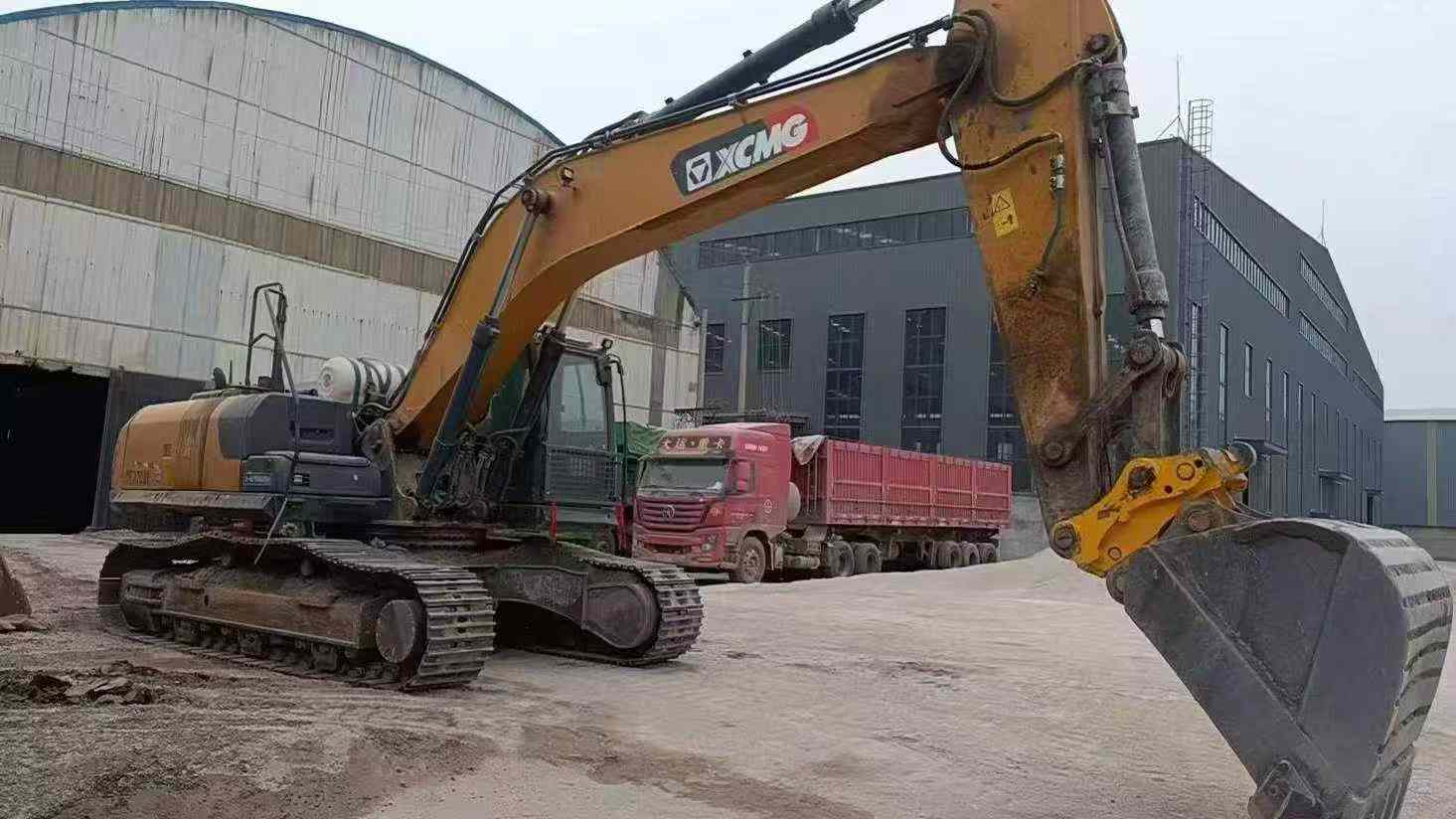

Expand your operational capacity with this 2020 XCMG XE335C hydraulic excavator, currently available in Shaoxing, Zhejiang. Built for high-volume contractors managing multiple job sites, this 33-ton machine delivers reliable backup power when your primary fleet is stretched thin. Equipped with an ISUZU turbocharged engine producing 184kW at 2000 rpm, it matches the output of your existing heavy equipment while maintaining fuel efficiency through its 7.79L displacement and water-cooled system.
- Working Weight: 33,800 kg with 1.4-1.6 m³ bucket capacity
- Reach Performance: 10,720 mm maximum digging radius, 6,912 mm digging depth
- Hydraulic System: Dual plunger pumps delivering 2×280 L/min at 34.3 MPa
- Digging Force: 263 kN bucket force, 225 kN arm force
- Mobility: 5.5 km/h travel speed, 35° climbing ability, 3,183 mm track contact length
Factory-direct from Xuzhou with standard backhoe configuration, this unit integrates seamlessly into mixed-brand fleets. Adequate fuel (630L) and hydraulic (320L) capacities minimize downtime during extended shifts.
| Specifications | Value |
|---|---|
| No. | 1019622 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 33800 |
| Bucket capacity (m³) | 1.4-1.6 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 2670 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | The ISUZU Isuzu |
| Rated power (kw/rpm) | 184/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Turbocharged/air-to-air cooling |
| Ground specific pressure (Kpa) | 66 |
| Rotation speed (rpm) | 9.7 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 263 |
| Rod digging force (kN) | 225 |
| Travel speed (km/h) | 5.5/3.3 |
| Main overflow set pressure (Mpa) | 34.3/37 |
| Maximum flow of main pump (l/min) | 2*280 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot pump flow (L/min) | 3.9 |
| Fuel Tank (L) | 630 |
| Hydraulic Tank (L) | 320 |
| Engine Oil changes (L) | 28 |
| Total transport length (mm) | 11226 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3330 |
| Counterweight ground clearance (mm) | 1170 |
| Minimum ground clearance (mm) | 495 |
| Minimum turning radius of front working device (mm) | 4424 |
| Back end turning radius (mm) | 3450 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3183 |
| Maximum digging radius (mm) | 10720 |
| Maximum digging depth (mm) | 6912 |
| Maximum excavation height (mm) | 10360 |
| Maximum unloading height (mm) | 7134 |
| Maximum vertical digging depth (mm) | 6480 |
