Product Description

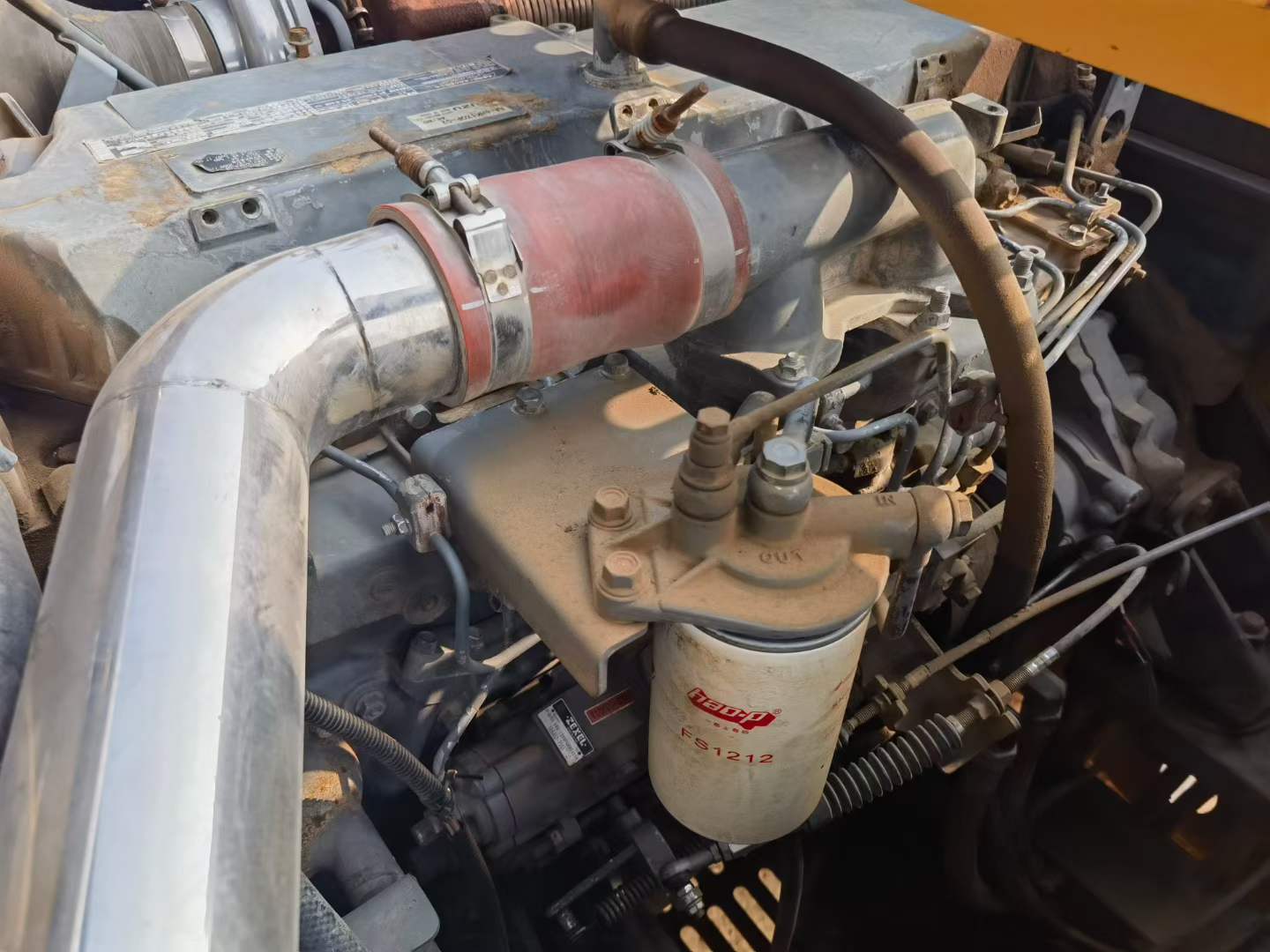

Built for demanding excavation work, this 37-ton hydraulic excavator delivers immediate productivity on any jobsite. Powered by a robust ISUZU 6-cylinder engine generating 184kW at 2000rpm, this machine tackles heavy digging, grading, and demolition tasks with authority. The 1.4-1.8m³ backhoe bucket configuration provides exceptional material handling capacity, while 242kN bucket digging force and 207kN arm digging force ensure efficient penetration through tough ground conditions.
Performance specifications include a maximum digging reach of 10,720mm and depth capability of 6,893mm, making it ideal for deep foundation work and large-scale earthmoving operations. The dual plunger pump hydraulic system delivers 2×320 L/min flow for responsive control and smooth operation. With a 6,400mm boom and 2,670mm arm, this excavator offers versatile working ranges for trenching, loading, and site preparation.
Located in Shandong, this 2014 XCMG XE370CA arrives ready for immediate deployment. Water-cooled turbocharged engine, 630L fuel capacity, and proven reliability make it a practical choice for contractors requiring consistent performance across multiple applications.
| Specifications | Value |
|---|---|
| No. | 1005776 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 36600 |
| Bucket capacity (m³) | 1.4-1.8 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 2670 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | The ISUZU Isuzu |
| Rated power (kw/rpm) | 184/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection; 4 strokes; Water cooling; Turbocharging; Air to air cold; Maximum torque 872.8/1700N.m |
| Ground specific pressure (Kpa) | 66.6 |
| Rotation speed (rpm) | 9.7 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 242 |
| Rod digging force (kN) | 207 |
| Travel speed (km/h) | 5.4/3.2 |
| Main overflow set pressure (Mpa) | 31.5/34.3 |
| Maximum flow of main pump (l/min) | 2*320 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.5 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Two plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 630 |
| Hydraulic Tank (L) | 320 |
| Engine Oil changes (L) | 28 |
| Total transport length (mm) | 11226 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3350 |
| Counterweight ground clearance (mm) | 1197 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4424 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 5070 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging radius (mm) | 10720 |
| Maximum digging depth (mm) | 6893 |
| Maximum excavation height (mm) | 10379 |
| Maximum unloading height (mm) | 7153 |
| Maximum vertical digging depth (mm) | 6461 |
