Product Description

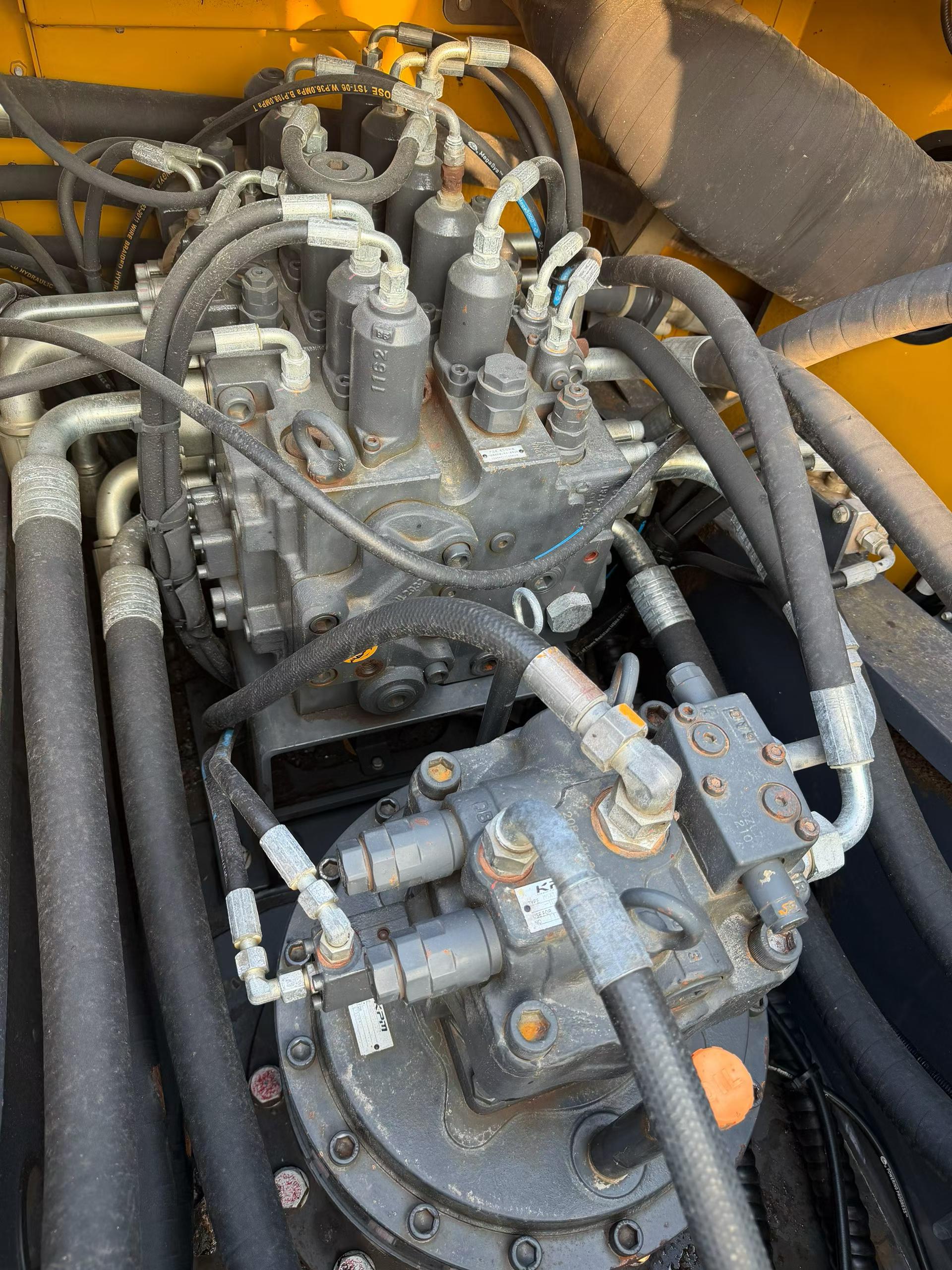

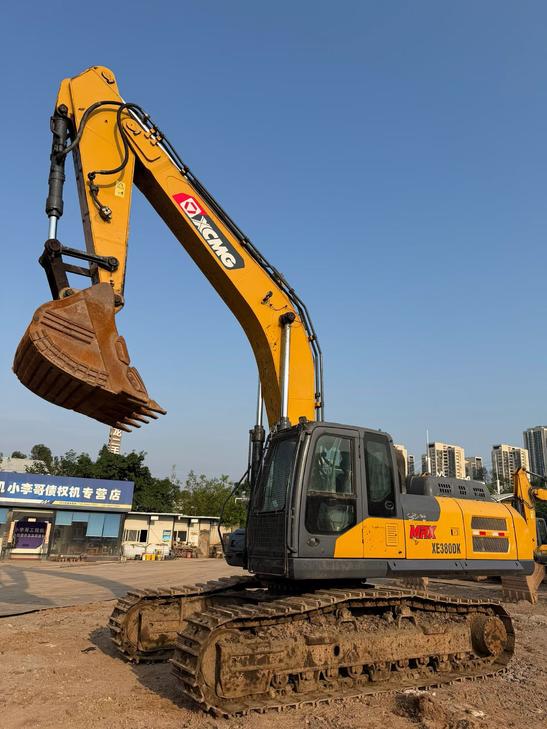

This 2021 XCMG XE380DK hydraulic excavator is available from Chongqing, China. The machine features well-maintained core components including engine, hydraulic pump, and main control valve. With low operating hours from late 2021 production, this 38-ton class excavator offers reliable performance for earthmoving, demolition, and heavy construction applications.
- Year: 2021
- Model: XCMG XE380DK
- Location: Chongqing, China
- Operating weight class: 38 tons
- Competitive pricing available
- Flexible purchase options including rental and installment plans
The XE380DK combines XCMG's proven engineering with fuel-efficient operation. Suitable for contractors and fleet operators seeking dependable medium-to-heavy excavation capacity. Contact us for detailed inspection reports, current availability, and export documentation assistance.
| Specifications | Value |
|---|---|
| No. | 1162582 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38200 |
| Bucket capacity (m³) | 1.9-2.3 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

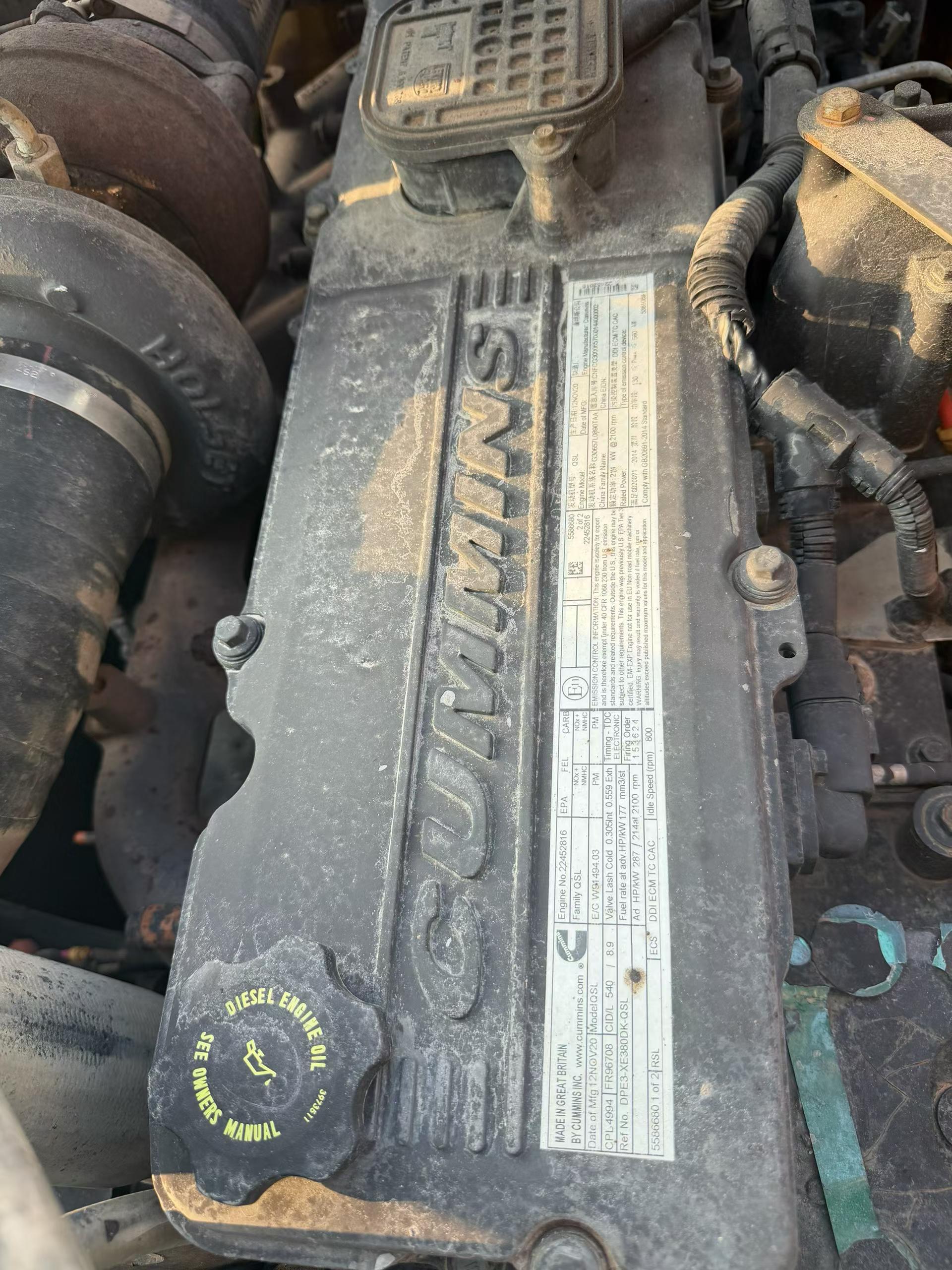

| Engine type | QSL9 |
| Rated power (kw/rpm) | 214/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 69 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 292 |
| Rod digging force (kN) | 209 |
| Maximum tractive force (kN) | 285 |
| Travel speed (km/h) | 5.6/3.3 |
| Fuel Tank (L) | 660 |
| Hydraulic Tank (L) | 350 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 11437 |
| Total transport width (mm) | 3225 |
| Total transport height (mm) | 3715 |
| Full cab height (mm) | 3050 |
| Counterweight ground clearance (mm) | 1227 |
| Minimum ground clearance (mm) | 505 |
| Minimum turning radius of front working device (mm) | 4560 |
| Back end turning radius (mm) | 3700 |
| Total track length (mm) | 5035 |
| Track gauge (mm) | 2590 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 10968 |
| Maximum digging depth (mm) | 7147 |
| Maximum excavation height (mm) | 10508 |
| Maximum unloading height (mm) | 7300 |
| Maximum vertical digging depth (mm) | 6542 |
